Kramer TBUS-6xl

Table Mount Modular Multi-Connection Solution - Manually Retracting Lid, 225×123mm cutout

Unpopulated

Kramer TBUS-6xl Table Mount Modular Multi-Connection Solution - Manually Retracting Lid, 225×123mm cutout product image

£165 (£198.00 inc. VAT)
Availability: In stock

Kramer TBUS-6xl (80-004199)

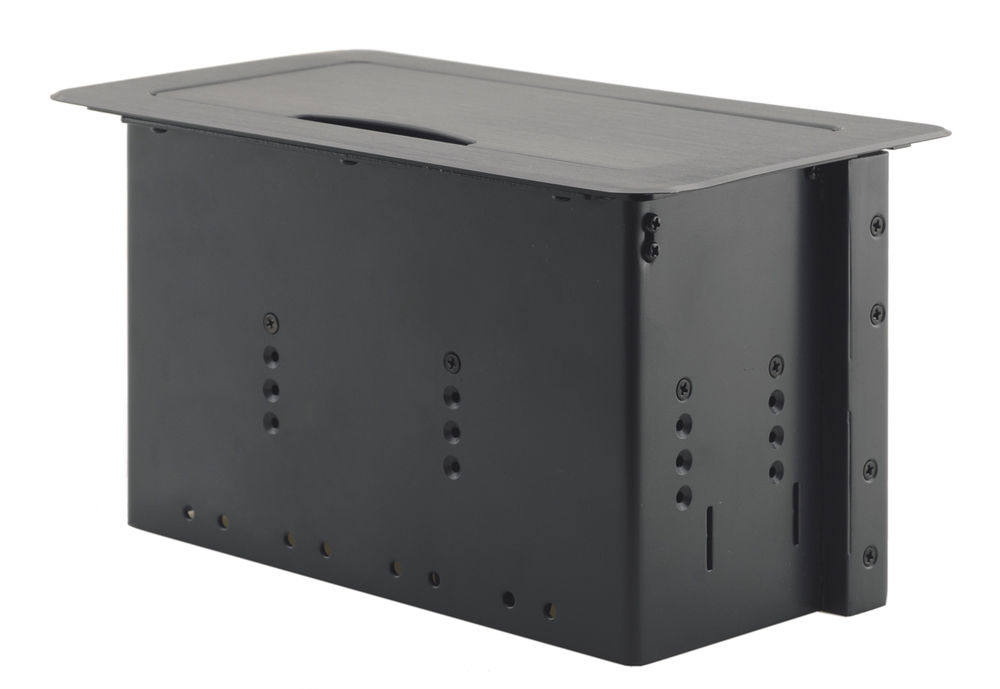

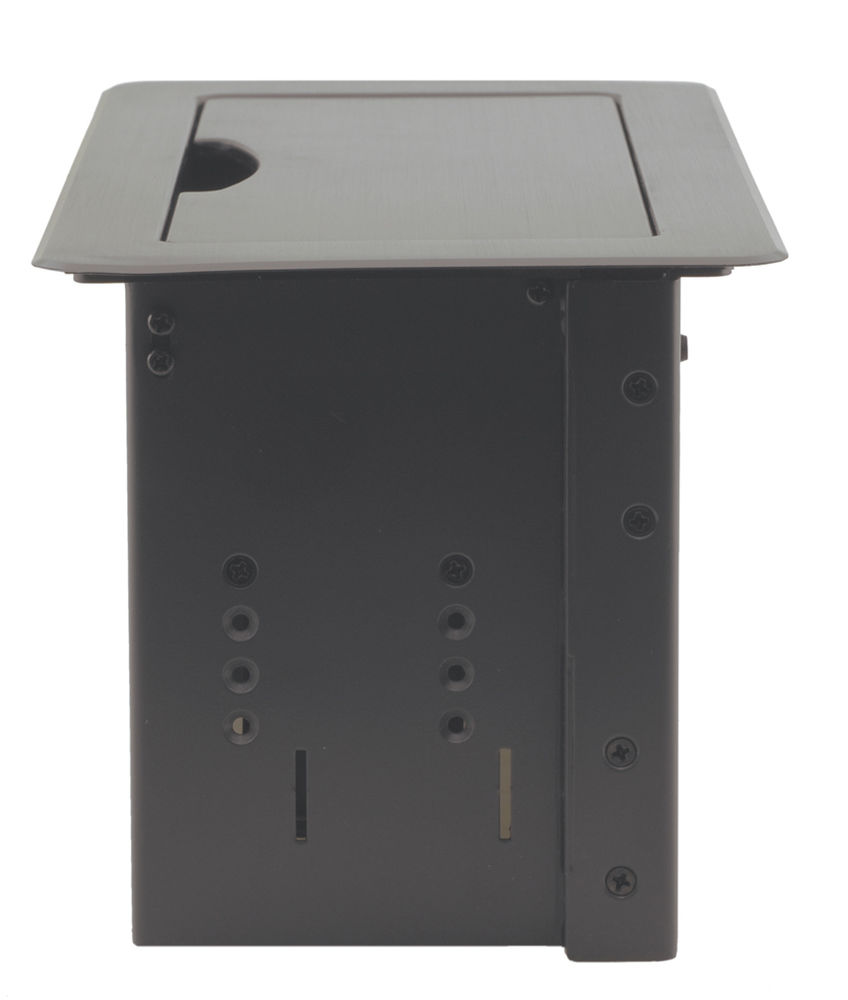

The Kramer TBUS-6xl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

Kramer TBUS-6xl Key Features

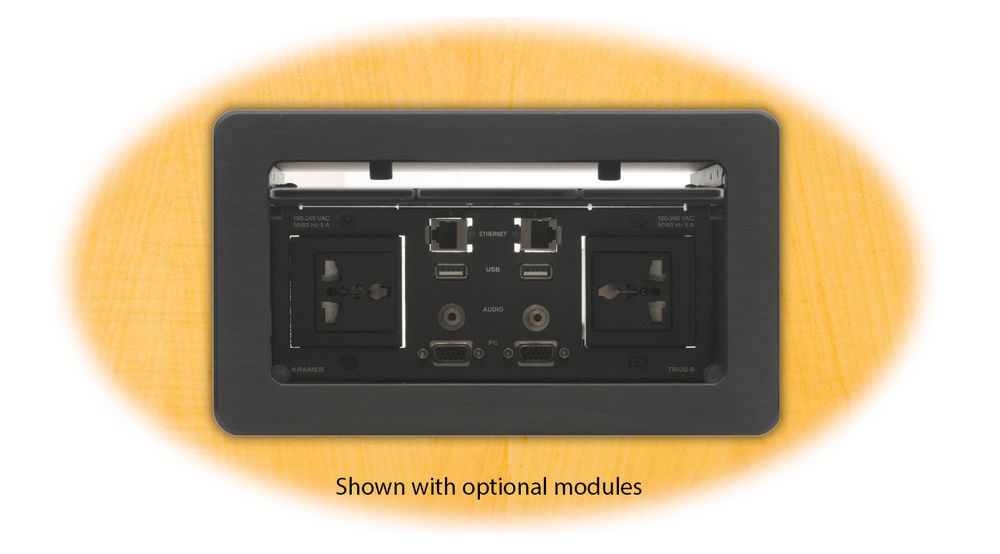

Inner Frame — 3 different "T3F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
Power Sockets — 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
Power Cord — 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket.
Optional Accessories — TBUS Brackets, K-Able Box Cable Reels, Step-In Modules and Controllers are available.

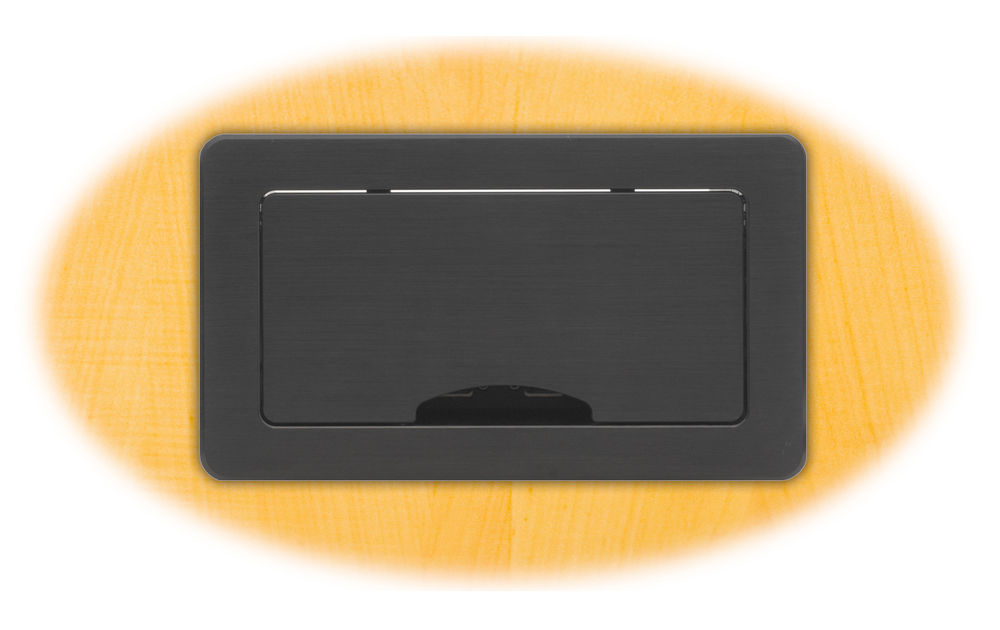

Retractable Lid — Manually slides into unit.
Connector Depth — Adjustable.
Installation Requirement — Table cutout of 225mm x 123mm (8.87" x 4.85").Weight | 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx.
In The Box — TBUS-6xl, Power cord, table clamps, self locking ties, template, template screws
Options — Insert kit
7 year warranty (Click Here for details)
Order Code: 80-004199

Instruction Manual
