Kramer RTBUS-28xl(BC)
Round Table Connection Bus with USB-C and USB-A fast charging ports Sand-blasted Anodized Aluminum Top finished in brushed carbon
£350 (£420.00 inc. VAT)
Availability: In stock
Availability: In stock
Kramer RTBUS-28xl(BC) (80-00030099)

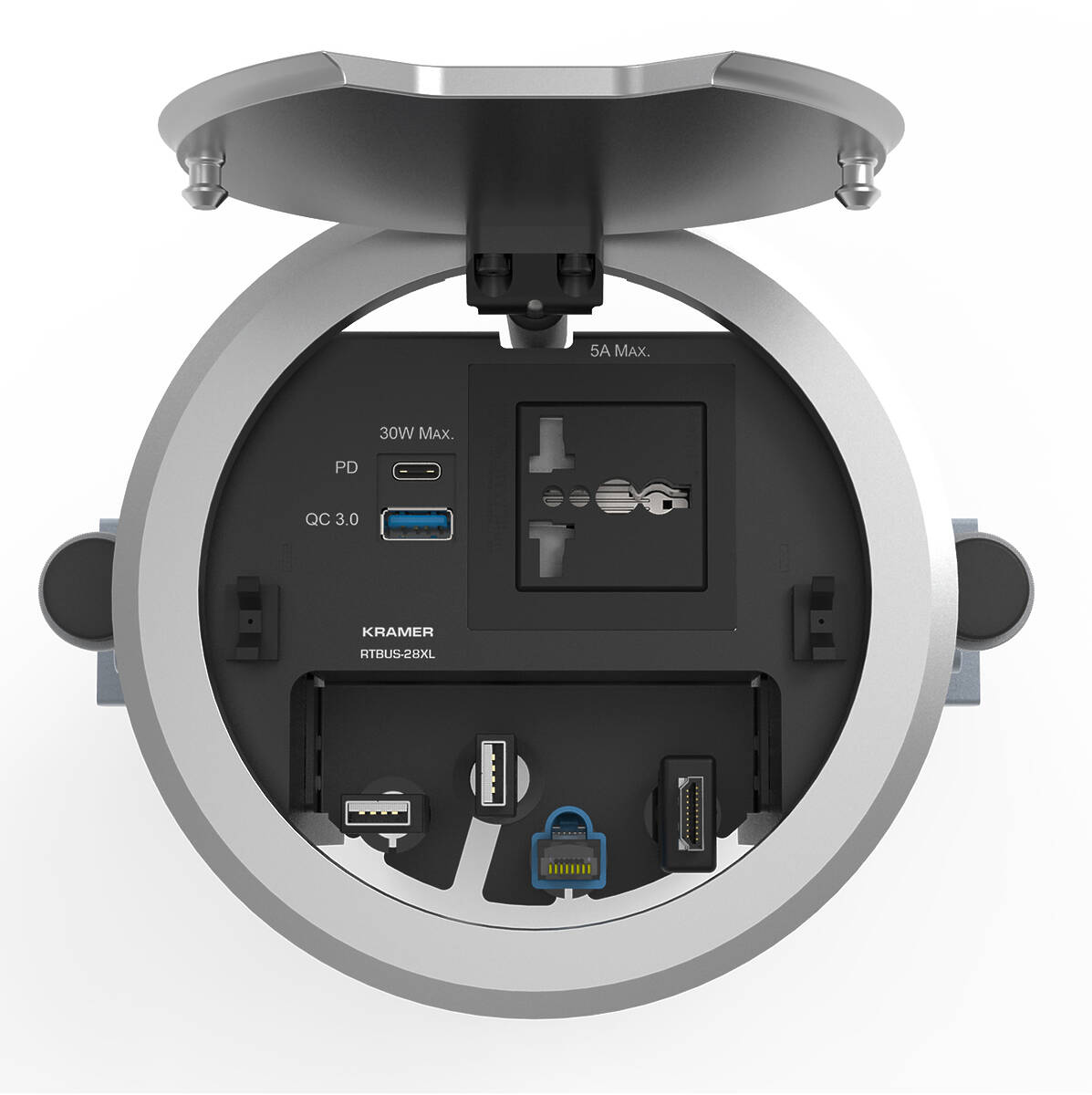

The Kramer RTBUS-28XL is an elegant furniture-mounted, round-connection bus. The RTBUS-28XL features a mechanism for pneumatic lifting and smooth closing of its lid. It is easily installed into a table or podium top. In addition, the unit connects AV equipment to the room's presentation system.
Kramer RTBUS-28xl(BC) Downloads
Kramer RTBUS-28xl(BC) Specifications
PORTS |
|
| USB-c | On a USB-C port (fast charge) |
| USB Type A | On a USB port (fast charge) |
USB FEATURES |
|
| Rated USB Output | DC 5 V |
| Protocol Type-a | QC 3.0 |
| Protocol Type-c | PD 5 |
| Output Power | 30W max |
| Output Current Voltage | Type-A5V=3A, 9V=3A, 12V=2.5A, 20V=1.5A |
| Type-C 5V=3A, 9V=3A, 12V=2.5A, 15V=2A, 20V=1.5A | |
| Note | Some laptops may require more than 30W power for charging. Additionally, when connecting USB-A in parallel, the USB-C port may not support laptop charging |
| Output Current Voltage | 5V=2.4A ( Type-A & Type-C) |
POWER |
|
| Power Socket Universal | 100-240V AC, 50/60Hz, 5A |
| maximum 5A per power outlet | |
| Fuse Rating | T 6.3A 250V |
| Options | TBUS AC Power Cord (C-AC/POWERCORD) power socket kits |
| Note | When using an IL plug, it is necessary to use straight configurations cable |
REGULATORY COMPLIANCE |
|
| Safety | CE |
| Environmental | RoHS, WEEE |
ENVIRONMENTAL CONDITIONS |
|
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |
GENERAL |
|
| Product Dimensions (diameter, H) | 15.5cm × 14.6cmm (6.1" × 5.7") |
| Shipping Dimensions | 27.5cm × 22cm × 19.5cm (10.8" × 8.7" × 7.7") (W×D×H) |
| Product Weight | 1.32kg (2.9lbs) approx |
| Shipping Weight | 1.9kg (4.2lbs) approx |

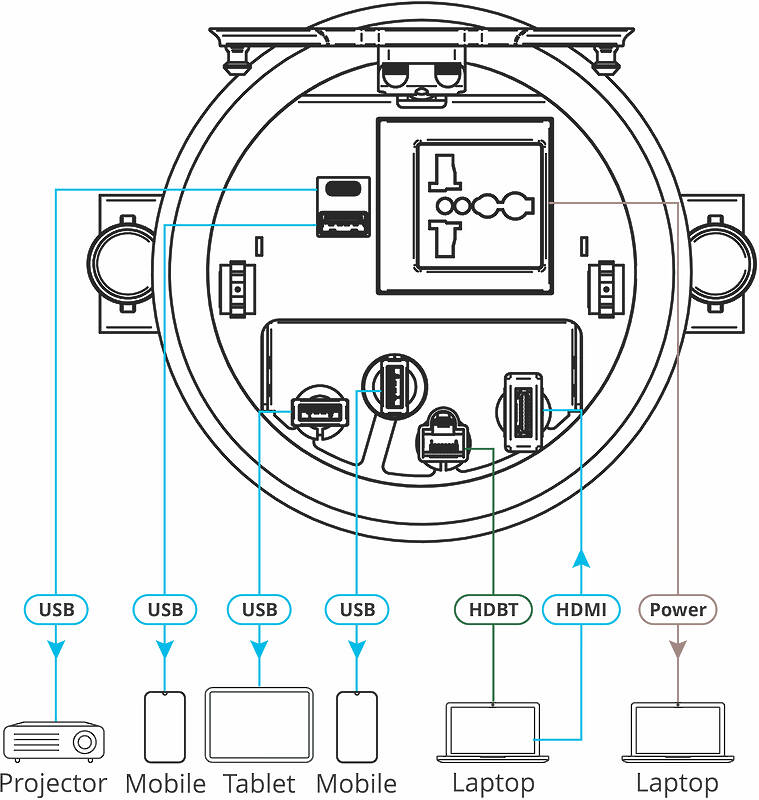

Kramer RTBUS-28xl(BC) Usage Diagram
Table/Surface Access mount modules
| Product | Description | Price | Inc. VAT |
| Kramer W-2Blank | Double Blank Plate for TBUS and Wall Plates | £4 | £4.80 |
| Kramer W-2UC | Dual USB Charger for TBUS and Wall Plates (Total 4A output; Includes power supply) | £82 | £98.40 |
| Kramer W-45 | Wall Plate Insert - RJ-45 | £17 | £20.40 |
| Kramer W-Blank | Blank plate for TBUS and wall plates | £3 | £3.60 |
| Kramer W-DP | DisplayPort wall plate and architectural solution module | £20 | £24.00 |
| Kramer W-DVI | DVI-I Adaptor module | £13 | £15.60 |
| Kramer W-H | HDMI Adaptor Module | £22 | £26.40 |
| Kramer W4545 | Dual RJ-45 Ethernet Pass through | £25 | £30.00 |
| Kramer WA-1PN | Wall Plate Insert − 3.5mm Stereo Audio | £20 | £24.00 |
| Kramer WA-1XLF | XLR adaptor module | £17 | £20.40 |
| Kramer WA-45 | 3.5mm and RJ-45 Pass Through module insert | £15 | £18.00 |
| Kramer WU-2AA | 2 × USB 2.0 Type A pass through module for TBUS and Wall Plates | £27 | £32.40 |
| Kramer WU-AA | USB-A 2.0 female to USB-A 2.0 female adaptor module | £19 | £22.80 |
| Kramer WU-AB | USB-A female to USB-B cable female adapter | £15 | £18.00 |
| Kramer WU-BA | USB-B female to USB-A cable female adapter (Available in Black, grey or white) | £17 | £20.40 |
| Kramer WU-CA | USB-C 3.1 Wall Plate and TBus Insert | £40 | £48.00 |
| Kramer WU3-AA | 1 × USB 3.0 Type A pass through module for TBUS and Wall Plates | £33 | £39.60 |
| Kramer WX-2F | Female VGA to Female VGA Adaptor module | £22 | £26.40 |
