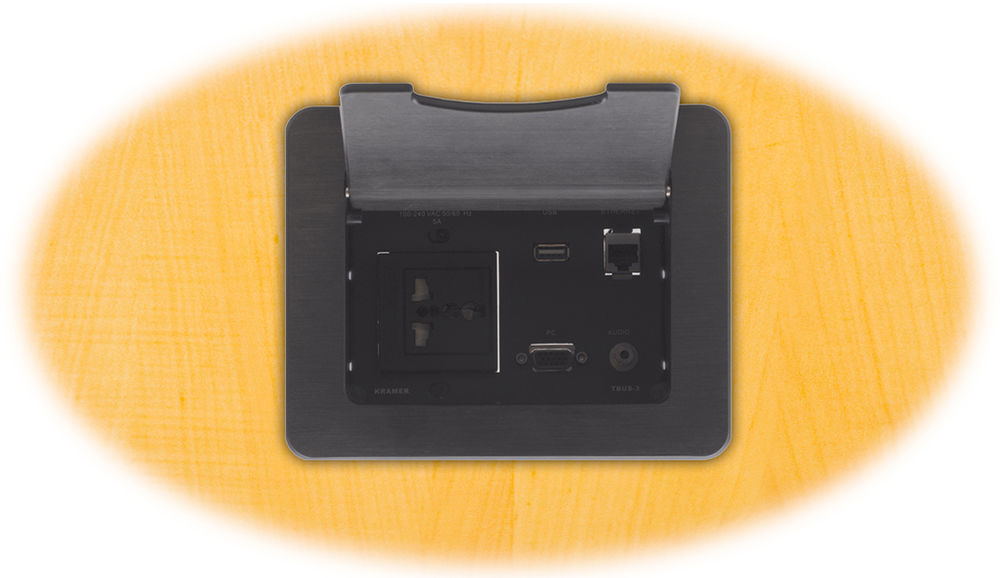

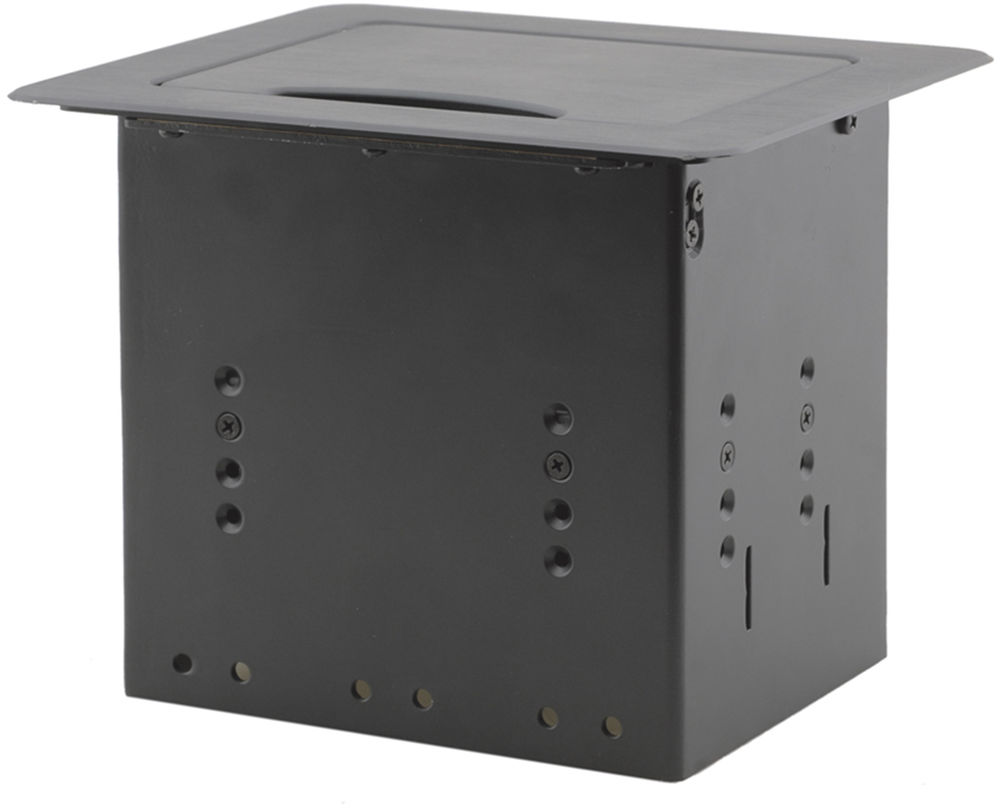

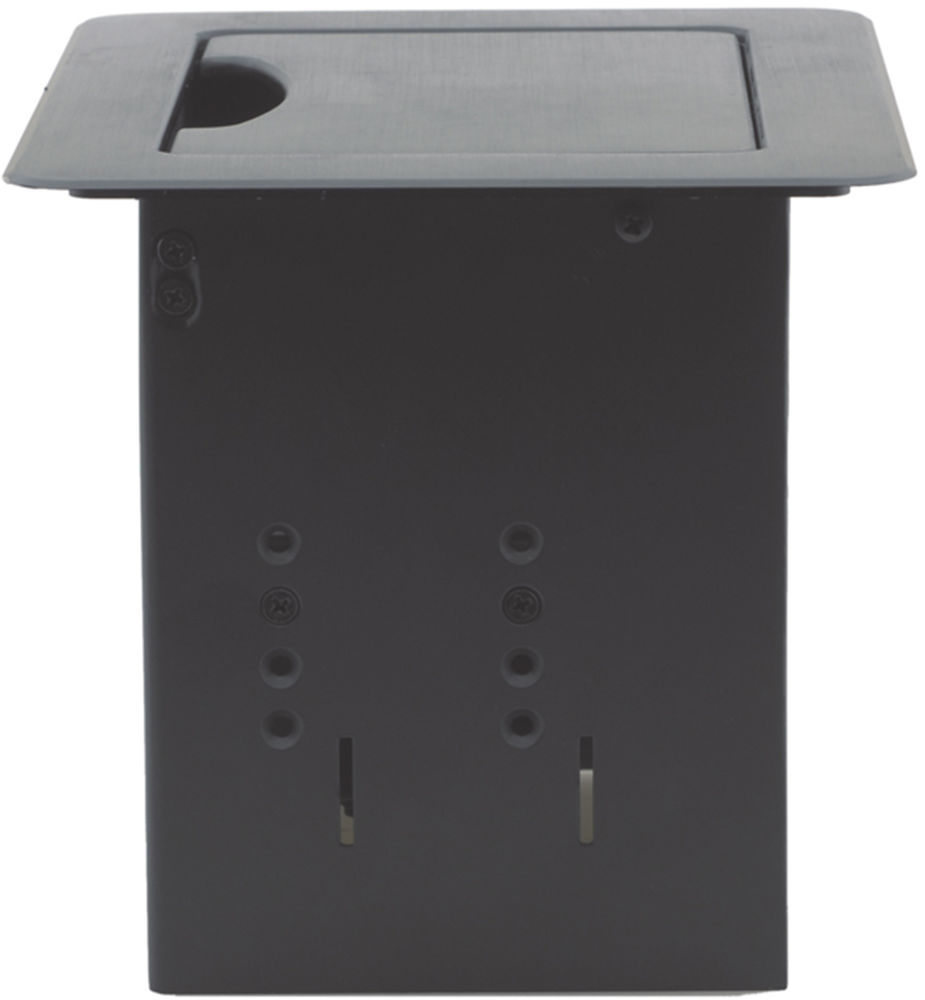

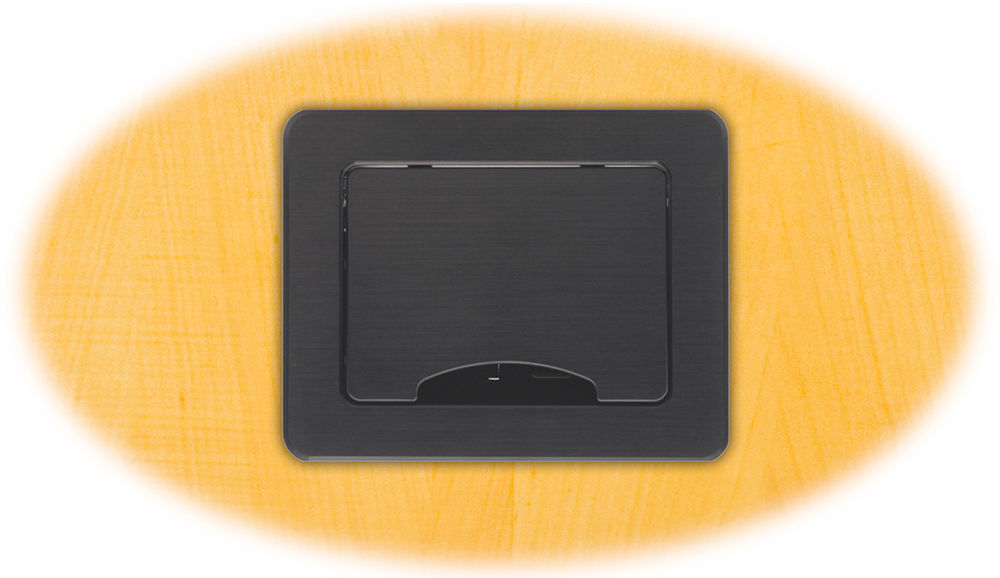

Kramer TBUS-3xl

Table Mount Modular Multi-Connection Solution with tilt-up lid, 158x123mm cutout

£124 (£148.80 inc. VAT)
Availability: In stock

Kramer TBUS-3xl Description

The Kramer TBUS-3xl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

Kramer TBUS-3xl Key Features

  • Inner Frame - 3 different "T3F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
  • Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
  • Power Cords - 8 different "C-AC" single power cords for each power socket.
  • Optional Accessories - TBUS Brackets, K-Able Box Cable Reels, Step-In Modules and Controllers are available.
  • Cover - Manually opens & closes.
  • Connector Depth - Adjustable.
  • Installation Requirement - Table cutout of 158mm x 123mm (6.23" x 4.85").
  • Dimensions - Top plate: 17.6cm x 14.0cm (6.9" x 5.5") W, D; Enclosure: 13.6cm x 10.2cm x 13.0cm (5.4" x 4.0" x 5.1") W, D, H.
  • Weight - 1.02kg (2.25lb) approx.; table clamps: 0.257kg (0.566lbs); template: 0.125kg (0.275lbs).
  • 7 year warranty (Click Here for details)

Kramer TBUS-3xl Specifications

In The Box TBUS-3xl, Six self-locking ties, cut out template, template screws
Options Inner frames, passive wall plates and interfaces, T-2INSERT kit, power socket kits, power cord, Kramer K-Able Box (furniture-mounted cable extension)

Kramer TBUS-3xl Usage Diagram

Kramer TBUS-3xl Usage Diagram
