Kramer RTBUS-25xl

Round Table Mount Multi Connection, 110mm cutout

No power outlet included, HDMI, VGA, RJ-45, USB, 3.5mm audio

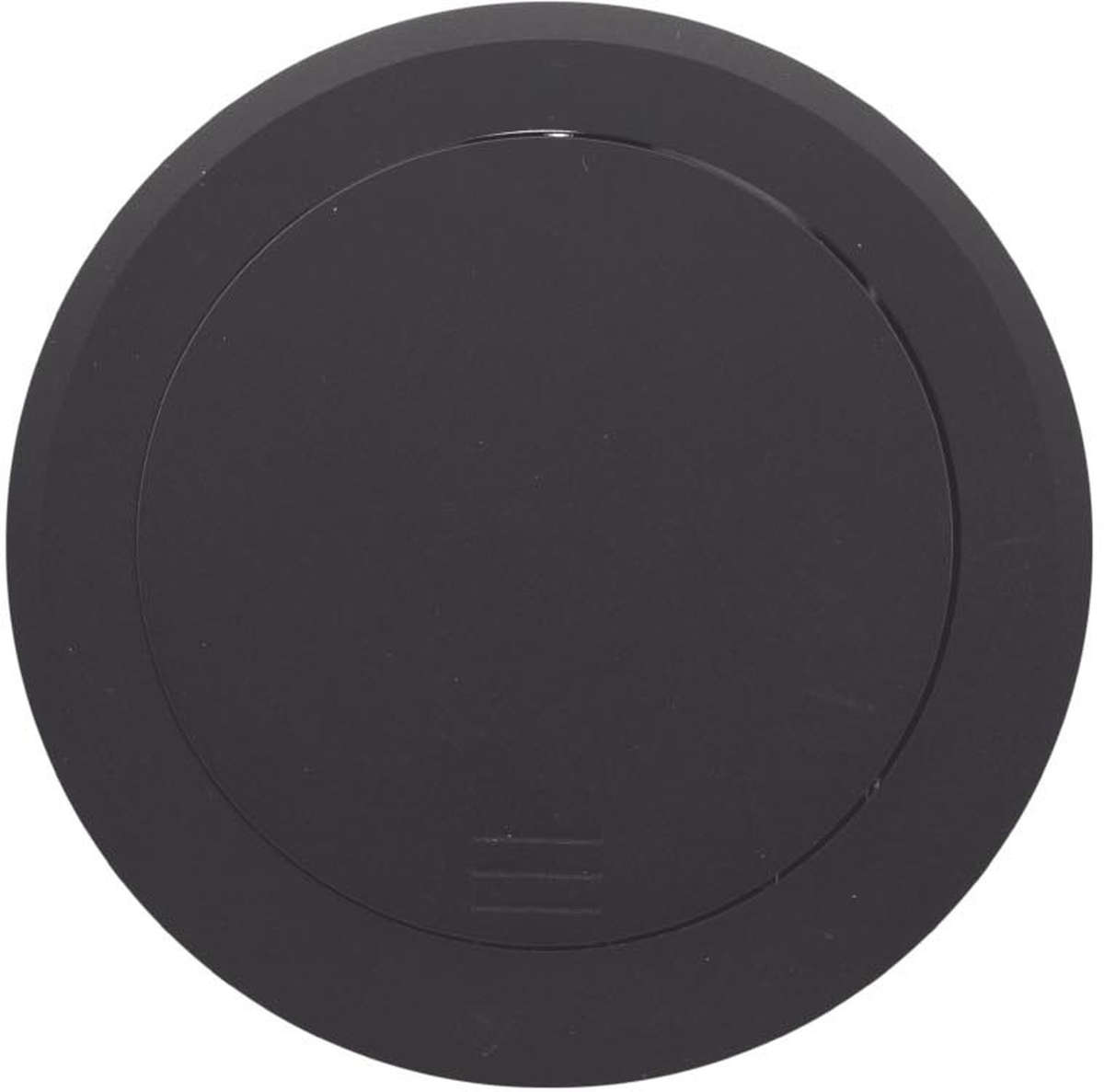

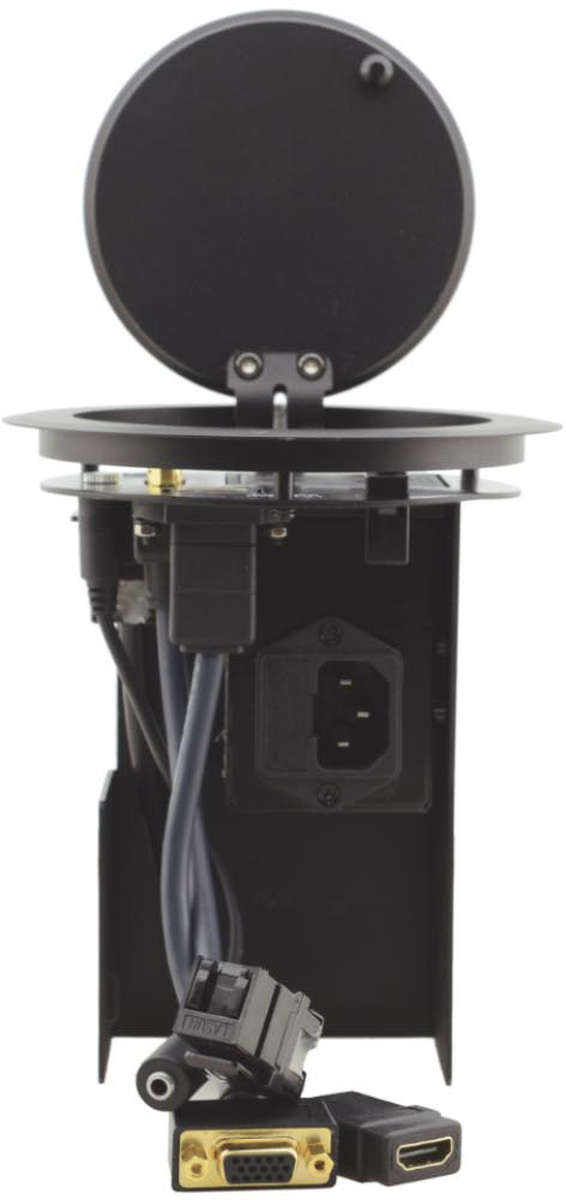

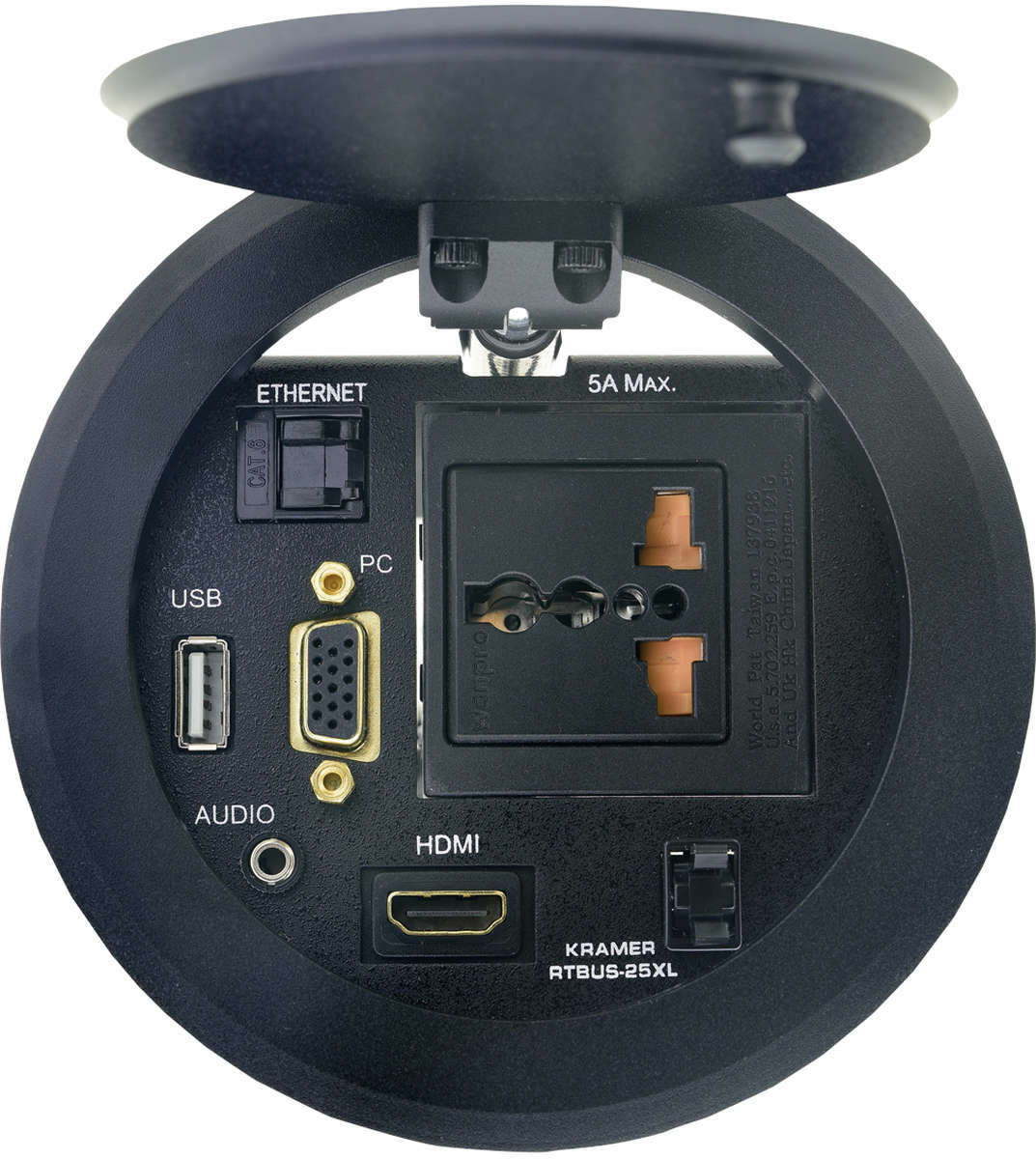

Kramer RTBUS-25xl Round Table Mount Multi Connection, 110mm cutout product image. Click to enlarge.
Kramer RTBUS-25xl Round Table Mount Multi Connection, 110mm cutout product image Kramer RTBUS-25xl Round Table Mount Multi Connection, 110mm cutout product image
£243 (£291.60 inc. VAT)
Availability: In stock

Kramer RTBUS-25xl (80-00026899)

The Kramer RTBUS-25xl is an elegant furniture-mounted, modular, round connection bus featuring a pneumatic mechanism for pneumatic lifting and smooth closing of its lid. It is easily installed into a table or podium top and its interface enables you to connect any equipment to systems installed in a room via pass-through connectors for PC, USB, stereo audio, HDMI, Ethernet and power.
NOTE: The power socket and power cord are purchased separately.

Kramer RTBUS-25xl Key Features

  • Inputs — 15-pin HD, USB, 3.5mm, HDMI, Ethernet.
  • Cover — Pop-up pneumatic lid.
  • Cutout Size (Mount Dimension) — 110mm diameter.
  • 7 year warranty ( Click Here for details)
  • Order Code: 80-00026899

Kramer RTBUS-25xl Specifications

Ports 1 x HDMI On a female HDMI connector
1 x VGA On a 15-pin d-sub connector
1 x Audio On a 3.5mm mini jack
1 x Ethernet On an RJ-45 connector
1 x USB On a female USB type-A connector
Physical Cutout Size 110mm diameter
Environmental Conditions Operating Temp. 0deg. to +40deg.C (32deg. to 104deg.F)
Storage Temp. -40deg. to +70deg.C (-40deg. to 158deg.F)
Humidity 10% to 90%, RHL non-condensing
Power Power rating varies according to the location and the power socket assembly (purchased separately) installed in the tbus, as follows Universal
100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
USA 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Germany and EU 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Belgium and France 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Italy 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Australia 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Israel 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
South Africa 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
Switzerland 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
England 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
Brazil 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
Fuse Rating T 6.3A 250V
Accessories Included Mounting brackets
Optional TBUS AC Power Cord, power socket kits
Product Dimension 15.70cmx12.80cmx15.35cm (6.18"x5.04"x6.04") WxDxH
Product Weight 0.9kg (1.9lbs) approx.
Shipping Dimension 36.50cmx17.00cmx17.00cm (14.37"x6.69"x6.69") WxDxH
Shipping Weight 1.2kg (2.6lbs) approx.
