Epson EB-720

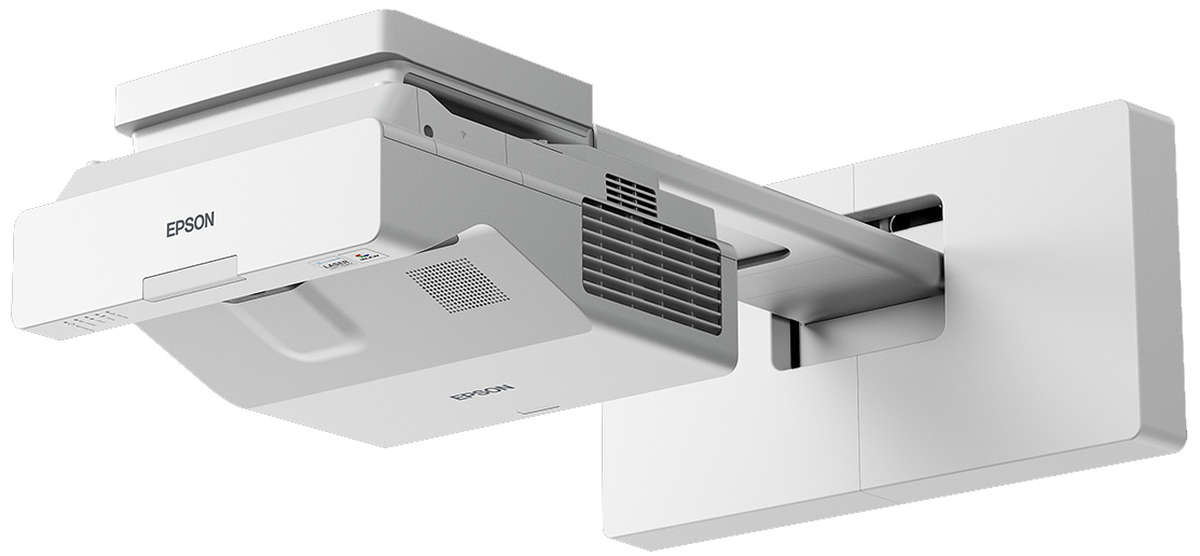

Epson EB-720 3800 ANSI Lumens XGA projector product image. Click to enlarge.

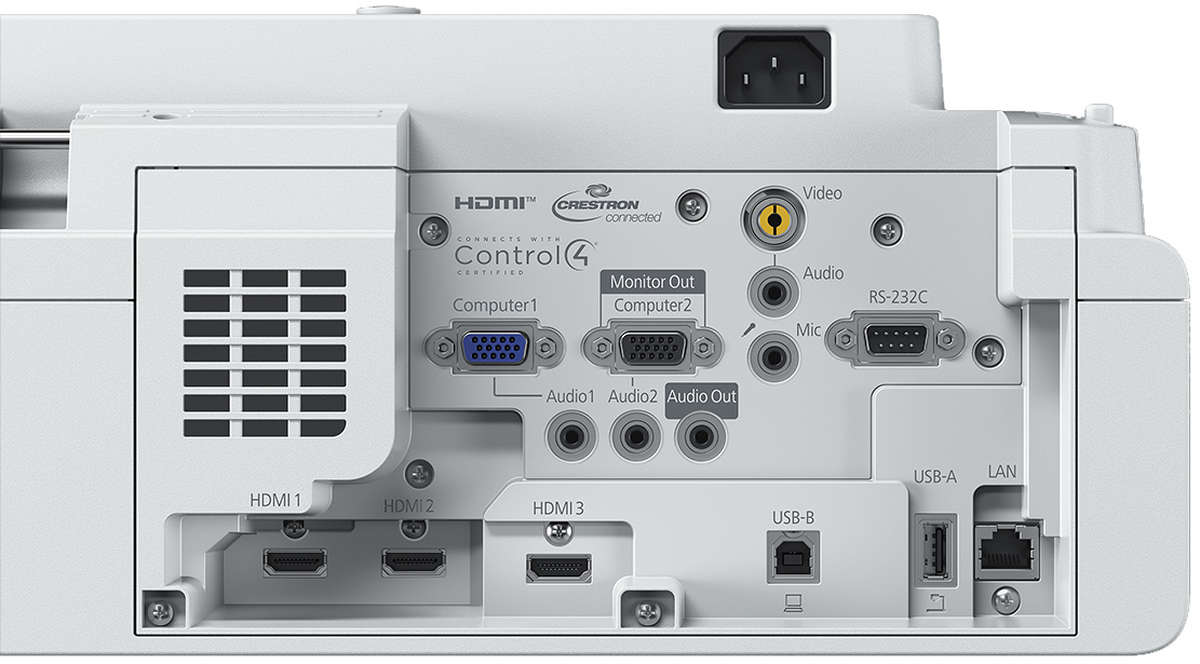

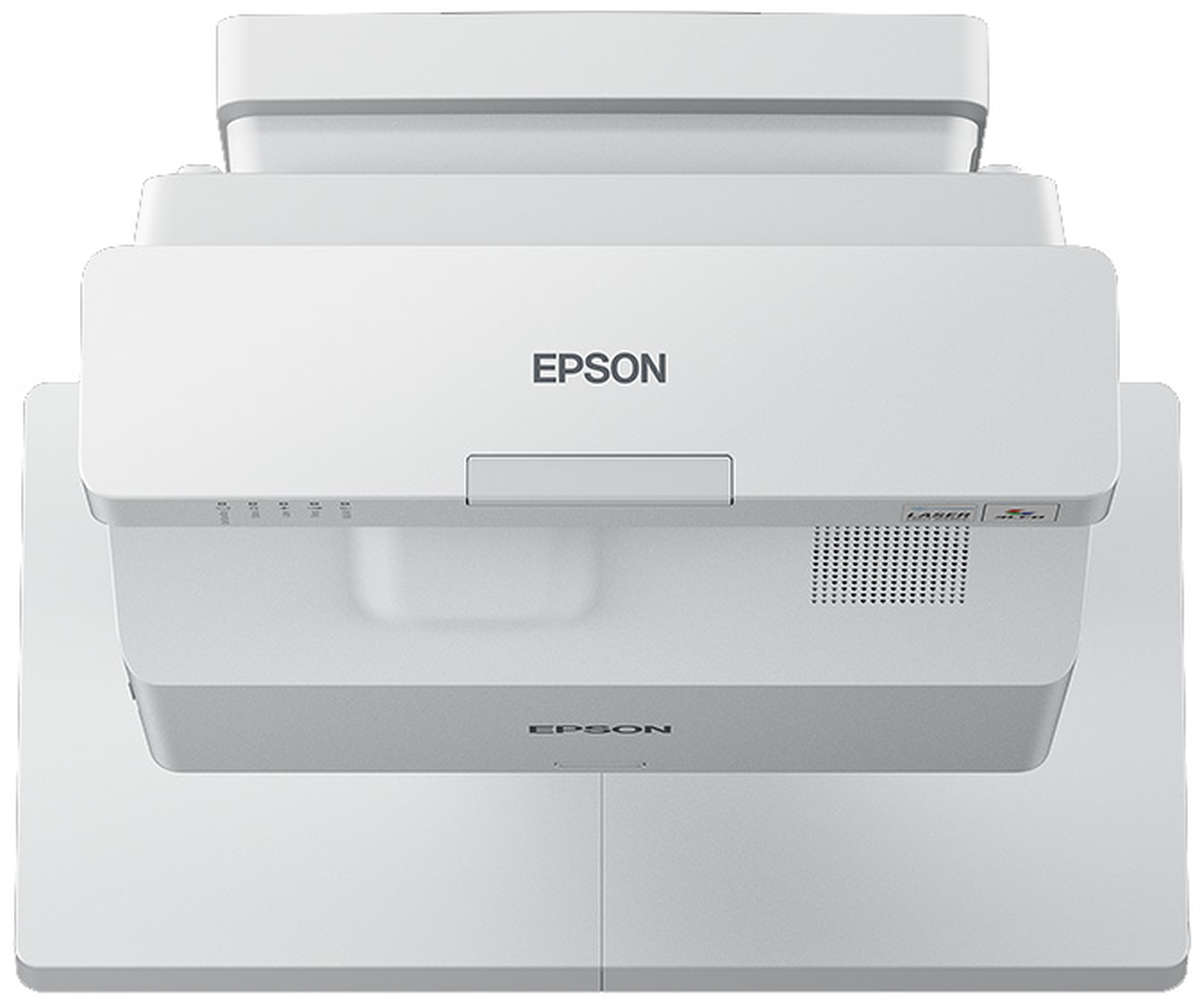

Epson EB-720 3800 ANSI Lumens XGA projector connectivity (terminals) product image Epson EB-720 3800 ANSI Lumens XGA projector product image Epson EB-720 3800 ANSI Lumens XGA projector product image

Epson EB-720 Key Features

  • 3800 Lumens Colour Light Output
  • XGA 1024*768 Native Resolution
  • 20000 hour lamp life (typical)
  • 2500000:1 Contrast Ratio
  • Ultra Short Throw
  • Wireless Network
  • Direct Power On
  • PC Free Presentations
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Display Via USB to PC Connection
  • Mouse Emulation Remote
  • Miracast
  • Picture-and-Picture
  • Logo capture and display
  • PIN Code Security
  • Quick Power On
  • Quick Power Off
  • sRGB Colour Mode
  • Monitor Out
  • Network Control
  • 5.7kg (12.6lb.)
  • Click for Epson EB-720 Detailed Specifications
No Longer Available
Throw Calculator


Size Range: 132 to 224cm
Lens Minimum
Throw		 Maximum
Throw		 Foot
Lamberts
Standard Lens 0.42m 0.57m 270
Click for Throw Calculator

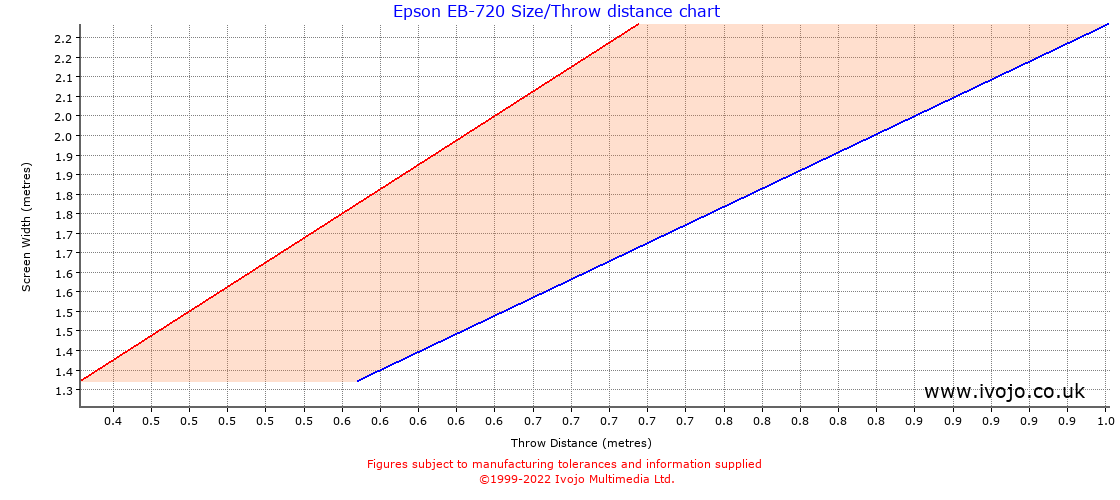

Epson EB-720 Throw Chart

Epson EB-720 throw distance chart
How the graph works

Along the horizontal axis is the distance in metres between the front of the projector and the projection screen. Up the vertical axis is the width of the image the projector will produce. We use width rather than diagonal as the width will remain consistent with the throw distance and zoom setting whereas the height and therefore the diagonal will vary depending on the source. For example, if you have a 4:3 aspect ratio projector and use it to watch a 16:9 aspect ratio DVD then the image will be "letterboxed", i.e. the width will remain the same but the height will be reduced.

Show Imperial

Projector Throw From Screen Size Table (4:3 aspect ratio, in metres)
Diag.WidthHeightMin. ThrowMax ThrowAreaNits
1.65 1.320.990.420.571.31²924.4
1.78 1.421.070.460.611.52²797.1
1.91 1.521.140.490.661.74²694.3
2.03 1.631.220.520.701.98²610.3
2.16 1.731.300.550.742.24²540.6
2.29 1.831.370.590.792.51²482.2
2.41 1.931.450.620.832.80²432.8
2.54 2.031.520.650.873.10²390.6
2.67 2.131.600.680.923.41²354.3
2.79 2.231.680.720.963.75²322.8

Nits are a measure of the brightness of the final image. Multiply the figure in the Nits column by the gain of your screen to obtain a true figure.

Projector lamps dim over their life spans so make allowances by multiplying the foot nits by 0.75 to get a reasonable average.If you intend to calibrate your projector then this will also affect brightness. For home cinema use in a well darkened roon, about 42-70 Nits is ideal. For office use, aim for at least 175.

Screen Size For Given Throw Table
Throw Min. Width Max. Width
0.42 0.98 1.31
0.42 0.98 1.31
0.50 1.16 1.55
0.57 1.34 1.79
0.65 1.51 2.04
0.73 1.69 2.28
0.81 1.87 2.52
0.88 2.05 2.76
