Epson EB-L690SU Projector

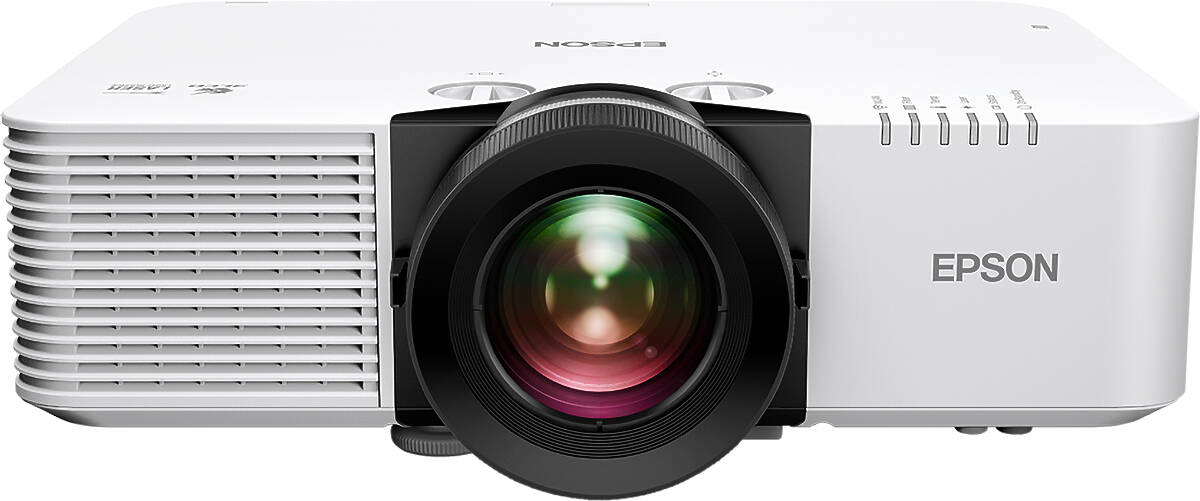

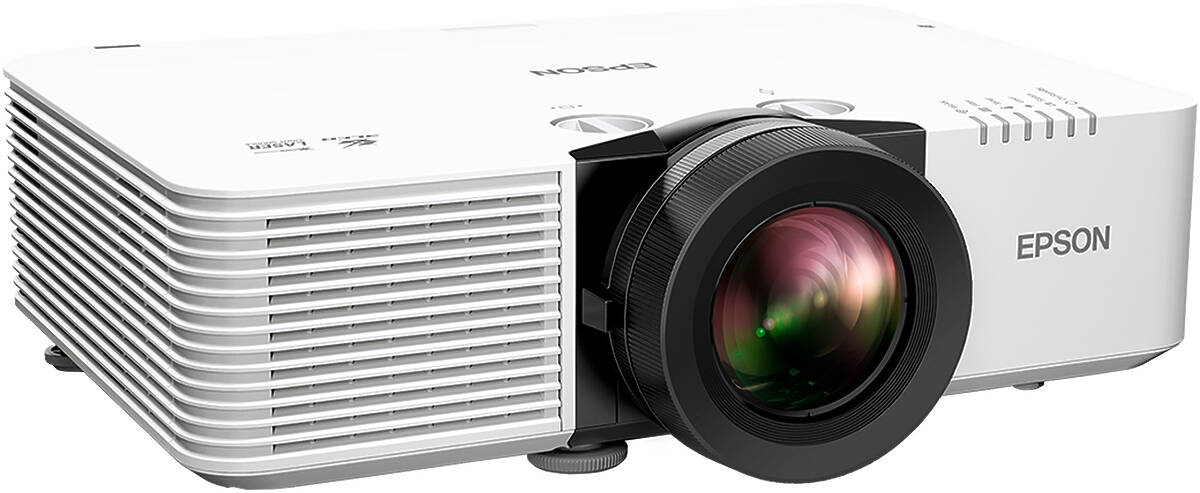

Epson EB-L690SU 6200 Lumens WUXGA projector product image. Click to enlarge.

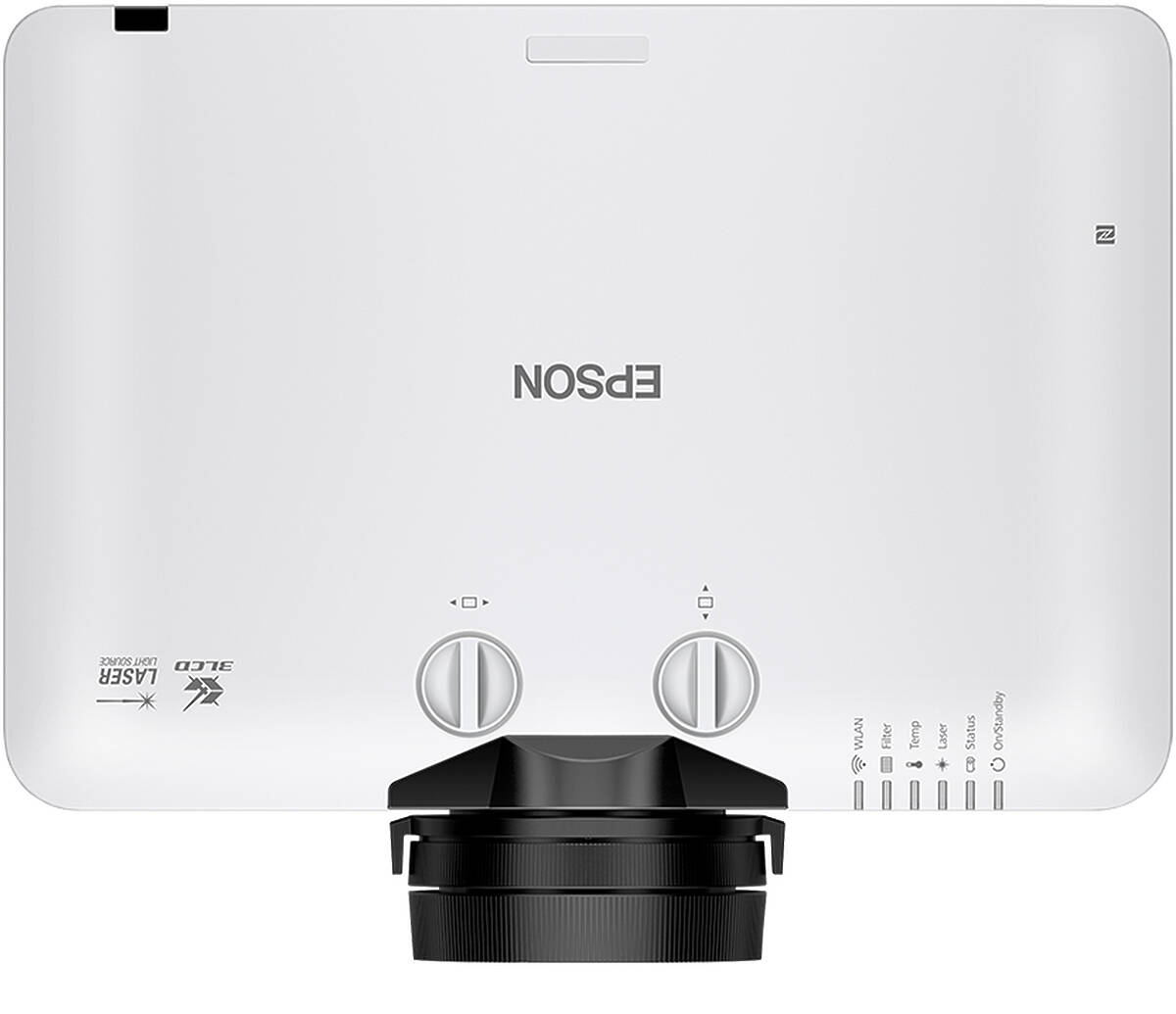

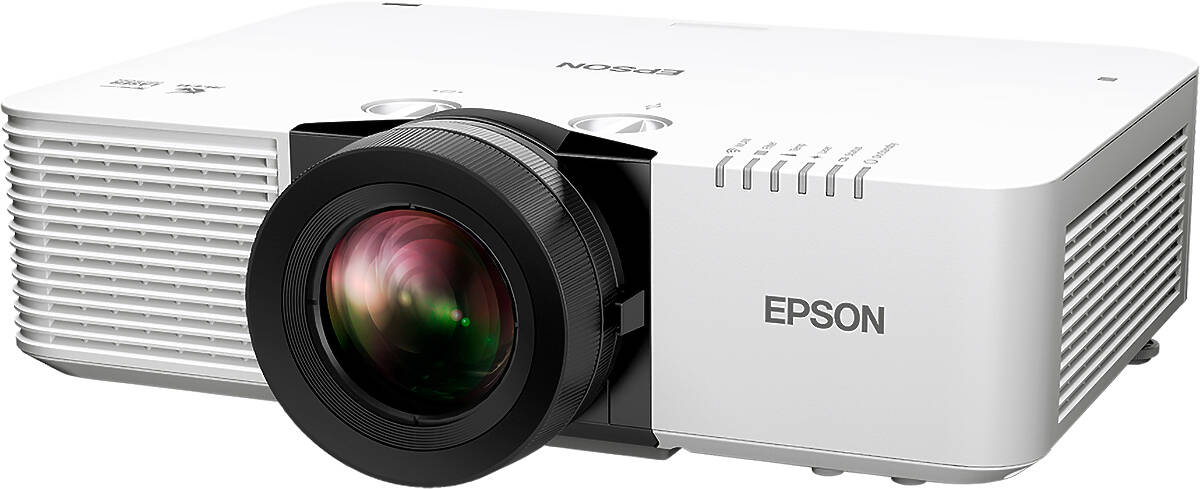

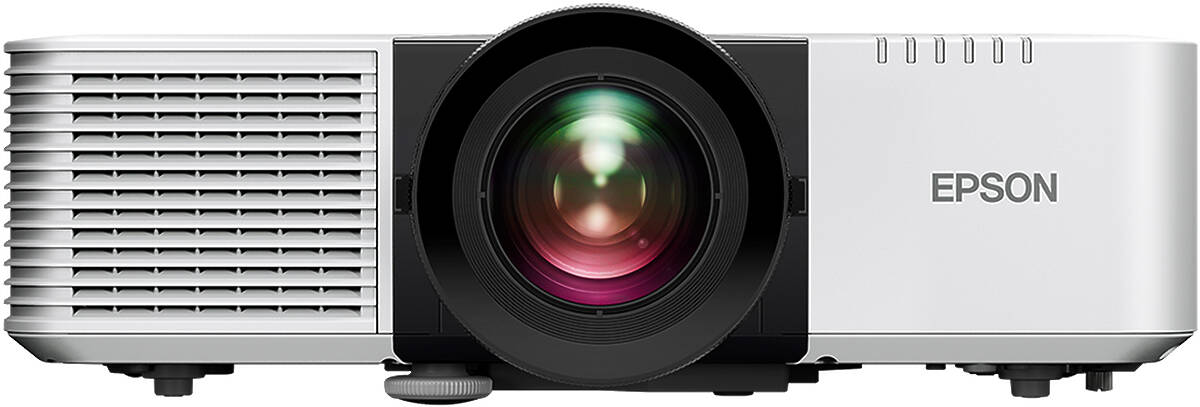

Epson EB-L690SU 6200 Lumens WUXGA projector Front View product image Epson EB-L690SU 6200 Lumens WUXGA projector Top View Front View product image Epson EB-L690SU 6200 Lumens WUXGA projector Front View product image Epson EB-L690SU 6200 Lumens WUXGA projector Top View product image
£2672 (£3206.40 inc. VAT)
Availability: 3-5 days

Epson EB-L690SU Key Features

  • LCD Display Technology
  • 6200 Lumens Colour Light Output
  • WUXGA 1920*1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 5,000,000:1 Contrast Ratio
  • Built-in wireless networking
  • 9.3kg (20.5lb.)
  • Finished in White
  • Wide zoom range for flexible placement
  • 360° Installation
  • Ultra Short Throw (0.79:1)
  • Native Widescreen
  • Lens Shift
  • Wireless Network
  • Direct Power On
  • PC Free Presentations
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • iOS App Compatible
  • HDBaseT
  • Picture-and-Picture
  • Lens-centred Design
  • Logo capture and display
  • PIN Code Security
  • Warrantied for 24/7 use
  • DICOM Simulation Mode
  • sRGB Colour Mode
  • Monitor Out
  • Network Control

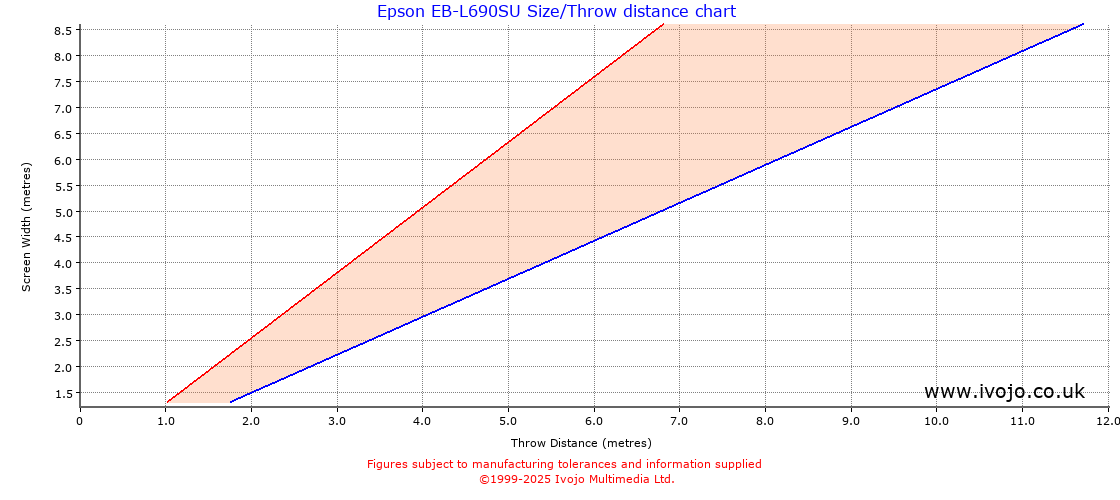

Epson EB-L690SU Throw Chart (Click for details)

Epson EB-L690SU throw distance chart

Epson EB-L690SU Specifications

Categories HDBaseT
Lens Shift
PC Free
Short Throw Zoom
Wireless
Ultra Short Throw HD
LED/Laser HD
Manufacturer Epson (Click for rest of range)

Epson EB-L690SU Optical Features
System 3 * 0.67" LCD with C2 Fine
Resolution WUXGA (1920*1200)
Aspect Ratio 16:10
Lumens 6,200
ECO Mode Lumens 4,200
Colour Light Output 6200 Lumens
Eco Mode CLO 4200 Lumens
Contrast 5,000,000:1
Lamp Laser Light Source
Lamp Life 20,000hrs. (30,000hrs. ECO mode)
Lens 1.4x Manual Zoom and Focus
Interchangeable No
Zoom Range 1.7x
Throw Ratio 0.79 - 1.36:1
Image Size 60"-400" diagonal
Throw Distance 1.00-11.90m
Throw distance for 100" image 1.70 - 2.93m
Lens Shift Manual - Vertical ±50 %, horizontal ±20 %
KeystoneCorrection ±30° (Vertical)
±30° (Horizontal)

Epson EB-L690SU Compatibility
Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions PAL, SECAM, NTSC, 1080i, 720p

Epson EB-L690SU Terminals
HDMI 2
RGBHV (15-pin HD) 2
Monitor Out Yes
Audio In 2
Audio Out 1
USB 3
RS-232 1
HDBaseT 1
Network Ready Yes
Wireless Network No

Epson EB-L690SU General
Speakers 10w mono
Remote Control Epson EB-L690SU only
Noise 36db (26db ECO mode)
Dimensions 440*151*368mm (W*H*D)
Weight 9.30kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 362Watts
Manufacturers Warranty 3 years/12000 hours (whichever first) RTB
Light Source Warranty 3 years/12000 hours (whichever first) RTB

Epson EB-L690SU Package Contents
Accessories Main unit
Power cable
Quick Start Guide
Remote control incl. batteries
User guide
Warranty document

Additional
Security Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Colour Modes Dynamic, Cinema, Presentation, sRGB, DICOM SIM
Other features 21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App
