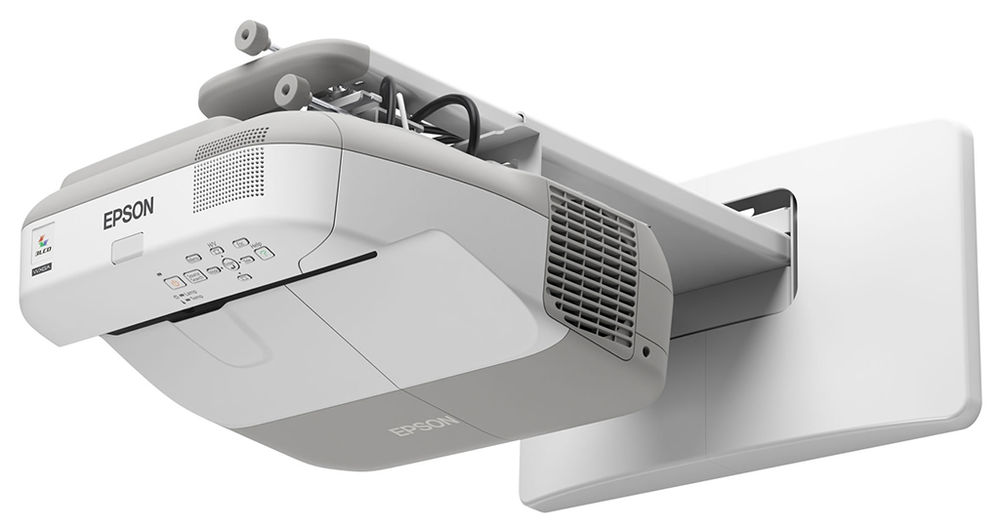

Epson EB-685Wi Projector

£1750 (£2100.00 inc. VAT)
Availability: In stock

Epson EB-685Wi Key Features

  • FREE Delivery on this item
  • LCD Display Technology
  • 3500 Lumens Colour Light Output
  • Wide XGA Resolution
  • 5000 hour lamp life (typical)
  • 14000:1 Contrast Ratio
  • 3 year/8,000 (whichever first) on-site warranty
  • 5.9kg (13.0lb.)
  • Ultra Short Throw (0.28:1)
  • Native Widescreen
  • Direct Power On
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Interactive (Pen)
  • Display Via USB to PC Connection
  • MHL
  • Includes Wall Bracket
  • Logo capture and display
  • PIN Code Security
  • Digital (HDMI/DVI/DisplayPort) Input
  • sRGB Colour Mode
  • Monitor Out
  • Network Control

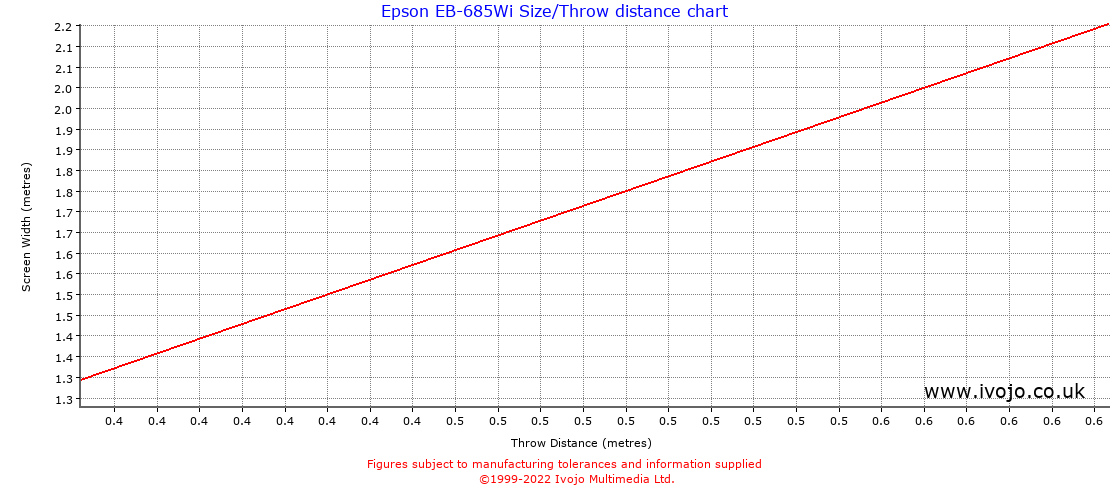

Epson EB-685Wi Throw Chart (Click for details)

Epson EB-685Wi Specifications

Categories Interactive
Ultra Short Throw
Manufacturer Epson (Click for rest of range)

Epson EB-685Wi Optical Features

System 3 * 0.59" D9 LCD
Resolution WXGA (1280*800)
Aspect Ratio 16:10
ANSI Lumens 3500
ECO Mode Lumens 2900
Colour Light Output 3500 Lumens
Eco Mode CLO 2900 Lumens
Contrast 14000:1
Lamp 250W
Lamp Life 5000hrs. (10000hrs. ECO mode)
Lens F1.6, f=3.76mm ultra short throw fixed
Interchageable No
Zoom Range Fixed
Throw Ratio 0.28 - 0.28:1
Image Size 60"-100" diagonal
Throw Distance 0.40-0.60m
Throw distance for 100" image 0.60 - 0.60m
Lens Shift No
Keystone Correction ±3° (Vertical)
±3° (Horizontal)

Epson EB-685Wi Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq. kHz
Vertical Freq. 50-85Hz

Epson EB-685Wi Terminals

RGBHV (15-pin HD) 2
Composite 1
Monitor Out Yes
Audio In 4
Audio Out 1
RS-232 1
Network Ready Yes

Epson EB-685Wi General

Speakers 16w mono
Remote Control Epson EB-685Wi only
Noise 35db (30db ECO mode)
Dimensions 367*149*400mm (W*H*D)
Weight 5.90kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 354Watts
Manufacturers Warranty 3 year/8,000 (whichever first) on-site
Light Source Warranty 12 months/1000 hours (whichever first)

Epson EB-685Wi Package Contents

Accessories Interactive pens
Pen tray
Power cable
Quick Start Guide
Remote control incl. batteries
SMART Notebook software entitlement booklet
USB cable
User Manual (CD-ROM)
Wall hanging bracket
Warranty card

Ivojo Multimedia are approved Epson dealers and supply only UK products with full UK warranties.

Epson EB-685Wi Accessories

Description Price Inc. VAT
Seddon Flight Case 10 Hard case for projectors weighing 5-10kg £133 £159.60
Epson ELPLP91 / V13H010L91 Replacement lamp £77 £92.40
