Vogels FD1864S

TV/Monitor Floor Stand with Tilt - Silver
Over 65"/ Max 80kg; VESA 100×100 to 600×400; 170cm to screen centre; Max 20° tilt

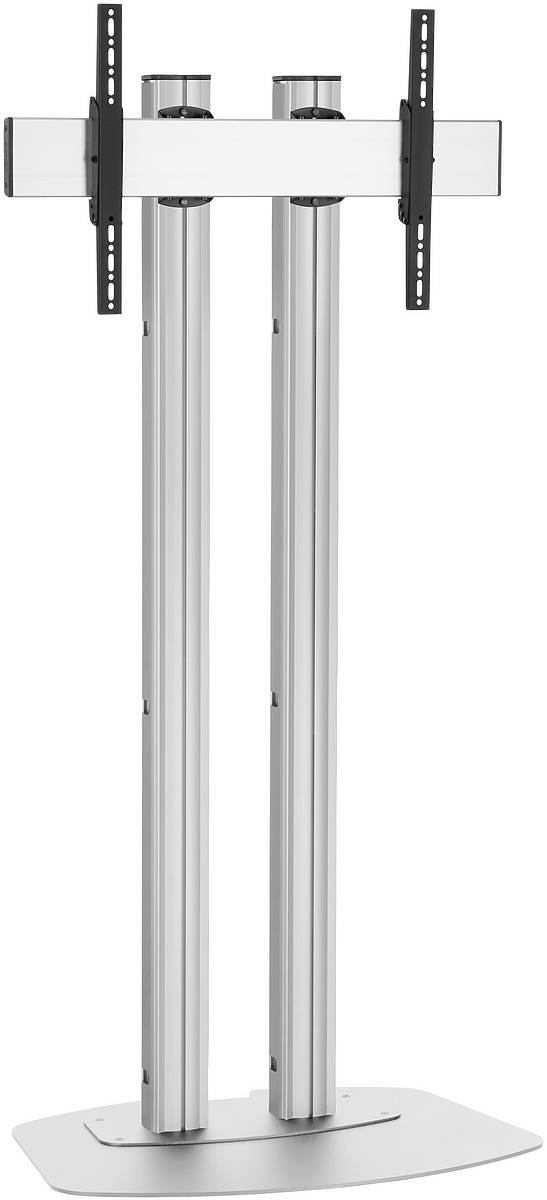

Vogels FD1864S TV/Monitor Floor Stand with Tilt - Silver product image

Vogels FD1864S (7951064)

Vogel's Connect-it floor solutions (floor stands and trolleys) is an uniquely flexible system. With only a few standard components, you can create a solution for almost any requirement. From a single display floor stand in a shop window, a back-to-back display set-up in an airport, to a movable video conferencing set-up for corporate use, this flexible range fits every situation. Connect-it floor solutions can accommodate displays from small to extra large, weighing up to 160 kg. Modules are available in black and silver finishes.

Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.

5 Year Warranty
Height to centre of screen: 140cm
Tilt screen up to 20°
VESA Up to 600x400
Dimensions: 1500x912x662mm (HxWxD)
Suitable for Large Format Displays from 65 to 110"
Max Load: 80.00kg.
Order Code: 7951064
See entire Vogels Connect-it Floor Stand Range

Ideal For

Boardrooms
Exhibitions
Hospitality
Public Display
Reception Area
Restaurants & Cafe's
Video conferencing

£914 (£1096.80 inc. VAT)
Availability: In Stock

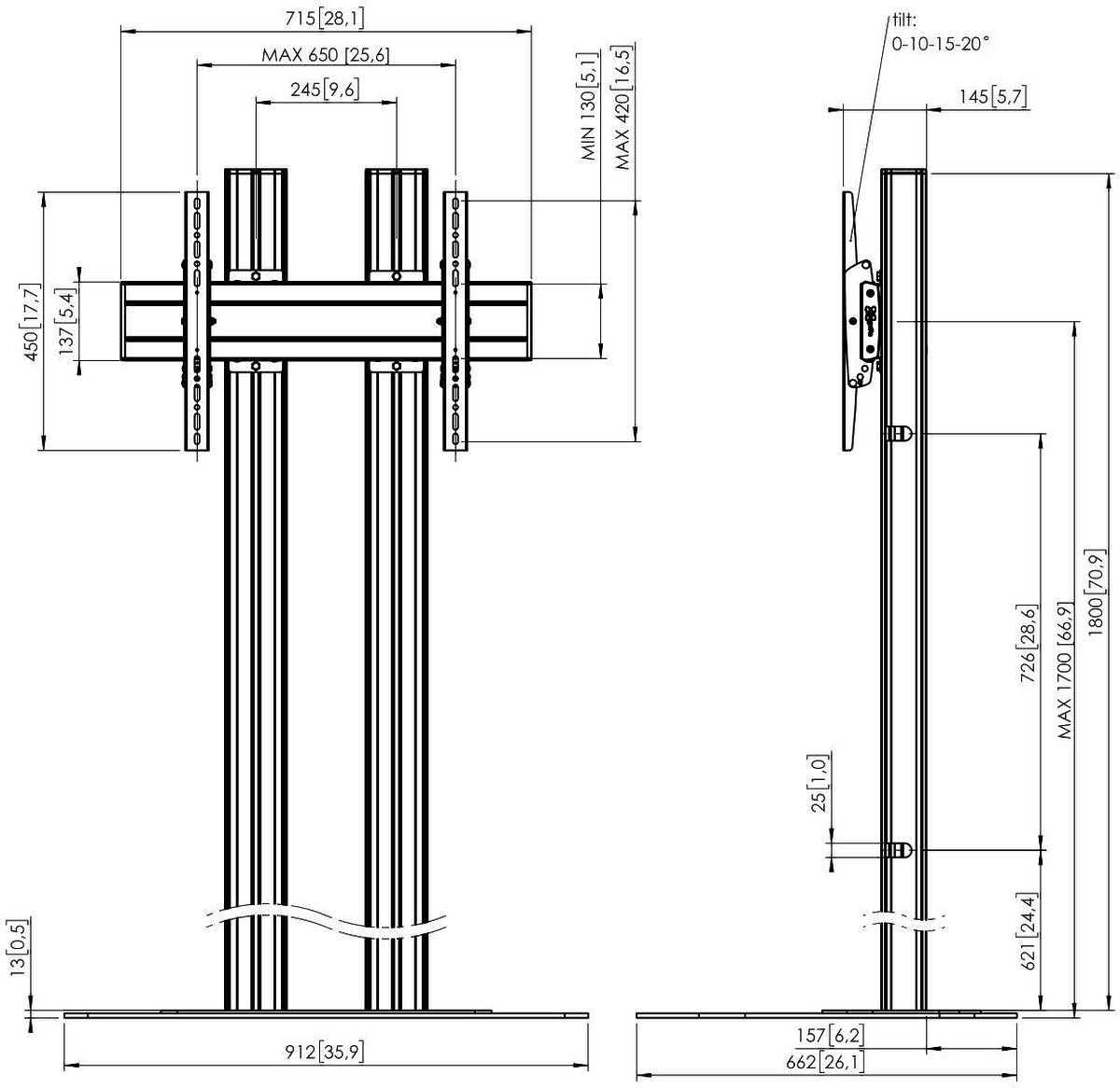

Vogels FD1864S Specifications

Product group	Floor stand
Series	Connect-it
Guarantee	5 years
Colour	Silver
Height	1800mm
Height to Screen Centre	1700mm
Tilt	Tilt up to 20°

Min. screen size	65 inch
Max. weight load	80kg
Min. vertical hole pattern	100mm
Max. vertical hole pattern	420mm
Min. horizontal hole pattern	100mm
Max. horizontal hole pattern	650mm

FD1864S Component Parts

Product Code	Description
1 × Vogels PFB3407B	Connect-it 715mm Interface bar finished in Black
1 × Vogels PFF7030B	Connect-it Dual Column Extra-Large Floor Plate finished in Black
1 × Vogels PFS3304	Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt)
2 × Vogels PUC2718B	180㎝ Connect-it Floor column finished in black
