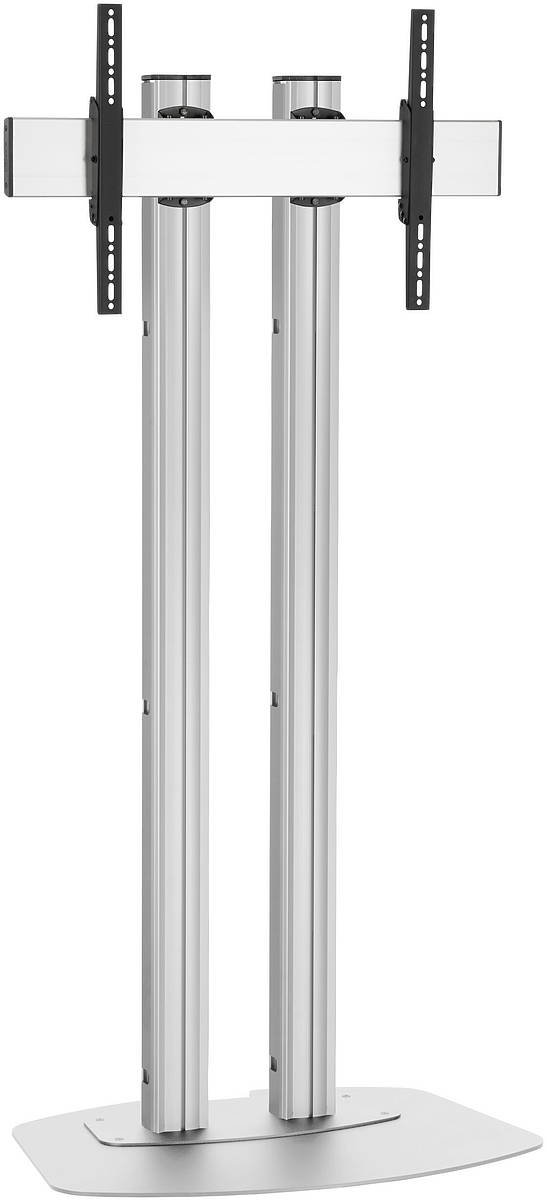

Vogels FD1584S
TV/Monitor Floor Stand with Tilt - Silver
Over 65" / Max 120kg; VESA 100×100 - 800×400; 140cm to screen centre; Max 20° tilt
Vogels FD1584S (7951054)
Vogel's Connect-it floor solutions (floor stands and trolleys) is an uniquely flexible system. With only a few standard components, you can create a solution for almost any requirement. From a single display floor stand in a shop window, a back-to-back display set-up in an airport, to a movable video conferencing set-up for corporate use, this flexible range fits every situation. Connect-it floor solutions can accommodate displays from small to extra large, weighing up to 160 kg. Modules are available in black and silver finishes.
Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 600×400 and 800×400.
- 5 Year Warranty
- Height to centre of screen: 140cm
- Tilt screen up to 20°
- VESA Up to 400x400

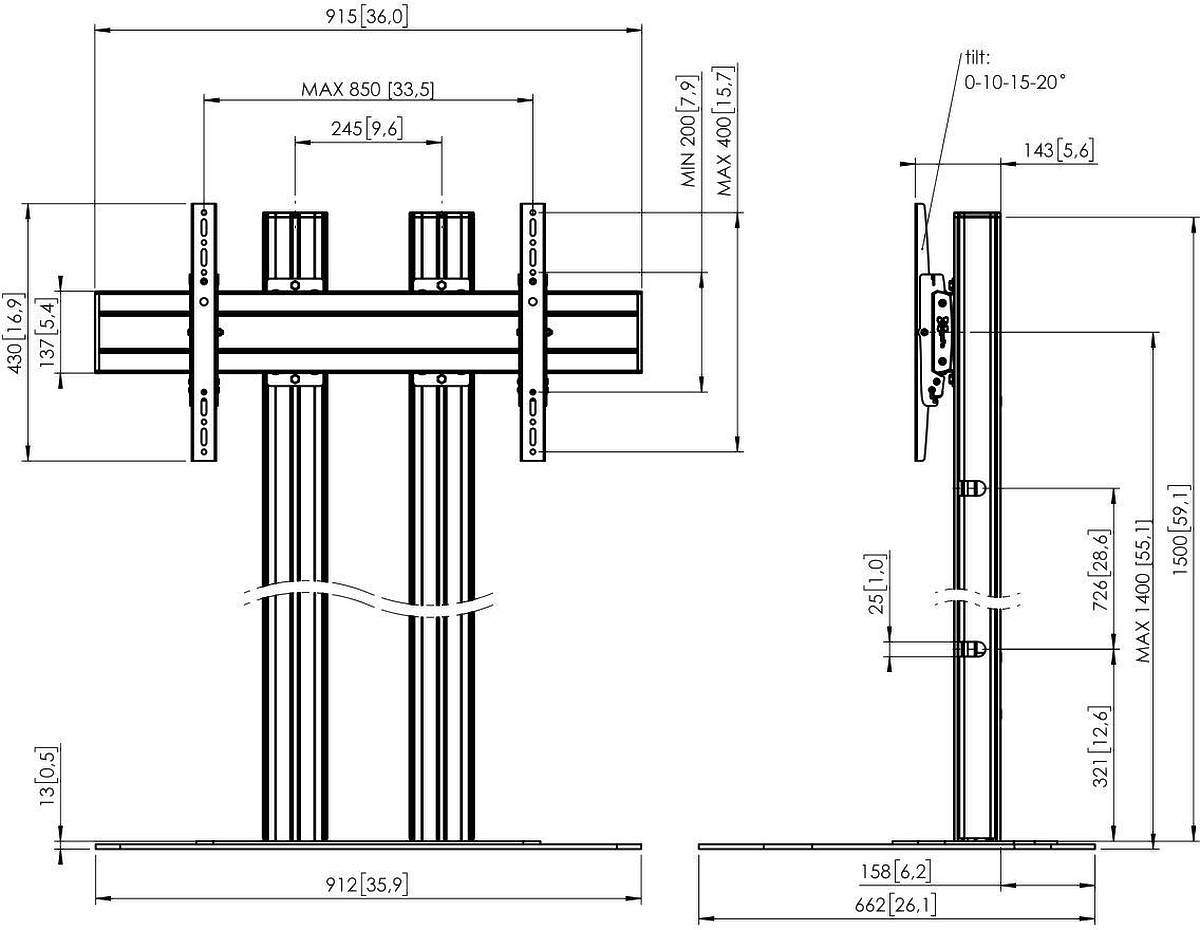

- Dimensions: 1500x912x662mm (HxWxD)
- Max Load: 120.00kg.
- Order Code: 7951054
- See entire Vogels Connect-it Floor Stand Range
- Boardrooms
- Classrooms & Training Rooms
- Exhibitions
- Hospitality
- Museums and Art Galleries
- Places of Worship
- Reception Area
- Restaurants & Cafe's
- Retail
- Video conferencing
£898 (£1077.60 inc. VAT)
Availability: In Stock
Availability: In Stock
Vogels FD1584S Specifications
| Screen Size | 65 inch and larger |
| VESA Compatibility | 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 800x400 |
| Overall Height | 1500mm |
| Height to Screen Centre | 1400mm |
| Colour | Silver |
| Tilt | Max 20° |
| Min. screen size | 65 inch |
| Max. weight load | 120kg |
| Horizontal Hole Pattern | 100-850mm |
| Vertical Hole Pattern | 100-400mm |
| Guarantee | 5 years |
FD1584S Component Parts
| Product Code | Description |
| 1 × Vogels PFB3409S | Connect-it 915mm Interface bar finished in Silver |
| 1 × Vogels PFF7030S | Connect-it Dual Column Extra-Large Floor Plate finished in Silver |
| 1 × Vogels PFS3304 | Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt) |
| 2 × Vogels PUC2715S | 150㎝ Connect-it Floor column finished in silver |
