Vogels FD1584B

TV/Monitor Floor Stand with Tilt - Black
Over 65" / Max 120kg; VESA 100×100 - 800×400; 140cm to screen centre; Max 20° tilt

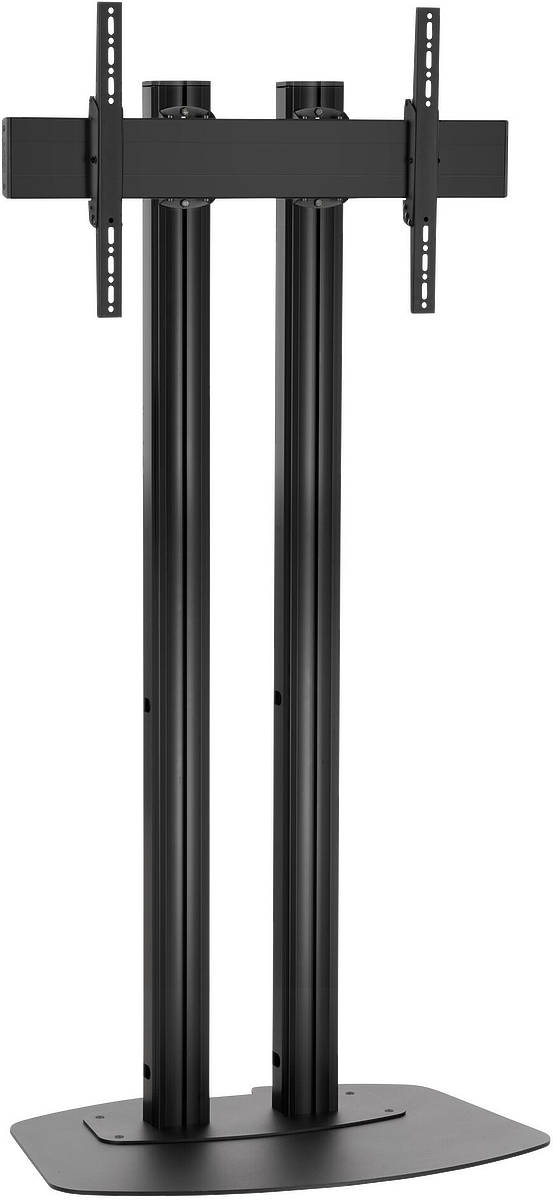

Vogels FD1584B TV/Monitor Floor Stand with Tilt - Black product image

Vogels FD1584B (7951050)

Vogel's Connect-it floor solutions (floor stands and trolleys) is an uniquely flexible system. With only a few standard components, you can create a solution for almost any requirement. From a single display floor stand in a shop window, a back-to-back display set-up in an airport, to a movable video conferencing set-up for corporate use, this flexible range fits every situation. Connect-it floor solutions can accommodate displays from small to extra large, weighing up to 160 kg. Modules are available in black and silver finishes.

Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 600×400 and 800×400.

5 Year Warranty
Height to centre of screen: 140cm
Tilt screen up to 20°
VESA Up to 800x400

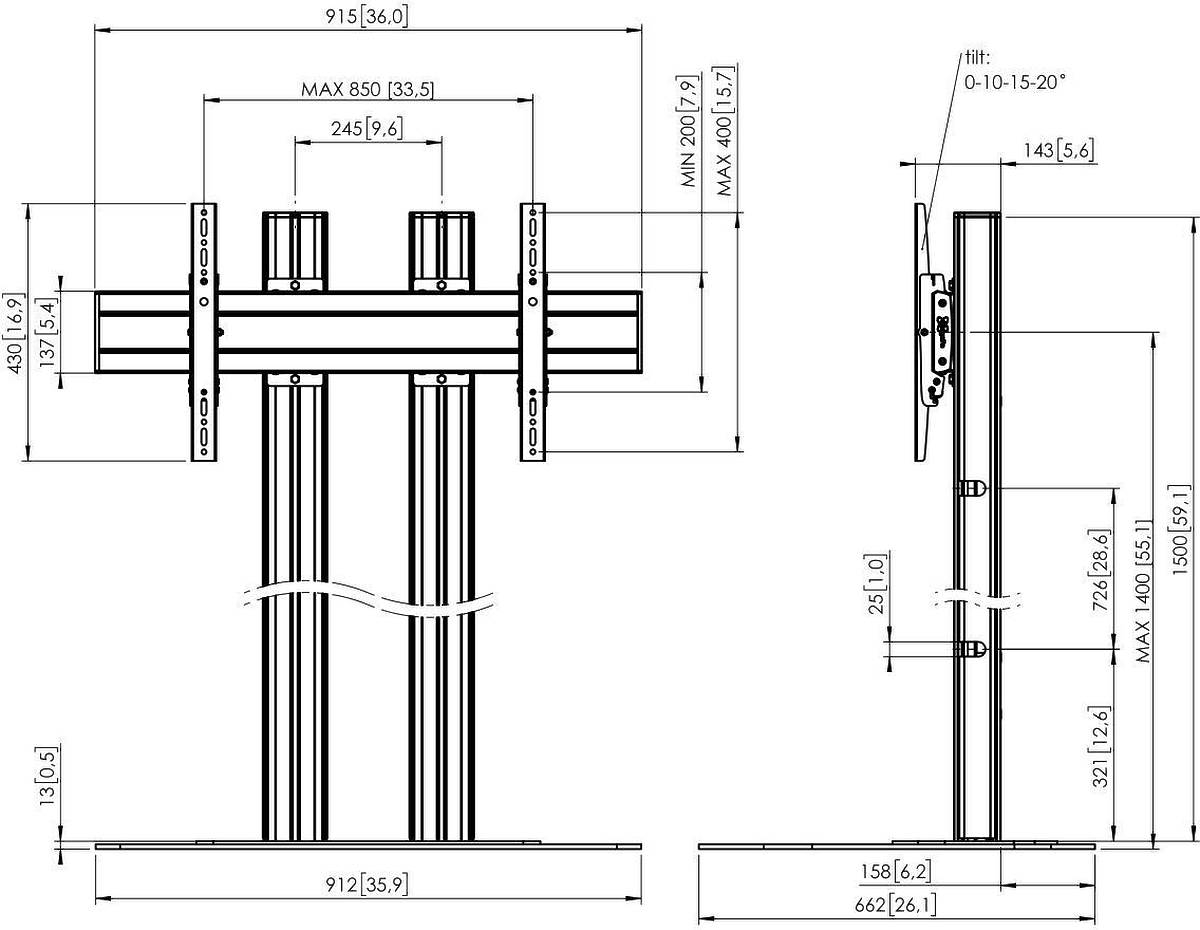

Dimensions: 1500x912x662mm (HxWxD)
Max Load: 120.00kg.
Order Code: 7951050
See entire Vogels Connect-it Floor Stand Range

Ideal For

Boardrooms
Exhibitions
Hospitality
Public Display
Reception Area
Restaurants & Cafe's
Video conferencing

Vogels FD1584B Downloads

Brochure

£898 (£1077.60 inc. VAT)
Availability: In Stock

Vogels FD1584B Specifications

Screen Size	65 inch and larger
VESA Compatibility	100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 800x400
Overall Height	1500mm
Height to Screen Centre	1400mm
Colour	Black

Min. screen size	65 inch
Max. weight load	120kg
Horizontal Hole Pattern	100-850mm
Vertical Hole Pattern	100-400mm
Guarantee	5 years

FD1584B Component Parts

Product Code	Description
1 × Vogels PFB3409B	Connect-it 915mm Interface bar finished in Black
1 × Vogels PFF7030B	Connect-it Dual Column Extra-Large Floor Plate finished in Black
1 × Vogels PFS3304	Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt)
2 × Vogels PUC2715B	150㎝ Connect-it Floor column finished in black
