Vogels FD1564B

TV/Monitor Floor Stand with Tilt - Black
Over 65"/ Max 80kg; VESA 100×100 to 600×400; 140cm to screen centre; Max 20° tilt

Vogels FD1564B (7951040)

Vogel's Connect-it floor solutions (floor stands and trolleys) is an uniquely flexible system. With only a few standard components, you can create a solution for almost any requirement. From a single display floor stand in a shop window, a back-to-back display set-up in an airport, to a movable video conferencing set-up for corporate use, this flexible range fits every situation. Connect-it floor solutions can accommodate displays from small to extra large, weighing up to 160 kg. Modules are available in black and silver finishes.

Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.
Ideal For
  • Boardrooms
  • Exhibitions
  • Hospitality
  • Public Display
  • Reception Area
  • Restaurants & Cafe's
  • Video conferencing
£877 (£1052.40 inc. VAT)
Availability: In Stock

Vogels FD1564B Specifications

Product group Floor stand
Series Connect-it
Guarantee 5 years
Colour Black
Height to Screen Centre 1400mm
Tilt Tilt up to 20°
Min. screen size 65 inch
Max. weight load 80kg
Min. vertical hole pattern 100mm
Max. vertical hole pattern 420mm
Min. horizontal hole pattern 100mm
Max. horizontal hole pattern 650mm

FD1564B Component Parts

Product Code Description

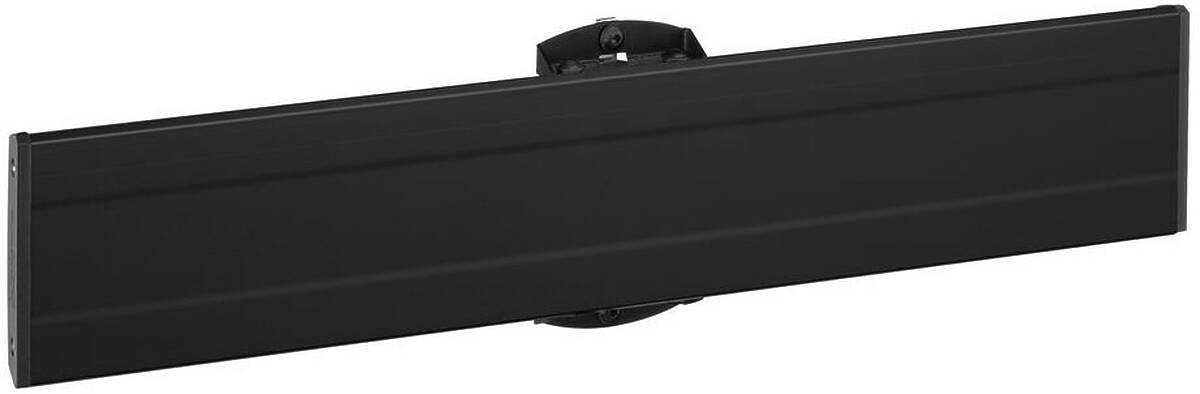

1 × Vogels PFB3407B Connect-it 715mm Interface bar finished in Black

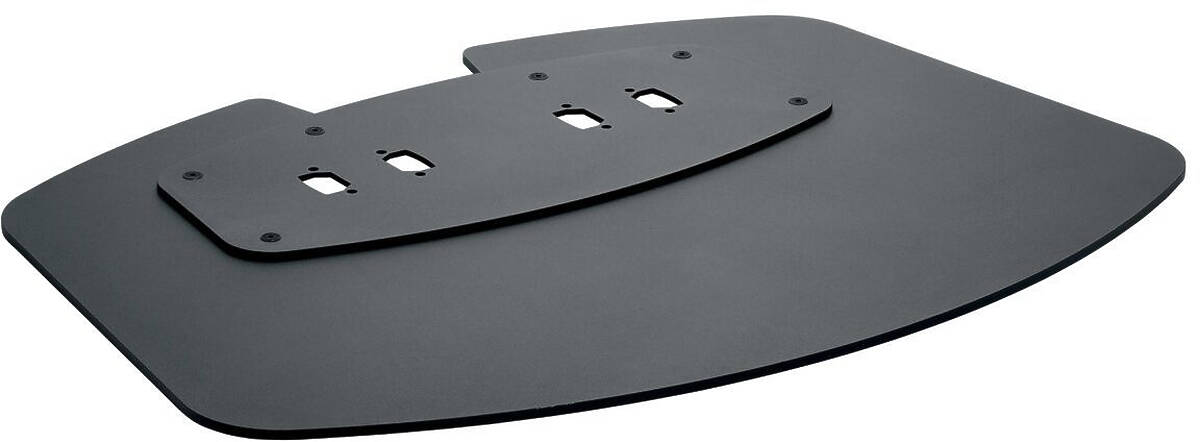

1 × Vogels PFF7030B Connect-it Dual Column Extra-Large Floor Plate finished in Black
1 × Vogels PFS3304 Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt)

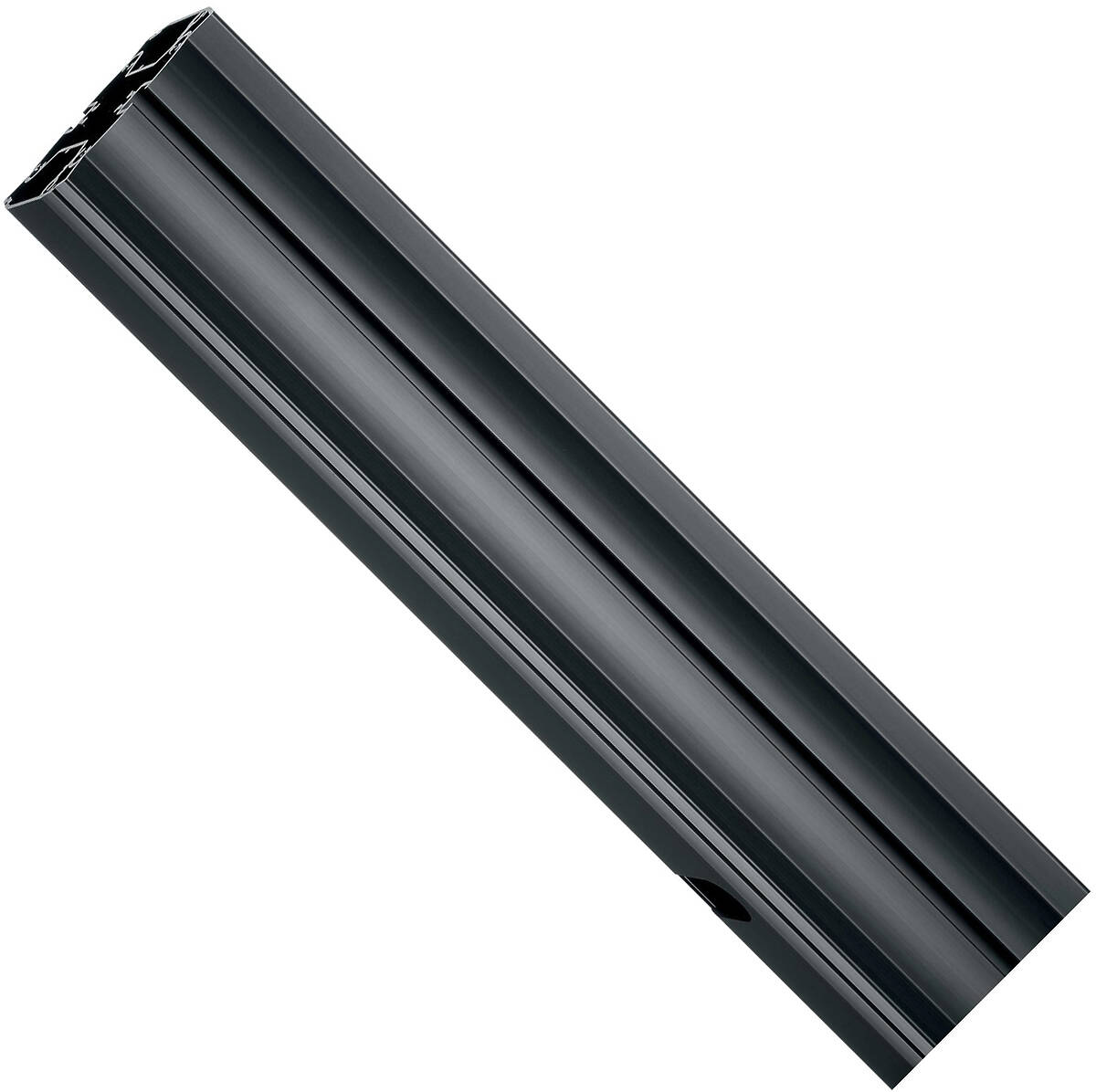

2 × Vogels PUC2715B 150㎝ Connect-it Floor column finished in black

Vogels FD1564B Configurations
