Ashton Bentley DX2 Room Hub

1:1 HDMI 2.0/ USB-C over Twisted Pair Receiver

1 × RJ45 TP, 2 × HDMI Inputs; 2 × HDMI Outputs

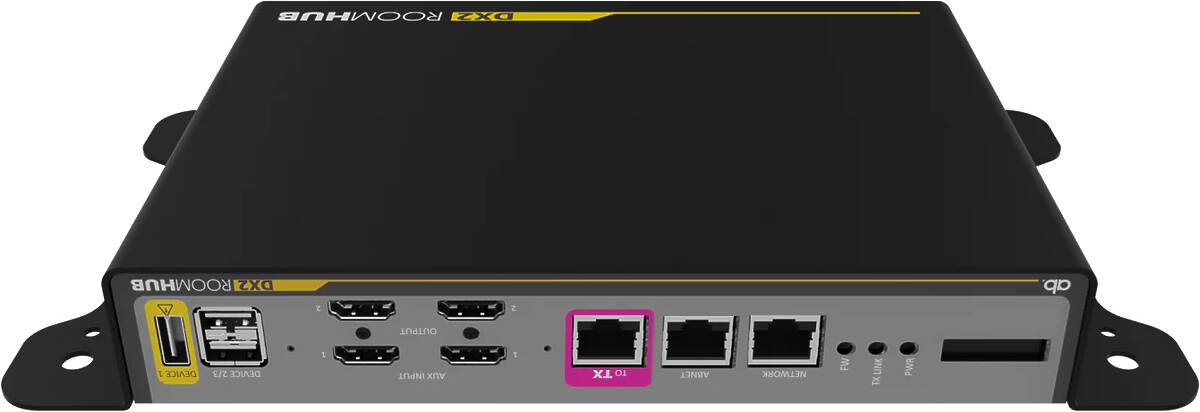

Ashton Bentley DX2 Room Hub 1:1 HDMI 2.0/ USB-C over Twisted Pair Receiver product image. Click to enlarge.
£944 (£1132.80 inc. VAT)
Availability: In stock

Ashton Bentley DX2 Room Hub (900-00551-UK)

A simple low cost two-box solution providing the complete audio-visual infrastructure for meeting rooms.

Designed to partner with the latest Video Conferencing solutions, the boxes replace the traditional rack of AV equipment.

Providing USB-C and HDMI connectivity, signal routing and control. A complete meeting room solution in two boxes, the TX2 Table Hub Transmitter and DX2 Room Hub.

System Basics

The TX2 Table Hub should be installed under a table, in a lectern or wherever connection to laptops is required.

The DX2 Room Hub should located near the display or where the Video Bar or VC equipment is located. It provides VC/display control, signal routing/switching and room management. Works with most video conferencing products and traditional codecs.

The two boxes are linked with a single Cat6a/Cat7 cable, which can be up to 35m. Simple to install, with minimal cabling.


See also: Ashton Bentley TX2 Table Hub

Ashton Bentley DX2 Room Hub Key Features

  • Bring Your Own Device (BYOD) mode
  • Embedded Teams/Zoom engine
  • Licensable API monitors all functionality and connectivity with data available for 3rd party management platfoRMS to simplify maintenance and support
  • Uncompressed 4K60 4:4:4 resolution on inputs and outputs
  • Cat6a/Cat7 link to TX2 (Video, audio, USB and Control) up to 35m
  • System Configuration via internal web server for set-up and control
  • 2 Auxiliary HDMI input ports with input signal sensing
  • 2 independently scalable HDMI output ports
  • Independent EDID control of each input
  • HDCP selectable for each input
  • 3 USB device ports, 2 with configurable power control
  • ABNET for connection of AB peripheral devices
  • Programmable CEC display control
  • 2 Programmable RS232 display control ports
  • Programmable Cisco codec control port
  • Programmable RS232 3rd party control system port
  • OLED status display
  • External Universal PSU (specify country for correct mains cable)
  • Order Code: 900-00551-UK

Ashton Bentley DX2 Room Hub Downloads

HDMI
4K 4096*2160 / 3840*2160 Resolution
HDMI 2.0
EDID Pass Through
USB ALT Graphics Mode

Ashton Bentley DX2 Room Hub Specifications

Connectivity

Inputs Input from TX2 via single Cat6a / Cat7 cable supporting Audio/Video, Control, Power, USB
2 × Auxiliary HDMI
Outputs 2 × HDMI

Processing

HDMI Up to 4K @ 60 Hz 4:4:4 8 bit uncompressed HDMI 2.0 video/audio
Supports HDCP 2.2 (can be disabled if needed)
16 Gb/s video data input from TX2
Maximum Pixel Clock Frequency Range: 600 MHz
Video Resolution: up to 4K2K@60 4:4:4 8 bit
Compliant to HDMI 1.4 and HDMI 2.0 specifications
Supports HDCP 1.4/2.2 (can be disabled if needed)
Inputs have integrated equaliser for improved signal integrity
Signal auto sensing on all inputs
HDCP can be disabled, to remove HDCP issues with VC codecs
EDID can be selected from presets or copied from connected display via the built-in System Configurator setting page.
Output routing is configurable in System Configurator to be either TX2 signals or local signals
Output switching can be automatic (on connecting a source) or manual via the Tablebox touch

panel

Audio HDMI embedded audio
Ethernet 100BaseT Ethernet port with interfaces for:
Web GUI configuration
ABSEE remote support and monitoring system
Device Port
Diagnostic terminal
Audio HDMI embedded audio

Control

ABNET expansion bus for Tablebox Touch Panel, UX or other Ashton Bentley peripherals.
2 × Display Control 3.5mm jacks
Serial Codec Control 9 Pin D-type
USB Codec Control USB Type B

Mechanical

LED Display Displays current IP address, subnet and gateway addresses.
Displays TX2 and DX2 firmware versions
Power Powered by an external 24v 65W power supply (supplied)
Supplies POC to power TX2 unit (• (an optional USB-C Charging Power Supply (Part No. 900-00585) is needed for USB power delivery on the TX2)
Operating Temp 0 to 45 ° C
Operating Humidity 10% to 90% non condensing
Warranty 3 Year
