WyreStorm RXV-70-4K-G2

1:1 4K60 HDMI 2.0 / RS-232 / IR / PoH over HDBaseT receiver

1 × HDBaseT input; 1 × HDMI output; Max 70m @ 4K / 10m @ HD with Cat6 cable

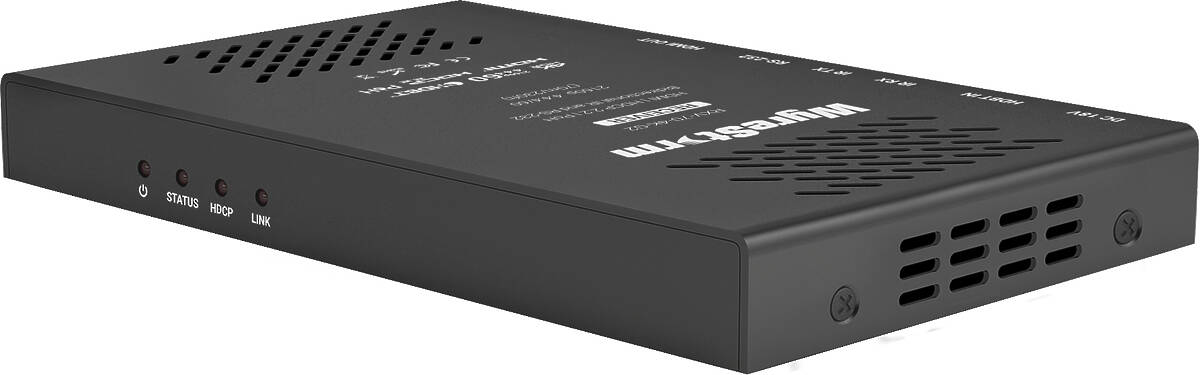

WyreStorm RXV-70-4K-G2 1:1 4K60 HDMI 2.0 / RS-232 / IR / PoH over HDBaseT receiver product image. Click to enlarge.

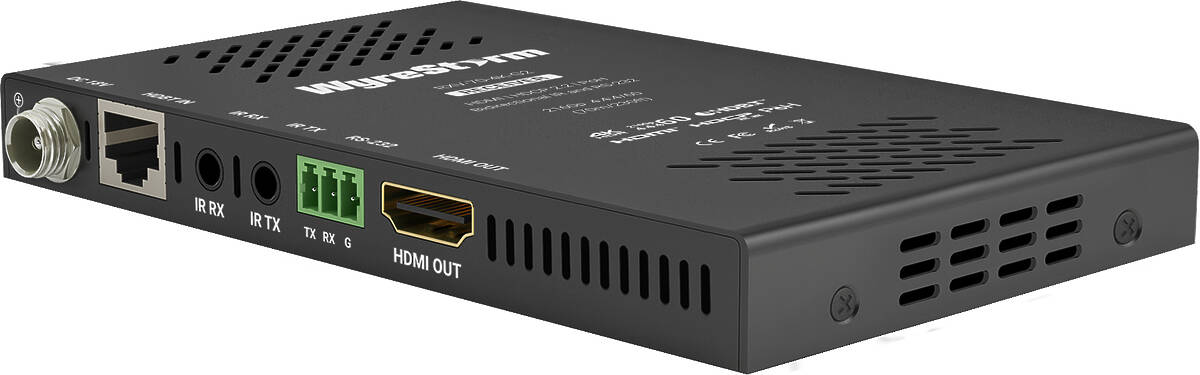

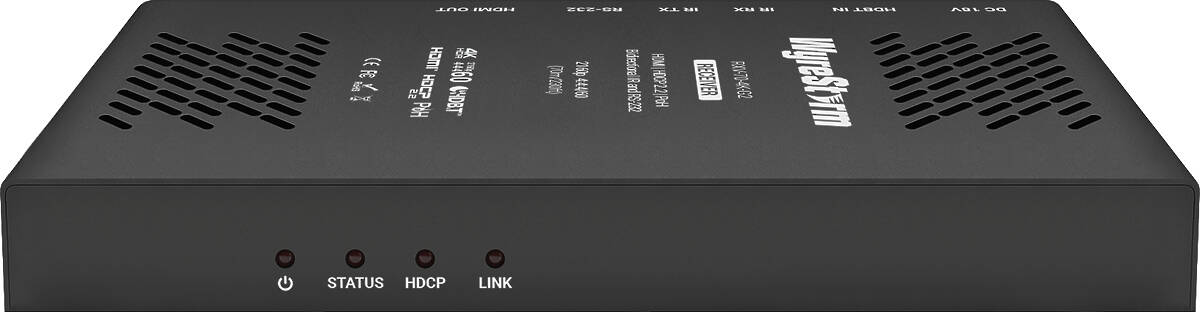

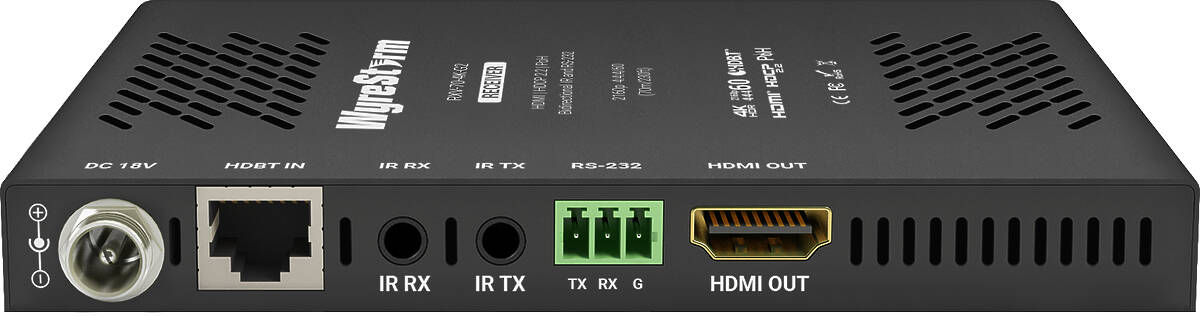

WyreStorm RXV-70-4K-G2 1:1 4K60 HDMI 2.0 / RS-232 / IR / PoH over HDBaseT receiver connectivity (terminals) product image WyreStorm RXV-70-4K-G2 1:1 4K60 HDMI 2.0 / RS-232 / IR / PoH over HDBaseT receiver Front View product image WyreStorm RXV-70-4K-G2 1:1 4K60 HDMI 2.0 / RS-232 / IR / PoH over HDBaseT receiver product image
£217 (£260.40 inc. VAT)
Availability: In stock

WyreStorm RXV-70-4K-G2

Consumer HDMI content is now breaking through the once comfortable HDBaseT ‘ceiling’ of 10Gbps, with HFR (High Frame Rate). HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. The RXV-70-4K-G2 is the perfect companion for WyreStorm’s MXV line-up of matrices also when distances of under 70 meters are required. This receiver is exclusively used for MXV-0606-H2A-70 & MXV-0808-H2A-70 Matrix solutions.

HDMI 2.0 VIDEO: MAXED OUT!

Always looking ahead, WyreStorm can handle both current & future video content technologies. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent using HDBaseT and the latest in lossless compression technology from the matrix to the RXV receiver.

POWER-OVER-HDBASET

With PoH available across all HDBaseT matrix outputs, the headache of hiding power supplies is one less thing to worry about. Power to drive the receiver is sent over the category cable along with the video, audio, control and Ethernet, making installations neat, quick and easy as possible.

SLIM BY DESIGN

As space between displays and the wall they’re mounted to reduces, finding a receiver to fit in this gap can be hard to find. But just because this receiver packs a punch doesn’t mean it can’t deliver the small footprint that you’ve come to expect. It also ships complete with all the accessories needed to help the integrator complete the install discreetly and efficiently.

HDBASET

The very core of WyreStorm transmission, we’ve embraced HDBaseT technology since 2010. We’re now taking the capabilities of HDBaseT to the next level and supporting video bandwidths in excess of 10Gbps with our lossless compression technology built in to out H2X matrix platform. The RXV-70-4K-G2 will output HDMI content at up to 2160p 4:4:4/60.

WyreStorm RXV-70-4K-G2 Key Features

  • Uses WyreStorm's proprietary compression technology for lossless transmission of 4K HDR content, without latency
  • Reliable HDBaseT-HDMI conversion over distance using single Cat6 cable
  • 4K UHD signals up to 70m/230ft (2160p 4:4:4 60Hz 8-bit) and 2K signals up to 100m/230ft (1200p 60Hz 16-bit)
  • Supports HDMI2.0 video standard up to 18Gbps
  • Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision™ (Dolby Vision supported up to 30Hz)
  • Class A HDBaseT supporting the transmission of video, multichannel audio, bidirectional control and PoH
  • Powered remotely via PoH from MXV matrix
  • HDCP 2.2 compatibility
  • Bidirectional IR supported with both IR TX & RX ports
  • RS-232 port for routed 2-way serial communication
  • LED indication for HDCP presence within signal and transmission link between devices
  • Ventilated steel chassis
  • ConfoRMS to IEEE-568B standards
  • Compact design for convenient and unobtrusive installation
  • Wall mounting brackets and IR accessories included

WyreStorm RXV-70-4K-G2 Downloads

HDBaseT Full
HDMI Receiver
70 Metre Range
Proprietary PoC (Power over Cable)
IR Pass Through
RS-232 Pass Through

WyreStorm RXV-70-4K-G2 Specifications

Connectivity

Inputs 1 × HDBaseT In: 8-pin RJ45 Female
Outputs 1 × HDMI Out: 19-pin type A
Output Video Encoding HDBaseT Class A
Encoding Data Rate 9.2Gbps
End to End Latency 10μs (micro seconds)

Audio Formats

Analogue 2ch analogue
S/PDIF 2ch LPCM, Dolby Digital/CTS up to 5.1ch
HDMI 2ch LPCM, Multichannel up to DTS-X and Dolby Atmos

Video Formats

Video Resolution (Max) 1920 × 1080p @60Hz 16bit
3840 × 2160p @24Hz 10bit 4:2:0 HDR
3840 × 2160p @30Hz 8bit 4:4:4
3840 × 2160p @60Hz 10bit 4:2:0 HDR
4096 × 2160p @60Hz 8bit 4:4:4
Supported Standards DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100
Maximum Pixel Clock HDMI: 600MHz, HDBaseT: 297MHz

COMMUNICATION & CONTROL

HDMI HDMI 2.0, HDCP 2.2, EDID, CEC, DVI-D supported with adapter (not included)
HDBaseT HDMI 2.0, HDCP 2.2, EDID, CEC, 1-way PoH, Bidirectional IR
RS-232 1 × RS-232: 3-pin Terminal Block - 3.5mm
IR 1 × IR TX: 3.5mm (1/8in) TS Mono, 1 × IR RX: 3.5mm (1/8in) TRS Stereo, Bidirectional over HDBaseT
CEC CEC Power Triggering for connected screens - Requires CEC compatibility

Mechanical

Power Supply 18V DC (Optional)
PoH 1-way Matrix to Receiver
Max Power Consumption 12.42W
