Panasonic PT-MZ682WEJ Projector

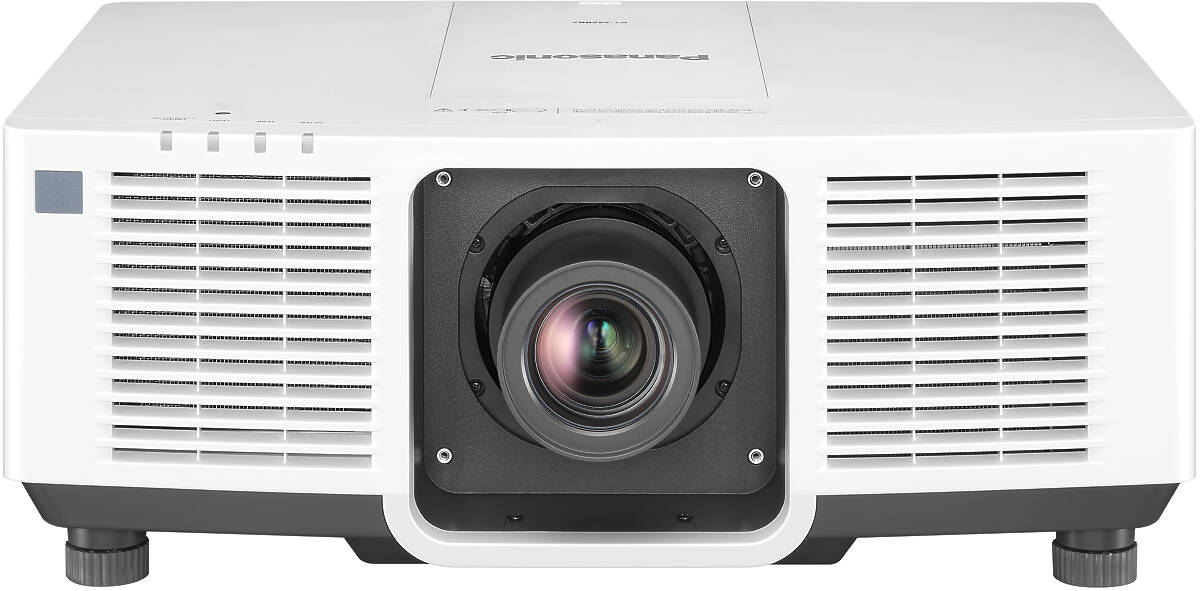

Panasonic PT-MZ682WEJ 6500 Lumens WUXGA projector product image. Click to enlarge.
£3666 (£4399.20 inc. VAT)
Availability: In stock

Panasonic PT-MZ682WEJ Key Features

  • LCD Display Technology
  • 6500 Lumens Colour Light Output
  • 7 Optional Lenses (Click Here)
  • WUXGA 1920*1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 3,000,000:1 Contrast Ratio
  • 17.6kg (38.8lb.)
  • Wide zoom range for flexible placement
  • 360° Installation
  • Curved Surface Projection
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Portrait Mode
  • HDBaseT
  • Interchangeable Lens System
  • Can Be Installed Vertically
  • Lens-centred Design
  • Logo capture and display
  • Quick Power On
  • Quick Power Off
  • DICOM Simulation Mode
  • Monitor Out
  • Network Control

Panasonic PT-MZ682WEJ Downloads

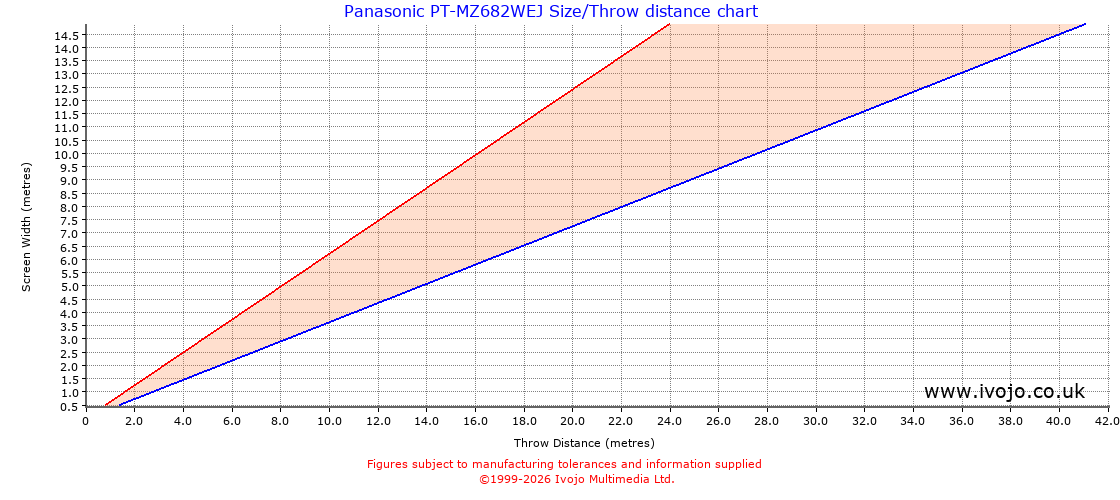

Panasonic PT-MZ682WEJ Throw Chart (Click for details)

Panasonic PT-MZ682WEJ throw distance chart

Panasonic PT-MZ682WEJ Specifications

Categories HDBaseT
Installation HD
Interchangeable Lens
Lens Shift
LED/Laser HD
Manufacturer Panasonic (Click for rest of range)

Panasonic PT-MZ682WEJ Optical Features
System 3 × 0.73in. LCD
Resolution WUXGA (1920*1200)
Aspect Ratio 16:10
Lumens 6,500
ECO Mode Lumens 4,500
Colour Light Output 6500 Lumens
Eco Mode CLO 4500 Lumens
Contrast 3,000,000:1
Lamp Laser Light Source
Lamp Life 20,000hrs. (24,000hrs. ECO mode)
Lens F1.7–2.3, f=26.8–45.5mm Powered Zoom and Focus
Interchangeable Yes
Throw Ratio 1.61 - 2.76:1
Image Size 23"-691" diagonal
Throw Distance 1.36-23.97m
Throw distance for 100" image 3.47 - 5.94m
Lens Shift Vertical ±67%, Horizontal ±35% with standard lens
KeystoneCorrection ±30 (Vertical)
±25 (Horizontal)

Panasonic PT-MZ682WEJ Compatibility
Computer Resolutions UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions 4K, UHD, HD, 720p, PAL, SECAM, NTSC

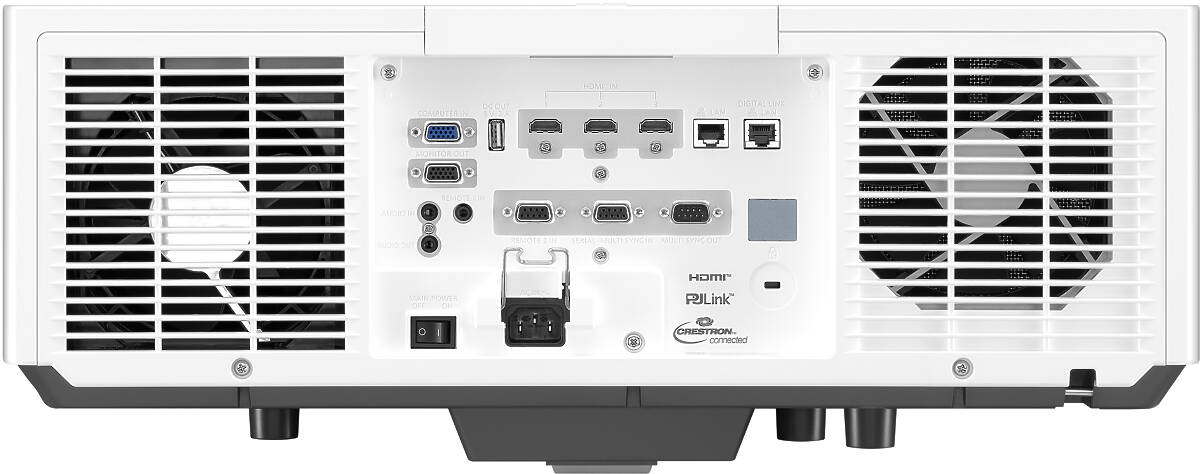

Panasonic PT-MZ682WEJ Terminals
HDMI 3
RGBHV (15-pin HD) 1
RGBHV (BNC/RCA) 1
Monitor Out Yes
Audio In 1
Audio Out 1
USB 1
RS-232 5
HDBaseT 1
Network Ready Yes

Panasonic PT-MZ682WEJ General
Speakers No
Remote Control Panasonic PT-MZ682WEJ only
Noise 32db (25db ECO mode)
Dimensions 561*224*439mm (W*H*D)
Weight 17.60kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 330Watts
Manufacturers Warranty 3 years / 20,000 hours (whichever first)
Light Source Warranty 3 years / 20,000 hours (whichever first)

Panasonic PT-MZ682WEJ Package Contents
Accessories Wireless remote control unit (× 1)
Power cord (3.0m × 1) (× 2 for Europe and Asia model)
Batteries for remote control (R03/AAA type × 2)
Lens Cover (× 1)

Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.

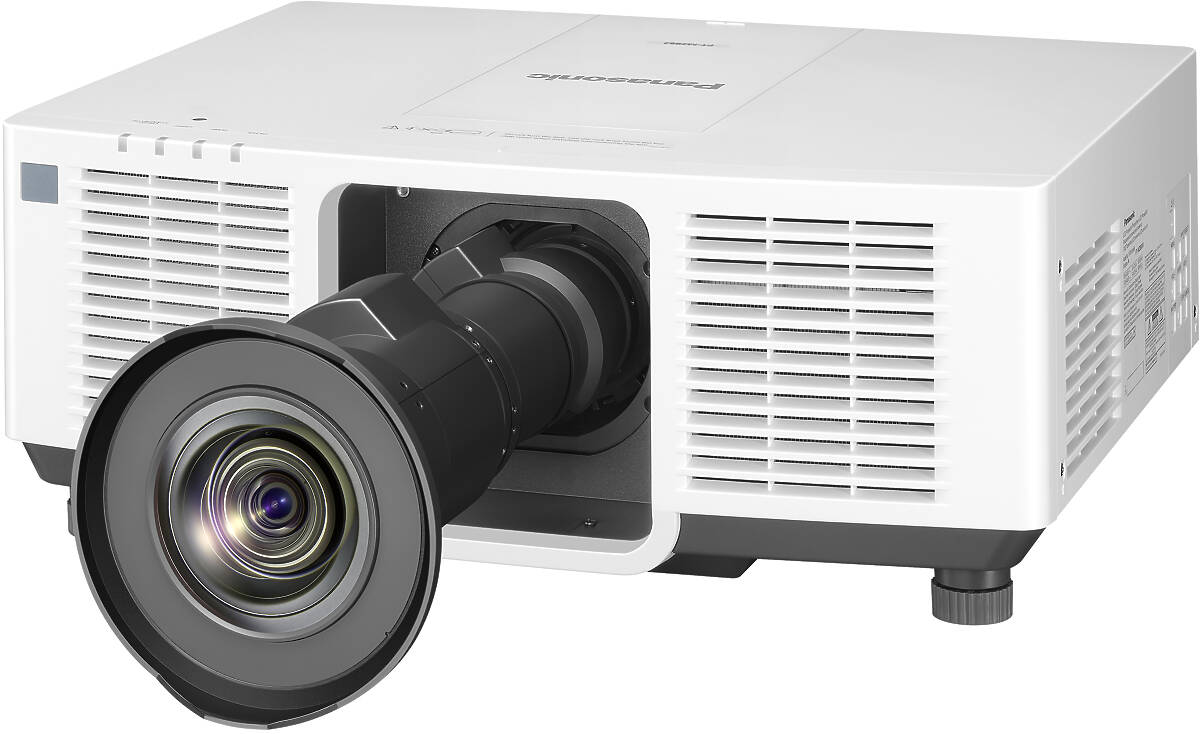

Panasonic PT-MZ682WEJ Optional Lenses
