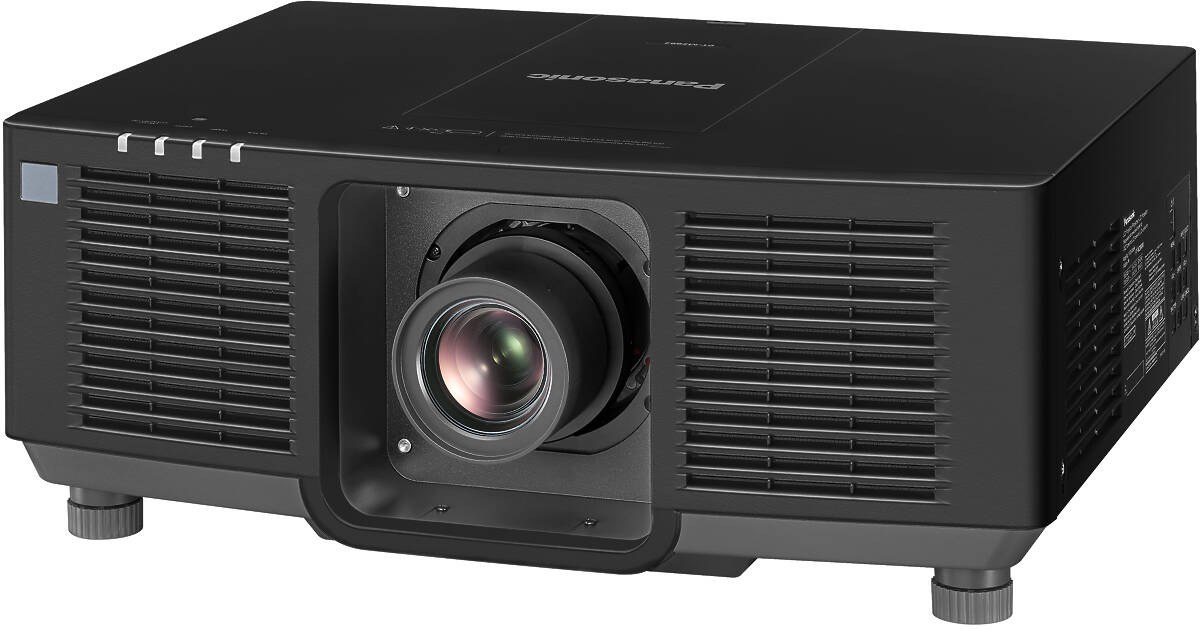

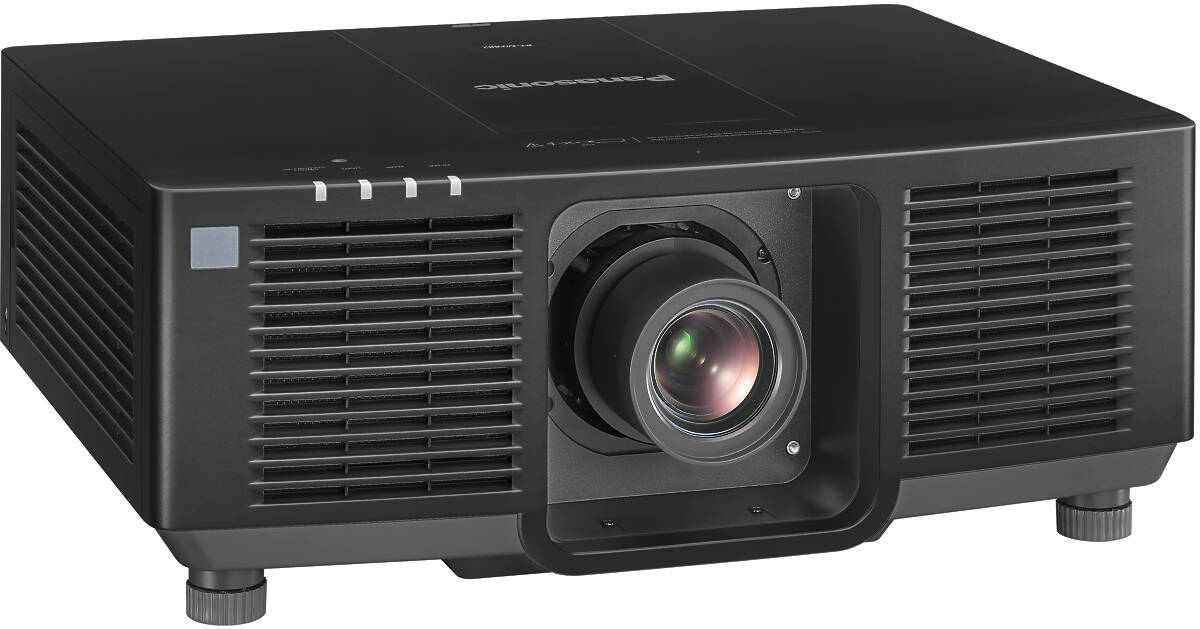

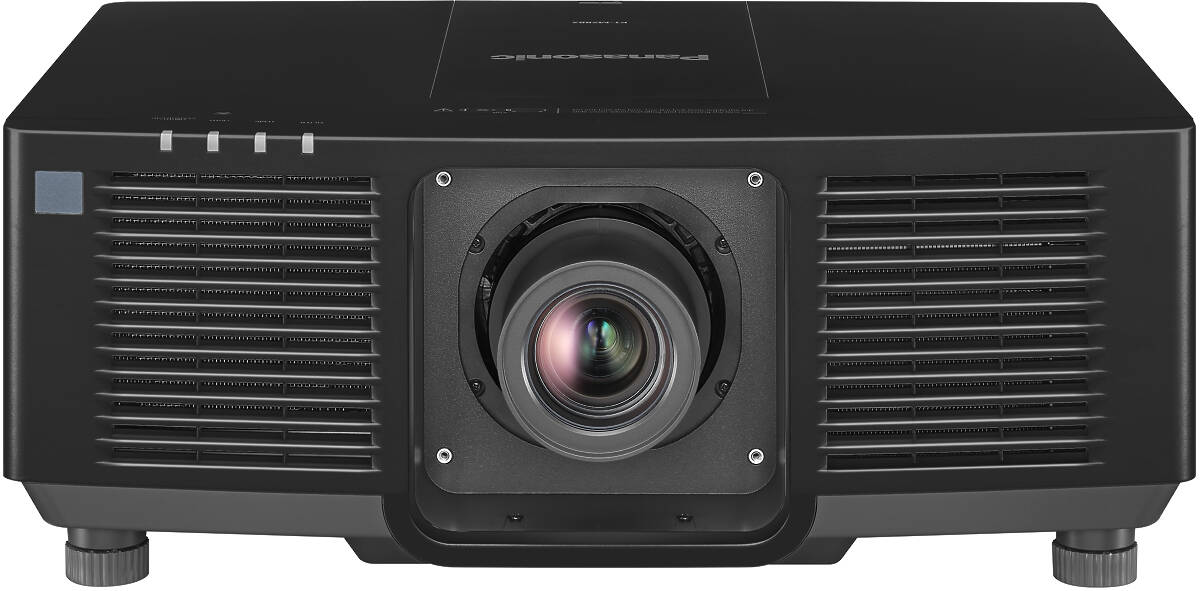

Panasonic PT-MZ682BEJ Projector
£3666 (£4399.20 inc. VAT)
Availability: In stock
Availability: In stock
Panasonic PT-MZ682BEJ Key Features
- LCD Display Technology
- 6500 Lumens Colour Light Output
- 7 Optional Lenses (Click Here)
- WUXGA 1920×1200 Native Resolution
- 20,000 hour lamp life (typical)
- 3,000,000:1 Contrast Ratio
- 17.6kg (38.8lb.)
- Finished in Black
- Wide zoom range for flexible placement
- 360° Installation
- Native Widescreen
- Lens Shift
- Curved Surface Projection
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Portrait Mode
- HDBaseT
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Logo capture and display
- Quick Power On
- Quick Power Off
- Edge Blending
- DICOM Simulation Mode
- Monitor Out
- Network Control
Panasonic PT-MZ682BEJ Downloads
- CAD, engineering and precision presentations
- Church Projectors
- Conference rooms (50 - 150 people)
- Horizontal Surface Projection
- Medical Imaging
- Museums
- Portrait Mode Applications

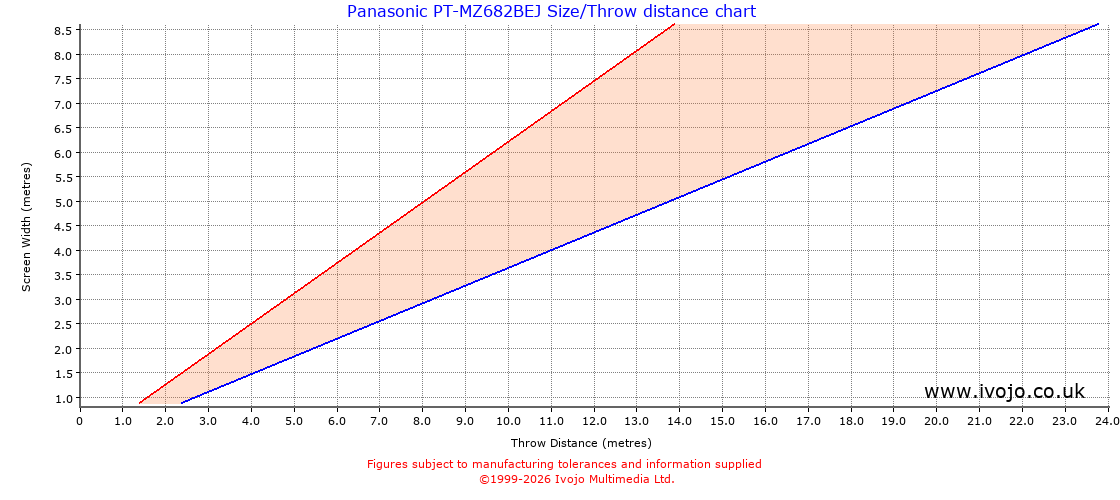

Panasonic PT-MZ682BEJ Throw Chart (Click for details)
Panasonic PT-MZ682BEJ Specifications
| Categories | HDBaseT Installation HD Interchangeable Lens Lens Shift LED/Laser HD |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-MZ682BEJ Optical Features |
|
| System | 3 × 0.73in. LCD |
| Resolution | WUXGA (1920×1200) |
| Aspect Ratio | 16:10 |
| Lumens | 6,500 |
| ECO Mode Lumens | 4,500 |
| Colour Light Output | 6500 Lumens |
| Eco Mode CLO | 4500 Lumens |
| Contrast | 3,000,000:1 |
| Lamp | Laser Diode |
| Lamp Life | 20,000hrs. (24,000hrs. ECO mode) |
| Lens | F1.7–2.3, f=26.8–45.5mm Powered Zoom and Focus |
| Interchangeable | Yes |
| Throw Ratio | 1.61 – 2.76:1 |
| Suggested Max Size (60ft.lamberts) | 136.82 * 85.51 in. (161 in. diagonal) (348 * 217cm) |
| Image Size | 40" – 400" diagonal |
| Throw Distance | 1.36 – 23.97m |
| Throw distance for 100" image | 3.47 – 5.94m |
| Lens Shift | Vertical ±67%, Horizontal ±35% with standard lens |
| Keystone |
±30 (Vertical) |
| ±25 (Horizontal) | |
Panasonic PT-MZ682BEJ Compatibility |
|
| Computer Resolutions | 4K, UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| Video Resolutions | 4K, UHD, HD, 720p, PAL, SECAM, NTSC |
Panasonic PT-MZ682BEJ Connectivity |
|
| HDMI | 3 × HDCP 2.3 Compatible, 4K/60, CEC, Deep Color |
| HDBaseT | 1 × RS-45 PJLink/HDBaseT |
| RGBHV | 1 × 15 Pin D-Sub (RGB/YPBPR/YCBCR) |
| Audio In | 1 × 3.5mm Mini Jack |
| RS-232 | 3 × 9 Pin D-Sub 1 × RS-232C Control 2 × Multi-Projector Sync |
| IR | Yes, remote control supplied |
| Network | 1 × RJ-45 10Base-T, 100Base-TX |
| USB | 1 × Type A (5V DC, 2Amp) |
| Display Out | 1 × 15 Pin D-Sub (RGB/YPBPR/YCBCR) |
| Audio Out | 1 × 3.5mm Mini Jack |
Panasonic PT-MZ682BEJ General |
|
| Speakers | No |
| Remote Control | Panasonic PT-MZ682BEJ only |
| Noise | 32db (25db ECO mode) |
| Dimensions | 561×224×439mm (W×H×D) |
| Weight | 17.60kg |
| Power Supply | 100–240V AC; 50–60Hz |
| Power Consumption | 330Watts |
| Manufacturers Warranty | 3 years / 20,000 hours (whichever first) |
| Light Source Warranty | 3 years / 20,000 hours (whichever first) |
Panasonic PT-MZ682BEJ Package Contents |
|
| Accessories | Wireless remote control unit 3m Power cord Batteries for remote control (R03/AAA type × 2) Lens Cover |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-MZ682BEJ Optional Lenses
| Description | Price | Inc. VAT |
| Panasonic ET-ELU20 Ultra Short Throw Fixed Lens | £5327 | £6392.40 |
| Panasonic ET-ELW22 Ultra Short Throw Zoom Lens | £1413 | £1695.60 |
| Panasonic ET-ELW21 Fixed Short Throw Lens | £1065 | £1278.00 |
| Panasonic ET-ELW20 Short Throw Zoom Lens | £1065 | £1278.00 |
| Panasonic ET-ELS20 Standard Throw Zoom Lens | £476 | £571.20 |
| Panasonic ET-ELT22 Semi -Long Throw Zoom Lens | £753 | £903.60 |
| Panasonic ET-ELT23 Long Throw Zoom Lens | £753 | £903.60 |
Panasonic PT-MZ682BEJ Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-PU1006W | LCD | 6000 | 15.4 | £3372 | £4046.40 |
| Epson EB-PU1007B | LCD | 7000 | 15.4 | £4109 | £4930.80 |
| Epson EB-PU1007W | LCD | 7000 | 15.4 | £4109 | £4930.80 |
| Christie DWU630-GS-BK | DLP | 6750 | 15.85 | £4243 | £5091.60 |
| Christie DWU630-GS-WH | DLP | 6750 | 15.85 | £4243 | £5091.60 |
| Fujifilm FP-Z6000-B | DLP | 6000 | 17.5 | £10642 | £12770.40 |
| Panasonic PT-FRZ60BEJ | DLP | 6000 | 16 | £3472 | £4166.40 |
| Panasonic PT-FRZ60WEJ | DLP | 6000 | 16 | £3472 | £4166.40 |
| Panasonic PT-MZ682WEJ | LCD | 6500 | 17.6 | £3666 | £4399.20 |
