Unicol FCST4

Twin Screen Adjustable Mount for 2092mm Goal Post Floor-to-Ceiling Installations
71–110″ / Max 65kg per Monitor; VESA 300×300–1000×600

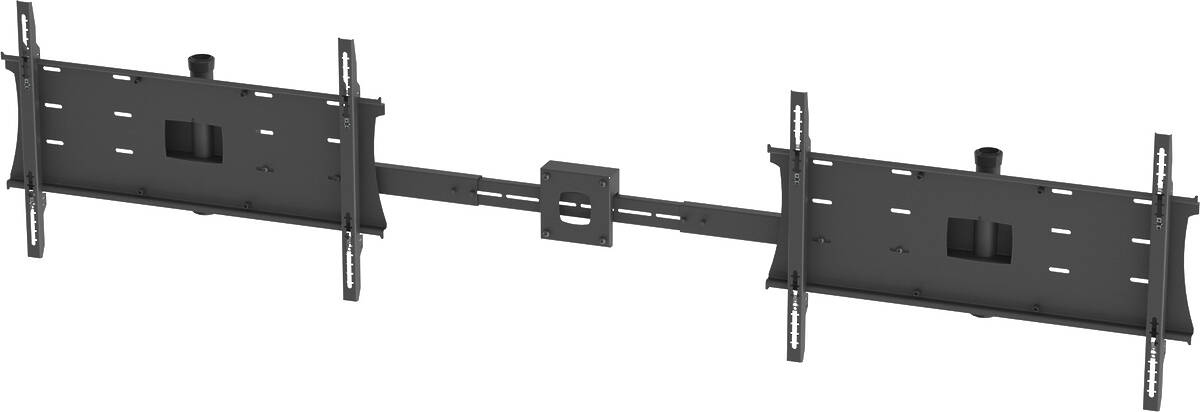

Unicol FCST4 Twin Screen Adjustable Mount for 2092mm Goal Post Floor-to-Ceiling Installations product image. Click to enlarge.

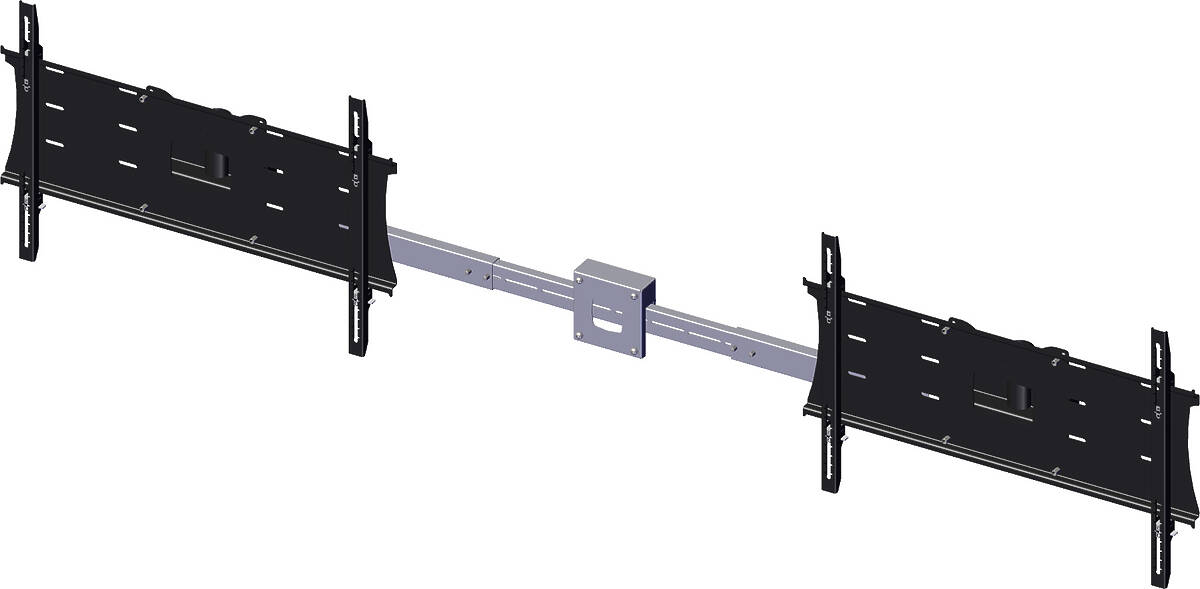

Unicol FCST4 Twin Screen Adjustable Mount for 2092mm Goal Post Floor-to-Ceiling Installations product image

Unicol FCST4 Description

The FCST4 Goal Post span unit allows users to mount monitors from 71–110″ between goal-post columns to create an impressive installation. Ideal for floor-to-ceiling or floor-to-wall installations, span units offer an alternative style for projects whilst also spreading out the weight of heavy screens. Cabling can be thread through the column sockets and then through columns into the floor or ceiling.

Compatible with any column length.

Designed to fit VESA measurements 300×300, 400×300, 500×300, 400×400, 600×300, 500×400, 400×600, 600×400, 800×400, 1000×400, 800×600 and 1000×600.

Key Features

  • For Side-by-Side mounting between Goal Post columns
  • Goal post type configuration
  • 2092mm Column Centres
  • Designed for monitors from 71–110″
  • Can be used with all standard Unicol columns
  • Touch Screen Compatible
  • Dual Monitor (Side-By-Side)
  • See entire Unicol Floor to Ceiling Range
£590 (£708.00 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol FCST4 Specifications

Product Group Unicol Floor to Ceiling
Monitor Count 2
Colour Sinterflex Black
Colour Options Custom RAL colours available at additional cost
Screen Size 71 – 110″
Screen Orientation Landscape
Max Load 130.00kg.
VESA Mount Points 300×300–1000×600mm
Dimensions 2655.0mm – 3262.0mm width
700.0mm height
137.0mm depth
Weight 41.80kg.
Warranty 10 Years
Column Centres 2092mm

Ideal For

  • Conferences
  • Digital Signage
  • Exhibitions
  • Museums and Art Galleries
  • Retail
  • Scheduling Displays
  • Touchscreen Applications
  • Trade Shows

Unicol FCST4 Downloads

Unicol Goal Post Floor-To-Ceiling Mount Components

Unicol 1000x2 2 × 1000mm mild steel chrome finished column for trolleys and floor stands (Available in Chrome or Stainless Steel, Drilled and Undrilled)
Unicol 1000x2
(1000mm undrilled)
Unicol 1500x2 2 × 1500mm mild steel chrome finished undrilled column for trolleys and floor stands
Unicol 1500x2
(1500mm undrilled)
Unicol 2000x2 2 × 2000mm mild steel chrome finished undrilled column for trolleys and floor stands
Unicol 2000x2
(2000mm undrilled)
Unicol CP1 Single Column Ceiling Plate, Max 60kg
Unicol CP1
(Ceiling Plate)
Unicol CP3 Single Column Stub Ceiling Plate, Max 60kg
Unicol CP3
See all Unicol Goal Post Floor-To-Ceiling Mount Components
