Unicol FCS10

Mount Bracket for 1785mm Goal Post Floor-to-Ceiling Installations
100–130″ / Max 150.00kg; VESA 400×400–1500×1000

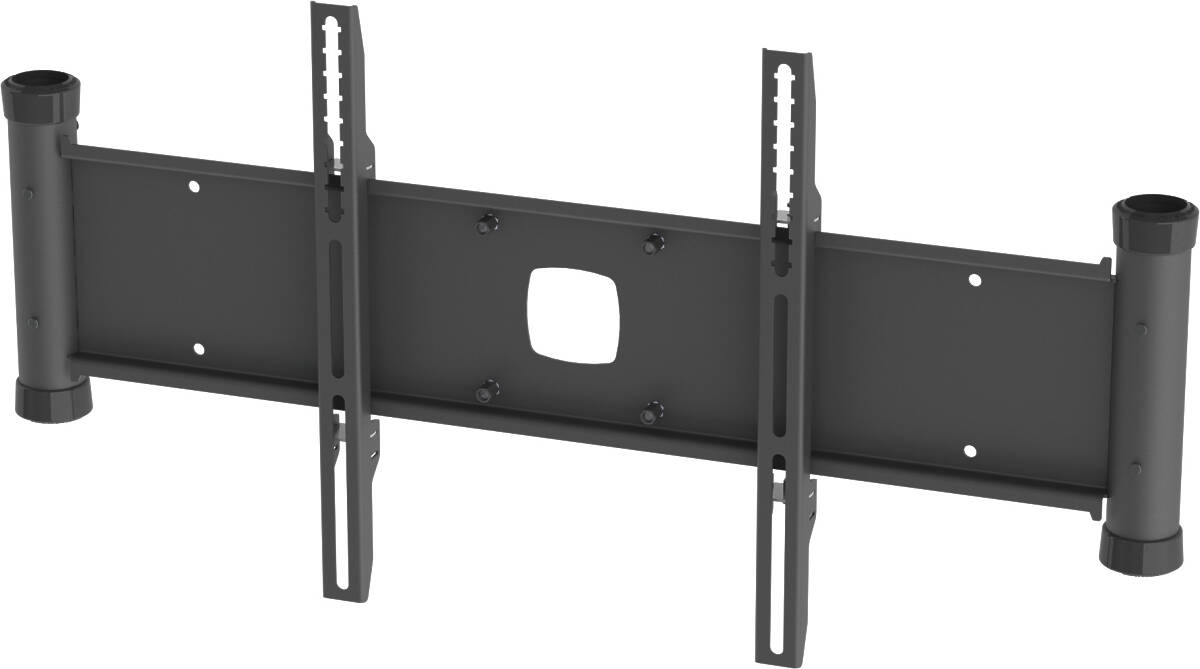

Unicol FCS10 Mount Bracket for 1785mm Goal Post Floor-to-Ceiling Installations product image. Click to enlarge.
Unicol FCS10 Mount Bracket for 1785mm Goal Post Floor-to-Ceiling Installations product image Unicol FCS10 Mount Bracket for 1785mm Goal Post Floor-to-Ceiling Installations product image

Unicol FCS10 Description

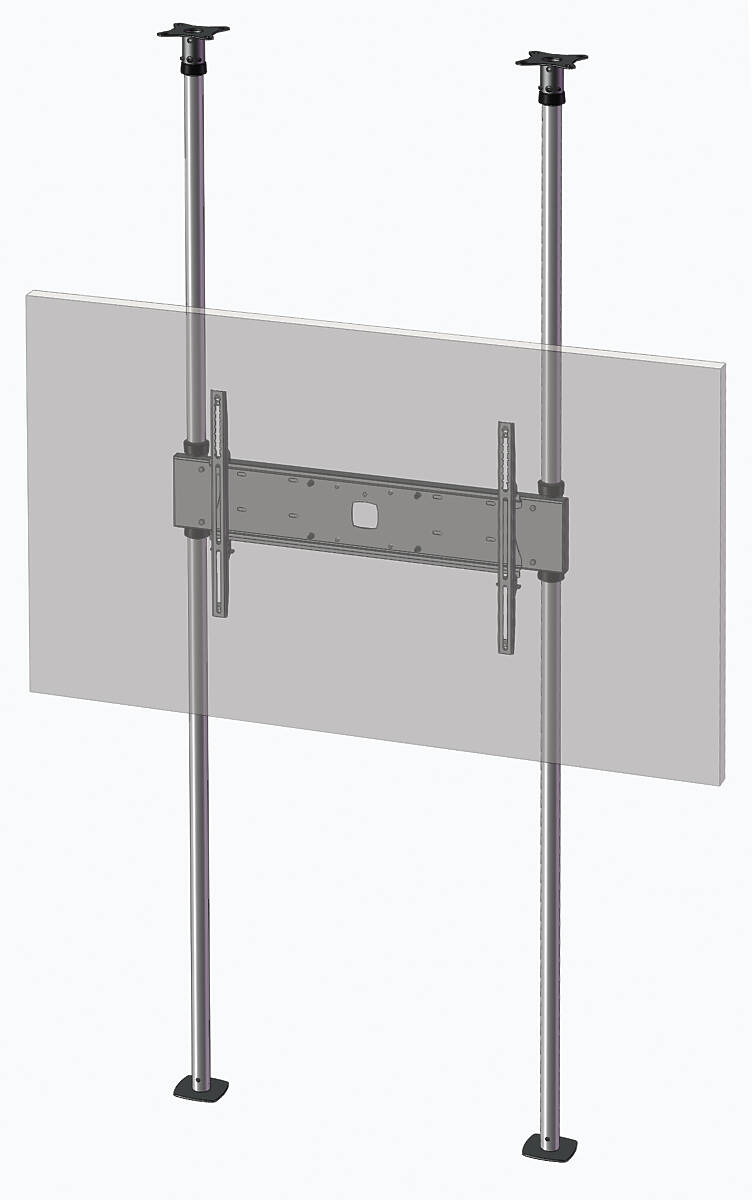

The FCS10 Goal Post span unit allows users to mount monitors from 100–130″ / Max 150.00kg; VESA 400×400–1500×1000 between goal-post columns to create an impressive installation. Ideal for floor-to-ceiling or floor-to-wall installations, span units offer an alternative style for projects whilst also spreading out the weight of heavy screens. Cabling can be thread through the column sockets and then through columns into the floor or ceiling.

Compatible with any column length.

Designed to fit VESA measurements 400×400, 500×400, 600×400, 400×600, 800×400, 1000×400, 800×600, 1000×600, 1000×800, 1200×800, 1000×1000 and 1500×1000.

Key Features

  • Ideal for use in floor to ceiling and floor to wall solutions
  • Goal post type configuration
  • Strong and light ideally suited to heavy large screens and touch screens
  • Can be used with all standard Unicol columns
  • Designed to accomodate a single monitor
  • Touch Screen Compatible
  • See entire Unicol Floor to Ceiling Range
£205 (£246.00 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol FCS10 Specifications

Product Group Unicol Floor to Ceiling
Monitor Count 1
Colour Sinterflex Black
Colour Options Custom RAL colours available at additional cost
Screen Size 100–130″
Screen Orientation Landscape
Max Load 150kg
VESA Mount Points 400×400–1500×1000mm

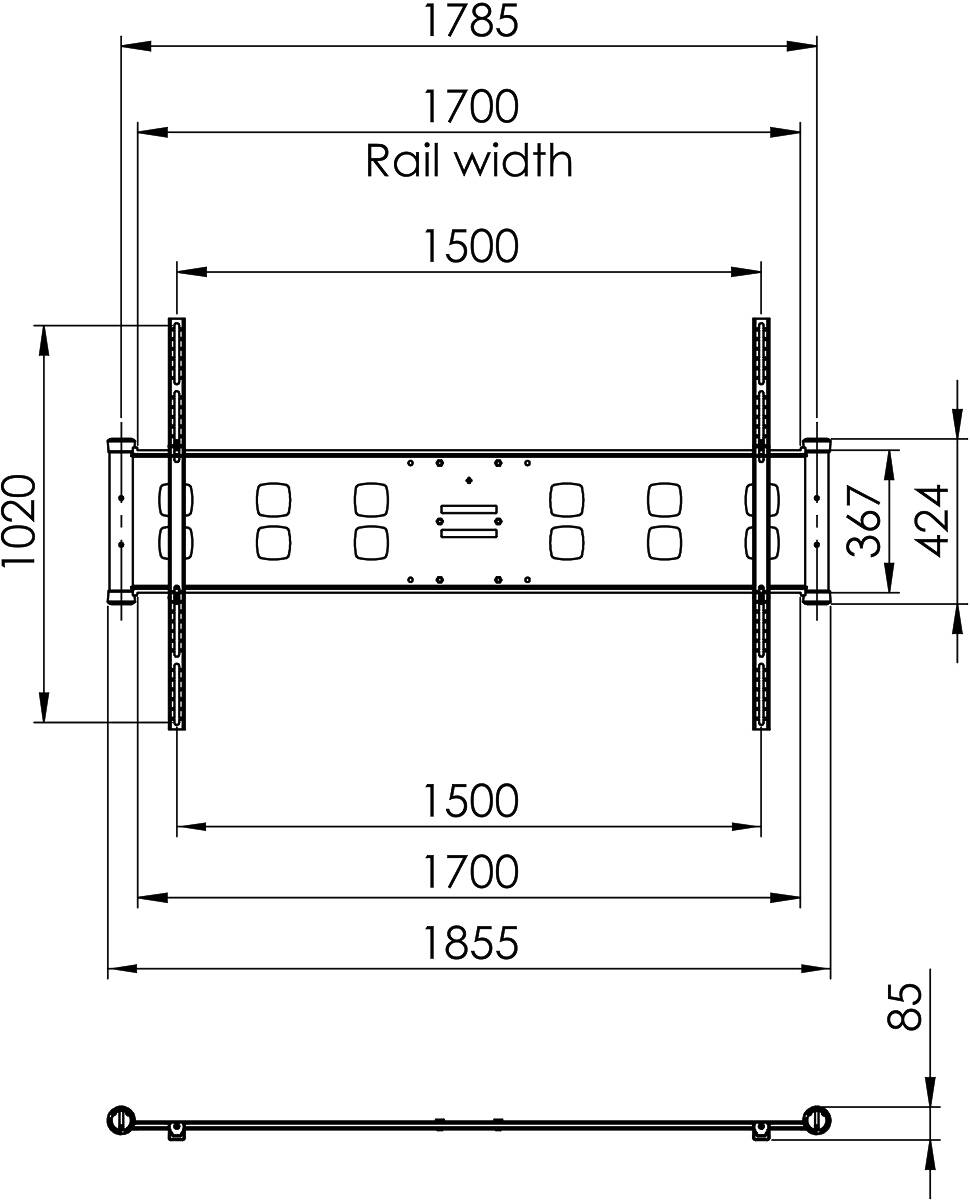

Dimensions 1855.0mm width
1055.0mm height
85.0mm depth
Column Mount Centres 1785mm
Weight 22.20kg.
Warranty 10 Years
Column Centres 1785mm

Ideal For

  • Conferences
  • Digital Signage
  • Exhibitions
  • Museums and Art Galleries
  • Retail
  • Scheduling Displays
  • Touchscreen Applications
  • Trade Shows

Unicol FCS10 Downloads
