Sharp MultiSync E759 LED Large Format Display Monitor
Availability: In stock
Sharp MultiSync E759 Suggested Applications
Key Features
- 75" Diagonal IPS with Direct LED backlights Panel
- Unhindered readability - a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Standardised functionality - shares a common identity with the wider Sharp display portfolio, ensuring unified operation and remote device management, and consistent styling for a seamless user experience.
- Effortless plug-and-play signage - the integrated USB Media Player enables native UHD content playback with auto-start functionality, delivering instant digital signage without the need for external hardware or content management systems.

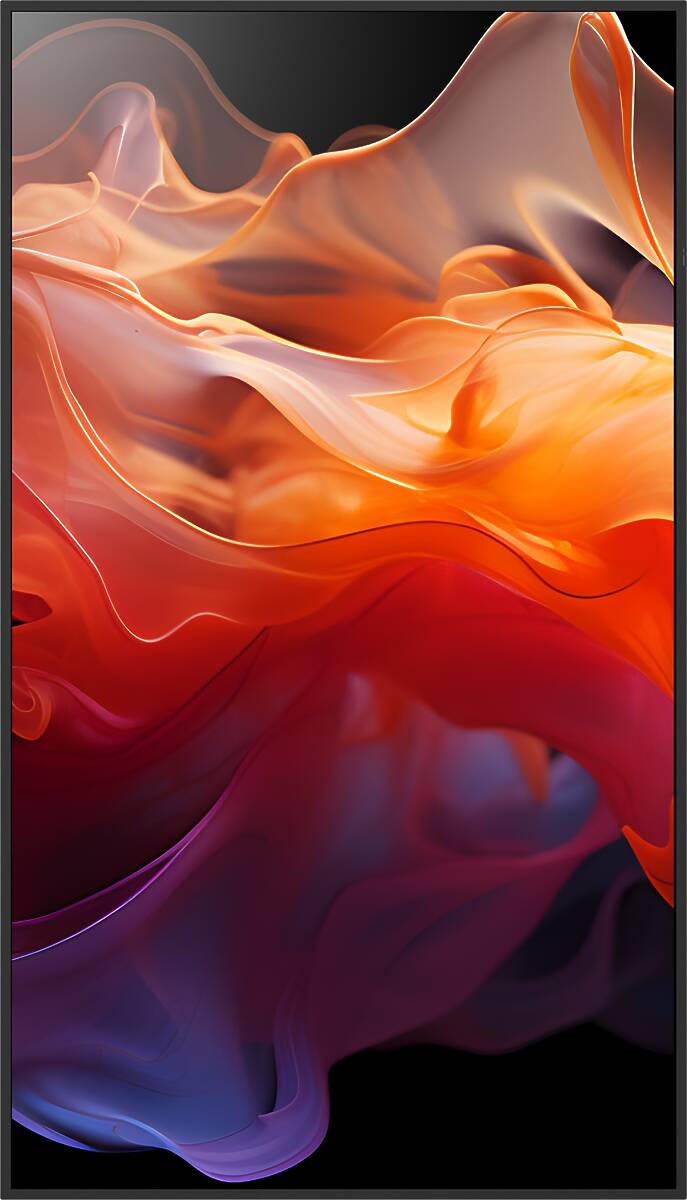

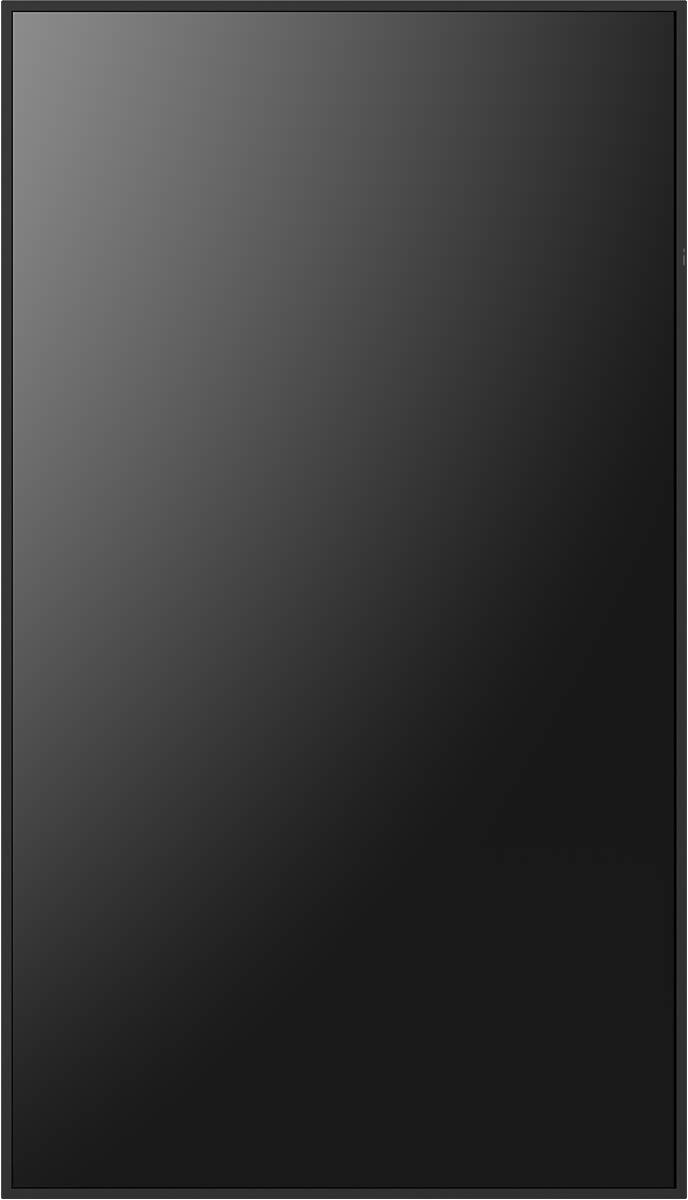

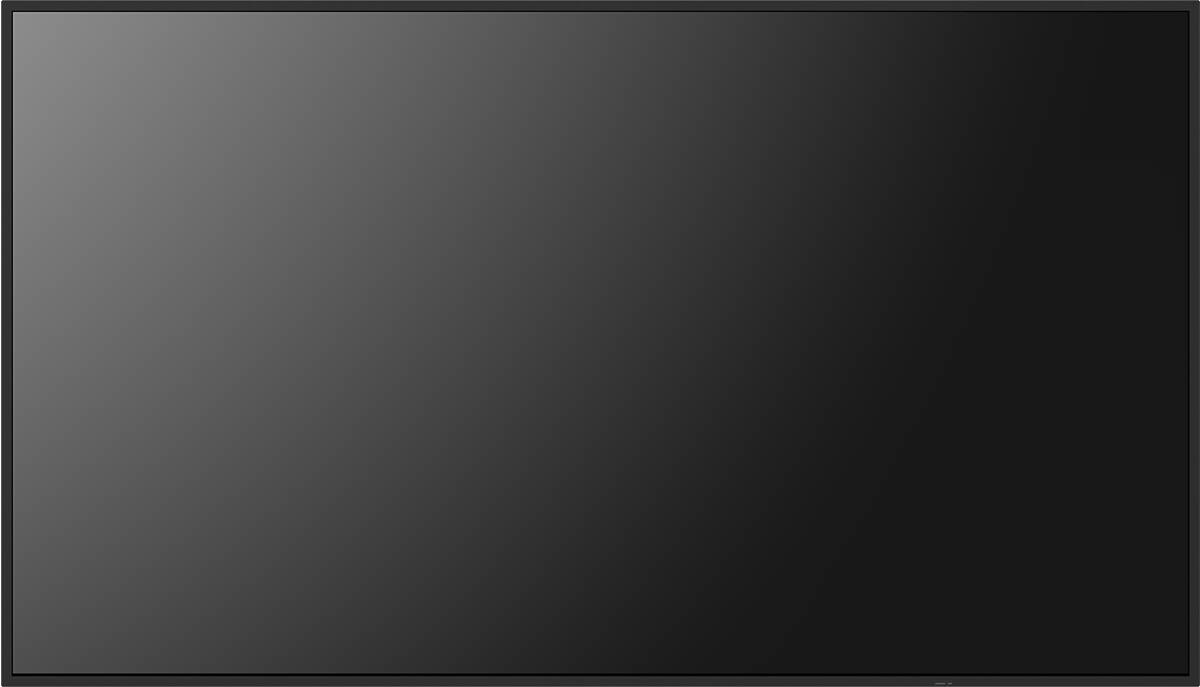

- Flexible orientation - designed for both portrait and landscape installation, with uniform bezel width on all sides to ensure a clean, professional look in any configuration.
- VESA 600×400; M8 mounting points
- Designed for 16/7 use - Warranty covers use up to 16 hours per day
- USB Media Player - Play JPeG images, MP3 audio or MPG video from a USB memory stick
- LAN Control/Monitoring - The monitor can be controlled through your local area network
- Scheduling Function - Allows the monitor to automatically switch on and off to a set schedule and (if fitted with a media player) start displaying media
Professional performance, affordable value
The entry point for professional display solutions, the Sharp MultiSync E9 Series is designed for modern business environments that need more than a consumer TV can offer. Combining essential features for meeting rooms and digital signage with commercial-grade reliability, the E9 Series delivers crisp UHD resolution, integrated media playback, and 16/7 operation at an accessible price point. A professional matte high-haze panel ensures superior visual performance in this product category, minimising reflections and glare common with glossy panels.
Designed for seamless integration across the wider Sharp display family, the E9 Series shares the same core identity, including the same remote control and device management for a consistent user experience. A robust metal back cover secures product longevity in commercial settings. Whether for presentations, retail signage, or corporate communication, the E9 Series gives you the professional edge without stretching your budget
Sharp MultiSync E759 Downloads
Sharp MultiSync E759 Summary |
|
| Manufacturers Part No. | 60006185 |
| Model | Sharp MultiSync E759 |
| EAN / UPC | 4550556167864 |
| Display Type | IPS with Direct LED backlights |
| Features | Designed for 16/7 use USB Media Player LAN Control/Monitoring Scheduling Function |
| Diagonal | 75" |
| Viewable Area | 165 * 92.8cm |
| Native Resolution | 3840×2160 |
| Brightness | 350cd/m2 |
| Contrast | 1,200:1 |
| Pixel Pitch | 0.430mm |
| Colours | 1.07 Billion |
| Horizontal Frequency | 31.5–135KHz |
| Vertical Frequency | 24–75Hz |
Connectivity |
|
| HDMI | 2 |
| USB-C Video | 1 |
| USB | 2 |
| RS-232 | 1 |
General Specifications |
|
| Speakers | 10w + 10w |
| Warranty | 3 years warranty incl. backlight |
| Monitor Dimensions | 168 × 95.9 × 5.9cm (w×h×d) |
| Weight | 24kg. |
| VESA | 600×400; M8 |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
| Consumption | 170w |
Connectivity |
|
| Input Video Digital | 1 × USB-C (with HDCP, 15 W) |
| 2 × HDMI | |
| Input Audio Digital | 1 × USB-C |
| 2 × HDMI | |
| Input Control | 1 × LAN 100Mbit |
| 1 × RS232 | |
| Input Data | 1 × USB 2.0 (MediaPlayer) |
| 1 × USB Type-C (5V/3A, power for external devices) | |
| Output Audio Analogue | 1 × 3.5 mm jack |
| Remote Control | Remote Control IR |
| RS-232C (9-pin D-sub) Input | |
Electrical |
|
| Power Savings Mode | < 0.5w |
| < 2 (Networked Standby) | |
Environmental Conditions |
|
| Operating Temperature | +0 to +40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 80% |
| Storage Temperature | -20 to +60°C |
Mechanical |
|
| Bezel Width | 12.9mm |
| Packaging Dimensions | 1875 × 1130 × 186mm (W × H × D) |
| Packaging Weight | 33kg |
Media Player |
|
| File Storage / File System | USB 2.0 / FAT16, FAT32 |
| Image Formats | JPG (baseline, progressive, RGB, CMYK) |
| max. resolution 15360 × 8640 | |
| Video Formats | MPG (MPEG1/2/4, max res 1080p@30Hz) |
| MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz) | |
| TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz) | |
| audio: LPCM, MP3, AAC | |
| WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) | |
| Audio Formats | MP3 (MP3) |
| max. bit-rate 320 kBit/s | |
Regulatory |
|
| Safety and Ergonomics | CE; Energy Star 8; FCC Class B; RCM; UKCA; UL/C-UL or CSA |
Green Features |
|
| Energy Efficiency | Energy consumption: 250 kWh/1000 h |
| Energy efficiency class: G | |
| LED backlight | |
| Ecological Standards | EnergyStar 8.0 |
Additional Features |
|
| Special Characteristics | CEC Support |
| HDMI ARC | |
| NaViSet Administrator 2 - free download | |
| Powered USB-Port | |
| Scheduler | |
| USB Media Player | |
| Colour Versions | Black Front Bezel, Black Back Cabinet |
| Operating Hours | 16/7 |
| Remote Management | NaViSet Administrator 2 |
Included Accessories |
|
| Accessories | Feet (ST-86L); Trolley (L20PNSR780MEU); USB-C cable (USB-C 5M USB-C 7M); Wall mount (SF680P L20PNWALL90EU) |
