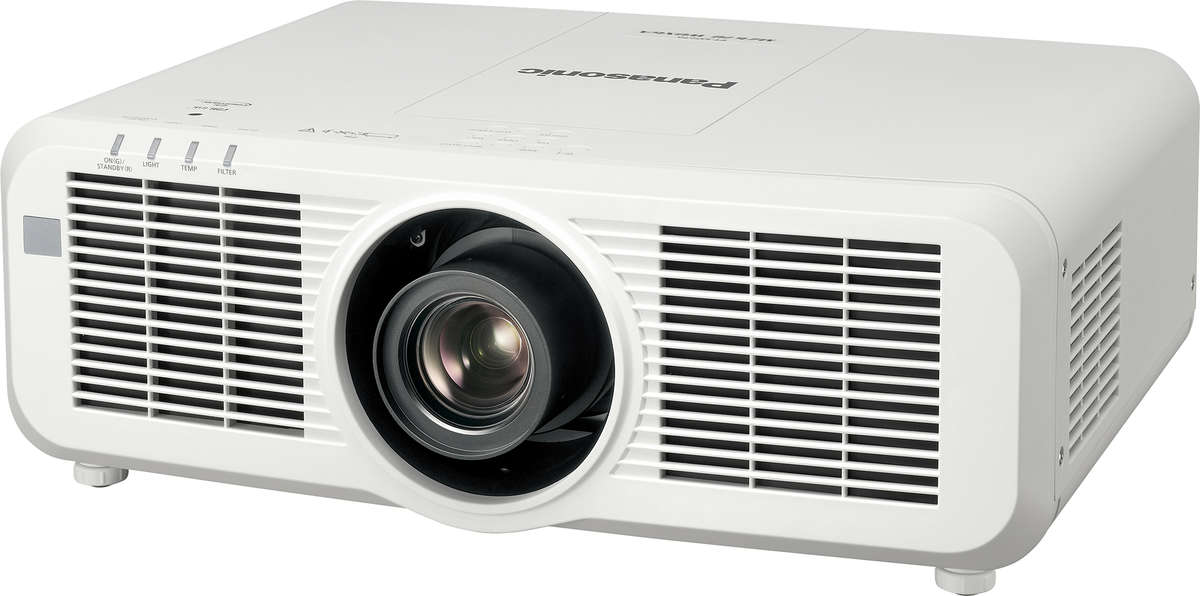

Panasonic PT-MZ770EJ Projector
Panasonic PT-MZ770EJ Key Features
- LCD Display Technology
- 8000 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 3,000,000:1 Contrast Ratio
- 17.1kg (37.7lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Curved Surface Projection
- PC Free Presentations
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Portrait Mode
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Quick Power On
- Quick Power Off
- DICOM Simulation Mode
- Motorised Zoom and Focus
- Monitor Out
- Network Control
- CAD, engineering and precision presentations
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Horizontal Surface Projection
- LED/Laser
- Medical Imaging
- Museums
- PC Free Presentations
- Portrait Mode Applications
- School Halls
- Theatres
Panasonic PT-MZ770EJ Specifications
| Categories | Conference / Large Venue Interchangeable Lens Lens Shift PC Free LED/Laser HD |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-MZ770EJ Optical Features |
|
| System | 3 * 0.76" LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 8,000 |
| Colour Light Output | 8000 Lumens |
| Contrast | 3,000,000:1 |
| Lamp | Laser Diode |
| Lamp Life | 20,000hrs. |
| Interchangeable | Yes |
| Throw Ratio | 1.6 - 2.8:1 |
| Image Size | 40"-400" diagonal |
| Throw Distance | 1.36-23.97m |
| Throw distance for 100" image | 3.45 - 6.03m |
| Lens Shift | Vertical: ±67% Horizontal: ±35% |
Panasonic PT-MZ770EJ Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
Panasonic PT-MZ770EJ Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 3 |
| Audio Out | 1 |
| USB | 2 |
| RS-232 | 1 |
| Network Ready | Yes |
Panasonic PT-MZ770EJ General |
|
| Speakers | 10w Mono |
| Remote Control | Panasonic PT-MZ770EJ only |
| Noise | 40db (35db ECO mode) |
| Dimensions | 560*205*443mm (W*H*D) |
| Weight | 17.10kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 525Watts |
| Manufacturers Warranty | 3 year collect/return with loan if available |
| Light Source Warranty | 3 years/10000 hours (whichever first) |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-MZ770EJ Optional Lenses
| Description | Price | Inc. VAT |
| Panasonic ET-ELW21 Fixed Short Throw Lens | £1065 | £1278.00 |
| Panasonic ET-ELW22 Ultra Short Throw Zoom Lens | Discontinued | |
| Panasonic ET-ELW20 Short Throw Zoom Lens | £1065 | £1278.00 |
| Panasonic ET-ELT20 Semi-long throw zoom Lens | Discontinued | |
| Panasonic ET-ELT21 Long Throw Zoom Lens | Discontinued | |
Panasonic PT-MZ770EJ Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
Panasonic PT-MZ770EJ Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-PU1008B | LCD | 8500 | 15.4 | £5512 | £6614.40 |
| Epson EB-PU1008W | LCD | 8500 | 15.4 | £5487 | £6584.40 |
| Christie DWU860-iS | DLP | 7200 | 13.7 | £7018 | £8421.60 |
| Christie DWU880-GS-BK | DLP | 8000 | 19 | £5457 | £6548.40 |
| Christie DWU880-GS-WH | DLP | 8000 | 19 | £5457 | £6548.40 |
| Christie DWU960-iS | DLP | 8100 | 13.7 | £8379 | £10054.80 |
| Christie DWU960ST-iS | DLP | 8100 | 13.7 | £11573 | £13887.60 |
| Fujifilm FP-Z8000-B | DLP | 8000 | 18.4 | £14154 | £16984.80 |
