| Categories | 3D Ready HDBaseT Interchangeable Lens Lens Shift Short Throw Zoom Installation HD LED/Laser HD |
| Manufacturer | NEC (Click for rest of range) |

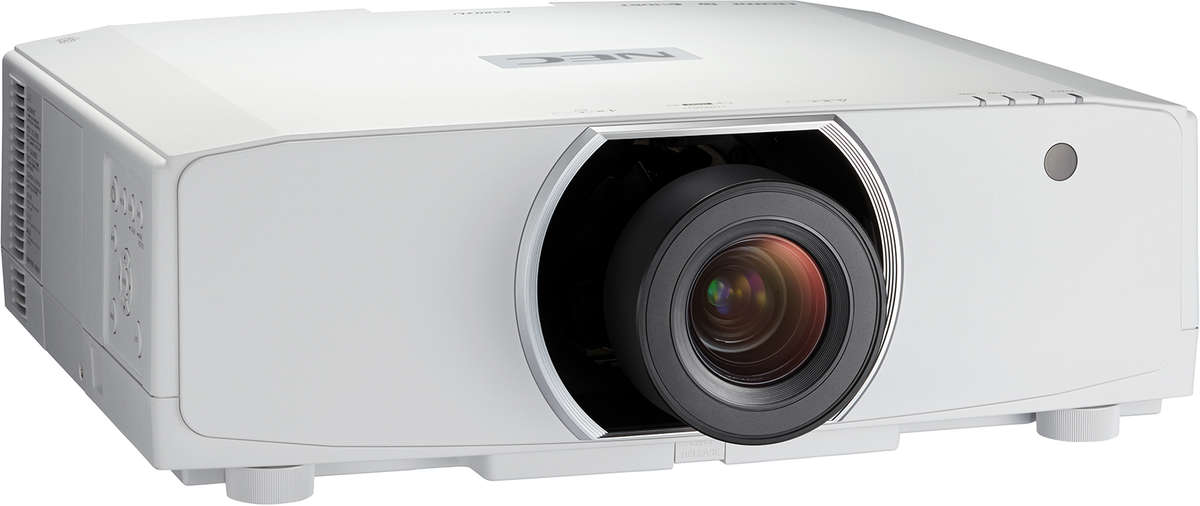

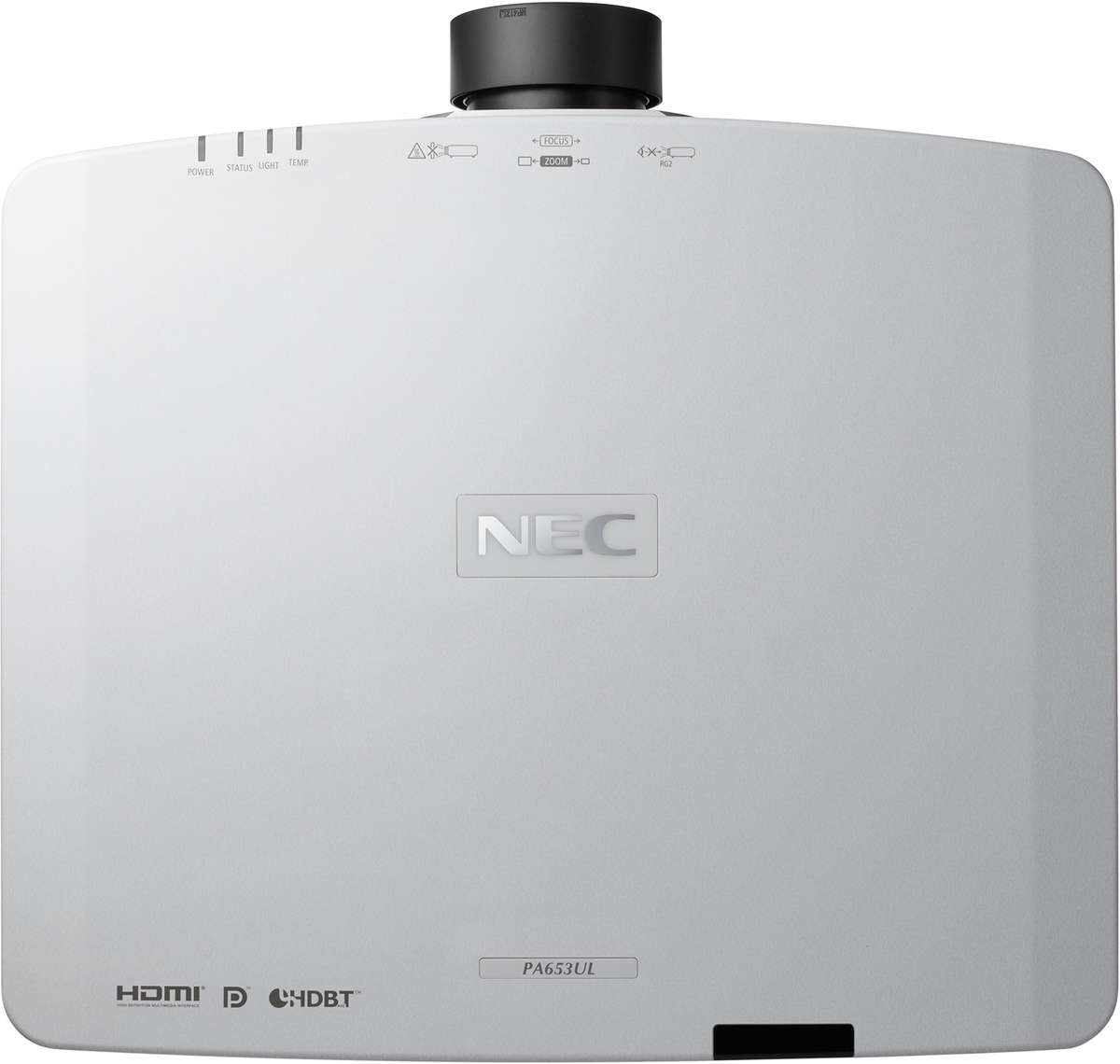

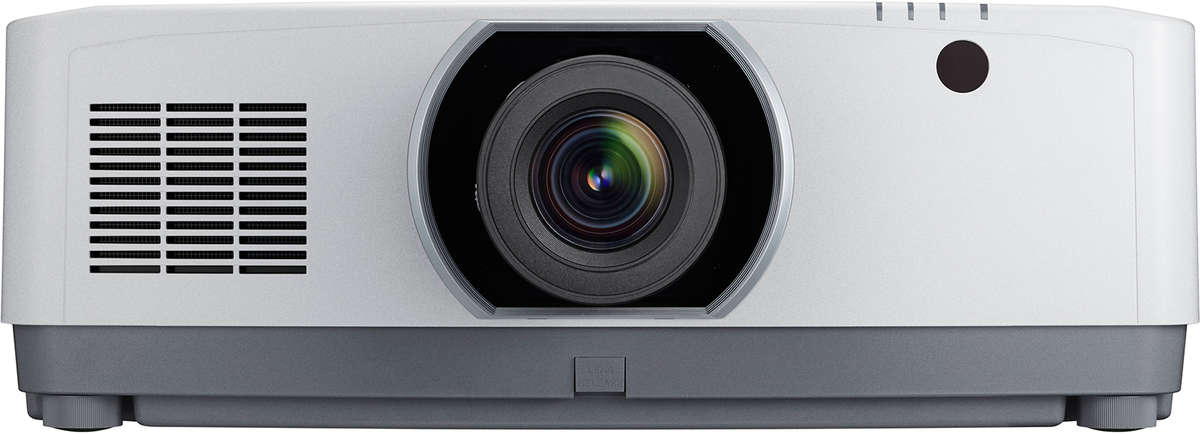

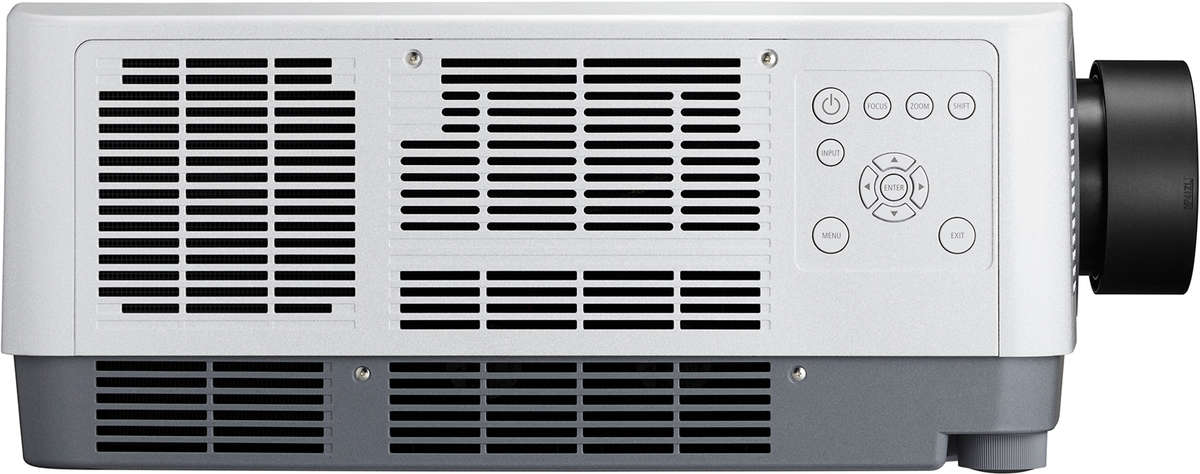

NEC PA653UL-NP41ZL Optical Features | |
| System | 3 * LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| ANSI Lumens | 6500 |
| ECO Mode Lumens | 5200 |
| Colour Light Output | 6500 Lumens |
| Eco Mode CLO | 5200 Lumens |
| Contrast | 2500000:1 |
| Lamp | Laser light source |
| Lamp Life | 20000hrs. (20000hrs. ECO mode) |
| Interchageable | Yes |
| Throw Ratio | 1.3 - 3.02:1 |
| Image Size | 50"-500" diagonal |
| Throw Distance | 1.40-32.60m |
| Throw distance for 100" image | 2.80 - 6.50m |
| Lens Shift | Ver.+10/-50%, Hor.10% |
| Keystone Correction | 40° (Vertical) |
| 40° (Horizontal) | |
NEC PA653UL-NP41ZL Compatibility | |
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, 4k |
| Video | PAL, SECAM, NTSC |
| HDTV | 4k, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 15-153Hz |

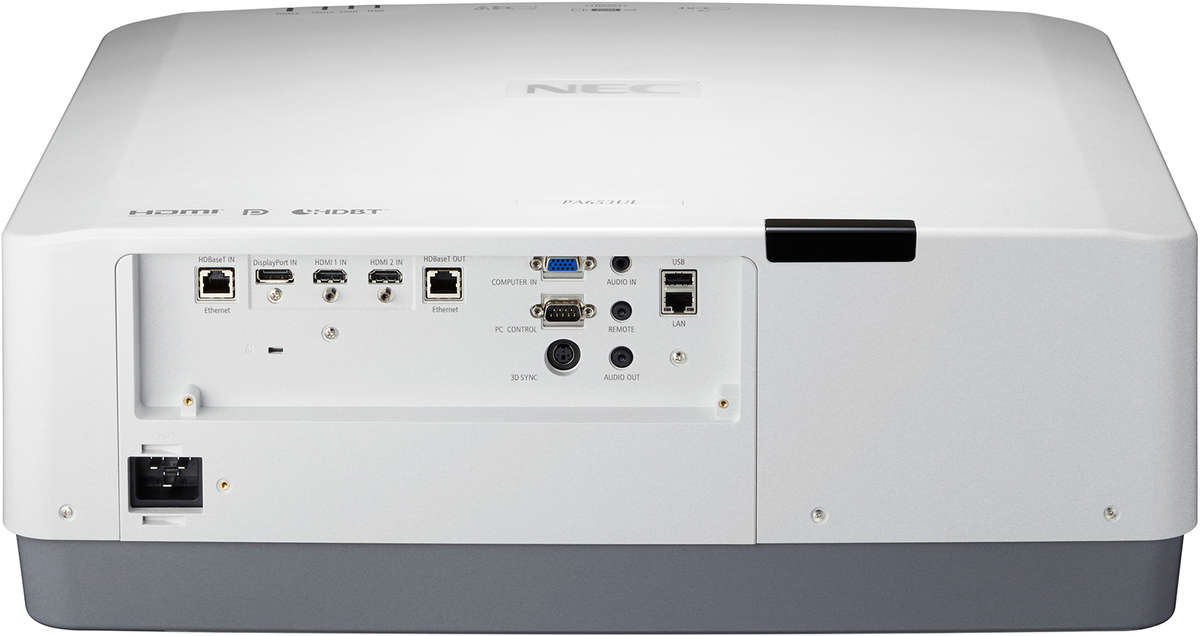

NEC PA653UL-NP41ZL Terminals | |
| HDMI | 2 |
| DisplayPort | 1 |
| RGBHV (15-pin HD) | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
NEC PA653UL-NP41ZL General | |
| Speakers | No |
| Remote Control | NEC PA653UL-NP41ZL only |
| Noise | 39db (33db ECO mode) |
| Dimensions | 580*208*494mm (W*H*D) |
| Weight | 18.20kg |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption | 613Watts |
| Manufacturers Warranty | 3 year loan support (3 year loan support on lamp) |
NEC PA653UL-NP41ZL Package Contents | |
| Accessories | IR Remote Control (RD - 466E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £220 | £264.00 |
| Chief SL236SPI Projector Lift for installation class projectors (Projector dimensions up to 521*235*578mm and 15.9kg) | £2850 | £3420.00 |
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Canon XEED WUX6600Z | LCOS | 6600 | 17 | £4886 | £5863.20 |
| Canon XEED WUX7000Z | LCOS | 7000 | 17 | £6108 | £7329.60 |
| Optoma ZU660 | DLP | 6000 | 17 | £5243 | £6291.60 |
| NEC PA653UL | LCD | 6500 | 18.2 | £5701 | £6841.20 |
| Epson EB-L1100U | LCD | 6000 | 20 | £4970 | £5964.00 |
| Epson EB-L1105U | LCD | 6000 | 20 | £5262 | £6314.40 |
| Barco PGWU-62L | DLP | 6000 | 17.5 | £7470 | £8964.00 |
| Barco PGWU-62L LNS | DLP | 6000 | 17.5 | £7920 | £9504.00 |
| Panasonic PT-DZ780BEJ | DLP | 7000 | 17.8 | £6557 | £7868.40 |
| Panasonic PT-DZ780LBEJ | DLP | 7000 | 17.8 | £6439 | £7726.80 |
