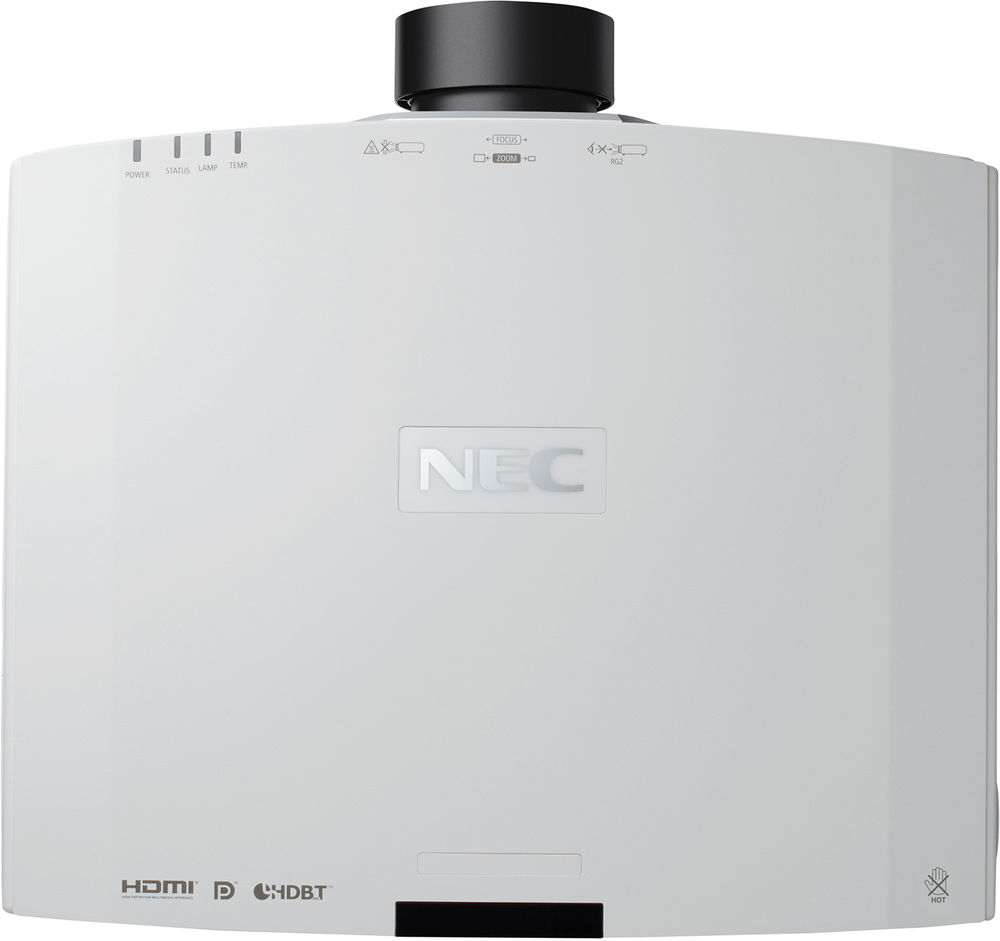

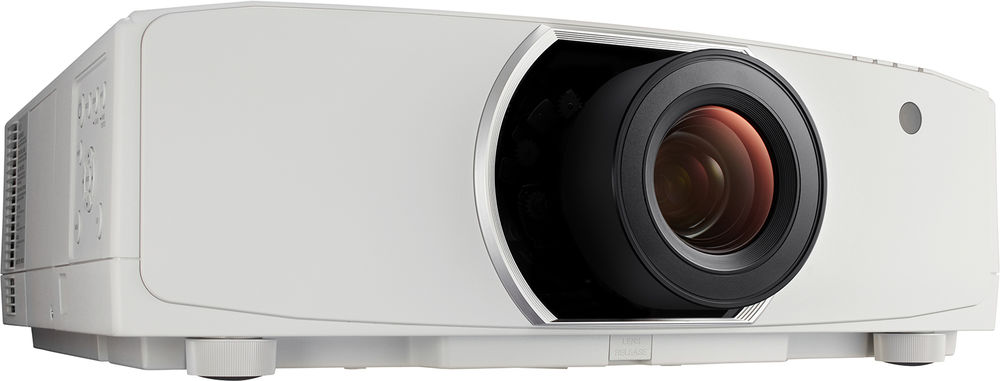

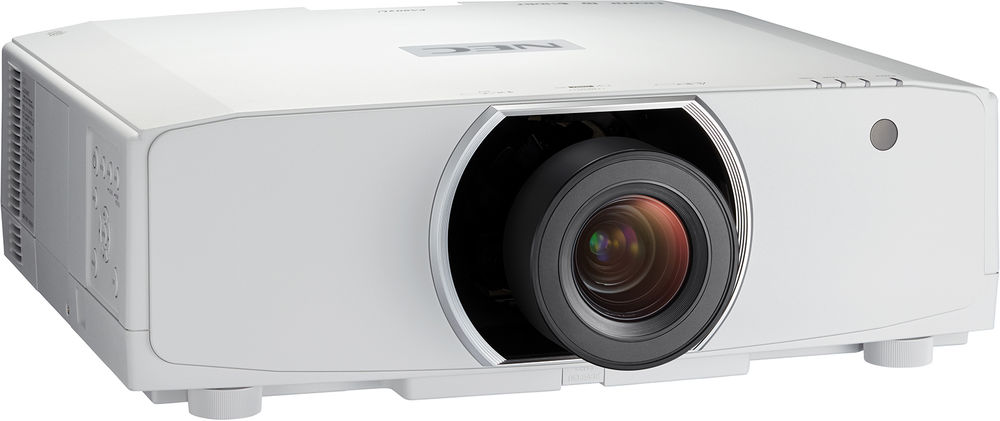

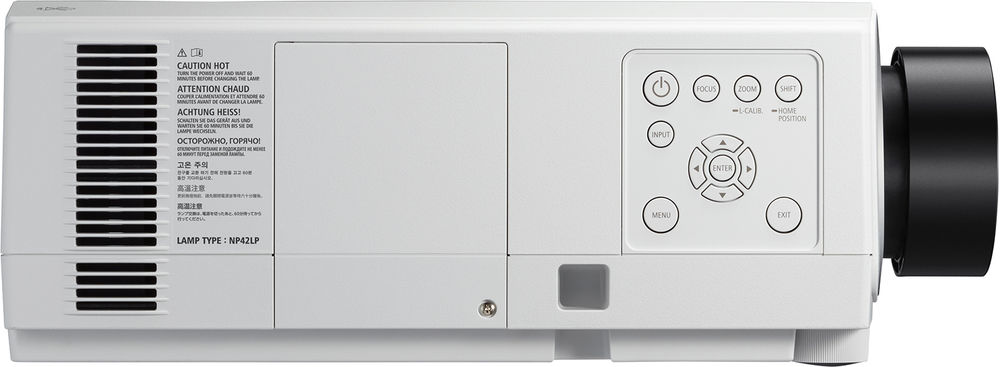

NEC PA653U Projector
NEC PA653U Key Features
- LCD Display Technology
- 6500 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 4,000 hour lamp life (typical)
- 8,000:1 Contrast Ratio
- 10.2kg (22.5lb.)
- Native Widescreen
- Lens Shift
- Seamless Switching
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Mouse Emulation Remote
- Portrait Mode
- HDBaseT
- Picture-In-Picture
- Picture-and-Picture
- Interchangeable Lens System
- Lens-centred Design
- Logo capture and display
- PIN Code Security
- Edge Blending
- DICOM Simulation Mode
- 3D Projection Ready
- Stacking Function
- Monitor Out
- Network Control
NEC PA653U Downloads
- 3D Projection
- CAD, engineering and precision presentations
- Church Projectors
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Film Societies and Community Cinema
- Medical Imaging
- Museums
- Portrait Mode Applications
- School Halls
- Theatres
NEC PA653U Specifications
| Categories | 3D Ready HDBaseT Installation HD Interchangeable Lens Lens Shift |
| Manufacturer | NEC (Click for rest of range) |
NEC PA653U Optical Features |
|
| System | 3 * LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 6,500 |
| ECO Mode Lumens | 5,200 |
| Colour Light Output | 6500 Lumens |
| Eco Mode CLO | 5200 Lumens |
| Contrast | 8,000:1 |
| Lamp | 370W UHP AC |
| Lamp Life | 4,000hrs. (5,000hrs. ECO mode) |
| Interchangeable | Yes |
| Image Size | 30"-300" diagonal |
| Lens Shift | Vertical: +0.5 max/-0.1 Horizontal: 0.3 |
| Keystone |
±40° (Vertical) |
| ±40° (Horizontal) | |
NEC PA653U Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, 4k |
| Video Resolutions | PAL, SECAM, NTSC, 4k, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 15-153Hz |

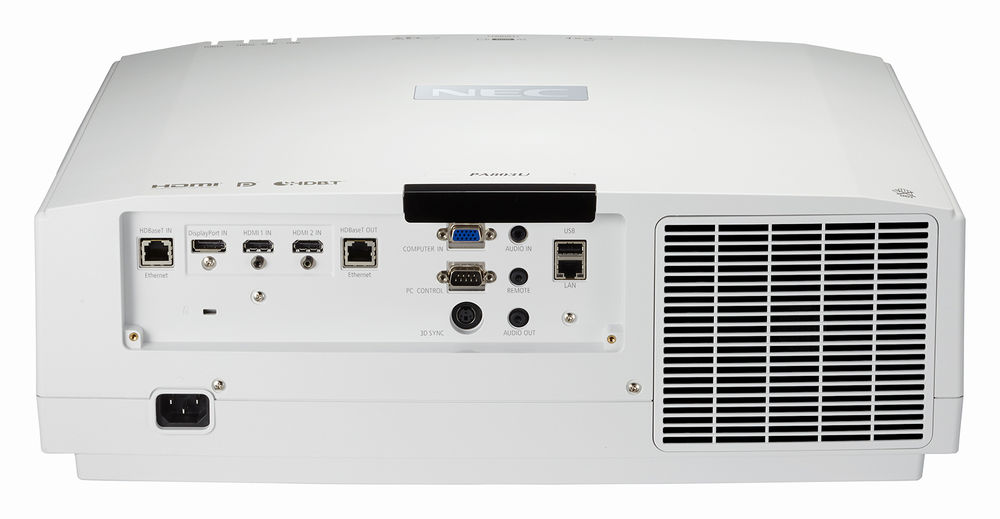

NEC PA653U Terminals |
|
| HDMI | 2 |
| DisplayPort | 1 |
| RGBHV (15-pin HD) | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
NEC PA653U General |
|
| Speakers | No |
| Remote Control | NEC PA653U + Mouse Emulation |
| Noise | 39db (33db ECO mode) |
| Dimensions | 499*164*406mm (W*H*D) |
| Weight | 10.20kg |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption | 482Watts |
| Manufacturers Warranty | 3 year loan support |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
NEC PA653U Package Contents |
|
| Accessories | IR Remote Control (RD - 466E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
NEC PA653U Optional Lenses
| Description | Price | Inc. VAT |
| NEC NP30ZL Ultra Short Throw Zoom Lens | £939 | £1126.80 |
| NEC NP40ZL Motorized Ultra Short Throw Zoom Lens | £921 | £1105.20 |
| NEC NP11FL Fixed wide angle for NEC PA series Lens | Discontinued | |
| NEC NP12ZL Short zoom for the NEC PA series Lens | £815 | £978.00 |
| NEC NP41ZL Motorized Mid to Semi Long Throw Lens | £393 | £471.60 |
| NEC NP13ZL Middle zoom for the NEC PA series Lens | £226 | £271.20 |
| NEC NP14ZL Middle zoom for the NEC PA series Lens | Discontinued | |
| NEC NP42ZL Mid to Long Throw Zoom Lens | Discontinued | |
NEC PA653U Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
NEC PA653U Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| NEC P627UL | LCD | 6200 | 9.7 | £1943 | £2331.60 |
| NEC PV710UL BL | LCD | 7100 | 11.2 | £2648 | £3177.60 |
| NEC PV710UL WH | LCD | 7100 | 11.2 | £2648 | £3177.60 |
| Epson EB-L630U | LCD | 6200 | 8.4 | £1844 | £2212.80 |
| Epson EB-L635SU | LCD | 6000 | 8.4 | £2593 | £3111.60 |
| Epson EB-L690SE | LCD | 6000 | 9.3 | £3349 | £4018.80 |
| Epson EB-L690SU | LCD | 6200 | 9.3 | £2678 | £3213.60 |
| Epson EB-L695SE | LCD | 6000 | 9.3 | £3349 | £4018.80 |
| Epson EB-L730U | LCD | 7000 | 8.4 | £2366 | £2839.20 |
| Epson EB-L735U | LCD | 7000 | 8.4 | £2392 | £2870.40 |
