NEC P554U Projector
NEC P554U Key Features
- LCD Display Technology
- 5300 Lumens Colour Light Output
- WUXGA 1920*1200 Native Resolution
- 4,000 hour lamp life (typical)
- 20,000:1 Contrast Ratio
- 4.8kg (10.6lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Mouse Emulation Remote
- HDBaseT
- Logo capture and display
- PIN Code Security
- DICOM Simulation Mode
- sRGB Colour Mode
- Monitor Out
- Network Control
NEC P554U Downloads
- Boardroom Projectors
- CAD, engineering and precision presentations
- Church Projectors
- Film Societies and Community Cinema
- Medical Imaging
- Museums
NEC P554U Specifications
| Categories | HDBaseT Lens Shift Short Throw Zoom Office / Desktop HD/UHD |
| Manufacturer | NEC (Click for rest of range) |
NEC P554U Optical Features |
|
| System | 3 * LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 5,300 |
| ECO Mode Lumens | 3,200 |
| Colour Light Output | 5300 Lumens |
| Eco Mode CLO | 3200 Lumens |
| Contrast | 20,000:1 |
| Lamp | 330W UHP AC |
| Lamp Life | 4,000hrs. (8,000hrs. ECO mode) |
| Interchangeable | No |
| Zoom Range | 1.7x |
| Throw Ratio | 1.2 – 2:1 |
| Suggested Max Size (60ft.lamberts) | 123.55 * 77.22 in. (146 in. diagonal) (314 * 196cm) |
| Image Size | 30" – 300" diagonal |
| Throw Distance | 0.80 – 12.90m |
| Throw distance for 100" image | 2.58 – 4.31m |
| Lens Shift | Vertical: 0-55 Horizontal: 15% |
| Keystone |
±30° (Vertical) |
| ±15° (Horizontal) | |
NEC P554U Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 50-120Hz |

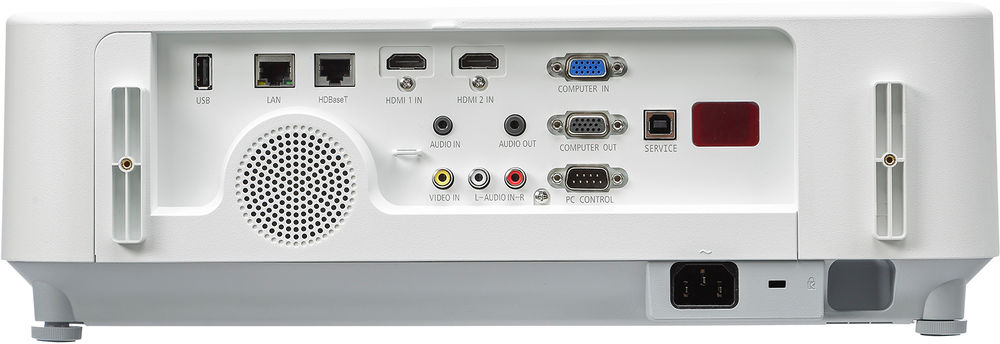

NEC P554U Connectivity |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 2 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
NEC P554U General |
|
| Speakers | 20W mono |
| Remote Control | NEC P554U + Mouse Emulation |
| Noise | 37db (29db ECO mode) |
| Dimensions | 420×133×322mm (W×H×D) |
| Weight | 4.80kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 431Watts |
| Manufacturers Warranty | 3 years pan-European loan support |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
NEC P554U Package Contents |
|
| Accessories | IR Remote Control (RD-448E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Projector; Quick Setup Guide; Users Manual; Utility software |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
NEC P554U Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-2250U | LCD | 5000 | 4.8 | £857 | £1028.40 |
| Sharp E501U | LCD | 5000 | 5 | £1321 | £1585.20 |
