Sharp E501U Projector

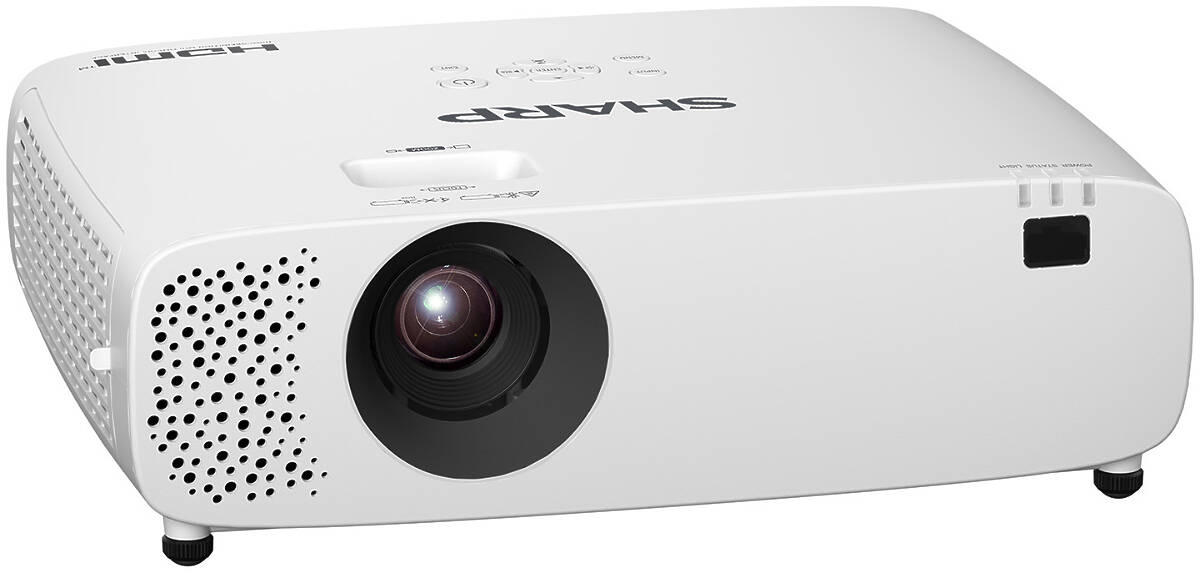

Sharp E501U 5000 Lumens WUXGA projector product image. Click to enlarge.

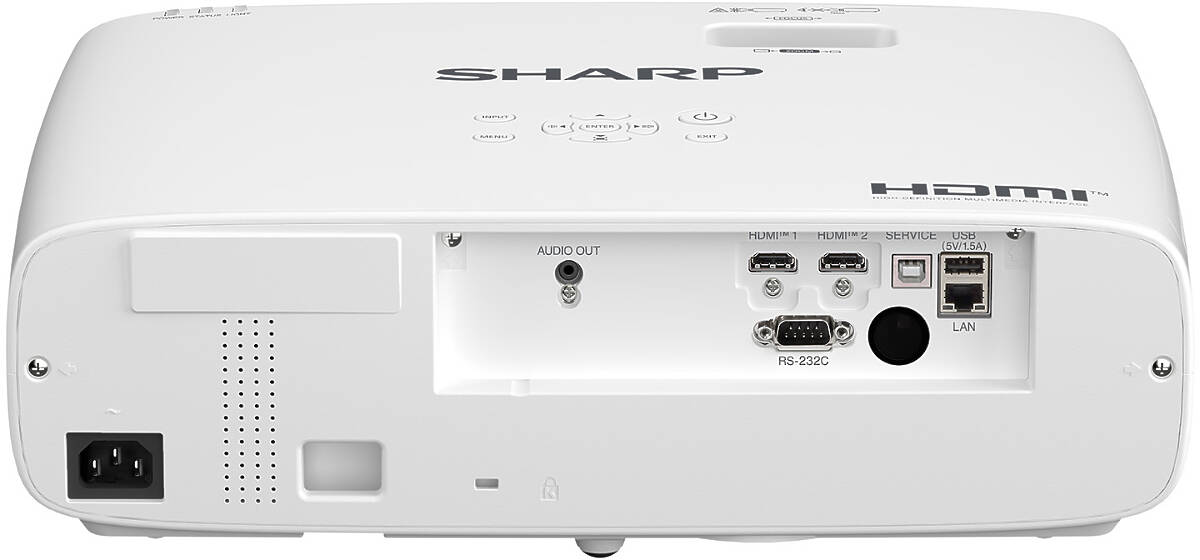

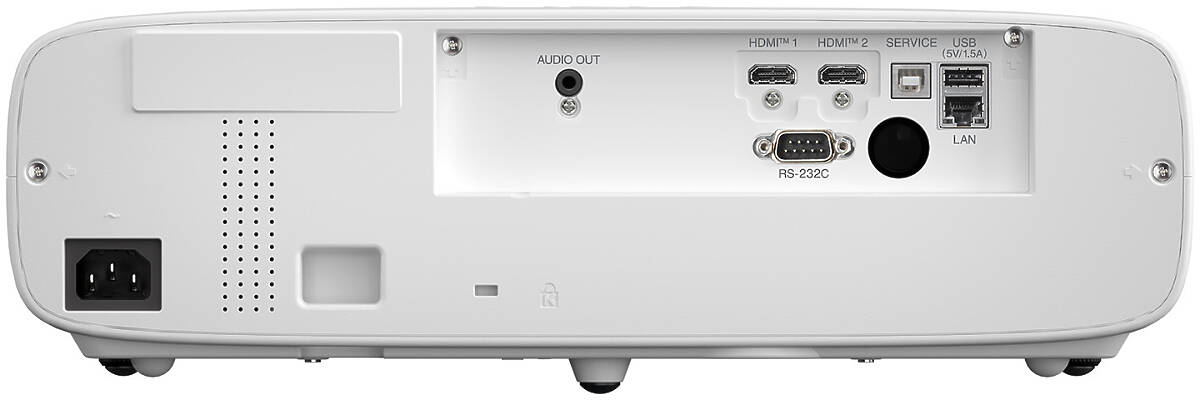

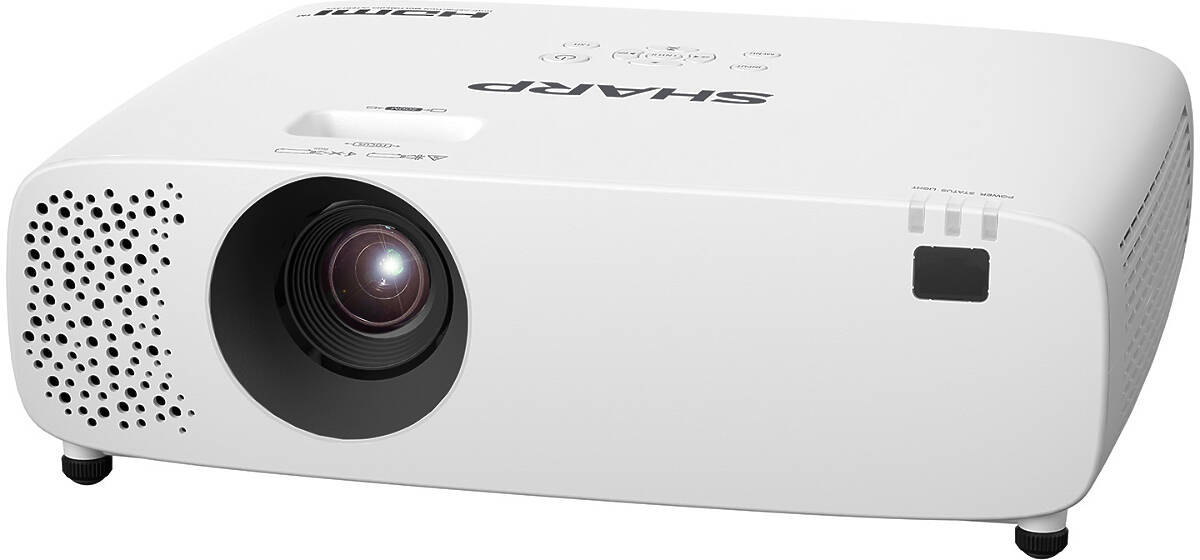

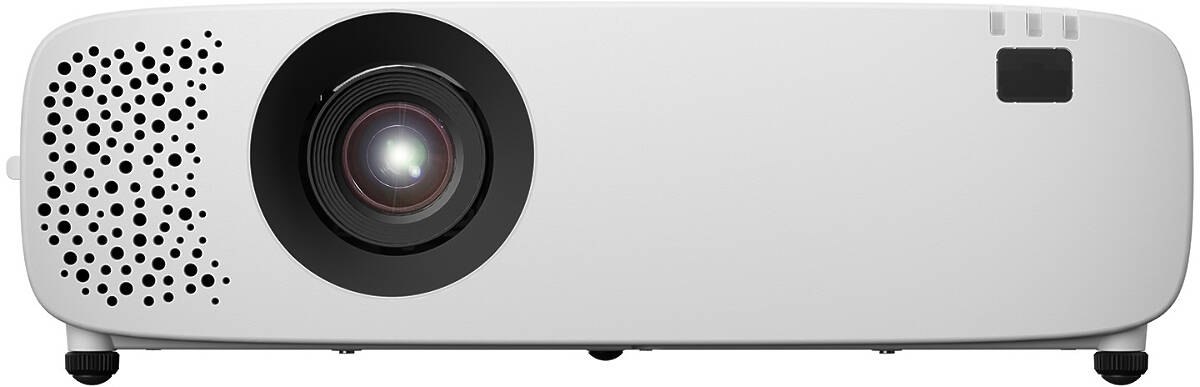

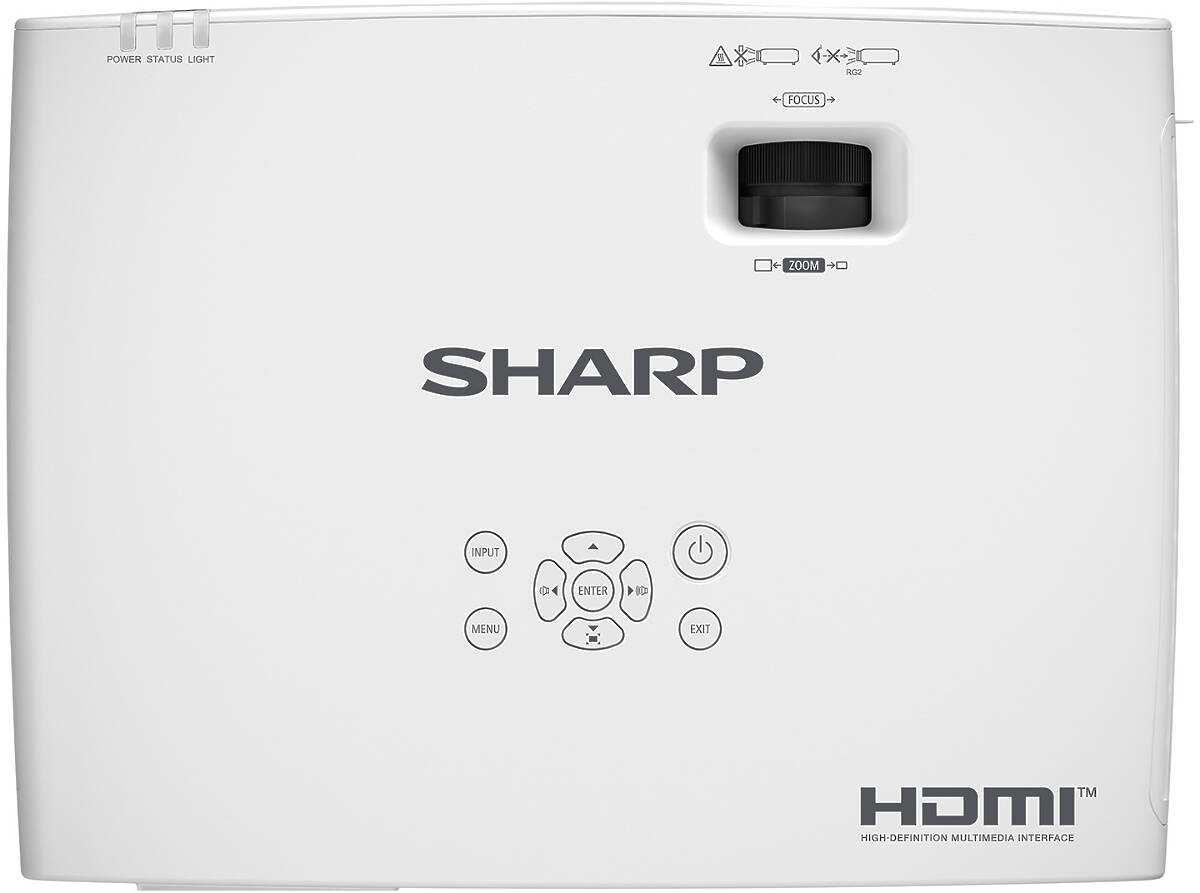

Sharp E501U 5000 Lumens WUXGA projector product image Sharp E501U 5000 Lumens WUXGA projector connectivity (terminals) product image Sharp E501U 5000 Lumens WUXGA projector Front View product image Sharp E501U 5000 Lumens WUXGA projector Front View product image Sharp E501U 5000 Lumens WUXGA projector product image Sharp E501U 5000 Lumens WUXGA projector product image Sharp E501U 5000 Lumens WUXGA projector product image Sharp E501U 5000 Lumens WUXGA projector product image
£1321 (£1585.20 inc. VAT)
Availability: Please Call

Sharp E501U Key Features

  • LCD Display Technology
  • 5000 Lumens Colour Light Output
  • WUXGA 1920×1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 3,000,000:1 Contrast Ratio
  • 5kg (11.0lb.)
  • USB JPeg Viewer
  • Native Widescreen
  • Direct Power On
  • Direct Power Off
  • PIN Code Security
  • Quick Power On

Sharp E501U Downloads

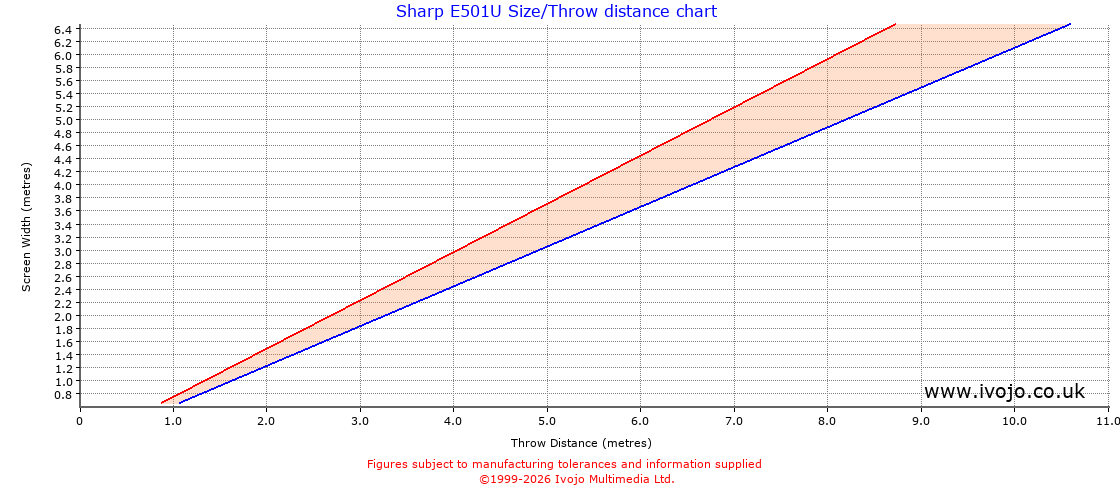

Sharp E501U Throw Chart (Click for details)

Sharp E501U throw distance chart

Sharp E501U Specifications

Categories Office / Desktop HD/UHD
LED/Laser HD
Manufacturer Sharp (Click for rest of range)

Sharp E501U Optical Features
System 3 × 0.64″ LCD
Resolution WUXGA (1920×1200)
Aspect Ratio 16:10
Lumens 5,000
ECO Mode Lumens 2,500
Colour Light Output 5000 Lumens
Eco Mode CLO 2500 Lumens
Contrast 3,000,000:1
Lamp Laser diode with Phosphor
Lamp Life 20,000hrs.
Lens F1.61–2.76, f=29.1–23.0mm
1.2× Manual Zoom and Focus
Interchangeable No
Zoom Range 1.2x
Throw Ratio 1.35 – 1.64:1
Suggested Max Size (60ft.lamberts) 120 * 75 in. (142 in. diagonal)
(305 * 191cm)
Image Size 30" – 300" diagonal
Throw Distance 0.90 – 10.70m
Throw distance for 100" image 2.91 – 3.53m
Lens Shift No
KeystoneCorrection ±30° (Vertical)
±30° (Horizontal)

Sharp E501U Compatibility
Computer Resolutions UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions UHD, HD, 720p, PAL, SECAM, NTSC
Horizontal Freq. 15–100kHz
Vertical Freq. 24–85Hz

Sharp E501U Connectivity
HDMI 2 × HDMI 1.4 (HDCP)
RS-232 9-pin D-Sub
IR Yes, Remote Included
Network RJ-45
USB 1 × Type A (Power)
1 × Type B Service
Audio Out 1 × 3.5mm Mini Jack

Sharp E501U General
Speakers 16w Mono
Remote Control Sharp E501U only
Noise Not Quoted
Dimensions 390×128×294mm (W×H×D)
Weight 5.00kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 330Watts
Manufacturers Warranty 3 year pan-European
Light Source Warranty 3 year/10,000 hours (whichever first) pan-European

Sharp E501U Package Contents
Accessories 2x AAA Batteries; IR Remote Control (477E); Power Cord (3 m); Projector; Quick Setup Guide; Security Sticker; Users Manual

Ivojo Multimedia are approved Sharp dealers and supply only UK products with full UK warranties.

Sharp E501U Accessories

Projector brackets and stands

Projector ceiling mounts and brackets

 Projection Screens

Projection Screens

 Twisted Pair extenders for LCD and LED large format displays

Twisted pair extenders, distribution and switching

 HDMI, DVI, DisplayPort and twisted pair cables for large format displays

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

 Scalers and video processors for large format displays

Scalers, EDID emulators, multi-windows processors and capture hardware

Sharp E501U Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
Epson EB-2250U LCD 5000 4.8 £857 £1028.40
Christie DWU500S-BK DLP 4500 5.8 £3767 £4520.40
Christie DWU500S-WH DLP 4500 5.8 £3767 £4520.40
Panasonic PT-LMZ460 LCD 4600 4.2 £1428 £1713.60
