Maxell MP-WU5603 Projector

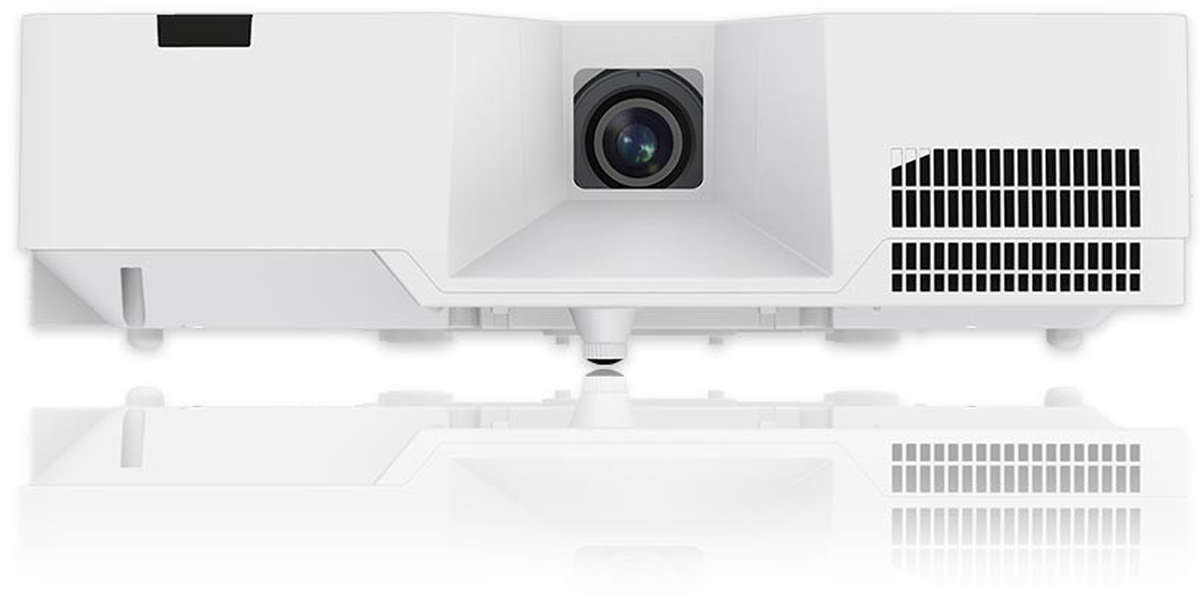

Maxell MP-WU5603 6000 ANSI Lumens WUXGA projector product image
Maxell MP-WU5603 6000 ANSI Lumens WUXGA projector connectivity (terminals) product image Maxell MP-WU5603 6000 ANSI Lumens WUXGA projector product image Maxell MP-WU5603 6000 ANSI Lumens WUXGA projector product image Maxell MP-WU5603 6000 ANSI Lumens WUXGA projector product image
£1893 (£2271.60 inc. VAT)
Availability: In stock

Maxell MP-WU5603 Key Features

  • LCD Display Technology
  • 6000 Lumens Colour Light Output
  • WUXGA 1920*1200 Native Resolution
  • 20000 hour lamp life (typical)
  • 1500000:1 Contrast Ratio
  • 5 year return to base warranty
  • 8.2kg (18.1lb.)
  • Wide zoom range for flexible placement
  • Native Widescreen
  • Lens Shift
  • Horizontal & Vertical Keystone Correction
  • Portrait Mode
  • Picture-In-Picture
  • Picture-and-Picture
  • Can Be Installed Vertically
  • Lens-centred Design
  • PIN Code Security
  • Quick Power On
  • Digital (HDMI/DVI/DisplayPort) Input
  • DICOM Simulation Mode
  • Monitor Out
  • Network Control
Maxell MP-WU5603 pdf brochure
Maxell MP-WU5603
Brochure


Maxell MP-WU5603 Throw Chart (Click for details)

Maxell MP-WU5603 throw distance chart

Maxell MP-WU5603 Specifications

Categories HDBaseT
Wireless
Installation HD
Manufacturer Maxell (Click for rest of range)

Maxell MP-WU5603 Optical Features
System 3 * LCD
Resolution WUXGA (1920*1200)
Aspect Ratio 16:10
ANSI Lumens 6000
ECO Mode Lumens 3000
Colour Light Output 6000 Lumens
Eco Mode CLO 3000 Lumens
Contrast 1500000:1
Lamp Laser Diode
Lamp Life 20000hrs. (50000hrs. ECO mode)
Lens f=19.8-33.9mm manual zoom, focus and lens shift
Interchageable No
Zoom Range 1.7x
Throw Ratio 1.4 - 2.4:1
Image Size 30"-300" diagonal
Throw Distance 0.78-15.72m
Throw distance for 100" image 3.02 - 5.17m
Lens Shift No

Maxell MP-WU5603 Compatibility
Computer Resolutions WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq. 15-106kHz
Vertical Freq. 50-120Hz

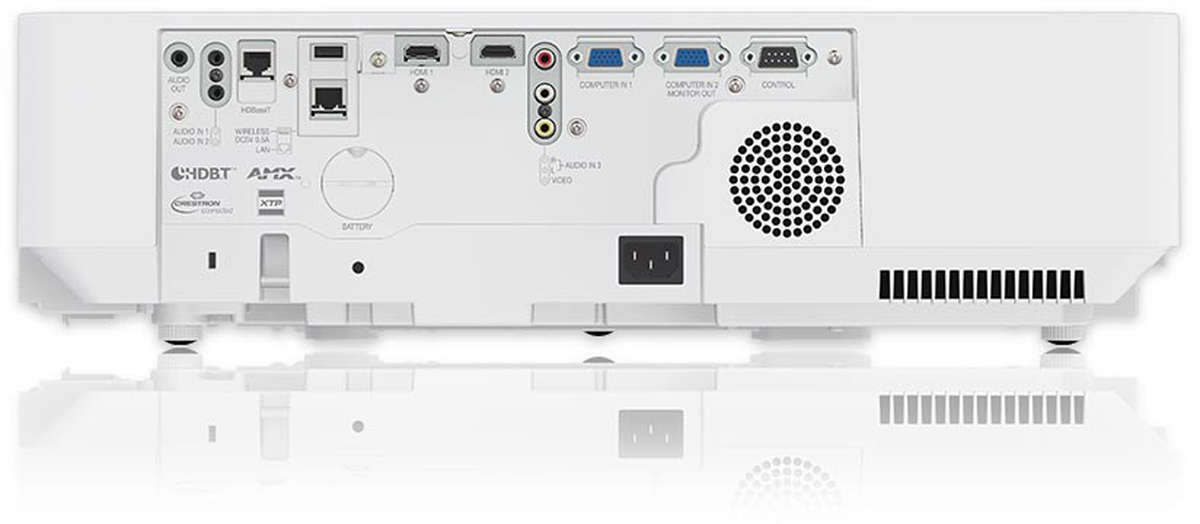

Maxell MP-WU5603 Terminals
HDMI 2
RGBHV (15-pin HD) 2
Composite 1
Monitor Out Yes
Audio In 3
Audio Out 1
USB 2
RS-232 1
HDBaseT 1
Network Ready Yes

Maxell MP-WU5603 General
Speakers 16w Mono
Remote Control Maxell MP-WU5603 only
Noise 36db (27db ECO mode)
Dimensions 512*424*154mm (W*H*D)
Weight 8.20kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 400Watts
Manufacturers Warranty 5 year return to base
Light Source Warranty 5 year/20,000 hours (whichever first)

Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.
