Maxell MP-WU5503 Projector
Maxell MP-WU5503 Key Features
- LCD Display Technology
- 5000 Lumens Colour Light Output
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 1,500,000:1 Contrast Ratio
- 8.2kg (18.1lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Horizontal & Vertical Keystone Correction
- Portrait Mode
- Picture-In-Picture
- Picture-and-Picture
- Can Be Installed Vertically
- Lens-centred Design
- PIN Code Security
- Quick Power On
- DICOM Simulation Mode
- Monitor Out
- Network Control
Maxell MP-WU5503 Downloads
- Boardroom Projectors
- CAD, engineering and precision presentations
- Conference rooms (20 - 50 people)
- Home cinema and business dual use
- Horizontal Surface Projection
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
Maxell MP-WU5503 Specifications
| Categories | HDBaseT Installation HD LED/Laser HD |
| Manufacturer | Maxell (Click for rest of range) |
Maxell MP-WU5503 Optical Features |
|
| System | 3 * LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 5,000 |
| ECO Mode Lumens | 2,500 |
| Colour Light Output | 5000 Lumens |
| Eco Mode CLO | 2500 Lumens |
| Contrast | 1,500,000:1 |
| Lamp | Laser Diode |
| Lamp Life | 20,000hrs. (50,000hrs. ECO mode) |
| Interchangeable | No |
| Zoom Range | 1.7x |
| Throw Ratio | 1.4 - 2.4:1 |
| Image Size | 30"-300" diagonal |
| Throw Distance | 0.78-15.72m |
| Throw distance for 100" image | 3.02 - 5.17m |
Maxell MP-WU5503 Compatibility |
|
| Computer Resolutions | WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-106kHz |
| Vertical Freq. | 50-120Hz |

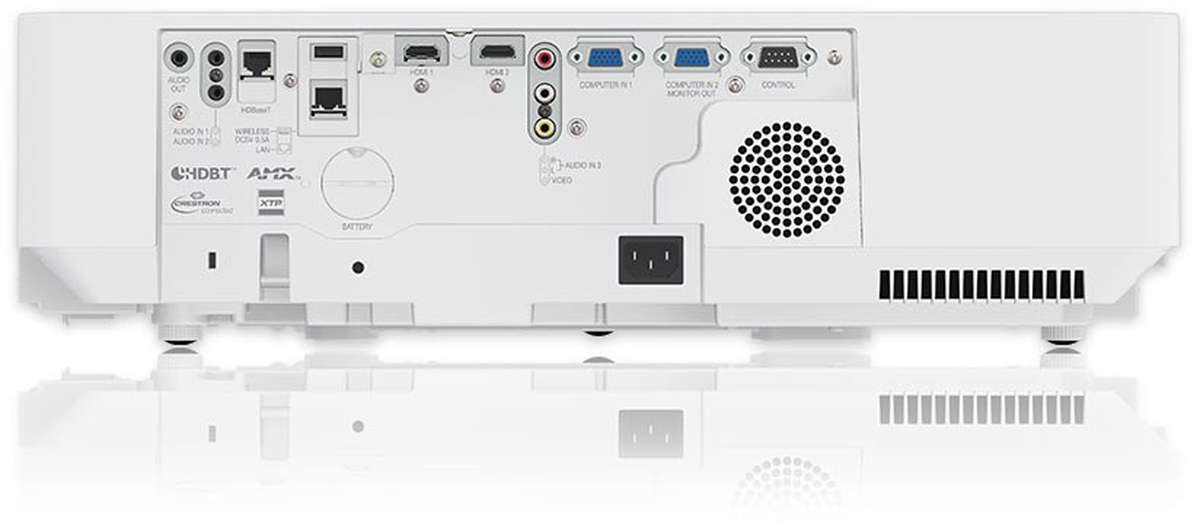

Maxell MP-WU5503 Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 2 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 3 |
| Audio Out | 1 |
| USB | 2 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
Maxell MP-WU5503 General |
|
| Speakers | 16w Mono |
| Remote Control | Maxell MP-WU5503 only |
| Noise | 36db (27db ECO mode) |
| Dimensions | 512*424*154mm (W*H*D) |
| Weight | 8.20kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 400Watts |
| Manufacturers Warranty | 5 year return to base |
| Light Source Warranty | 5 year/20,000 hours (whichever first) |
Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.
Maxell MP-WU5503 Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 10 Hard case for projectors weighing 5-10kg | £153.00 | £183.60 |
Maxell MP-WU5503 Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| NEC P547UL | LCD | 5400 | 9.7 | £1666 | £1999.20 |
| NEC PE506UL | LCD | 5200 | 7.95 | £1388 | £1665.60 |
| Epson EB-L520U | LCD | 5200 | 7.7 | £1521 | £1825.20 |
| Epson EB-L530U | LCD | 5200 | 8.2 | £1571 | £1885.20 |
| Epson EB-L570U | LCD | 5200 | 8.3 | £2129 | £2554.80 |
| BenQ LU935ST | DLP | 5500 | 7 | £2889 | £3466.80 |
| Panasonic PT-CMZ50BEJ | LCD | 5200 | 9.5 | £3087 | £3704.40 |
| Panasonic PT-CMZ50EJ | LCD | 5200 | 9.5 | £3087 | £3704.40 |
| Panasonic PT-VMZ51EJ | LCD | 5200 | 7.2 | £1632 | £1958.40 |
| Panasonic PT-VMZ51SEJ | LCD | 5200 | 7.2 | £1642 | £1970.40 |
