Maxell MC-WU8601W Projector
Maxell MC-WU8601W Key Features
- LCD Display Technology
- 6000 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 3,000 hour lamp life (typical)
- 10,000:1 Contrast Ratio
- 11kg (24.3lb.)
- Native Widescreen
- Direct Power On
- PC Free Presentations
- Horizontal & Vertical Keystone Correction
- HDBaseT
- Picture-In-Picture
- Picture-and-Picture
- Interchangeable Lens System
- Logo capture and display
- PIN Code Security
- DICOM Simulation Mode
- Motorised Zoom and Focus
- Monitor Out
- Network Control
- CAD, engineering and precision presentations
- Exhibitions and large venues
- Medical Imaging
- PC Free Presentations
- School Halls
- Theatres
Maxell MC-WU8601W Specifications
| Categories | HDBaseT Interchangeable Lens PC Free Installation HD |
| Manufacturer | Maxell (Click for rest of range) |
Maxell MC-WU8601W Optical Features |
|
| System | 3 * 0.76" LCD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 6,000 |
| ECO Mode Lumens | 4,800 |
| Colour Light Output | 6000 Lumens |
| Eco Mode CLO | 4800 Lumens |
| Contrast | 10,000:1 |
| Lamp | 370W |
| Lamp Life | 3,000hrs. (4,000hrs. ECO mode) |
| Interchangeable | Yes |
| Image Size | 30"-600" diagonal |
| Lens Shift | No |
| Keystone |
±5° (Vertical) |
| ±5° (Horizontal) | |
Maxell MC-WU8601W Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |

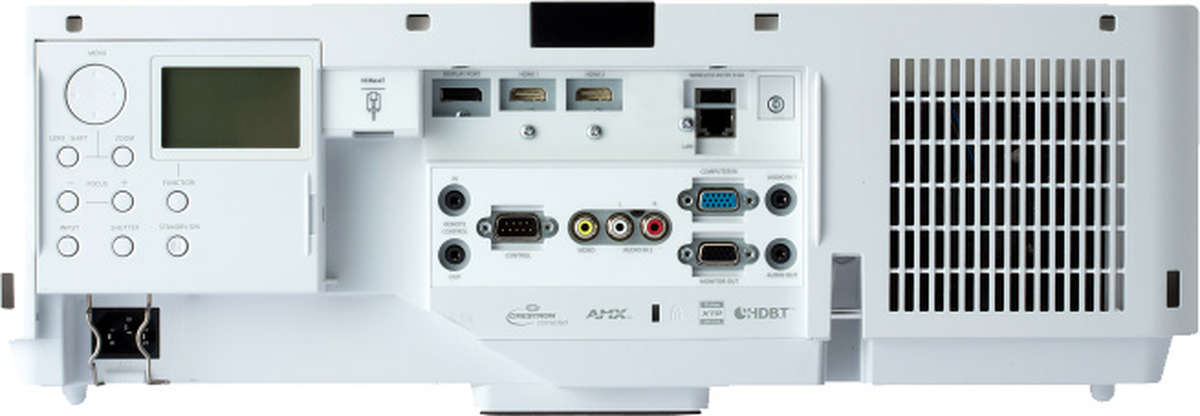

Maxell MC-WU8601W Terminals |
|
| HDMI | 2 |
| DisplayPort | 1 |
| RGBHV (15-pin HD) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 1 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
Maxell MC-WU8601W General |
|
| Speakers | No |
| Remote Control | Maxell MC-WU8601W only |
| Noise | 35db (30db ECO mode) |
| Dimensions | 498*170*456mm (W*H*D) |
| Weight | 11.00kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 500Watts |
| Manufacturers Warranty | 3 year loan support |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
Maxell MC-WU8601W Package Contents |
|
| Accessories | Remote control with batteries (HL02801) power cord security label user manual (CD & book) application CD adaptor cover |
Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.
Maxell MC-WU8601W Optional Lenses
| Description | Price | Inc. VAT |
| Maxell FL-710 Fixed Ultra Short Throw Lens | Discontinued | |
| Maxell FL-701 Fixed Short Throw Lens | Discontinued | |
| Maxell SL-712 Short Throw Zoom Lens | Discontinued | |
| Maxell ML-713 Mid Throw Zoom Lens | Discontinued | |
| Maxell LL-704 Long Throw Zoom Lens | Discontinued | |
Maxell MC-WU8601W Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
Maxell MC-WU8601W Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| NEC P547UL | LCD | 5400 | 9.7 | £1777 | £2132.40 |
| NEC P627UL | LCD | 6200 | 9.7 | £2093 | £2511.60 |
| Epson EB-L690SE | LCD | 6000 | 9.3 | £3342 | £4010.40 |
| Epson EB-L690SU | LCD | 6200 | 9.3 | £2672 | £3206.40 |
| Epson EB-L695SE | LCD | 6000 | 9.3 | £3342 | £4010.40 |
| BenQ LU785 | DLP | 6000 | 11.3 | £2757 | £3308.40 |
| BenQ LU960 | DLP | 5500 | 12 | £2473 | £2967.60 |
| Vivitek DU4771Z-WH | DLP | 6000 | 10.7 | £2095 | £2514.00 |
