Epson EB-L510U Projector

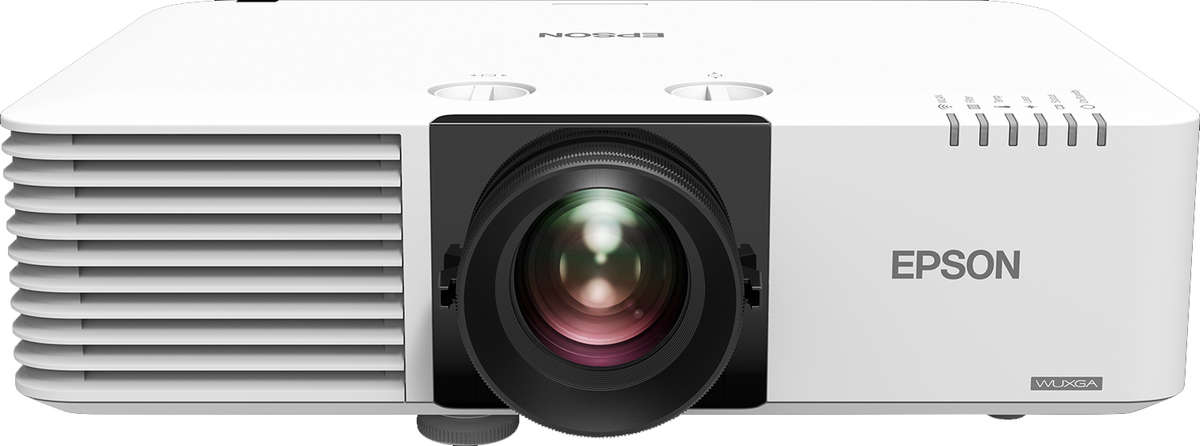

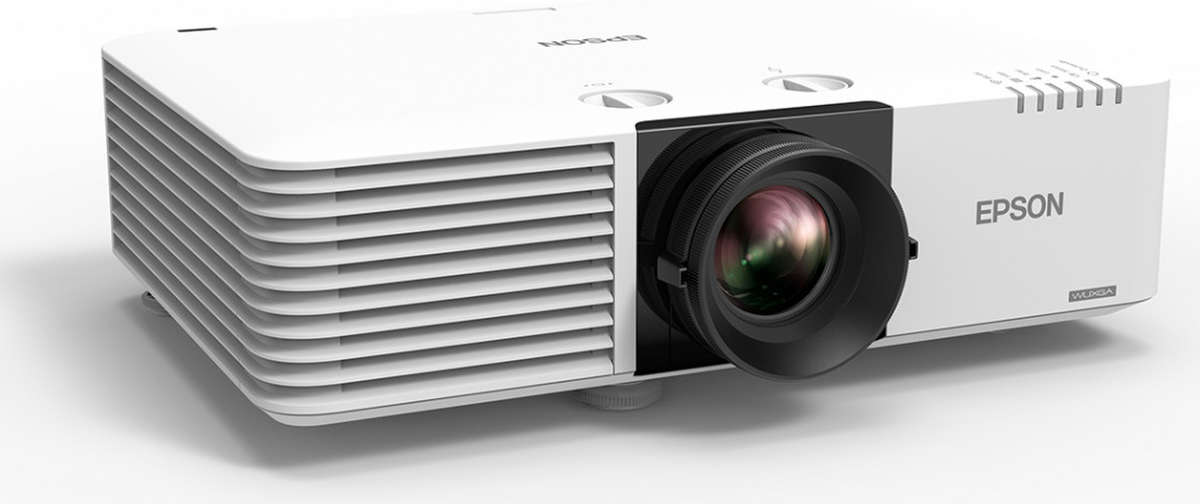

Epson EB-L510U 5000 ANSI Lumens WUXGA projector product image
Epson EB-L510U 5000 ANSI Lumens WUXGA projector product image Epson EB-L510U 5000 ANSI Lumens WUXGA projector product image
£1935 (£2322.00 inc. VAT)
Availability: In stock

Epson EB-L510U Key Features

  • LCD Display Technology
  • 5000 Lumens Colour Light Output
  • WUXGA 1920*1200 Native Resolution
  • 20000 hour lamp life (typical)
  • 2500000:1 Contrast Ratio
  • 5 years/12000 hours (whichever first) warranty
  • 8.5kg (18.7lb.)
  • Wide zoom range for flexible placement
  • Native Widescreen
  • Direct Power On
  • PC Free Presentations
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • iOS App Compatible
  • HDBaseT
  • Picture-and-Picture
  • Logo capture and display
  • PIN Code Security
  • Digital (HDMI/DVI/DisplayPort) Input
  • DICOM Simulation Mode
  • sRGB Colour Mode
  • Monitor Out
  • Network Control
Epson EB-L510U Instruction manual
Instruction Manual


Epson EB-L510U Throw Chart (Click for details)

Epson EB-L510U throw distance chart

Epson EB-L510U Specifications

Categories HDBaseT
PC Free
Installation HD
LED/Laser HD
Manufacturer Epson (Click for rest of range)

Epson EB-L510U Optical Features
System 3 * 0.67" LCD with D10
Resolution WUXGA (1920*1200)
Aspect Ratio 16:10
ANSI Lumens 5000
ECO Mode Lumens 3500
Colour Light Output 5000 Lumens
Eco Mode CLO 3500 Lumens
Contrast 2500000:1
Lamp Laser Light Source
Lamp Life 20000hrs. (30000hrs. ECO mode)
Lens 1.6x Manual Zoom and Focus
Interchageable No
Zoom Range 1.6x
Throw Ratio 1.35 - 2.2:1
Image Size 50"-500" diagonal
Throw Distance 1.44-23.84m
Throw distance for 100" image 2.91 - 4.74m
Lens Shift No
Keystone Correction 30° (Vertical)
30° (Horizontal)

Epson EB-L510U Compatibility
Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video PAL, SECAM, NTSC
HDTV 1080i, 720p

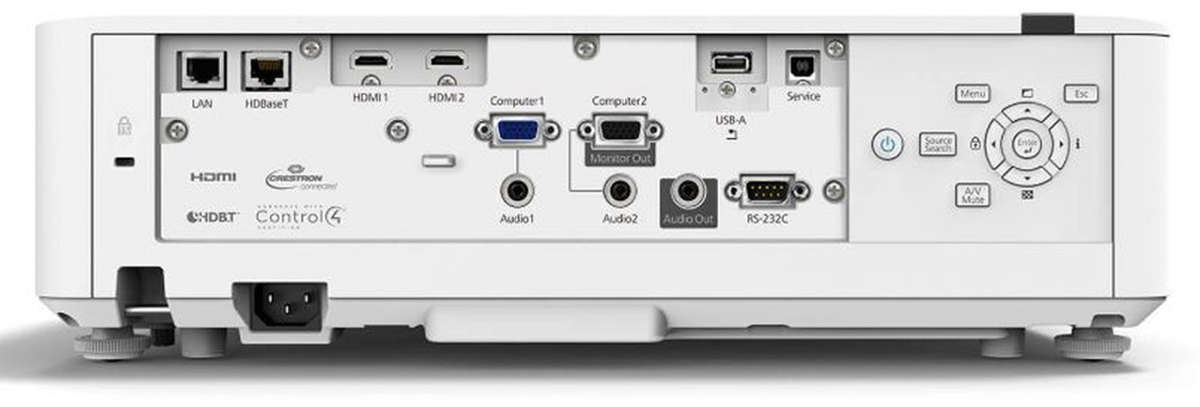

Epson EB-L510U Terminals
HDMI 2
RGBHV (15-pin HD) 2
Monitor Out Yes
Audio In 2
Audio Out 1
USB 2
RS-232 1
HDBaseT 1
Network Ready Yes

Epson EB-L510U General
Speakers 10w mono
Remote Control Epson EB-L510U only
Noise 37db (25db ECO mode)
Dimensions 440*120*304mm (W*H*D)
Weight 8.50kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 322Watts
Manufacturers Warranty 5 years/12000 hours (whichever first) (5 years/12000 hours (whichever first) on lamp)

Epson EB-L510U Package Contents
Accessories Cable cover
VGA cable
Main unit
Power cable
Quick Start Guide
Remote control incl. batteries
User Manual (CD-ROM)

Ivojo Multimedia are approved Epson dealers and supply only UK products with full UK warranties.



Epson EB-L510U Accessories

Description Price Inc. VAT
Seddon Flight Case 10 Hard case for projectors weighing 5-10kg £133 £159.60
Chief SL151I Projector Lift (Projector dimensions up to 464*213*464mm and 15.9kg) £1916 £2299.20
Unicol projector brackets and stands
Projector ceiling mounts and brackets
LCD/LED wall and ceiling brackets
Projection Screens
Twisted Pair extenders for LCD and LED large format displays
Twisted pair extenders, distribution and switching
HDMI, DVI, DisplayPort and twisted pair cables for large format displays
HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables
Scalers and video processors for large format displays
Scalers, EDID emulators, multi-windows processors and capture hardware



Epson EB-L510U Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
Canon LX-MU500Z DLP 5000 8.9 £2123 £2547.60
NEC P525UL LCD 5000 9.7 £1941 £2329.20
Epson EB-L400U LCD 4500 7.8 £1997 £2396.40
Hitachi CP-WU5500 LCD 5200 7.2 £406 £487.20
Hitachi CP-WU5505 LCD 5200 7.2 £1415 £1698.00
Hitachi CP-WU5506 LCD 5200 7.2 £1459 £1750.80
Panasonic PT-EZ57EJ LCD 5000 7.9 £1528 £1833.60
Panasonic PT-EZ590EJ LCD 5400 8.4 £2250 £2700.00
Panasonic PT-EZ590LEJ LCD 5400 7.7 £2139 £2566.80
Panasonic PT-FZ570EAJ LCD 4500 7.9 £1699 £2038.80
