Panasonic PT-MZ680WEJ Projector &
Panasonic ET-ELW21 Projector Lens

Panasonic PT-MZ680WEJ projector lens image

Panasonic PT-MZ680WEJ

  • 6000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 17.6kg (38.8lb.)
  • 3 year return to base warranty
  • Panasonic PT-MZ680WEJ
Panasonic PT-MZ680WEJ & Panasonic ET-ELW21
Panasonic ET-ELW21 projector lens image

Panasonic ET-ELW21
Suitable For

Panasonic ET-ELW21 Lens Only
£1065 (£1278.00 inc. VAT)
Availability: In stock


Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.52m 1.52m 222.97

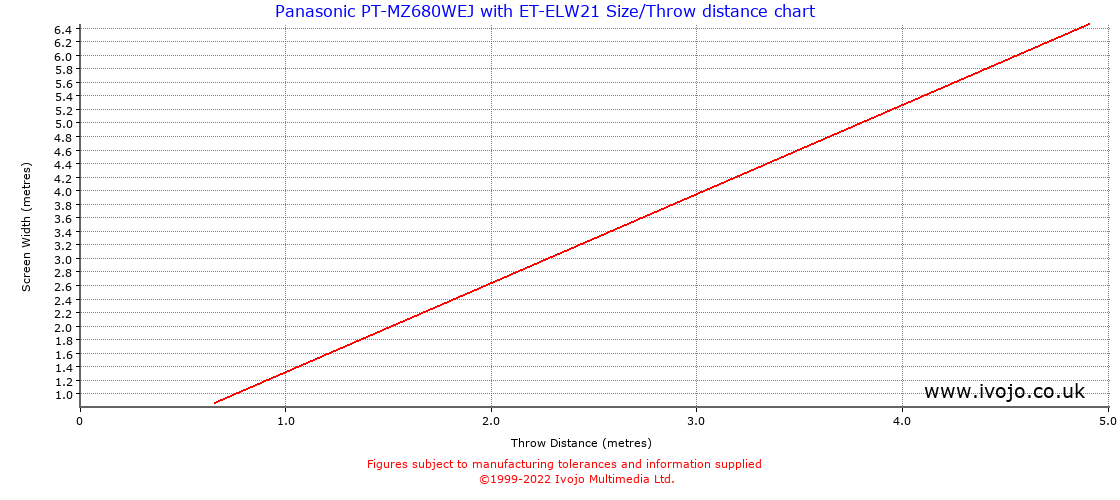

Throw Chard for Panasonic PT-MZ680WEJ fitted with Panasonic ET-ELW21

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.38 0.38 0.14 sq.m. 3963.86
1.00 0.56 1.15 0.76 0.76 0.56 sq.m. 990.97
1.50 0.84 1.72 1.14 1.14 1.27 sq.m. 440.43
2.00 1.12 2.29 1.52 1.52 2.25 sq.m. 247.74
2.50 1.41 2.87 1.90 1.90 3.52 sq.m. 158.55
3.00 1.69 3.44 2.28 2.28 5.06 sq.m. 110.11
4.00 2.25 4.59 3.04 3.04 9.00 sq.m. 61.94
5.00 2.81 5.74 3.80 3.80 14.06 sq.m. 39.64

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.32 1.32
2 2.63 2.63
3 3.95 3.95
4 5.26 5.26
5 6.58 6.58
6 7.89 7.89
7 9.21 9.21
8 10.53 10.53

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
