Panasonic PT-EX800ZLE Projector &
Panasonic ET-ELW21 Projector Lens

Panasonic PT-EX800ZLE projector lens image

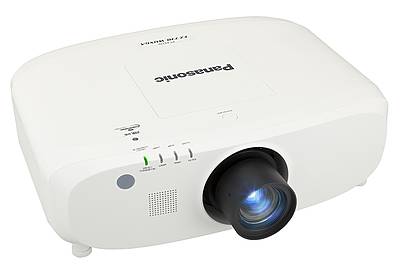

Panasonic PT-EX800ZLE

  • 7500 ANSI Lumens
  • XGA 1024*768 Native Resolution
  • 5000:1 Contrast Ratio
  • 3000 hour lamp life (typical)
  • Lens Shift function
  • 10.6kg (23.4lb.)
  • 3 year collect/return with loan if available warranty
  • Panasonic PT-EX800ZLE
Panasonic PT-EX800ZLE & Panasonic ET-ELW21
Panasonic ET-ELW21 projector lens image

Panasonic ET-ELW21
Suitable For

Panasonic ET-ELW21 Lens Only
£1065 (£1278.00 inc. VAT)
Availability: 3-5 days


Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.60m 1.60m 232.20

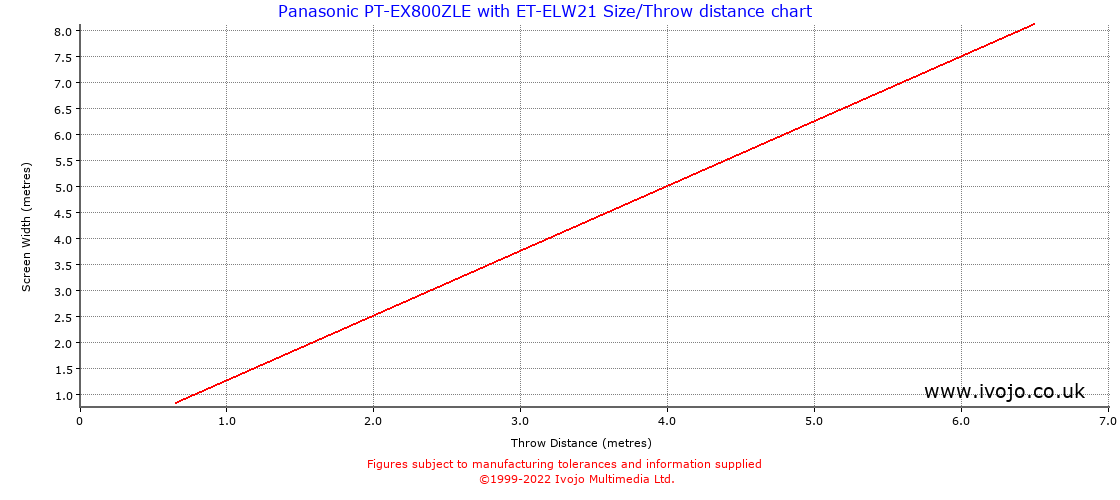

Throw Chard for Panasonic PT-EX800ZLE fitted with Panasonic ET-ELW21

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.38 0.62 0.40 0.40 0.19 sq.m. 3716.12
1.00 0.75 1.25 0.80 0.80 0.75 sq.m. 929.03
1.50 1.12 1.88 1.20 1.20 1.69 sq.m. 412.90
2.00 1.50 2.50 1.60 1.60 3.00 sq.m. 232.26
2.50 1.88 3.12 2.00 2.00 4.69 sq.m. 148.64
3.00 2.25 3.75 2.40 2.40 6.75 sq.m. 103.23
4.00 3.00 5.00 3.20 3.20 12.00 sq.m. 58.06
5.00 3.75 6.25 4.00 4.00 18.75 sq.m. 37.16

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.25 1.25
2 2.50 2.50
3 3.75 3.75
4 5.00 5.00
5 6.25 6.25
6 7.50 7.50
7 8.75 8.75
8 10.00 10.00

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
