Panasonic PT-MZ682WEJ Projector &
Panasonic ET-ELW20 Projector Lens

Panasonic PT-MZ682WEJ projector lens image

Panasonic PT-MZ682WEJ

  • 6500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 17.6kg (38.8lb.)
  • 3 years / 20,000 hours (whichever first) warranty
  • Panasonic PT-MZ682WEJ
Panasonic PT-MZ682WEJ & Panasonic ET-ELW20
£4731 (£5677.20 inc. VAT)
Availability: 7-10 Days
Panasonic ET-ELW20 projector lens image

Panasonic ET-ELW20
Suitable For

Panasonic ET-ELW20 Lens Only
£1065 (£1278.00 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.60m 3.40m 241.55

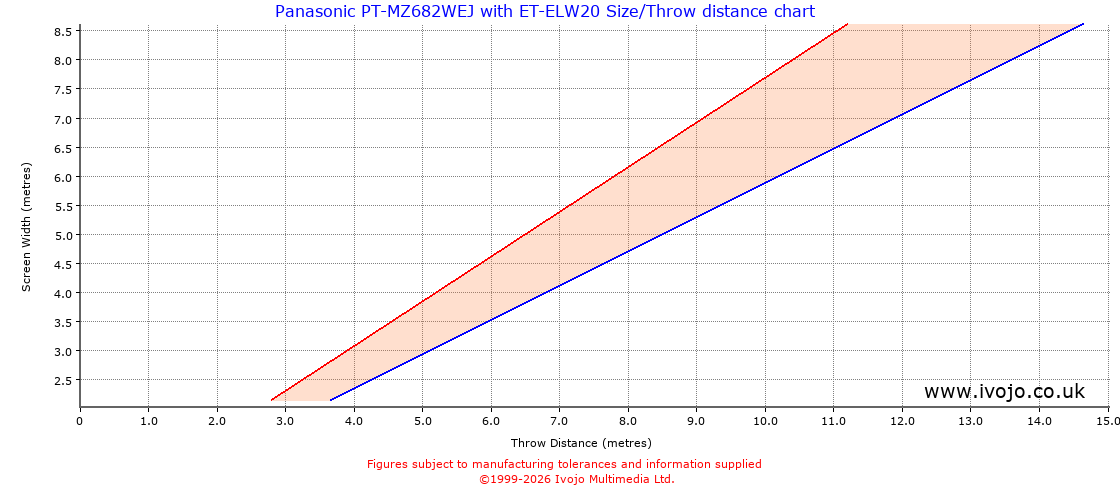

Throw Chard for Panasonic PT-MZ682WEJ fitted with Panasonic ET-ELW20

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.65 0.85 0.14 sq.m. 4294.18
1.00 0.56 1.15 1.30 1.70 0.56 sq.m. 1073.55
1.50 0.84 1.72 1.95 2.55 1.27 sq.m. 477.13
2.00 1.12 2.29 2.60 3.40 2.25 sq.m. 268.39
2.50 1.41 2.87 3.25 4.25 3.52 sq.m. 171.77
3.00 1.69 3.44 3.90 5.10 5.06 sq.m. 119.28
4.00 2.25 4.59 5.20 6.80 9.00 sq.m. 67.10
5.00 2.81 5.74 6.50 8.50 14.06 sq.m. 42.94

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.59 0.77
2 1.18 1.54
3 1.76 2.31
4 2.35 3.08
5 2.94 3.85
6 3.53 4.62
7 4.12 5.38
8 4.71 6.15

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
