Panasonic PT-MZ780WEJ Projector &
Panasonic ET-ELT23 Projector Lens

Panasonic PT-MZ780WEJ projector lens image

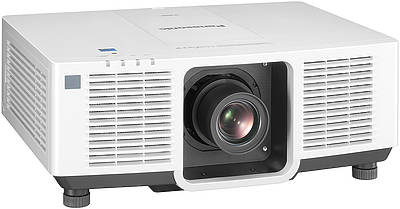

Panasonic PT-MZ780WEJ

  • 7000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 17.6kg (38.8lb.)
  • 3 year return to base warranty
  • Panasonic PT-MZ780WEJ
Panasonic PT-MZ780WEJ & Panasonic ET-ELT23
Panasonic ET-ELT23 projector lens image

Panasonic ET-ELT23
Suitable For

Panasonic ET-ELT23 Lens Only
£753 (£903.60 inc. VAT)
Availability: In stock


Select a Screen

 Min. Throw Max Throw Foot Lamberts
8.88m 14.24m 260.13

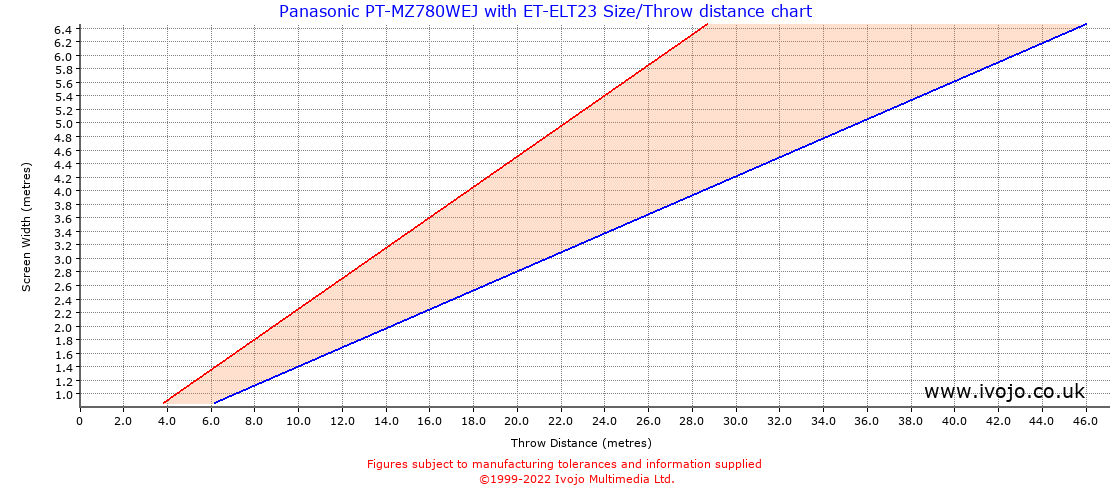

Throw Chard for Panasonic PT-MZ780WEJ fitted with Panasonic ET-ELT23

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 2.22 3.56 0.14 sq.m. 4624.51
1.00 0.56 1.15 4.44 7.12 0.56 sq.m. 1156.13
1.50 0.84 1.72 6.66 10.68 1.27 sq.m. 513.83
2.00 1.12 2.29 8.88 14.24 2.25 sq.m. 289.03
2.50 1.41 2.87 11.10 17.80 3.52 sq.m. 184.98
3.00 1.69 3.44 13.32 21.36 5.06 sq.m. 128.46
4.00 2.25 4.59 17.76 28.48 9.00 sq.m. 72.26
5.00 2.81 5.74 22.20 35.60 14.06 sq.m. 46.25

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.14 0.23
2 0.28 0.45
3 0.42 0.68
4 0.56 0.90
5 0.70 1.13
6 0.84 1.35
7 0.98 1.58
8 1.12 1.80

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
