Panasonic PT-MZ682WEJ Projector &
Panasonic ET-ELT22 Projector Lens

Panasonic PT-MZ682WEJ projector lens image

Panasonic PT-MZ682WEJ

  • 6500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 17.6kg (38.8lb.)
  • 3 years / 20,000 hours (whichever first) warranty
  • Panasonic PT-MZ682WEJ
Panasonic PT-MZ682WEJ & Panasonic ET-ELT22
£4419 (£5302.80 inc. VAT)
Availability: In Stock
Panasonic ET-ELT22 projector lens image

Panasonic ET-ELT22
Suitable For

Panasonic ET-ELT22 Lens Only
£753 (£903.60 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
5.44m 8.96m 241.55

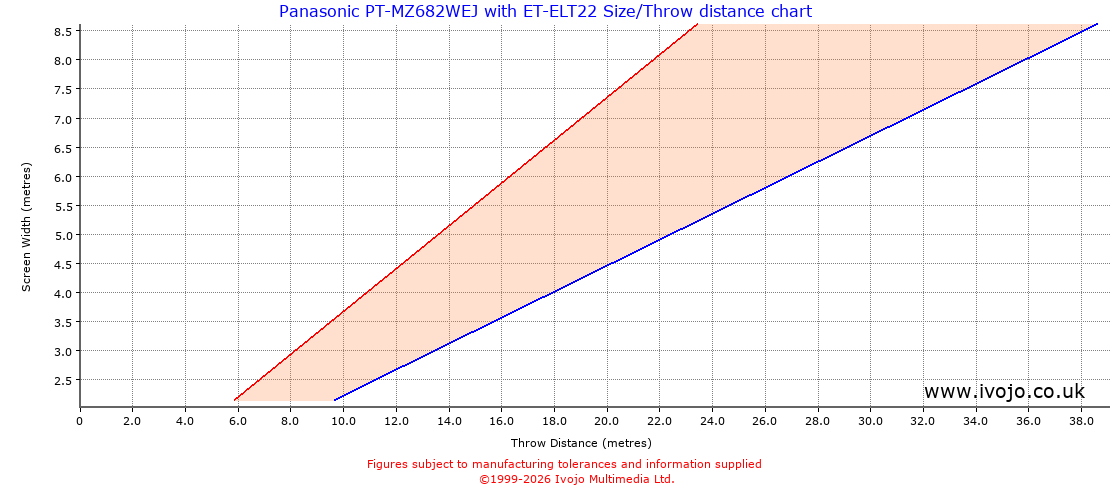

Throw Chard for Panasonic PT-MZ682WEJ fitted with Panasonic ET-ELT22

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.36 2.24 0.14 sq.m. 4294.18
1.00 0.56 1.15 2.72 4.48 0.56 sq.m. 1073.55
1.50 0.84 1.72 4.08 6.72 1.27 sq.m. 477.13
2.00 1.12 2.29 5.44 8.96 2.25 sq.m. 268.39
2.50 1.41 2.87 6.80 11.20 3.52 sq.m. 171.77
3.00 1.69 3.44 8.16 13.44 5.06 sq.m. 119.28
4.00 2.25 4.59 10.88 17.92 9.00 sq.m. 67.10
5.00 2.81 5.74 13.60 22.40 14.06 sq.m. 42.94

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.22 0.37
2 0.45 0.74
3 0.67 1.10
4 0.89 1.47
5 1.12 1.84
6 1.34 2.21
7 1.56 2.57
8 1.79 2.94

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
