Panasonic PT-MZ782WEJ Projector &
Panasonic ET-ELS20 Projector Lens

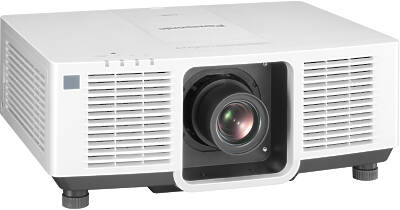

Panasonic PT-MZ782WEJ projector lens image

Panasonic PT-MZ782WEJ

  • 7500 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 17.6kg (38.8lb.)
  • 3 years / 20,000 hours (whichever first) warranty
  • Panasonic PT-MZ782WEJ
Panasonic PT-MZ782WEJ & Panasonic ET-ELS20
£4364 (£5236.80 inc. VAT)
Availability: In Stock
Panasonic ET-ELS20 projector lens image

Panasonic ET-ELS20
Suitable For

Panasonic ET-ELS20 Lens Only
£476 (£571.20 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
3.40m 5.60m 278.71

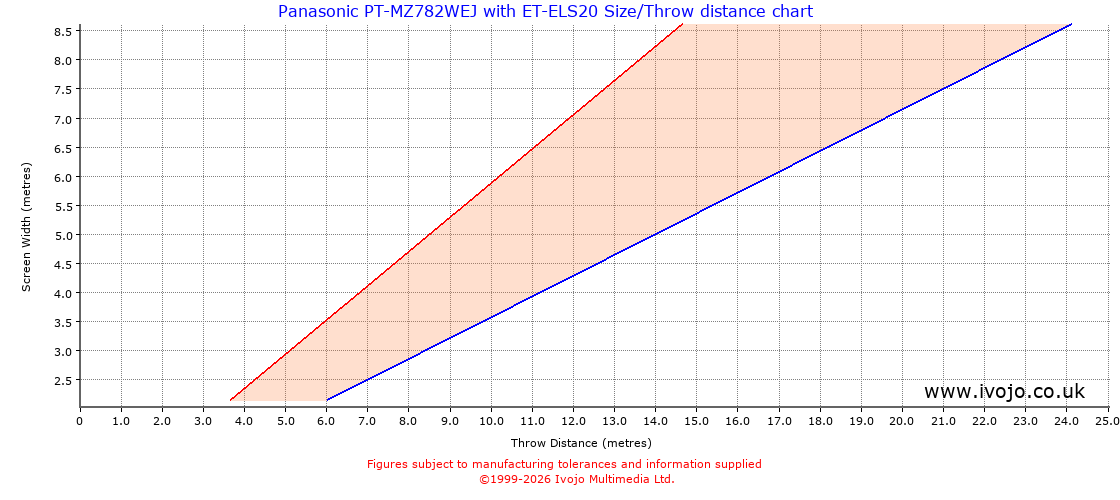

Throw Chard for Panasonic PT-MZ782WEJ fitted with Panasonic ET-ELS20

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.85 1.40 0.14 sq.m. 4954.83
1.00 0.56 1.15 1.70 2.80 0.56 sq.m. 1238.71
1.50 0.84 1.72 2.55 4.20 1.27 sq.m. 550.54
2.00 1.12 2.29 3.40 5.60 2.25 sq.m. 309.68
2.50 1.41 2.87 4.25 7.00 3.52 sq.m. 198.19
3.00 1.69 3.44 5.10 8.40 5.06 sq.m. 137.63
4.00 2.25 4.59 6.80 11.20 9.00 sq.m. 77.42
5.00 2.81 5.74 8.50 14.00 14.06 sq.m. 49.55

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.36 0.59
2 0.71 1.18
3 1.07 1.76
4 1.43 2.35
5 1.79 2.94
6 2.14 3.53
7 2.50 4.12
8 2.86 4.71

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
