Christie 4K10-HS Projector &
Christie 140-111104-01 Projector Lens

Christie 4K10-HS projector lens image

Christie 4K10-HS

  • 11000 ANSI Lumens
  • 4K UH 3840*2160 Native Resolution
  • 1100:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 34kg (75.0lb.)
  • 3 years parts and labour on the projector warranty
  • Christie 4K10-HS
Christie 4K10-HS & Christie 140-111104-01
Christie 140-111104-01 projector lens image

Christie 140-111104-01
Suitable For

Christie 140-111104-01 Lens Only
£3071 (£3685.20 inc. VAT)
Availability: 3-5 days


Select a Screen

 Min. Throw Max Throw Foot Lamberts
5.66m 11.32m 454.25

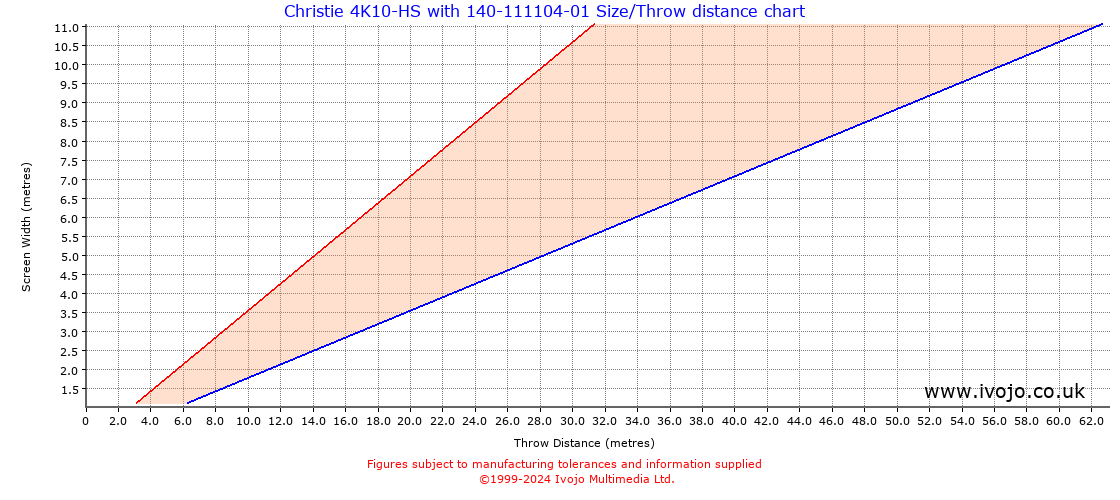

Throw Chard for Christie 4K10-HS fitted with Christie 140-111104-01

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.42 2.83 0.14 sq.m. 7267.08
1.00 0.56 1.15 2.83 5.66 0.56 sq.m. 1816.77
1.50 0.84 1.72 4.25 8.49 1.27 sq.m. 807.45
2.00 1.12 2.29 5.66 11.32 2.25 sq.m. 454.19
2.50 1.41 2.87 7.08 14.15 3.52 sq.m. 290.68
3.00 1.69 3.44 8.49 16.98 5.06 sq.m. 201.86
4.00 2.25 4.59 11.32 22.64 9.00 sq.m. 113.55
5.00 2.81 5.74 14.15 28.30 14.06 sq.m. 72.67

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.18 0.35
2 0.35 0.71
3 0.53 1.06
4 0.71 1.41
5 0.88 1.77
6 1.06 2.12
7 1.24 2.47
8 1.41 2.83

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
