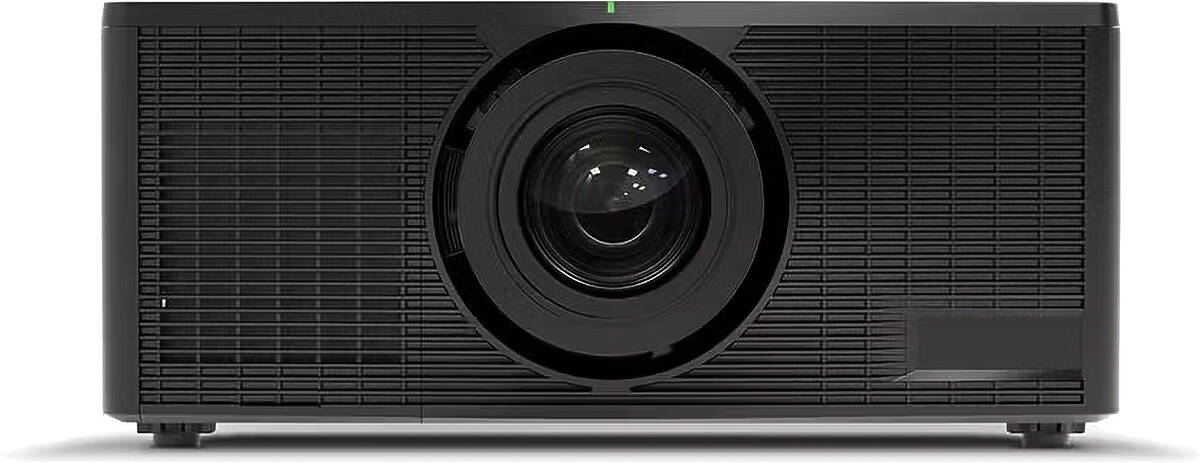

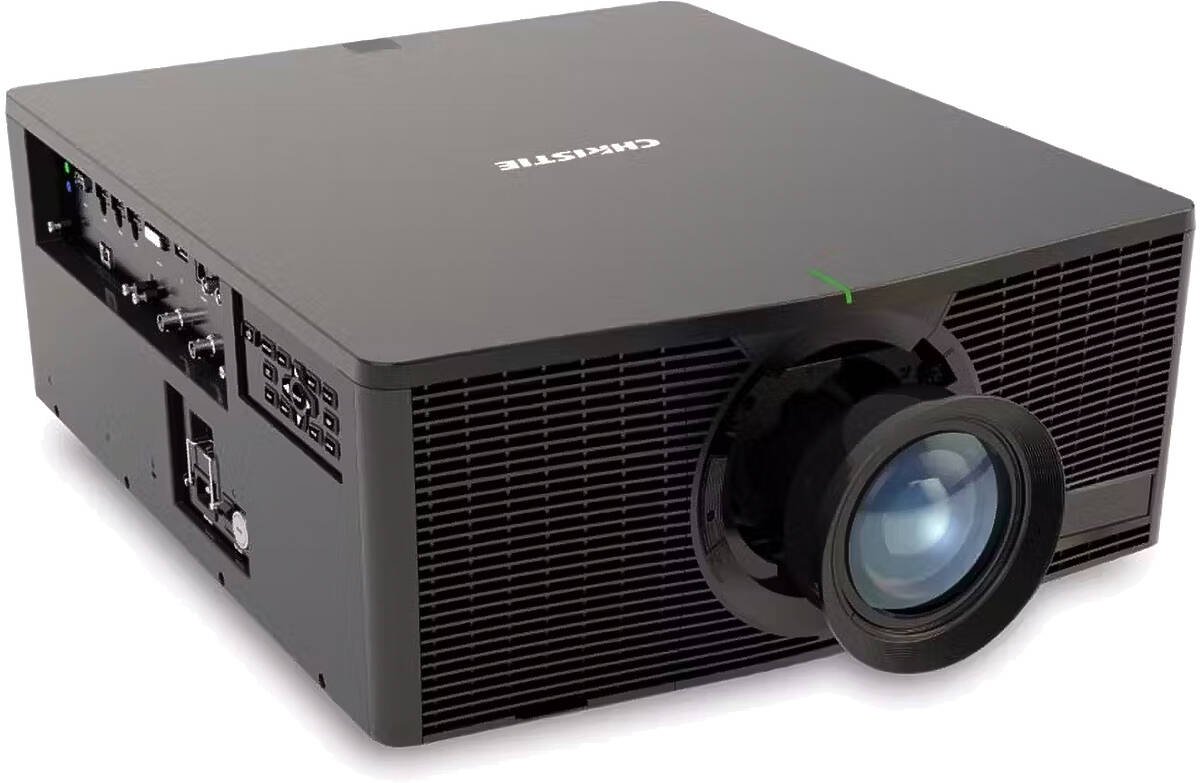

Christie 4K10-HS Projector
Christie 4K10-HS Key Features
- DLP Display Technology
- 11,000 Lumens
- 0 Optional Lenses (Click Here)
- 4K UH 3840*2160 Native Resolution
- 20,000 hour lamp life (typical)
- 1,100:1 Contrast Ratio
- 34kg (75.0lb.)
- 4 segment (RGBY) - 2 × Speed
- Christie BoldColor Technology
- RealBlack technology
- 360° Installation
- Native Widescreen
- Lens Shift
- Portrait Mode
- Picture-In-Picture
- Picture-and-Picture
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- PIN Code Security
- Warrantied for 24/7 use
- DICOM Simulation Mode
- Motorised Zoom and Focus
- Monitor Out
Christie 4K10-HS Downloads
- Exhibitions and large venues
- Horizontal Surface Projection
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
- Post production and screening
- Super bright applications
- Theatres
Christie 4K10-HS Specifications
| Categories | Conference / Large Venue Interchangeable Lens LED/Laser HD |
| Manufacturer | Christie (Click for rest of range) |
Christie 4K10-HS Optical Features |
|
| System | 1 x 0.66" DMD |
| Resolution | 4K UH (3840*2160) |
| Aspect Ratio | 16:9 |
| Lumens | 11,000 |
| Contrast | 1,100:1 |
| Lamp | Laser phosphor with Christie BoldColor T |
| Lamp Life | 20,000hrs. |
| Interchangeable | Yes |
| Image Size | 30"-300" diagonal |
| Lens Shift | No |
Christie 4K10-HS Compatibility |
|
| Computer Resolutions | UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| Video Resolutions | 4K, UHD, HD, 720p, PAL, SECAM, NTSC |
| Horizontal Freq. | 15-91kHz |
| Vertical Freq. | 24-85Hz |

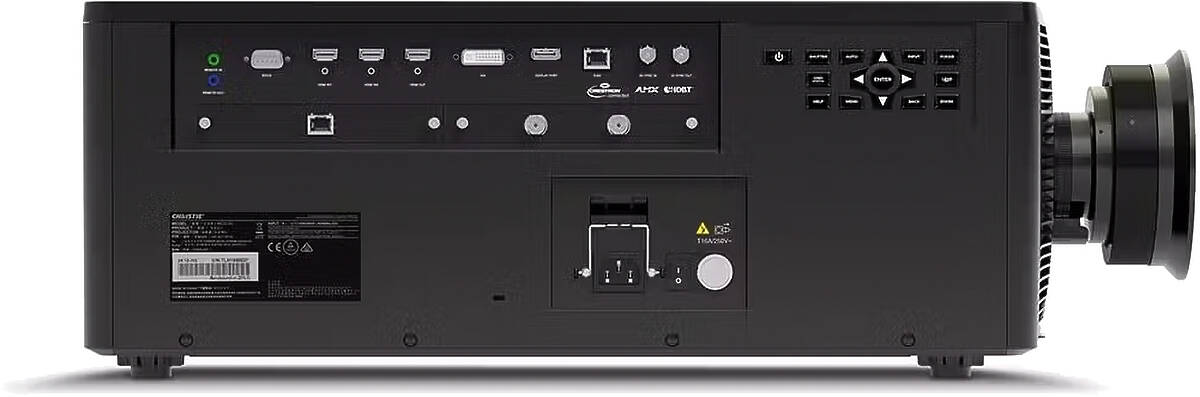

Christie 4K10-HS Terminals |
|
| DVI | 1 |
| HDMI | 2 |
| DisplayPort | 1 |
| RGBHV (15-pin HD) | 1 |
| Monitor Out | Yes |
| RS-232 | 1 |
Christie 4K10-HS General |
|
| Speakers | No |
| Remote Control | Christie 4K10-HS only |
| Noise | 39db (36db ECO mode) |
| Dimensions | 520*214*600mm (W*H*D) |
| Weight | 34.00kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 1250Watts |
| Manufacturers Warranty | 3 years parts and labour on the projector |
| Light Source Warranty | 3 Year/20,000 Hours (Whichever first) |
Christie 4K10-HS Package Contents |
|
| Accessories | IR remote w/ wired remote jack (wire not included) AC line cords for projector head User manual |
Additional Specs |
|
| Contrast Ratio | Full On/Off (Christie Real Black enabled): 2,000,000:1 Full On/Off (Christie Real Black disabled): 1,100:1 Dynamic: 5,000:1 |
| Pixel Clock Rate | Maximum input pixel rate: 594 Mpix/s (supports 4096 × 2160 @ 60Hz / 3840 × 2160 @ 60Hz over HDMI & DP) |
| Heat Dissipation | Normal mode: 2900 BTU/hr Eco1 mode: 2388 BTU/hr Eco2 mode: 1587 BTU/hr |
| Input Details | HDMI × 2 (HDMI 2.0b, HDCP 2.2 Compliant) DVI-D (digital only) DisplayPort (versions 1.2) Optional: Terra SDVoE (optional input card) Wi-Fi® dongle (optional) 3G SDI (optional input card) USB x1 (Type A) HDBaseT (RJ45) Signals: Standard video signals up to 4096 × 2160 @ 60Hz (over a single cable; HDMI 2.0 or DP 1.2) |
| Output Connectivity | 3GSDI (BNC) HDMI x1 (HDMI out) |
| Control/Networking | RS232 In Control via HDBaseT Ethernet (10/100) RJ45 Built-in backlit keypad Wired remote control (3.5mm stereo) - loop out available for daisy chaining |
| Optional Accessories | 1DWUSB-BGN (wireless dongle for video and control), HS fog filter covers + filters (order once per projector then only filters refills), HS fog filter refills (1 set), Replacement remote control |
| Shipping Weight | 101.85lbs (46.2kg) |
| Shipping Dimensions | 1005 × 860 × 365mm |
Ivojo Multimedia are approved Christie dealers and supply only UK products with full UK warranties.
Christie 4K10-HS Optional Lenses
| Description | Price | Inc. VAT |

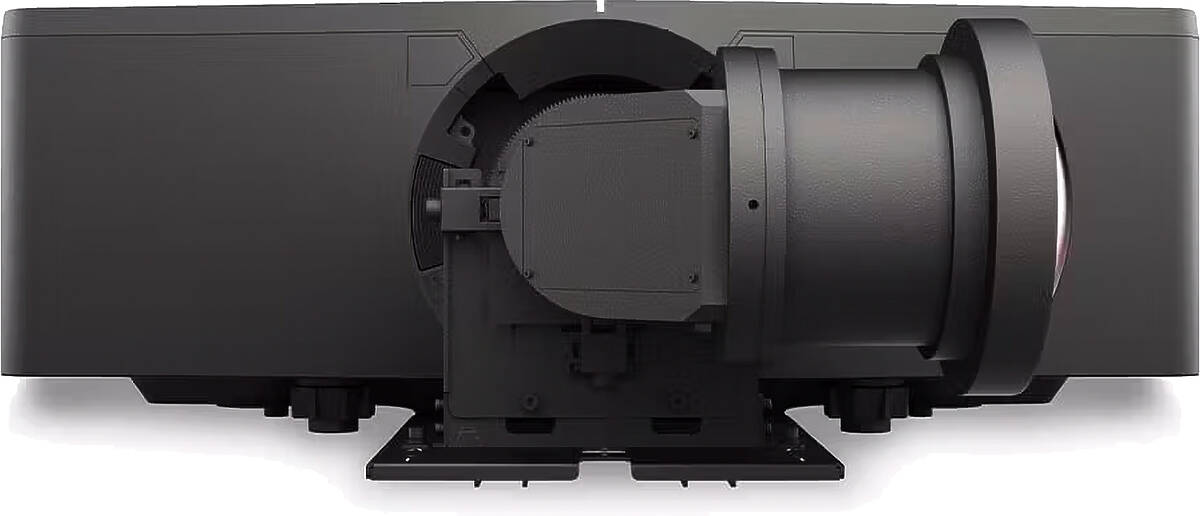

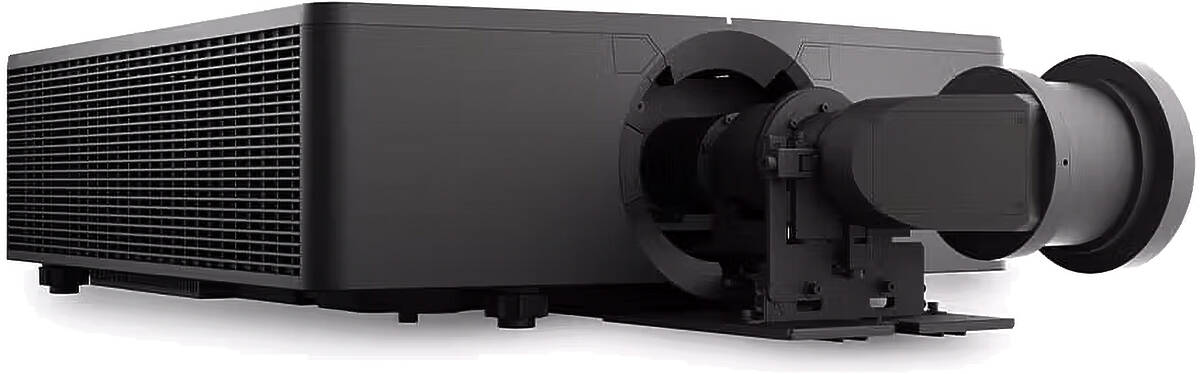

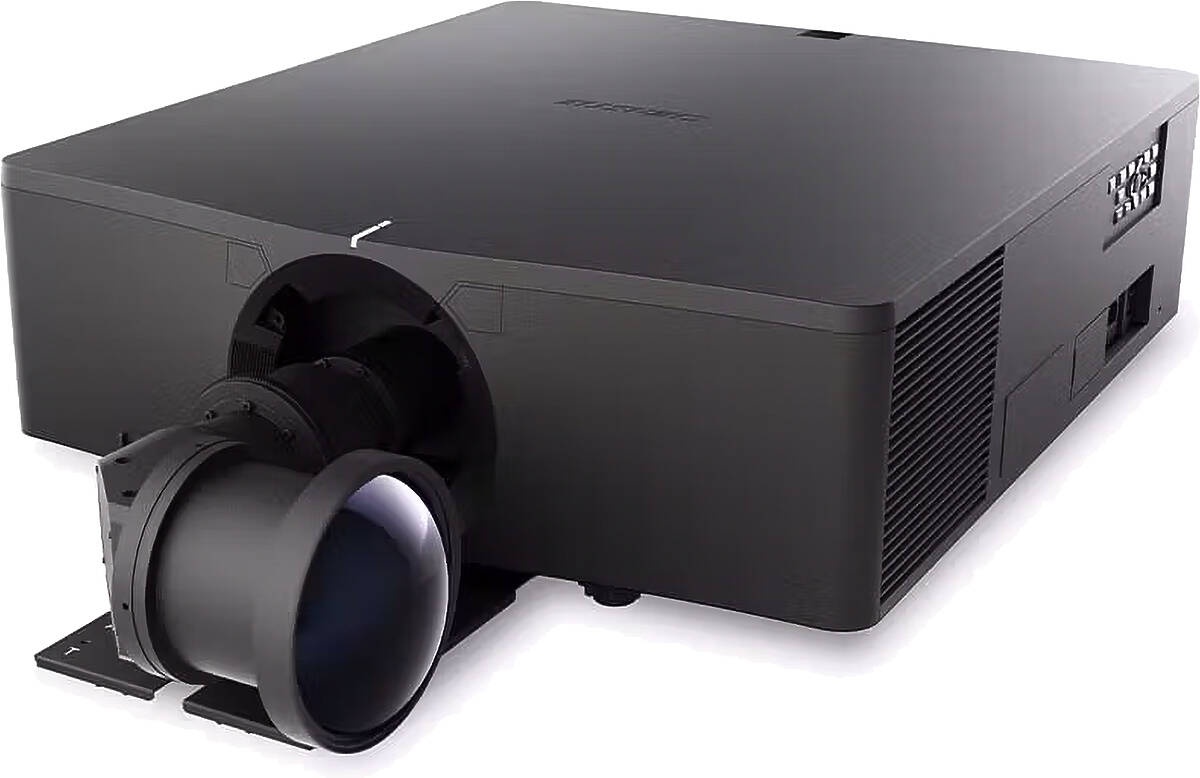

| Christie 900-300349-01 Ultra Short Throw Fixed (HD/WUXGA) Lens | £12685 | £15222.00 |
| Christie 140-109101-02 Semi-Short Throw Zoom Lens | £3412 | £4094.40 |
| Christie 140-110103-01 Standard Throw Zoom Lens | £2620 | £3144.00 |
| Christie 140-111104-01 Semi-Long Throw Zoom Lens | £3071 | £3685.20 |
| Christie 140-116109-01 Long Throw Zoom Lens | £3867 | £4640.40 |
Christie 4K10-HS Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case XL Hard case with castors for projectors weighing over 25kg | £247.00 | £296.40 |
