Vogel’s TD2064B

Monitor/Commercial TV Trolley for screens over 65″ - Black
65″ and over / Max 80kg; VESA 400×400–600×400;0–20° Tilt; 201.5 cm to screen centre

Vogels TD2064B Monitor/Commercial TV Trolley for screens over 65″ - Black product image. Click to enlarge.
Vogels TD2064B Monitor/Commercial TV Trolley for screens over 65″ - Black product image Vogels TD2064B Monitor/Commercial TV Trolley for screens over 65″ - Black product image PFB 3407B product image PFS 3304 product image PFT 8530B product image PUC 2720B product image

Vogels TD2064B (7953080)

Vogel’s TD2064B twin column Connect-It display trolleys offer a flexible solution for mobile AV setups. Suitable for screens from 65–110″ with a height to mount point centre of 205cm and loadable up to 80kg. These trolleys are ideal for larger displays in conference or training rooms. Thanks to the integrated cable inlay system (CIS®) and robust wheels with brakes, displays can be easily moved and safely positioned.

Designed to fit VESA measurements 400×400, 500×400 and 600×400.

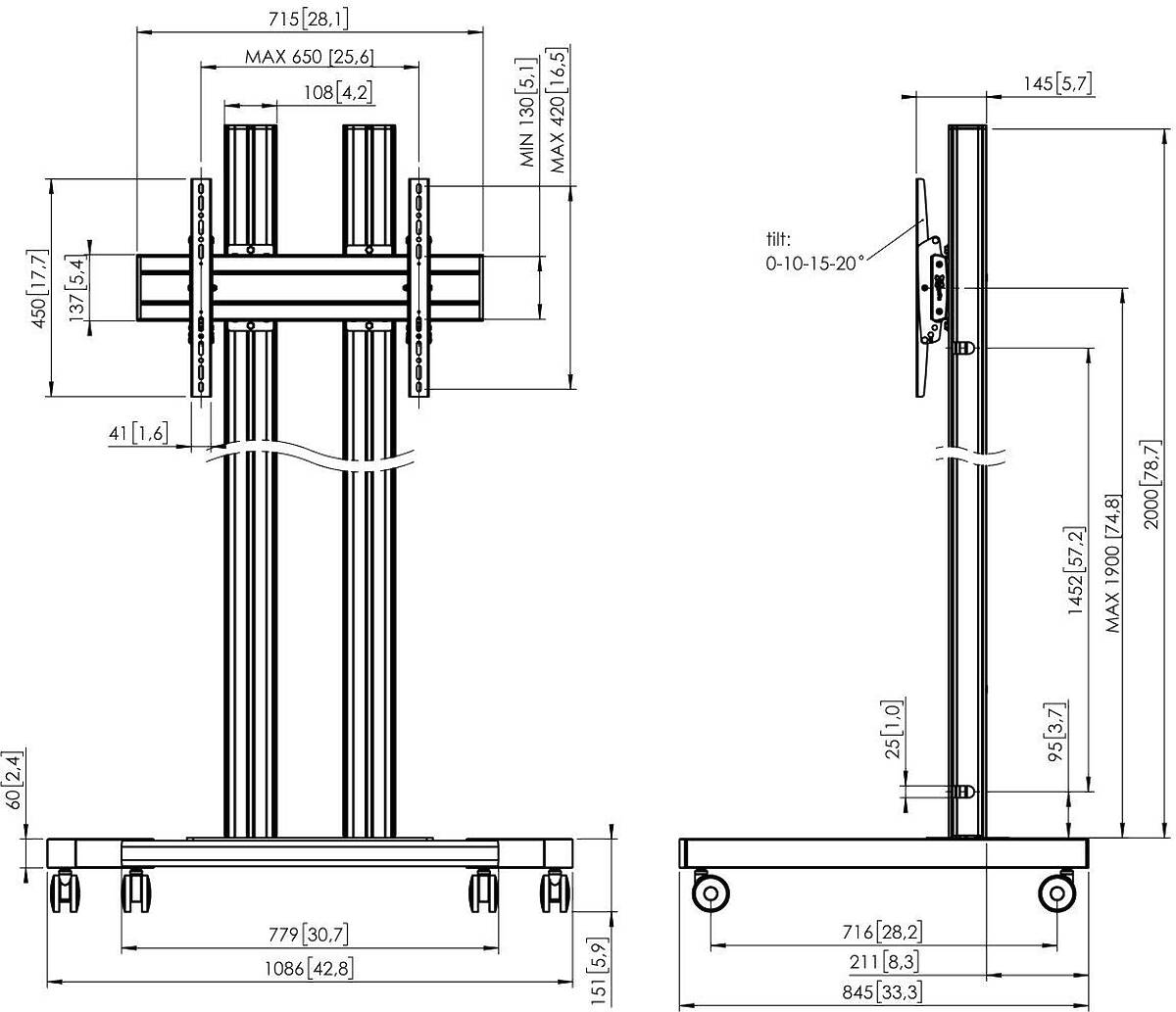

Vogels TD2064B Specifications

Product Group Vogels Connect-It Trolleys
UPC / EAN 8712285333262
Colour Black
Screen Size 65 – 110″
Max Load 80.00kg.
VESA Mount Points 400×400 – 600×400
Screen Centre Height Variable – 2051.00mm
Dimensions 1086.0mm width
2151.0mm height
845.0mm depth
Bracket Tilt 0–20°
Warranty 5 Years

Ideal For
Boardrooms
Classrooms & Training Spaces
Conferences
Exhibitions
Hospitality
Lobby / Reception Areas
Trade Shows
Video conferencing

£961 (£1153.20 inc. VAT)
Availability: In Stock with FREE Delivery

TD2064B Component Parts

Product Code Description
1 × Vogels PFB 3407B Connect-it 715mm Interface bar finished in Black
1 × Vogels PFS 3304 Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt)
1 × Vogels PFT 8530B Connect-it extra large trolley base finished in black
2 × Vogels PUC 2720B 200㎝ Connect-it Floor column finished in black

Vogels TD2064B Configurations

Vogels TD2064B Monitor/Commercial TV Trolley for screens over 65″ - Black (65″ and over / Max 80kg; VESA 400×400–600×400;0–20deg. Tilt; **201.5 cm to screen centre**)
Vogels TD2064B
Vogels TD2064S Monitor/Commercial TV Trolley for screens over 65″ - Silver (65″ and over / Max 80kg; VESA 400×400–600×400; 0–20deg. Tilt; **201.5 cm to screen centre**)
Vogels TD2064S
