Vogel’s C3044S

TV/Monitor Ceiling Mount Kit
Up to 65″/Max 80kg;VESA 100×100–400×400; 290cm ceiling to screen centre; Silver Finish

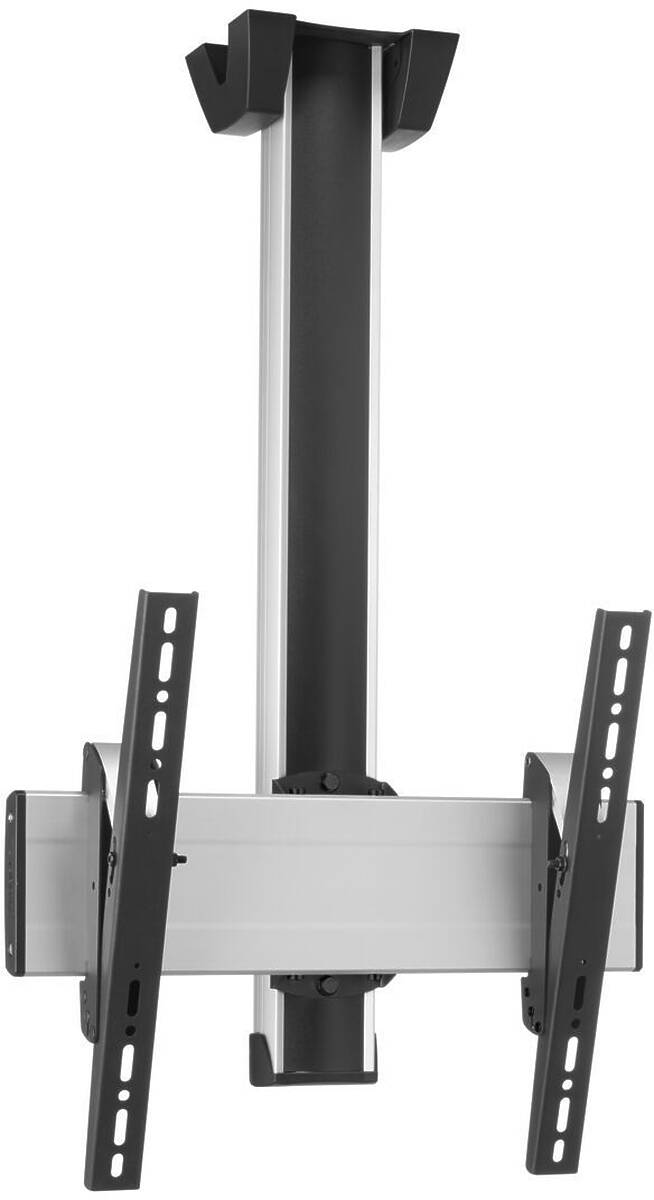

Vogels C3044S TV/Monitor Ceiling Mount Kit product image

Vogels C3044S (7950034)

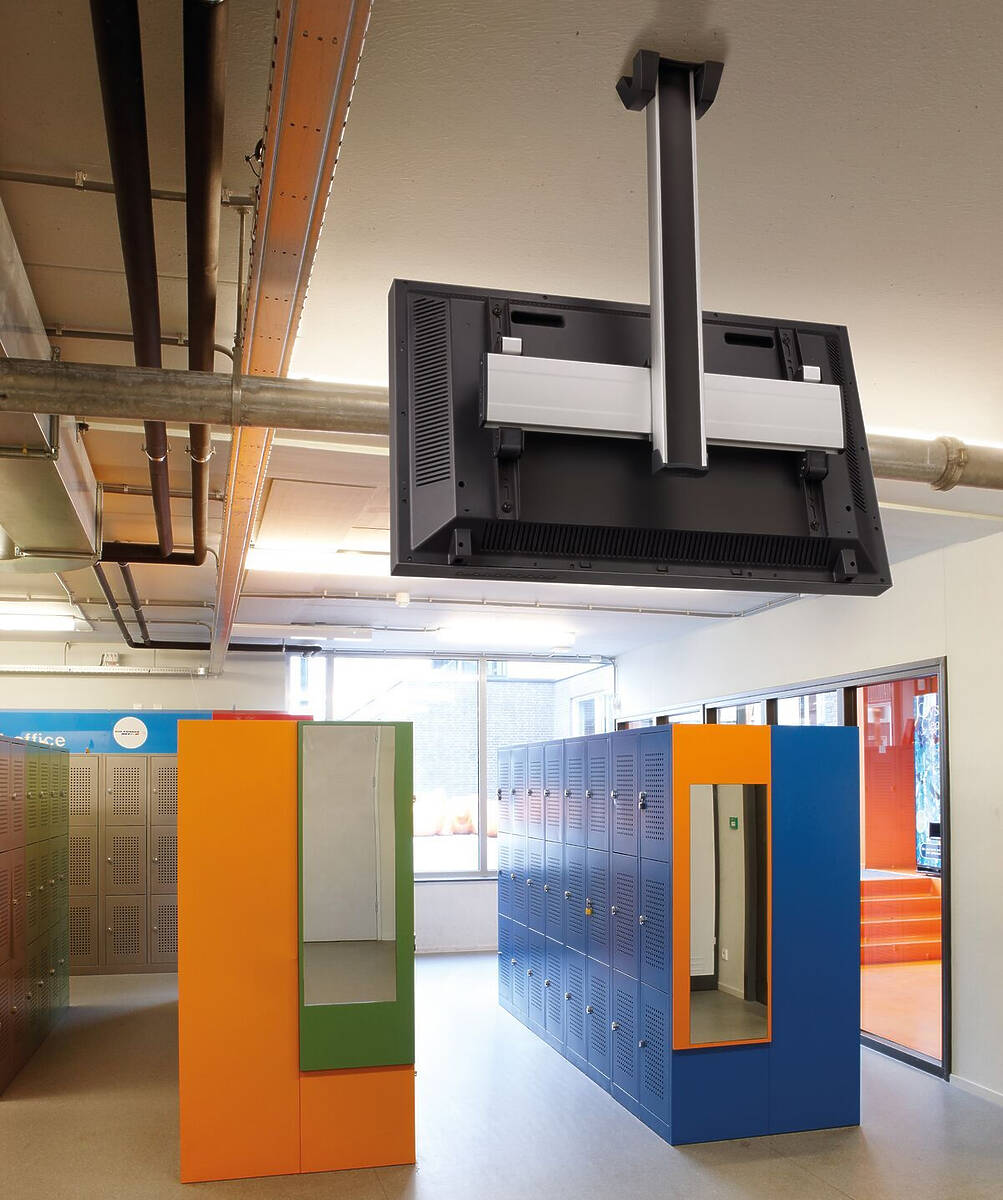

Stylish and finished in black & silver the Vogel’s C3044S ceiling mount is designed to securely suspend a monitor from the ceiling, with bracket tilt from 0–20° downwards and a ceiling-to-the-screen centre measurement of 290cm.

The Vogel’s C3044S ceiling mount is compatible with monitors with a 100×100–400×400 VESA and maximum of 80.00kg. Incorporates a cable inlay system allowing the cables to be neatly hidden from sight.

Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300 and 400×400.

Key Features

Stylish high-end design
Finished in Black & Silver
Quick and easy installation
Designed to accomodate a single monitor
Integrated cable management
See entire Vogels Monitor Ceiling Mounts (80kg) Range

Vogels C3044S Specifications

Product Group	Vogels Monitor Ceiling Mounts 80kg
UPC / EAN	8712285332180
Monitor Count	1
Colour	Black & Silver
Screen Size	32 – 65″
Max Load	80.00kg.
VESA Mount Points	100×100 – 400×400
Ceiling to Monitor Centre	2900.00mm

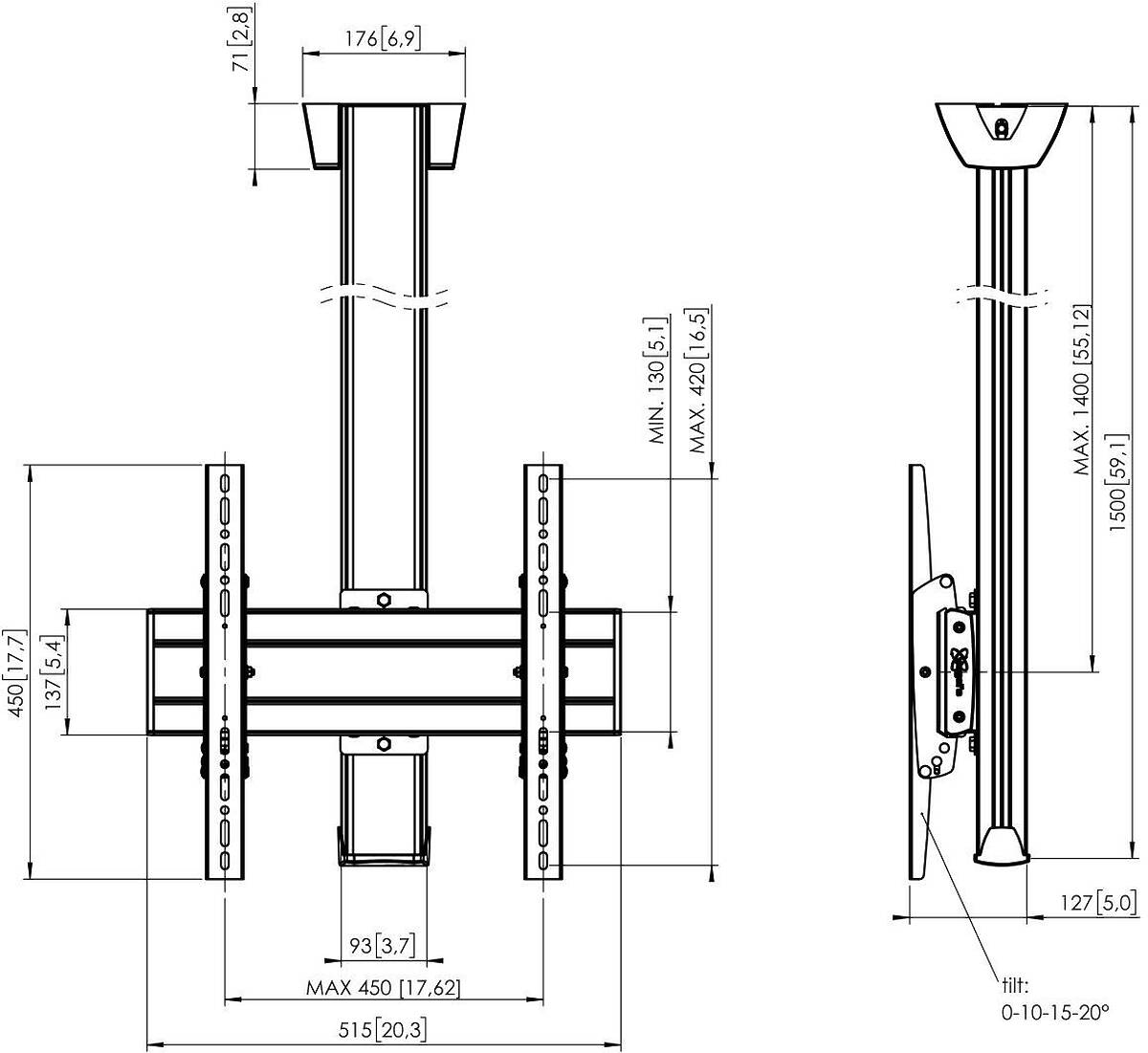

Dimensions	515.0mm width 3000.0mm height 127.0mm depth
Bracket Tilt	0–20°
Warranty	5 Years
Autolock	Yes
Ceiling types	Flat ceiling

Ideal For

Control Rooms
Digital Signage
Exhibitions
Hospitality
Museums and Art Galleries
Offices
Retail
Scheduling Displays
Sports Halls and Gyms

£334 (£400.80 inc. VAT)
Availability: In Stock with FREE Delivery

C3044S Component Parts

Product Code	Description
1 × Vogels PFB 3405S	Connect-it 515mm Interface bar finished in Silver
1 × Vogels PFS 3304	Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt)
1 × Vogels PUC 1065	Connect-it Rotating Ceiling Plate
1 × Vogels PUC 2530S	300㎝ Connect-it Ceiling column finished in silver
