Vogel’s C1544B

Monitor/TV Ceiling Mount Kit
Up to 65″/ Max 80kg; VESA 100×100–400×400; 140cm ceiling to screen centre; Black finish

Vogels C1544B Monitor/TV Ceiling Mount Kit product image

Vogels C1544B (7950020)

The Vogel’s C1544B ceiling mount is specially designed to securely suspend a monitor from the ceiling, with bracket tilt from 0–20° downwards and a ceiling-to-the-screen centre measurement of 140cm. Stylish and finished in black it looks sleek and compact in any décor.

The Vogel’s C1544B ceiling mount is compatible with monitors with a 100×100–400×400 VESA and maximum of 80.00kg. Incorporates a cable inlay system allowing the cables to be neatly hidden from sight.

Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300 and 400×400.

Key Features

Stylish high-end design
Finished in Black & Silver
Quick and easy installation
Designed to accomodate a single monitor
Integrated cable management
See entire Vogels Monitor Ceiling Mounts (80kg) Range

Vogels C1544B Specifications

Product Group	Vogels Monitor Ceiling Mounts 80kg
UPC / EAN	8712285332166
Monitor Count	1
Colour	Black
Screen Size	32 – 65″
Max Load	80.00kg.
VESA Mount Points	100×100 – 400×400
Ceiling to Monitor Centre	1400.00mm

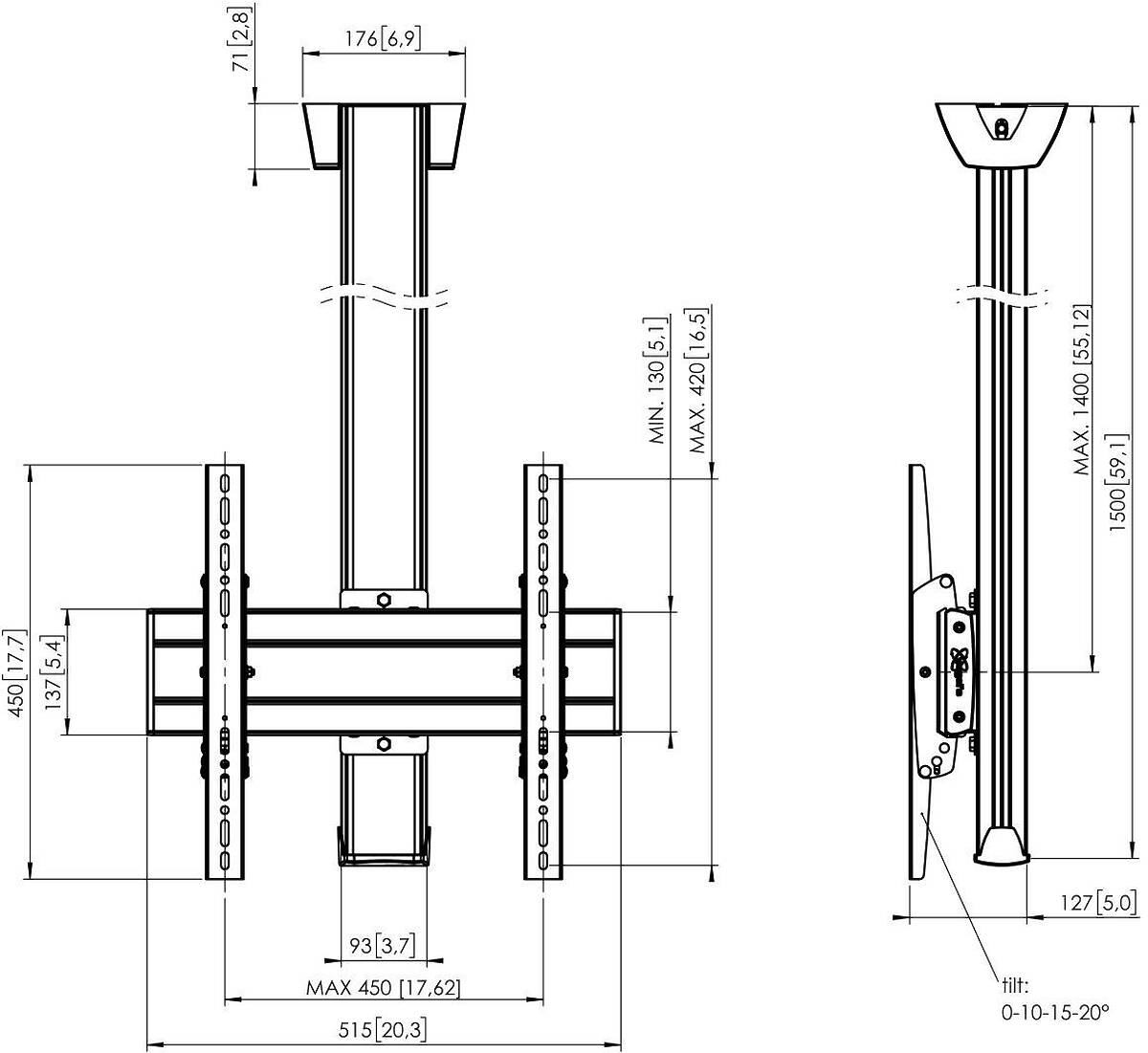

Dimensions	515.0mm width 1500.0mm height 127.0mm depth
Bracket Tilt	0–20°
Warranty	5 Years

Ideal For

Control Rooms
Digital Signage
Exhibitions
Hospitality
Museums and Art Galleries
Offices
Retail
Scheduling Displays
Sports Halls and Gyms

Vogels C1544B Downloads

Brochure

£261 (£313.20 inc. VAT)
Availability: In Stock with FREE Delivery

C1544B Component Parts

Product Code	Description
1 × Vogels PFB 3405B	Connect-it 515mm Interface bar finished in Black
1 × Vogels PFS 3304	Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 80kg; 0/5/10/15/20° Tilt)
1 × Vogels PUC 1065	Connect-it Rotating Ceiling Plate
1 × Vogels PUC 2515B	150㎝ Connect-it Ceiling column finished in black
