Unicol VSB-1500x2-VMSV2

VS1000 K base modular Monitor/TV Trolley
33–40″/Max 35kg; VESA 300×300–400×400

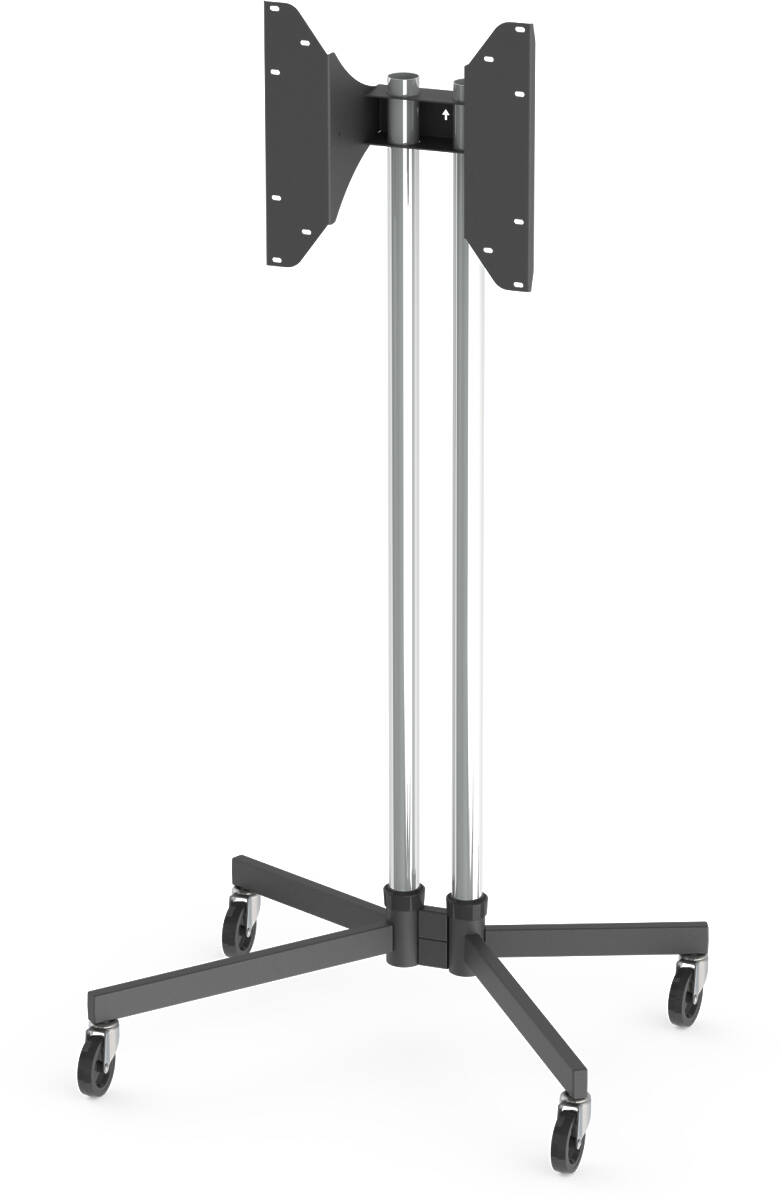

Unicol VSB-1500x2-VMSV2

The latest in the VS1000 range, the VSB-1500x2-VMSV2 uses the new VMSV2 monitor bracket connected directly to the twin columns, reducing the number of separate parts to assemble and the price!

The workhorse of the AV industry, VS1000 trolleys are a favoured choice for trade shows, education, broadcast and AV users everywhere. Still preferred by many for its robust design, the original “K” base has 10cm non-marking rubber tyre wheels and supports up to 105kg.

The Unicol VS1000 user-friendly modular system makes for easy on-site assembly. VS1000 ″mix and match″ components give you the flexibility to reconfigure the unit in the future.

Available for larger (33–40") monitors shown here or see the VSB-1500x2-VMSV for smaller screens.

Designed to fit VESA measurements 300×300, 400×300 and 400×400.

Key Features

VMSV2 Monitor bracket for screens up to 40″
VSB “K” base with 10cm unbraked castors.
Height adjustable from base to 157cm
Twin column cantilever design chosen by commercial video users everywhere.
Trolley, Plinth, or Bolt Down versions available.
Glass or Steel Shelves are available also Locking Cabinets.
Designed to accomodate a single monitor
See entire Unicol VS1000 Range

Unicol VSB-1500x2-VMSV2 Specifications

Product Group	Unicol VS1000
Monitor Count	1
Colour Options	Custom RAL colours available at additional cost
Screen Size	33 – 40″
Screen Orientation	Landscape
Max Load	40.00kg.
VESA Mount Points	300×300 – 400×400
Screen Centre Height	Variable – 1570.00mm
Dimensions	870.0mm width 1640.0mm height 600.0mm depth
Weight	25.90kg.
Warranty	10 Years
Column Centres	110mm

Ideal For

Classrooms & Training Spaces
Community Centres
Control Rooms
Health Care / Clinics
Hospitality
Offices
Trade Shows
TV Studios and Broadcast
Video conferencing

Unicol VSB-1500x2-VMSV2 Downloads

Instruction Manual

£241 (£289.20 inc. VAT)
Availability: In Stock with FREE Delivery

VSB-1500x2-VMSV2 Component Parts

Product Code	Description
1 × Unicol 1500x2	2 × 1500mm mild steel chrome finished undrilled column for trolleys and floor stands
1 × Unicol VMSV2	VS1000 Twin Column fitting VESA mount (15–40″ Monitor/Max 40kg;VESA 300×300–400×400)
1 × Unicol VSB	VS1000 “K” Un-braked Wheel Twin Column Monitor Trolley Base (110mm Column Mount Centres)
