Unicol TL1-PZX5

Unicol Tableau Tilted Fixed Height Lecturn
71–75″ / Max 80kg; VESA 800×400; 100cm to screen centre

Unicol TL1-PZX5

The Tableau TL1-PZX0 offers a clean finish for mounting 71 to 75 inch informational and interactive display.
A stable platform designed specifically for touch screen use. Mast incorporates two compartments 200w x 90d x 280h to house small PCs or other electronics together with cabling.
Special versions also available with large capacity housing beneath the display. Height to centre of screen 1200mm.
Base unit has resilient non marking feet and clearance for cables routed beneath.

Designed to fit VESA measurements 800×400.

Key Features

Designed for use with touch screens
Max. 80kg load
20 degree angle
100cm height to centre of screen
Cables and small PC can be concealed in mast (ext. width 35cm)
See entire Unicol Tableau Range

Unicol TL1-PZX5 Specifications

Product Group	Unicol Tableau
Colour Options	Custom RAL colours available at additional cost
Screen Size	71 – 75″
Max Load	80.00kg.
VESA Mount Points	800×400

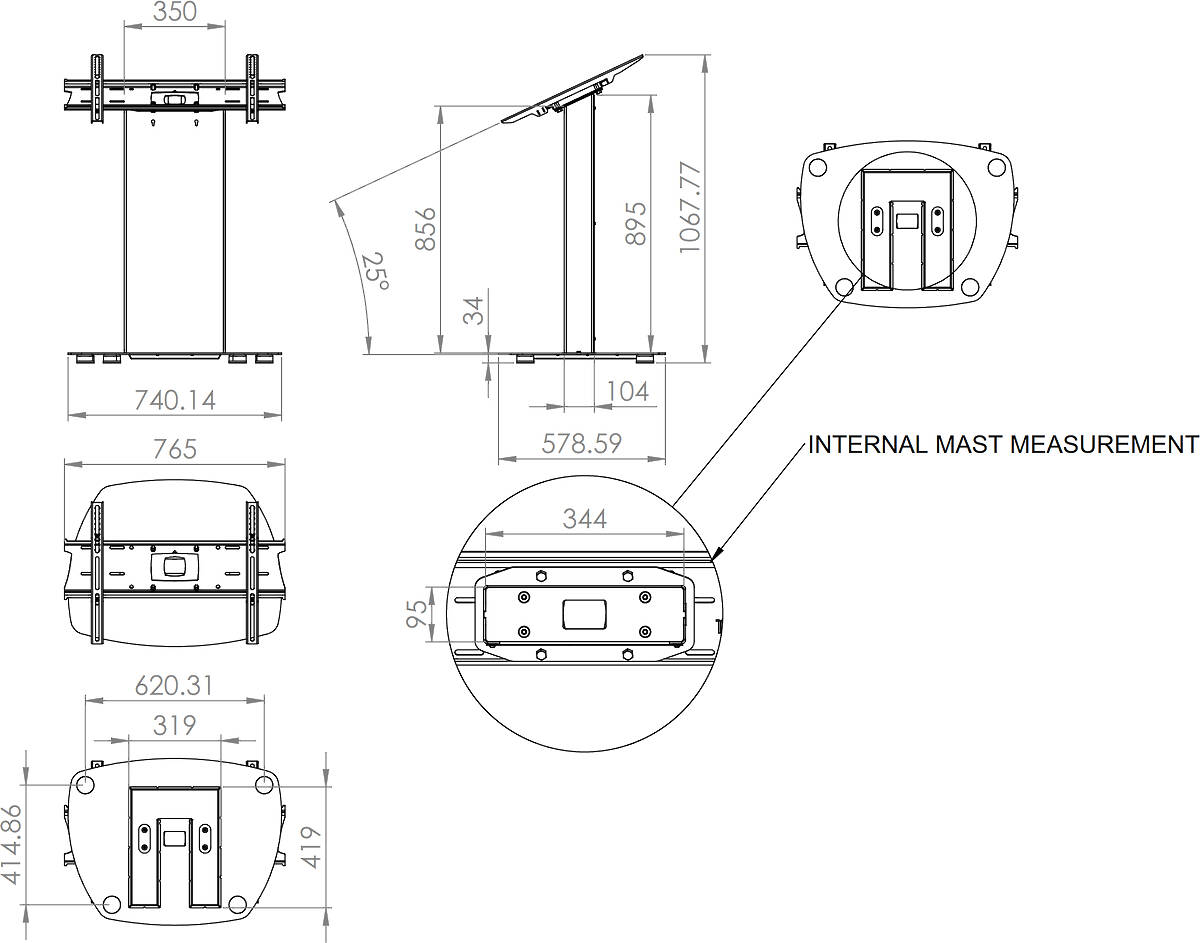

Dimensions	740.0mm width 1068.0mm height 579.0mm depth
Bracket Tilt	25°
Weight	41.70kg.
Warranty	10 Years
