Unicol TL1-PZX3

Unicol Tableau Tilted Fixed Height Lecturn
33–70″/ Max 80kg; VESA 200×200–400×400; 100cm screen centre

Unicol TL1-PZX3

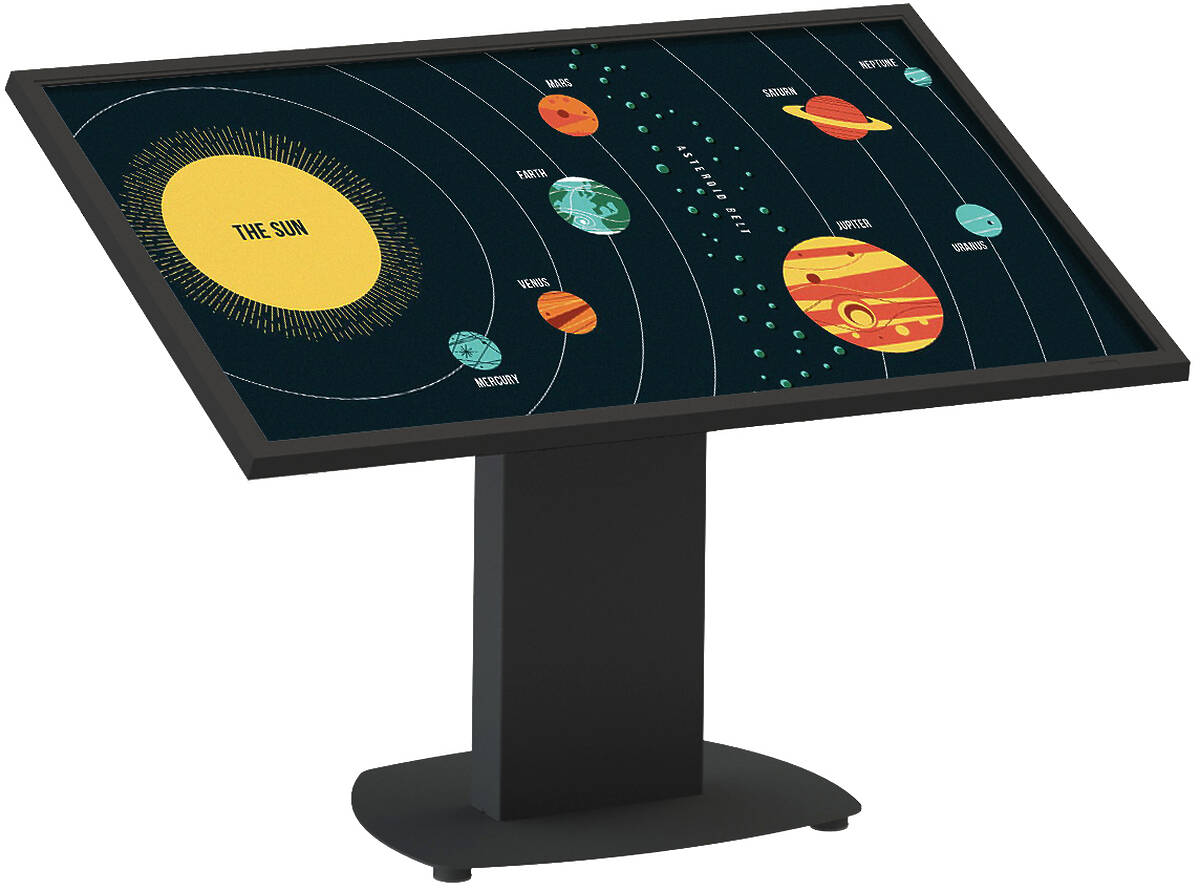

The Tableau TL1-PZX0 offers a clean finish for mounting 33 to 70 inch informational and interactive display. Large screens at a fixed angle of 25 degrees.

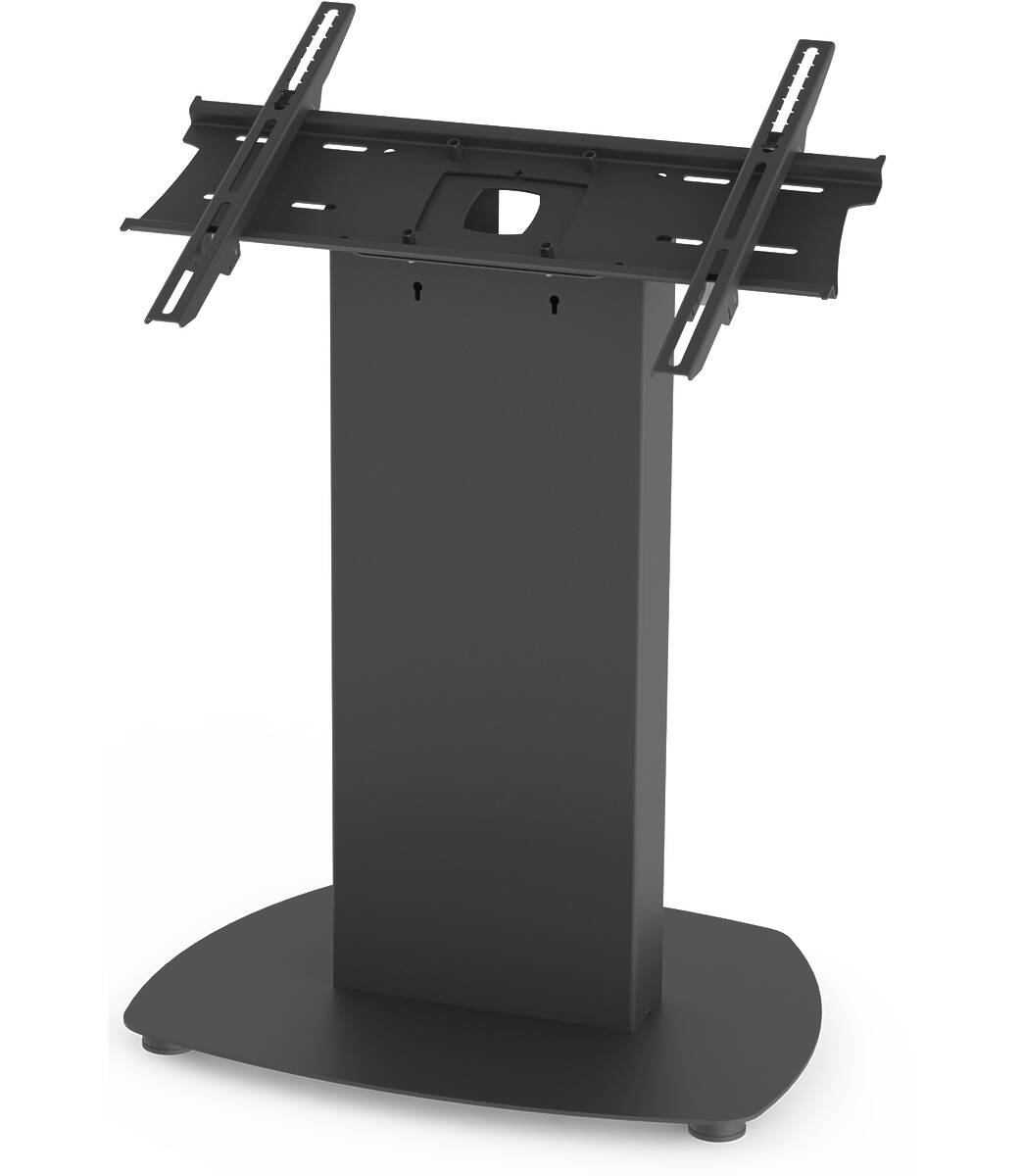

A stable platform designed specifically for touch screen use. Mast incorporates two compartments 200w x 90d x 280h to house small PCs or other electronics together with cabling.
Special versions also available with large capacity housing beneath the display. Height to centre of screen 1200mm.
Base unit has resilient non marking feet and clearance for cables routed beneath.

Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 400×300 and 400×400.

Key Features

Designed for use with touch screens
20 degree angle
Cables and small PC can be concealed in mast (ext. width 35cm)
Designed to accomodate a single monitor
See entire Unicol Tableau Range

Unicol TL1-PZX3 Specifications

Product Group	Unicol Tableau
Colour Options	Custom RAL colours available at additional cost
Screen Size	33 – 70″
Screen Orientation	Landscape
Max Load	80.00kg.
VESA Mount Points	200×200 – 400×400
Screen Centre Height	1000.00mm

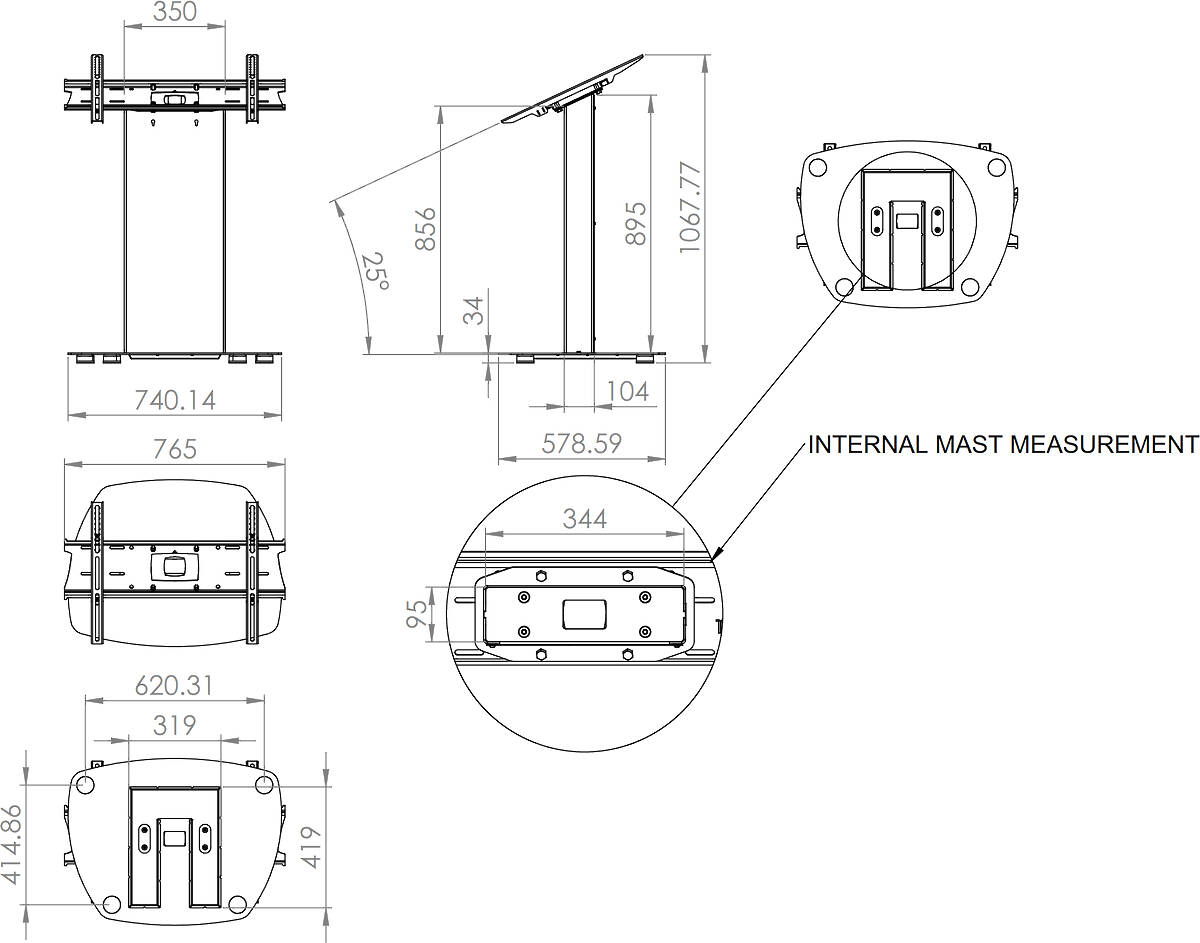

Dimensions	740.0mm width 1068.0mm height 579.0mm depth
Bracket Tilt	25°
Weight	41.70kg.
Warranty	10 Years
