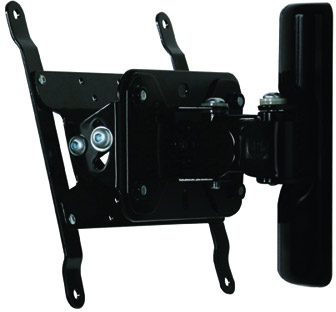

B-Tech BT7514/PB

Single Arm Flat Screen Wall Mount with Tilt and Swivel
Up to 47"/ Max 25kg; VESA 75×75 to 200×200; Tilt +/-40°

B-Tech BT7514/PB

Designed to mount medium sized flat screens, the BT7514 features a single swivel arm with easy tilt adjustment. The wall plate features 'OWLS' on wall levelling system to ensure a straight and smart installation. The BT7514 is also compatible with B-Tech's range of poles and collars, increasing the number of different ways it can be mounted, ideal for commercial applications as well as home installations. Security screws are are provided to help prevent unauthorized removal of the screen.

Designed to fit VESA measurements 75×75, 100×100, 200×100 and 200×200.
  • Designed for screens up to 42” (107cm) / 25kg (55lbs)
  • Fits screens with VESA mounting patterns:
  • 75mm x 75mm, 100mm x 100mm, 200mm x 100mm and 200mm x 200mm
  • Easy tilt adjustment +/-40°
  • Features two swivel points: 180° at wall and 240° at interface
  • Security locking screws and Allen key provided for secure installation
  • CLIPLOGIC™ cable management included
  • Features ‘OWLS’™ On Wall Levelling System
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Includes single arm and optional mini arm
  • Max Load: 25.00kg.

B-Tech BT7514/PB Downloads

£60 (£72.00 inc. VAT)
Availability: Please Call

B-Tech BT7514/PB Specifications

Screen Size up to 42”
Max. Weight 25kg (55lbs)
Dist from Wall 95mm (3.7”) - 336mm (13.2”)
VESA Compatibility 75x75, 100x100, 200x100, 200x200
