Unicol PLS1X1

Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount
33–57″/ Max 35.00kg; VESA 200×200–600×400

Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount product image. Click to enlarge.
Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount product image Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount product image Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount product image Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount product image Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount product image Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount finished in silver product image Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount product image Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount product image Unicol PLS1X1 Panarm Heavy Duty Single Arm Swing-out PZX1 Monitor Wall Mount product image PLS product image PZX1 product image

Unicol PLS1X1 Description

This extra versatile wall arm provides increased viewing flexibility and/or easy AV management when installed in alcoves or corners. The PLS1X1 is fitted with a PZX1 universal mount as standard, offering support for a wider range of VESA fixings. This arm fully extends to 430mm to provide swivel adjustment to suit your installation space. When folded flat, this mount has a depth of just 155mm.

Fine level adjustment is featured as standard.

This solution is suitable for a maximum weight capacity of 35.00kg

Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.

Key Features

  • Arm extends to 43cm from wall
  • Arm conceals behind the screen when folded to the wall

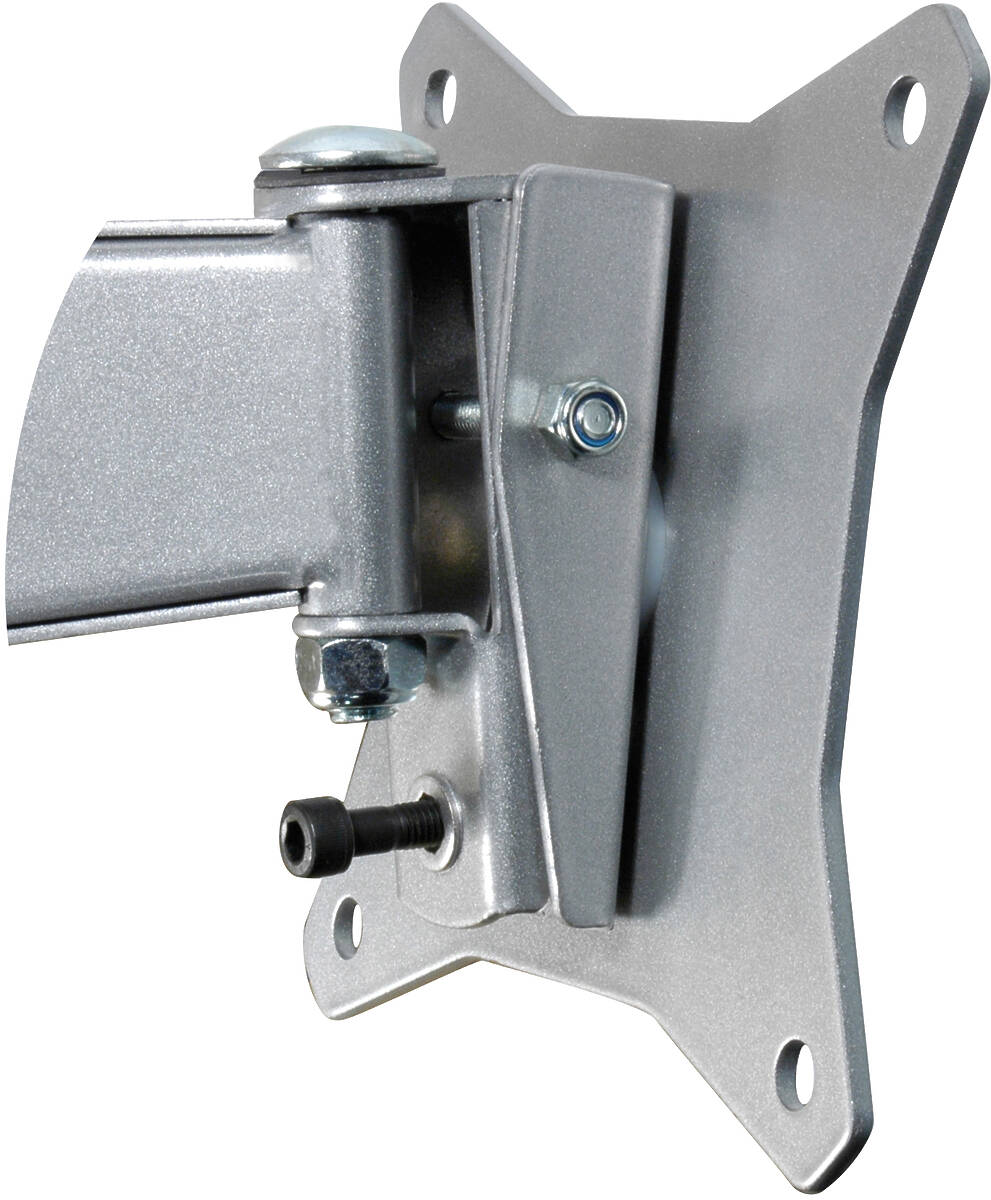

  • Has built in tilt mechanism and rotation adjustment to level screen accurately in all positions
  • Ships with PZX1 Universal Mount with 11 degrees of tilt
  • See entire Unicol Panarm Range
£167 (£200.40 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol PLS1X1 Specifications

Product Group Unicol Panarm
Monitor Count 1
Colour Sinterflex Black
Colour Options Custom RAL colours available at additional cost
Screen Size 33–57″
Max Load 35kg
VESA Mount Points 200×200–600×400mm
Dimensions 765.0mm width
540.0mm height
123.0mm – 432.0mm depth
Bracket Tilt 0–11°
Weight 9.90kg.
Warranty 10 Years

Ideal For

  • Classrooms & Training Spaces
  • Conference Suites
  • Digital Signage
  • Health Care / Clinics
  • Meeting Rooms
  • Offices
  • Retail

Unicol PLS1X1 Downloads

PLS1X1 Component Parts

Product Code Description
1 × Unicol PLS Panarm Heavy Duty Single Swing-Out Arm Wall Mount (**Excluding Monitor Mount**; Max 35kg)
1 × Unicol PZX1 Pozimount Non-tilting Wall Mount for Monitors/TVs (33–70″/ Max 60.00kg; VESA 200×200–600×400)
