Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote

Monitor Wall Mount
42–75″ / Max Load 45kg; 200×200–600×400

Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image. Click to enlarge.
Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image Multibrackets 2642 M Motorized Swing Mount X-Large with RF Remote|Monitor Wall Mount product image

Multibrackets 2642 Description

The Multibrackets M Motorized Swing Mount X-Large (RF) is a high-end, fully motorized swing-out wall mount designed for commercial and residential environments where flexibility, space-efficiency, and multi-angle viewing are essential.

Engineered to support screens from 42" to 75" and up to 45 kg, this mount allows smooth 170° swivel (left or right – set at installation). Ideal for modern open-plan interiors, public areas, or corporate installations, it delivers seamless screen positioning via an RF-based remote control. With a super slim 56 mm profile, it complements slim TVs and enhances both aesthetics and accessibility.

Whether you're creating a multi-angle meeting room, an efficient digital signage setup, or a smarter home viewing experience, the M Motorized Swing Mount X-Large adapts to your needs — offering one-screen-multiple-positions functionality without compromising on design or performance.

Designed to fit VESA measurements 200×200, 300×200, 200×300, 400×200, 200×400, 300×300, 500×200, 600×200, 400×300, 300×400, 500×300, 400×400, 600×300, 500×400 and 600×400.

Key Features

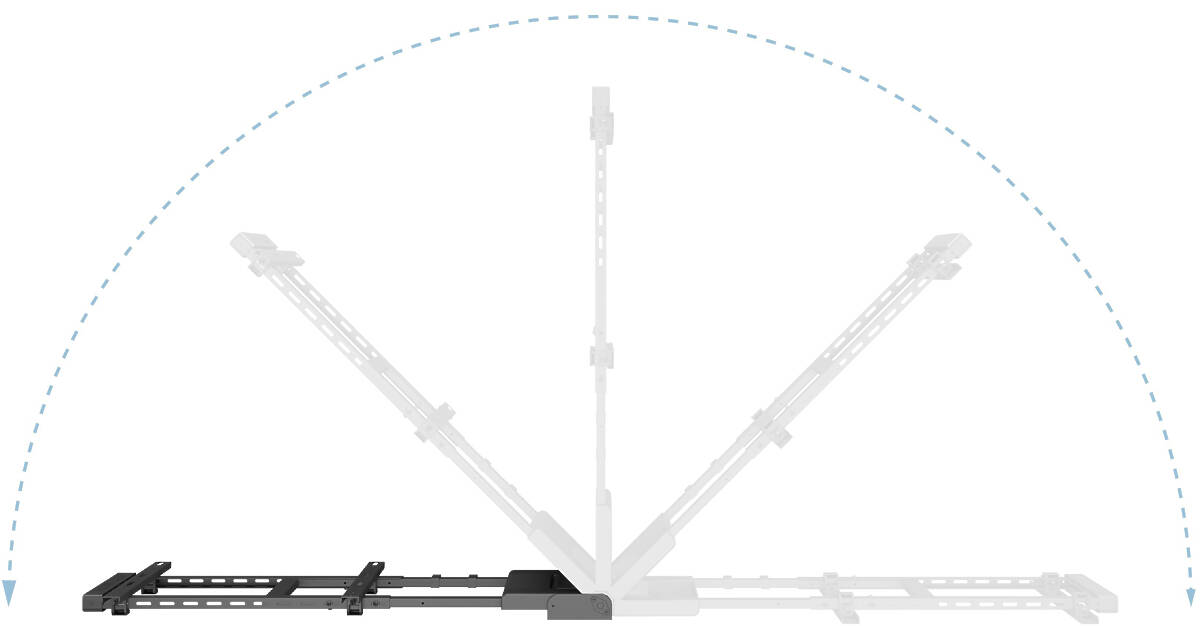

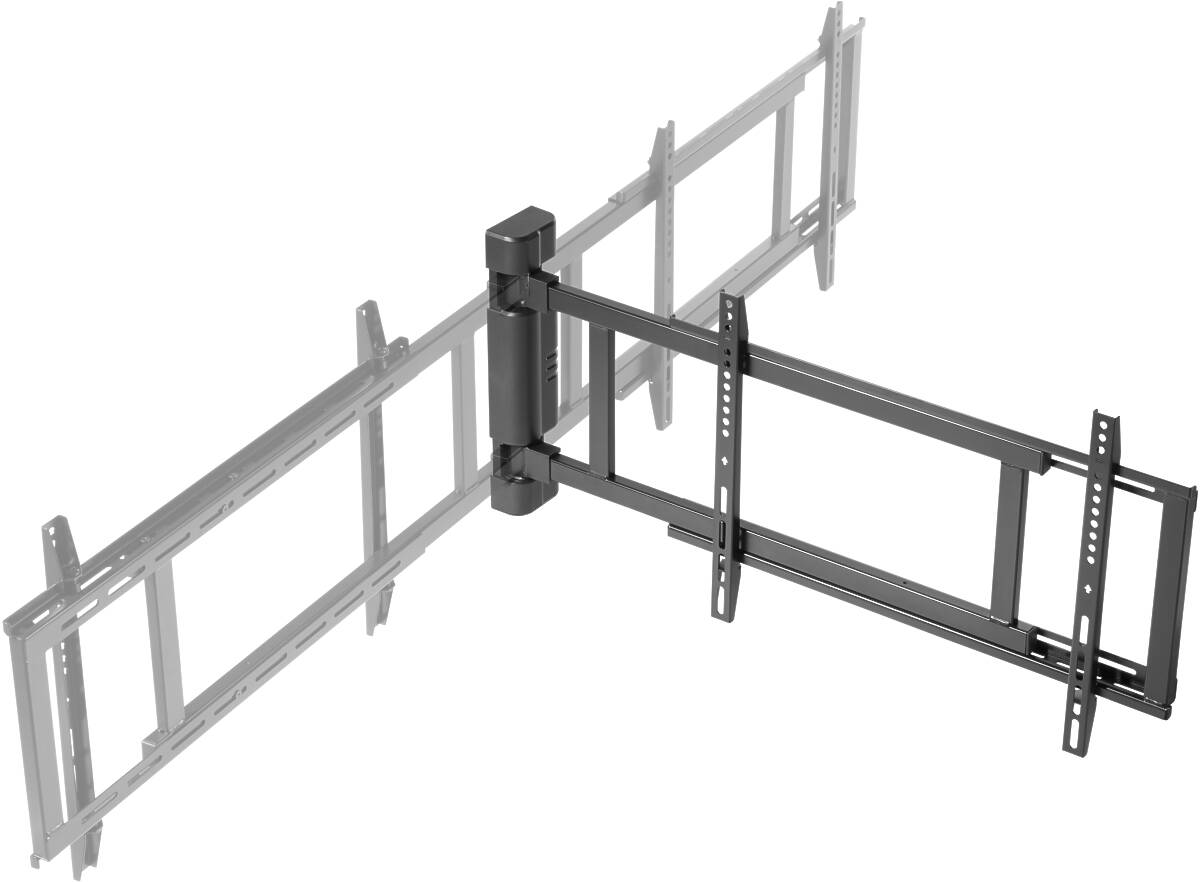

  • Motorized swing function - 170° left or right (preset at installation)

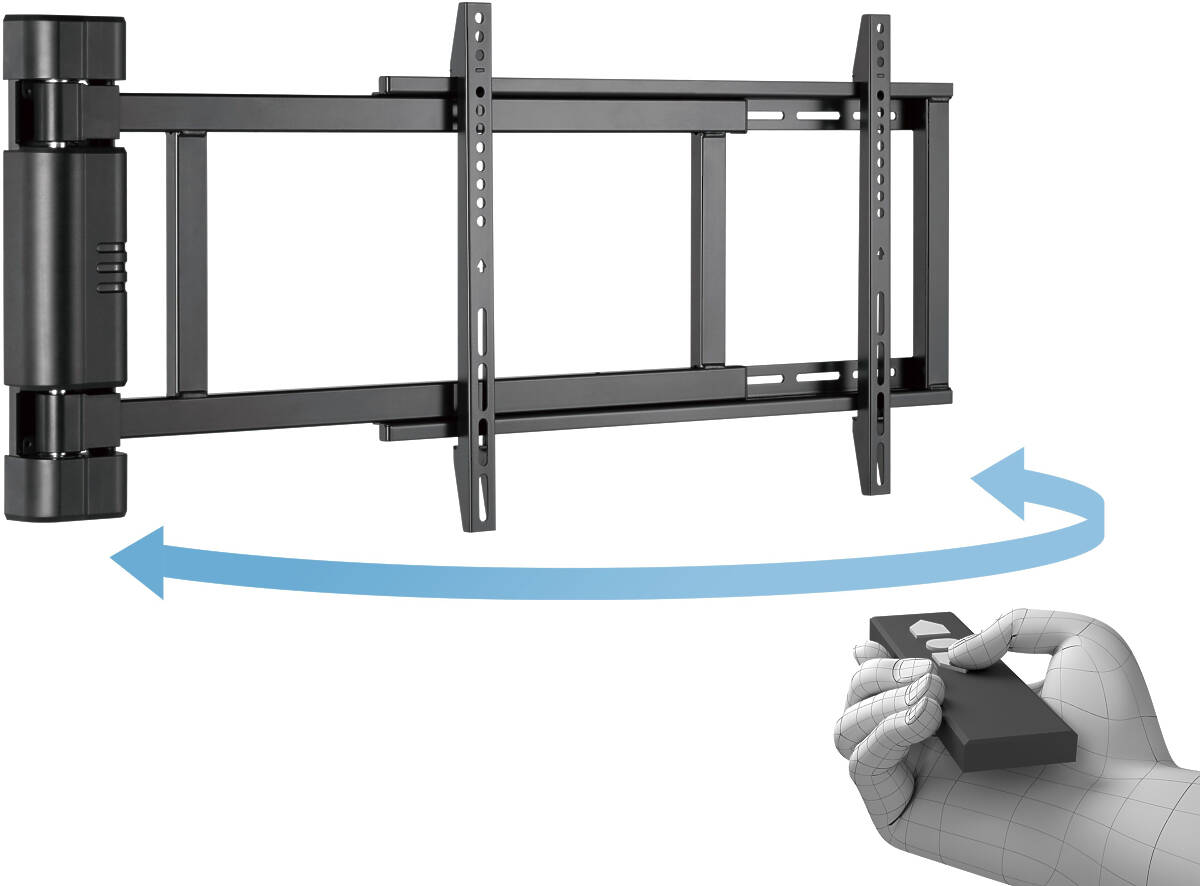

  • RF remote control with programmable preset position
  • Compatible with 42–75″ displays (Max Load 45kg)
  • Ultra-slim design - only 56 mm from wall when closed
  • Integrated safety stop - halts movement if obstructed
  • Flexible VESA compatibility - up to 600×400
  • Ideal for home, office, public display, or smart signage setups

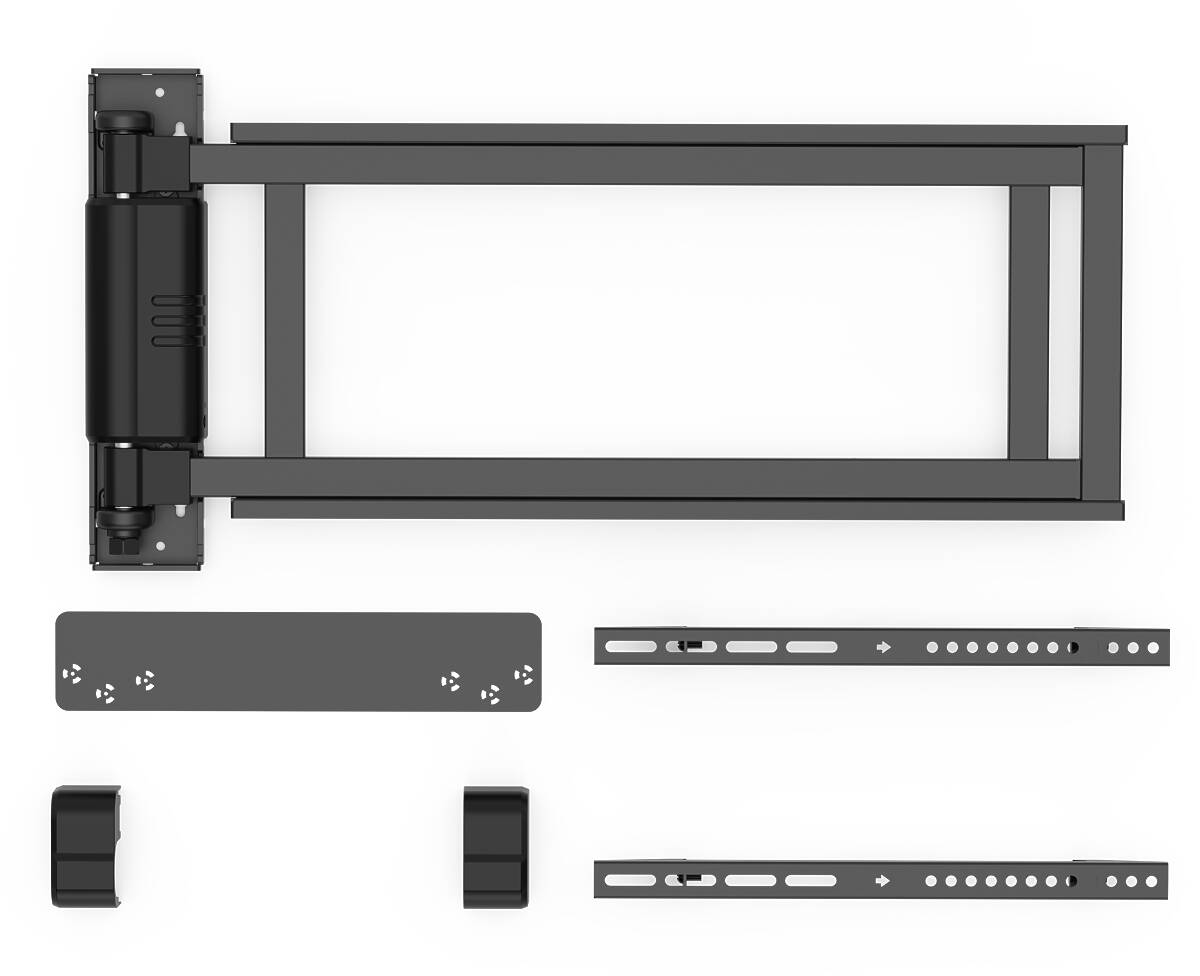

  • Complete hardware kit included for quick installation
  • Built-in cable management for a clean look
  • Designed to accomodate a single monitor
  • See entire Multibrackets M Motorized Range
£321 (£385.20 inc. VAT)
Availability: Please Call

Ideal For

  • Boardrooms
  • Community Centres
  • Health Care / Clinics
  • Home Offices
  • Meeting Rooms
  • Offices
  • Retail
  • TV Studios and Broadcast

Multibrackets 2642 Downloads

Multibrackets 2642 Specifications

Product Group Multibrackets M Motorized
UPC / EAN 7350105212642
Screen Size 42–75″
Screen Orientation Landscape
Max Load 45kg
VESA Mount Points 200×200–600×400mm

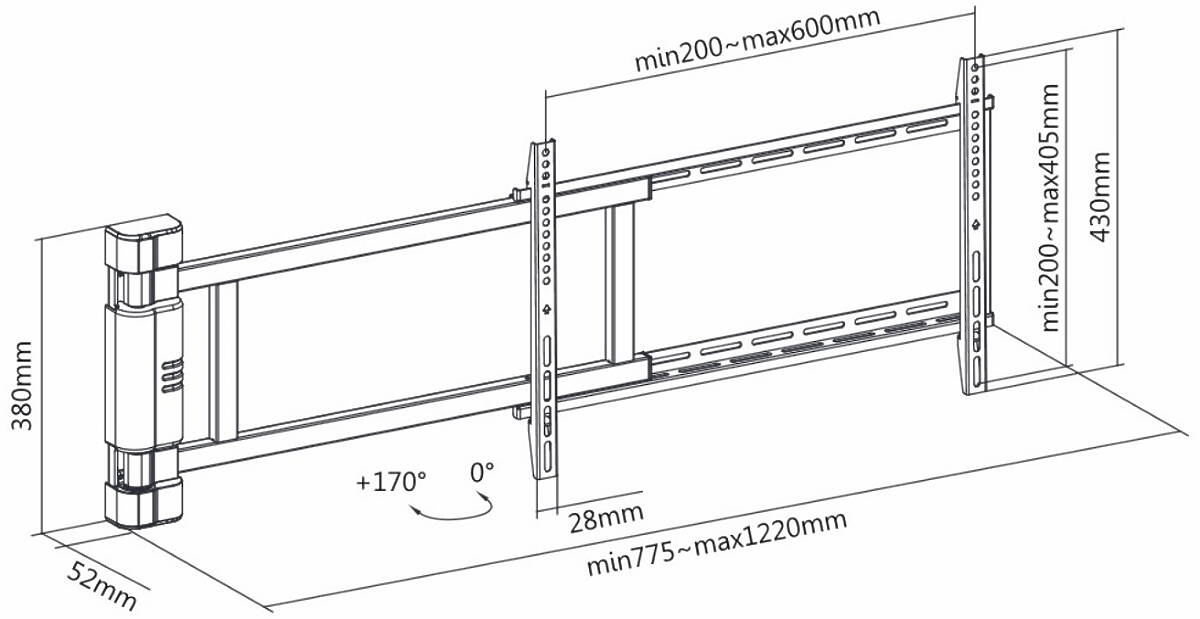

Dimensions 775.0mm – 1220.0mm width
430.0mm height
52.0mm depth
Bracket Turn 170°
Weight 7.25kg.
Power DC12V, 1A, Cable length: 1.5m
Connector size: 5.5mm x 2.1mm
AC Adapter Input: 100-240VAC
Output DC 12V - 1A
