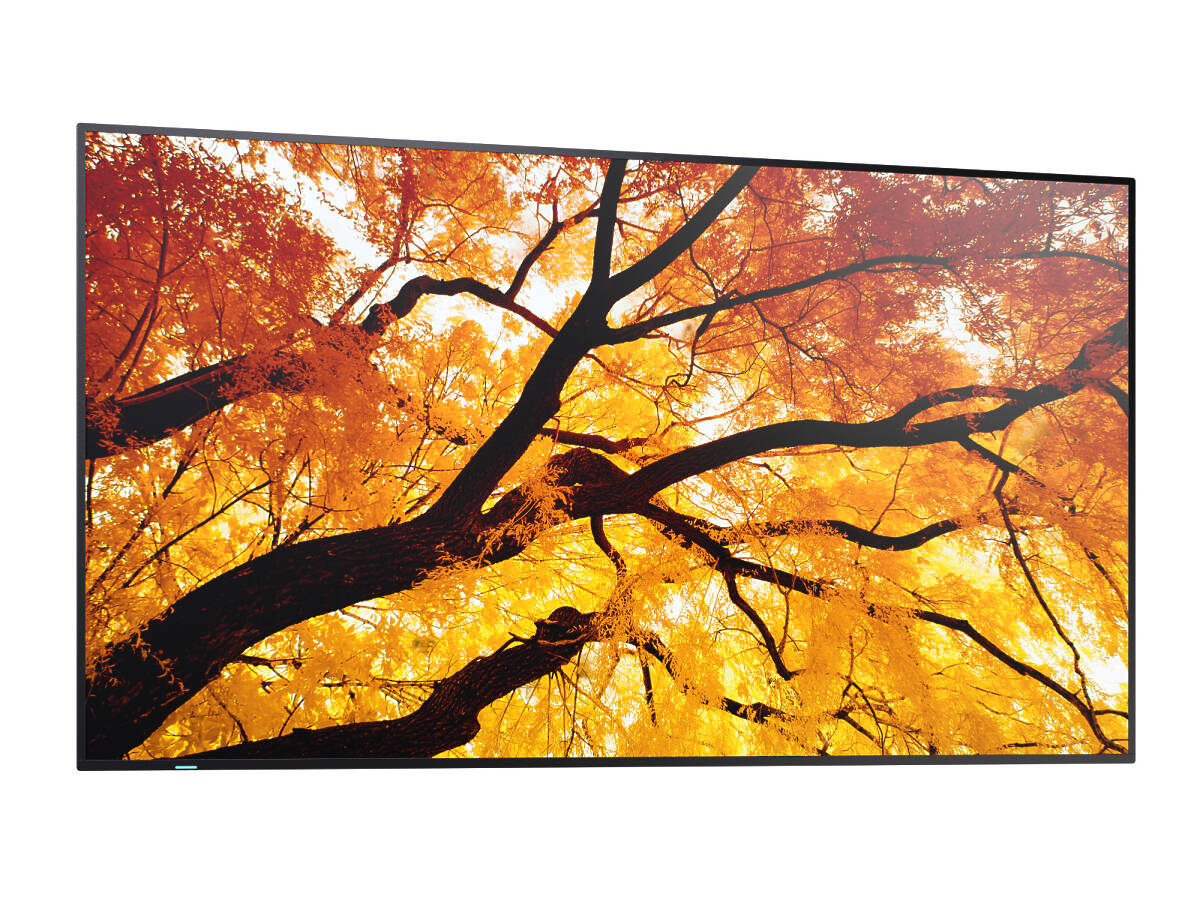

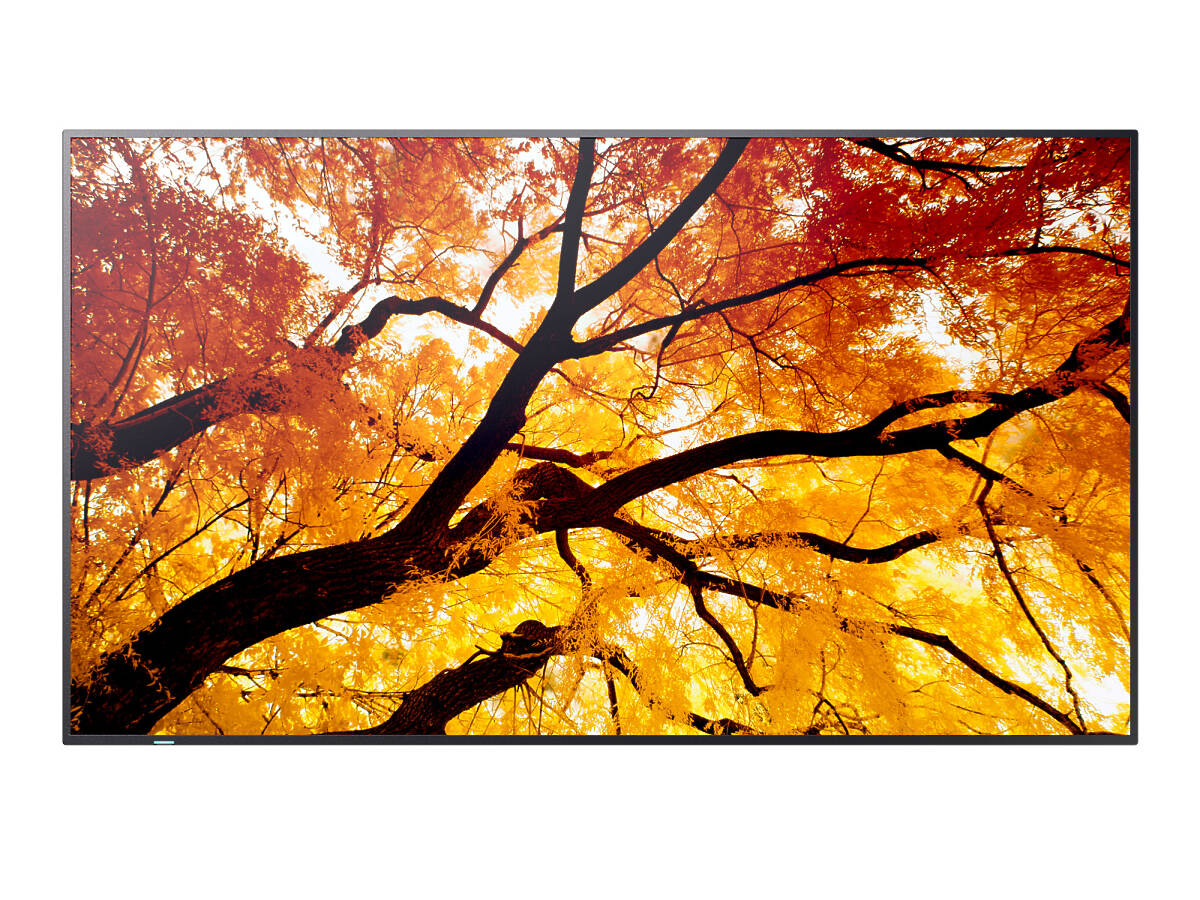

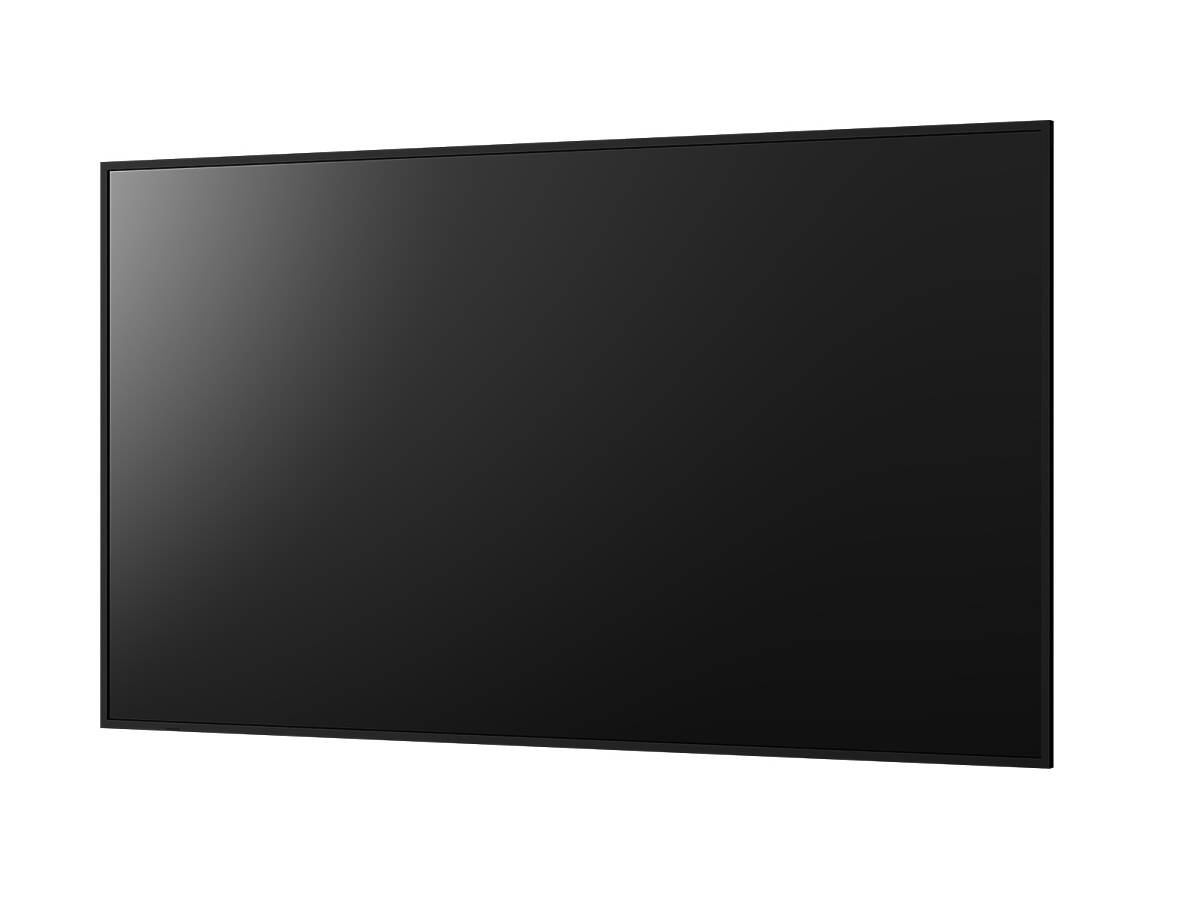

Sharp MultiSync M752 LED Large Format Display Monitor
Availability: In stock
Sharp MultiSync M752 Suggested Applications
Key Features
- 75" Diagonal IPS with Direct LED backlights Panel
- Seamless meeting workflows - a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
- Unhindered readability - a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured - 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Enhanced imaging precision - when brand consistency and corporate identity are important, NECs SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Broad AV compatibility - fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.
- VESA 600×400; M8 mounting points
- Designed for 24/7 use - Warranty covers use all day, every day
- Display Daisy Chaining - Connect monitor output to next monitor input to duplicate display

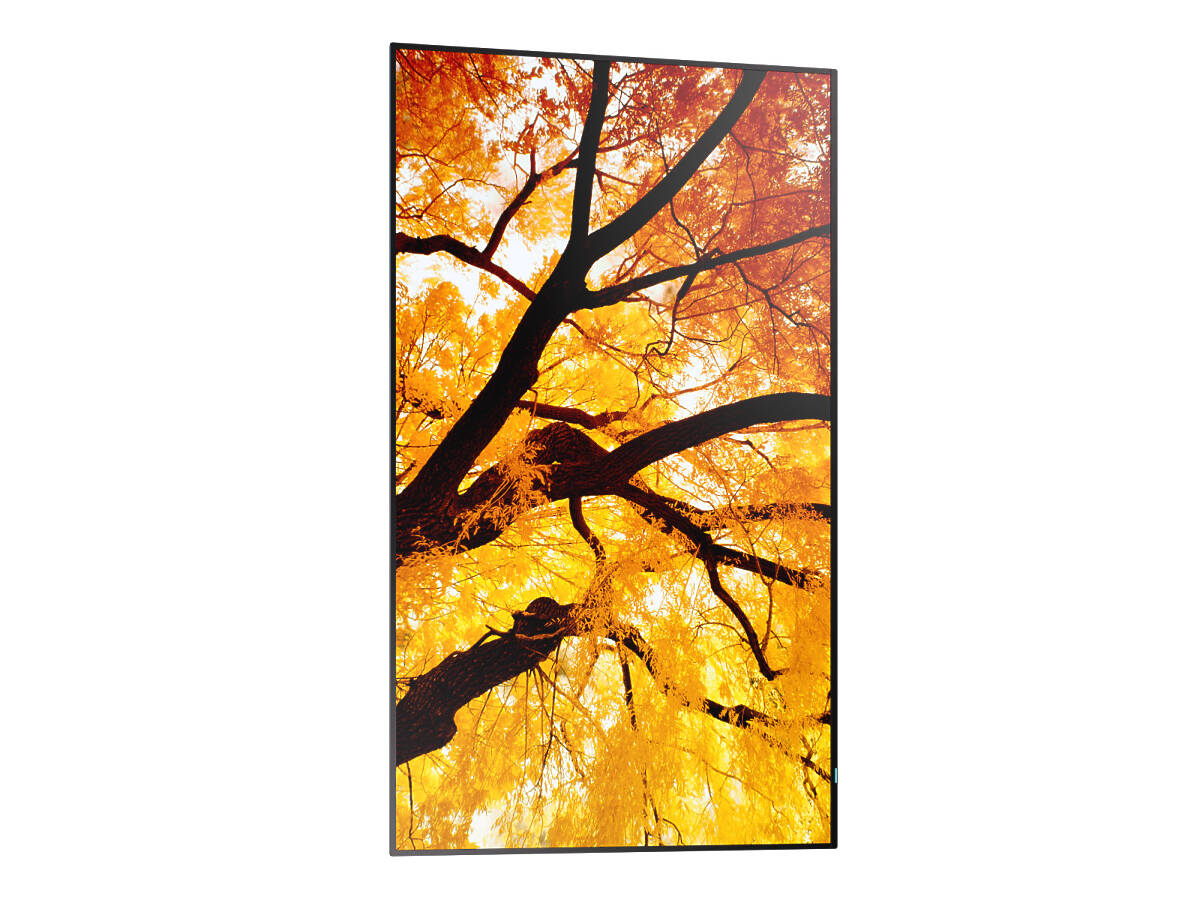

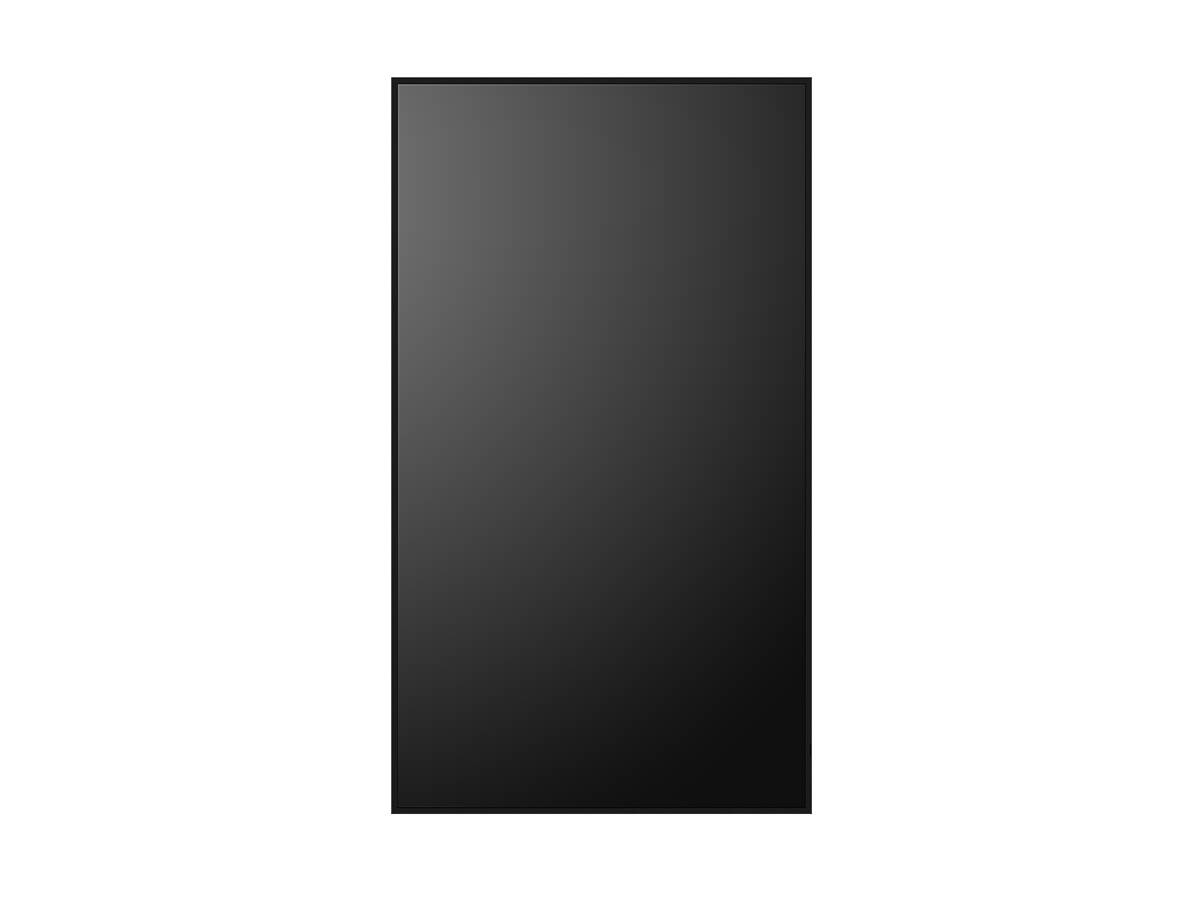

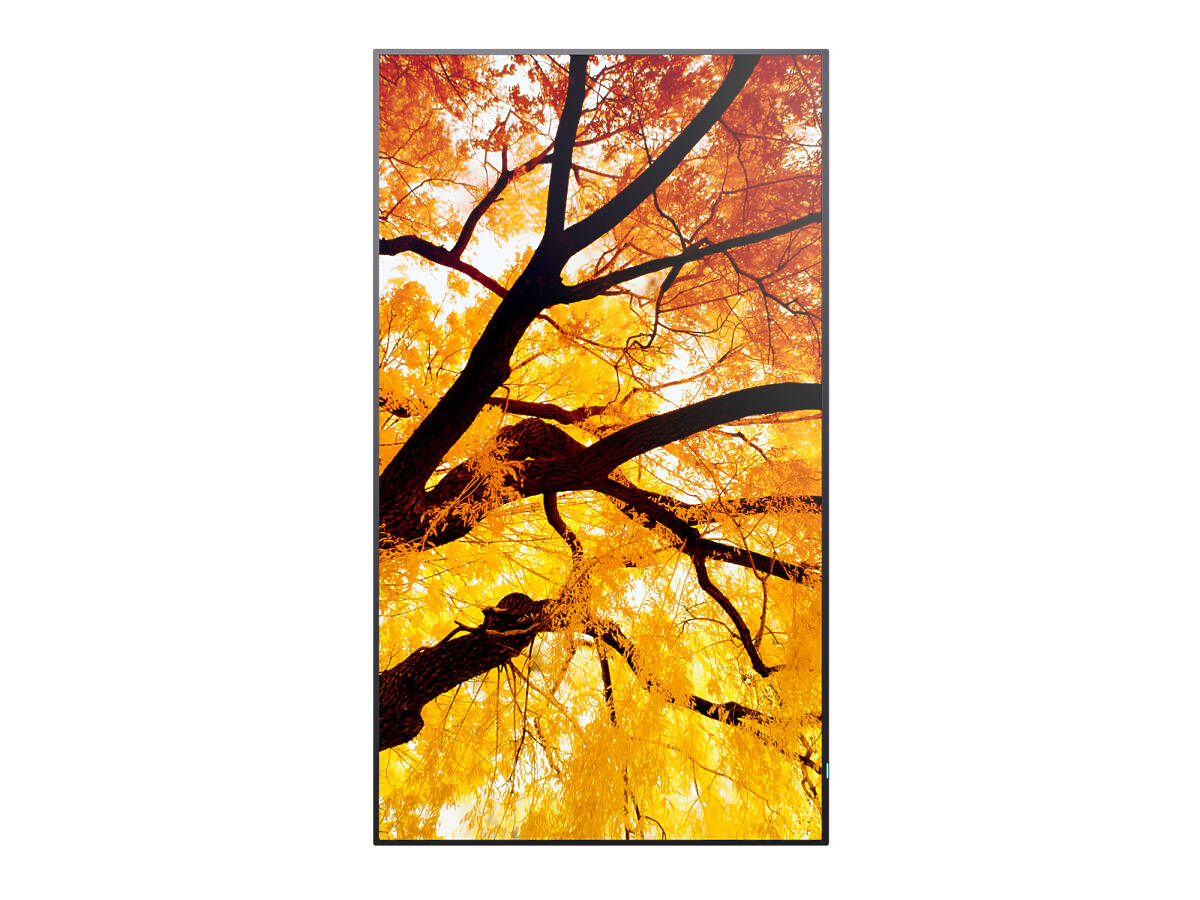

- Landscape/Portrait Mode - The MultiSync M752 can be installed in either standard landscape or portrait orientation
- OPS Slot - Allows expansion modules such as PC boards, HD-SDI interfaces to be added
- Picture-In-Picture
- Picture-And-Picture
- LAN Control/Monitoring - The monitor can be controlled through your local area network
- Face Up Install - This monitor can be installed facing upwards
The versatile solution for professional display applications, the Sharp MultiSync M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m brightness, a high-haze panel to minimise glare, and NECs trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
As part of the new Sharp-branded display family, the MultiSync M2 Series builds on NECs legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Sharp MultiSync M752 Downloads
Sharp MultiSync M752 Summary |
|
| Manufacturers Part No. | 60006057 |
| Model | Sharp MultiSync M752 |
| EAN / UPC | 4550556176644 |
| Display Type | IPS with Direct LED backlights |
| Features | Designed for 24/7 use Display Daisy Chaining Landscape/Portrait Mode OPS Slot Picture-In-Picture Picture-And-Picture LAN Control/Monitoring Face Up Install |
| Diagonal | 75" |
| Native Resolution | 3840×2160 |
| Brightness | 550cd/m2 |
| Contrast | 8,000:1 |
| Colours | 1.073 Billion (10bit) |
| Horizontal Frequency | 60KHz |
| Vertical Frequency | 23 - 76Hz |

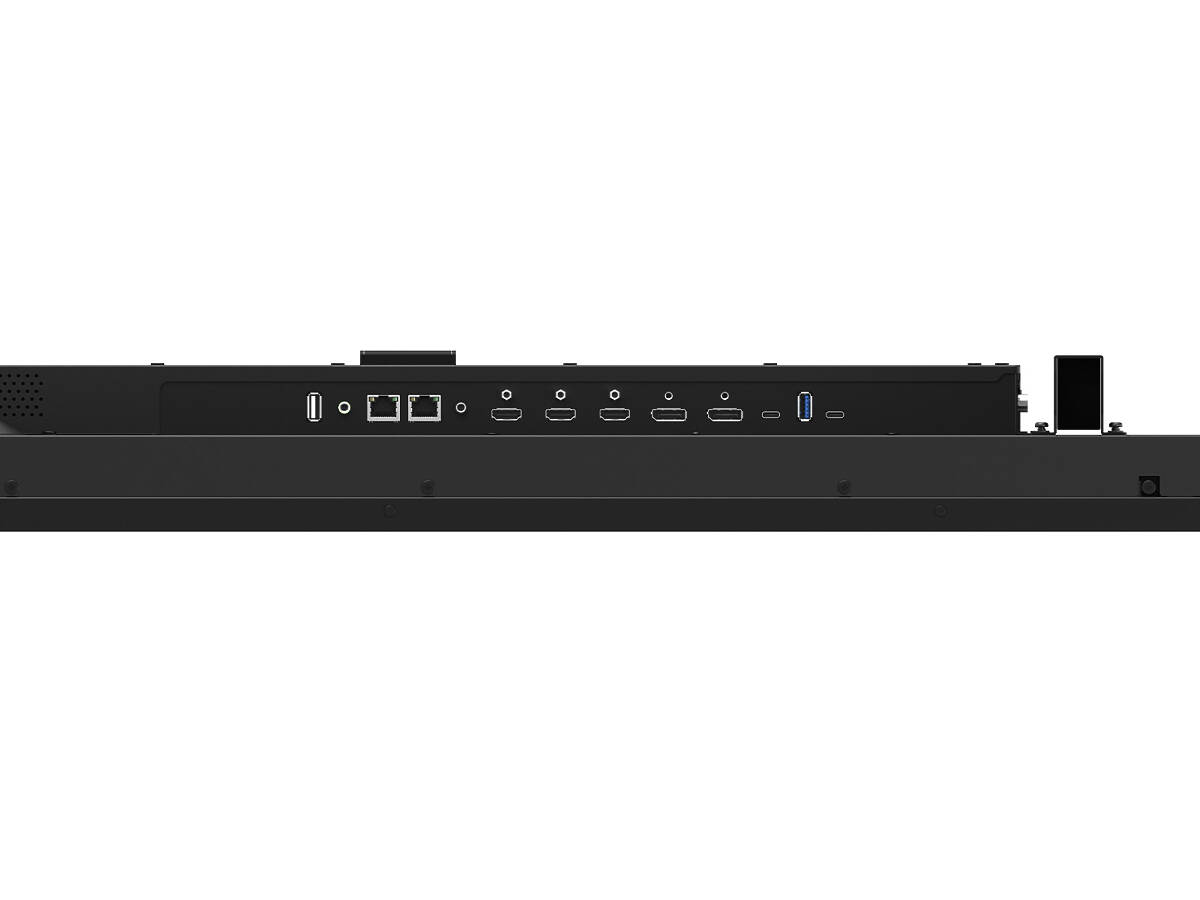

Connectivity |
|
| HDMI | 2 |
| DisplayPort | 1 |
| USB-C Video | 1 |
| USB | 3 |

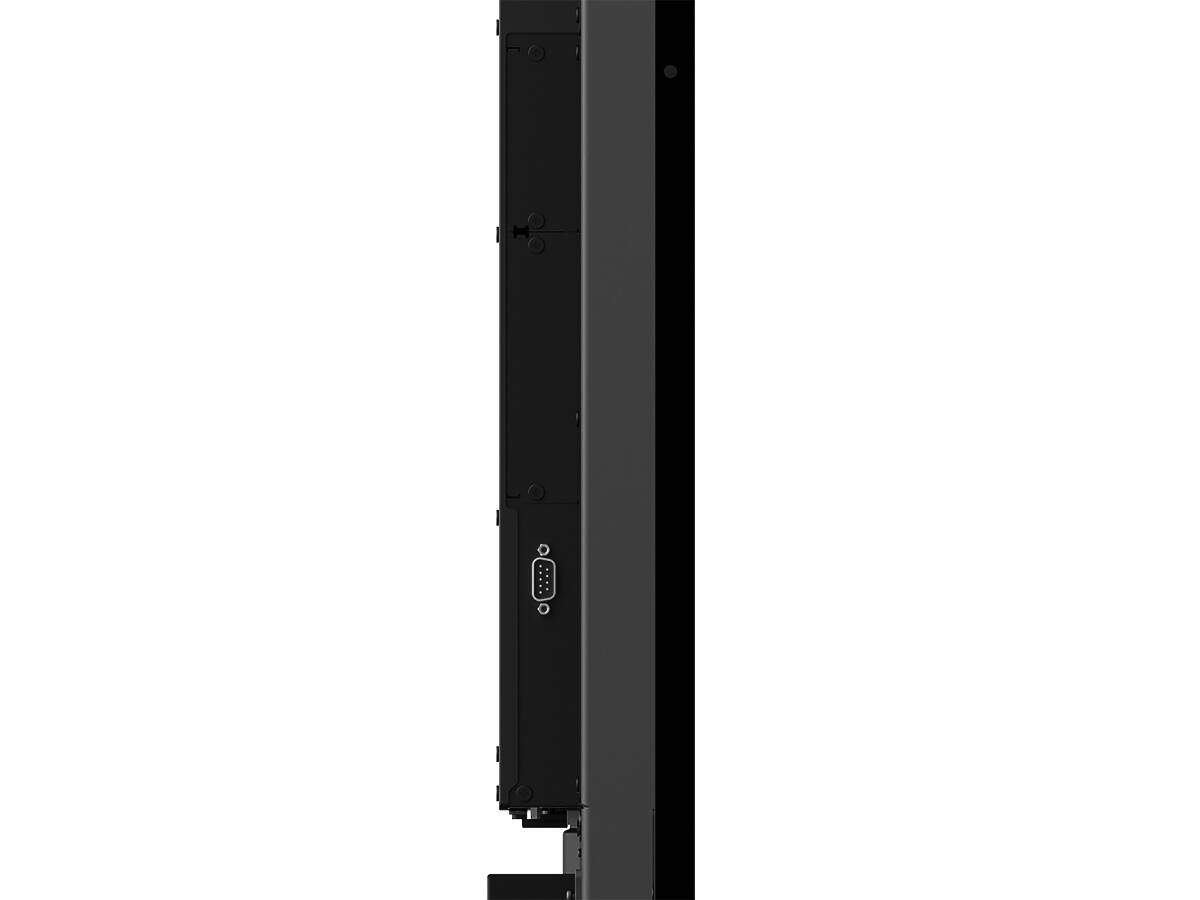

| RS-232 | 1 |
General Specifications |
|
| Speakers | Integrated Speakers (10 W + 10 W) |
| Warranty | 3 years warranty incl. backlight; optional 4. + 5. year warranty extension |
| Monitor Dimensions | 168.2 × 96.1 × 8.3cm (w×h×d) |
| Weight | 38kg. |

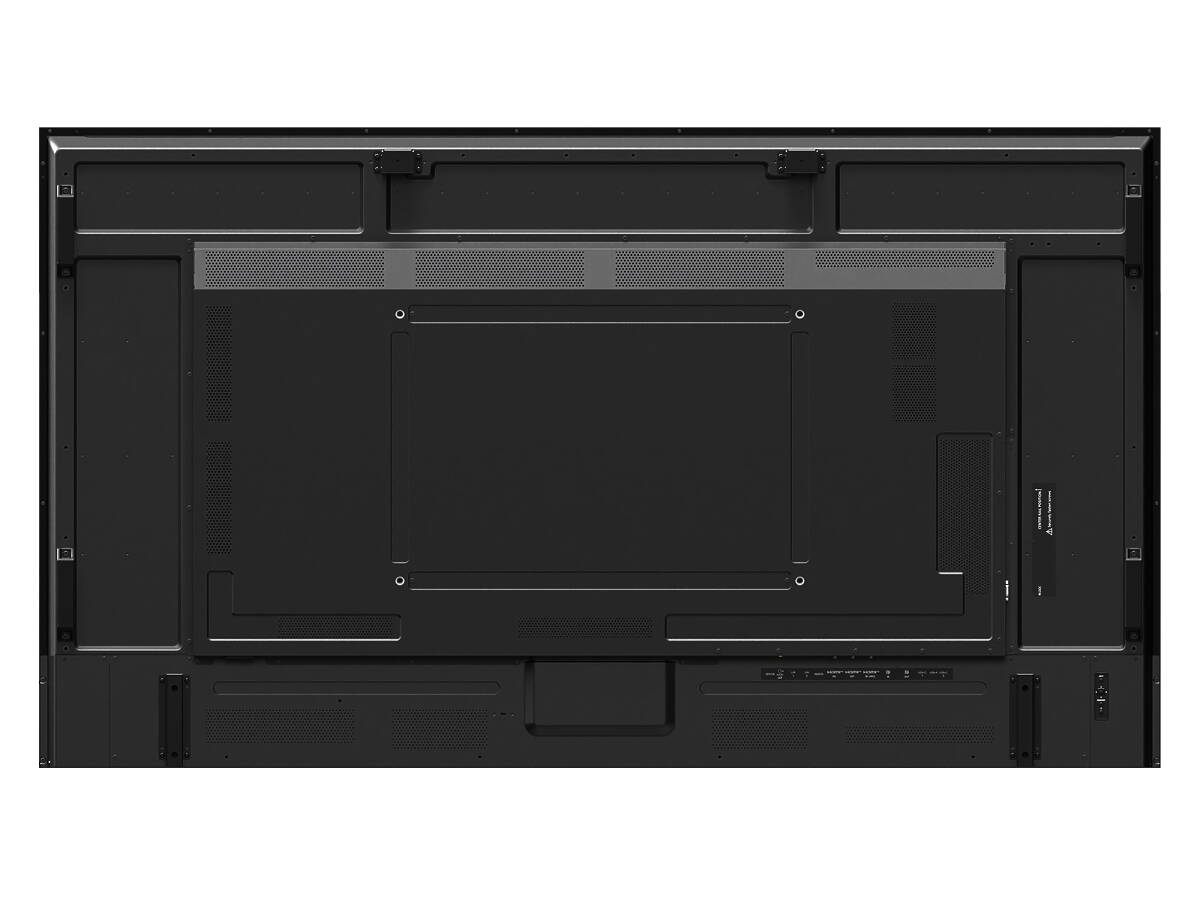

| VESA | 600×400; M8 |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
| Consumption | 140w |
Connectivity Details |
|
| Input Detection Seq | Custom |
| Last | |
| First | |
| Intel SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Computer Module Slot | MPi4 and MPi5 Kit (powered by Raspberry Pi) |
| External Control | AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
| Remote Management | NaViSet Administrator 2 |
Other Features |
|
| Supported Orientation | Face Up 2; Landscape; Portrait |
| Special Features | CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
| Bezel Width | 14.3 (left, right and top); 14.8 (bottom)mm |
| Package Dimensions | 1,830 × 1,070 × 225(mm) |
| Package Weight | 51(kg) |
| Ingress Protection | IP5x (front); IP2x (back) |
| Orientation | Face Up 2; Landscape; Portrait |
| Operating Temperature | +0 to +40°c |
| Operating Humidity | 20 to 80% |
| Storage Temperature | -20 to 60°c |
| Storage Humidity | 10 to 80% |
| Power Saving Mode | < 0.5; < 2 (Networked Standby) Watts |
| Energy Efficiency | Energy consumption: 145 kWh/1000 h; Energy efficiency class: G; LED backlight |
| Ecological Standards | EnergyStar 8.0 |
| Safety & Ergonomics | CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA |
| Operating Hours | 24/7 |
| Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN) |
| Fire Resistance | Metal backcover, plastic material certified acc. to UL94-5VB |
Included Accessories |
|
| Accessories | 2×AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
