CYP OR-M42HC-USB

4×2 HDMI/USB-C Matrix Switcher and Multiviewer

2 × HDMI, 2 × USB-C Inputs; 2 × HDMI Outputs; Max 18Gbps on HDMI, 21.6Gbps on USB-C

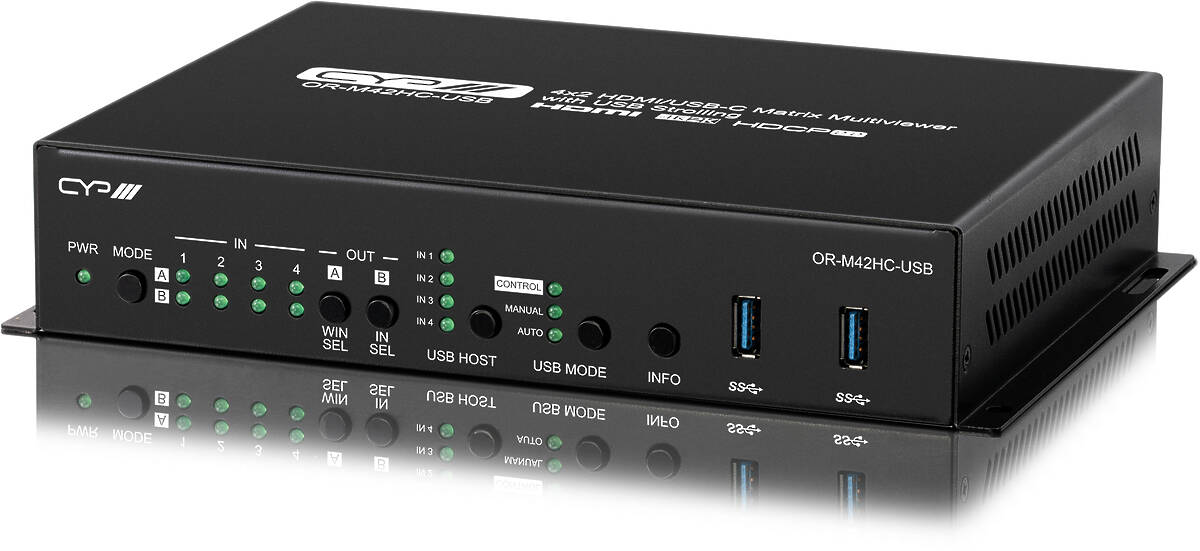

CYP OR-M42HC-USB 4×2 HDMI/USB-C Matrix Switcher and Multiviewer product image. Click to enlarge.

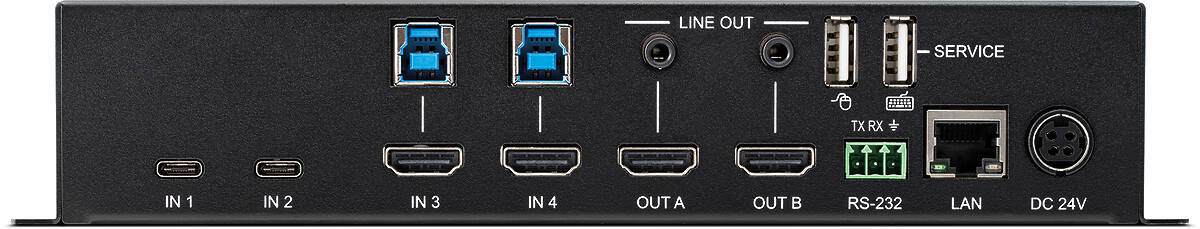

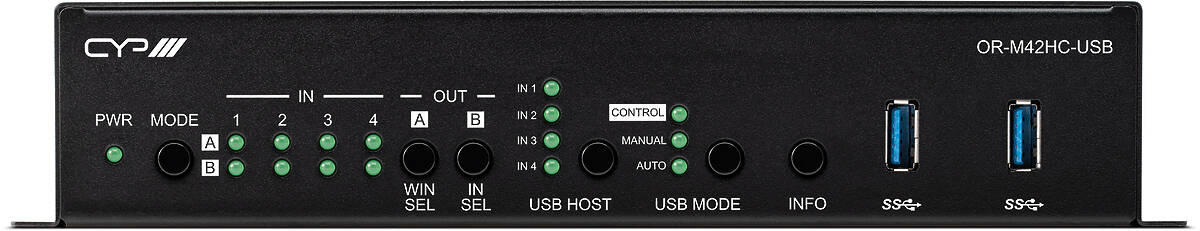

CYP OR-M42HC-USB 4×2 HDMI/USB-C Matrix Switcher and Multiviewer connectivity (terminals) product image CYP OR-M42HC-USB 4×2 HDMI/USB-C Matrix Switcher and Multiviewer Front View product image
£724 (£868.80 inc. VAT)
Availability: Please Call

CYP OR-M42HC-USB Key Features

  • 2 × HDMI inputs, 2 USB (Type-C) inputs and 2 HDMI outputs up to 4K@60 4:4:4
  • Controllable via front panel buttons, Telnet, RS-232, and OSD via USB mouse and keyboard
  • 2 × USB Type-C Inputs support USB3.1 Gen1 to Ethernet and DP video
  • Two USB Type-C ports respectively provide 45W and 30W of power to each connected device
  • Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection or auto audio switch by following USB control function
  • Seamless switching (no loss of sync to display) when switching sources in both matrix and multi-view modes
  • Supports easy adjustment of window size, position and settings in the window mode via USB mouse
  • Supports the ability to store a multi-window arrangement as a preset that can be recalled later
  • Selected window will have a border to highlight the window that is being operated
  • DVI 1.0 compatible with the use of an HDMI-DVI adaptor
  • HDCP 1.x and 2.2 compliant

CYP OR-M42HC-USB Downloads

USB-C Video Input
HDMI
4K 4096*2160 and 3840*2160 Resolution

CYP OR-M42HC-USB Specifications

Connectivity

Inputs 2 × HDMI HDMI Uncompressed AV and Data
2 × USB Type B USB Data Propriety Data
2 × USB-C USB AV and Data USB-C / Thunderbolt
1 × Phoenix (3 pin) RS-232
1 × RJ45 LAN and Telnet Propriety Data
Outputs 2 × HDMI HDMI Uncompressed AV and Data
2 × 3.5mm Stereo mini-jack Analogue Stereo(L/R)
4 × USB Type A Propriety Data

Mechanical

PSU 24V/7.5A
Dimensions 231.5mm [W × 44mm [H × 158mm [D
Net Weight 1.26kg
Gross Weight 2.78kg
In The Box 1× 4K@60 4x2 Seamless Matrix with USB Docking
1 × 24V/7.5A DC Power Adapter
1 × Shockproof Feet (Set of 4)
1 × 3-Pin Phoenix Connector
1 × Operation Manual

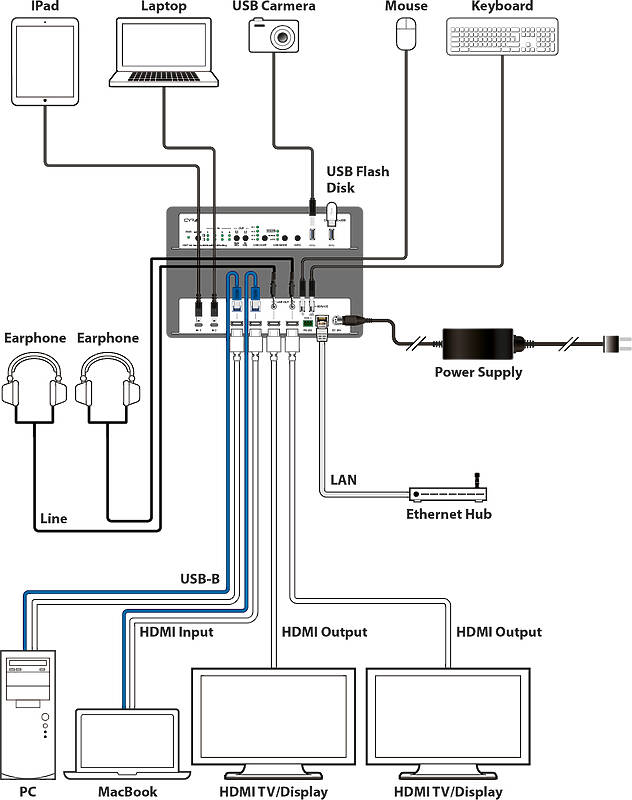

CYP OR-M42HC-USB Usage Diagram



CYP OR-M42HC-USB Usage Diagram
