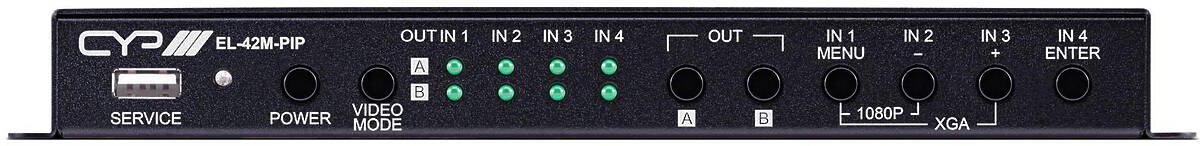

CYP EL-42M-PIP
4×2 4K HDMI 2.0 Matrix Switcher with Picture-In-Picture and Seamless Switching
4 × HDMI Inputs; 2 × HDMI Outputs; Max 18Gbps
£1257 (£1508.40 inc. VAT)
Availability: In stock
Availability: In stock
CYP EL-42M-PIP
The CYP EL-42M-PIP is an advanced Picture-in-Picture (PIP) Multi-view Matrix designed for use across Broadcast, Live events, Military and Medical applications.
Our most advanced PIP device features support for 4K HDR sources. The EL-42M-PIP enables up to 4 sources to be viewed in multi-view mode via the two mirrored HDMI outputs in your chosen configuration. Simply switch between pre-sets or change the configuration live, via the onboard web GUI.
Additionally, the EL-42M-PIP can be switched to Matrix mode allowing seamless switching between source and screen for low latency applications. Control is handled by the front panel buttons, OSD, RS232 and IP Telnet as well as the Web GUI.
CYP EL-42M-PIP Key Features
- HDMI 2.0 and DVI 1.0 compliant (with the use of an HDMI-DVI adapter)
- HDCP 1.x and 2.2 compliant
- 4 × HDMI inputs and 2 × HDMI outputs
- Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
- Seamless switching (no loss of sync to display) when switching sources in Matrix mode
- Supports up to four simultaneous, freely scalable, windows in multiwindowing modes
- Supports the ability to store a multi-window arrangement as a preset that can be recalled later
- Independent audio source selection and routing in all modes
- Inputs 1 & 2 support pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream (Inputs 3 & 4 are limited to 2 channel LPCM only)
- Each window can have a border with a selectable colour
- Uploadable and freely positionable graphic logo support
- Intuitive and easy adjustment of window size, position and settings in
- multi-window modes via the WebGUI
- Per-input EDID management with internal or external EDID options
- Controllable via front panel buttons, WebGUI, Telnet, and RS-232
CYP EL-42M-PIP Downloads
CYP EL-42M-PIP Specifications
Connectivity |
|
| Inputs | 4 × HDMI HDMI Uncompressed AV and Data |
| 1 × RJ45 IP Control | |
| 1 × 3.5mm Stereo mini-jack RS-232 | |
| 1 × USB Type A Service Port Propriety Data | |
| Outputs | 2 × HDMI HDMI Uncompressed AV and Data |
| Control Ports | 1 × RS-232 (3.5mm) |
| 1 × IP Control (RJ45) | |
| Service Port | 1 × USB 2.0 (Type A) |
Mechanical |
|
| PSU | 24V/2.7A |
| Power Consumption | 15.3W |
| ESD Protection (HBM) | ±8kV (AIR Discharge) |
| ±4kV (Contact Discharge) | |
| Chassis Material | Metal (Steel) |
| Chassis Colour | Black |
| Dimensions | 231mm × 162mm × 25mm |
| Net Weight | 0.968kg |
| Gross Weight | 1.70kg |
| Operating Temp | 0˚C - 40˚C/32˚F - 104˚F |
| Storage Temp | -20˚C - 60˚C/-4˚F - 140˚F |
| Relative Humidity | 20 - 90% RH (Non-condensing) |
| In The Box | 1 × UHD 4×2 HDMI Matrix with PiP |
| 1 × 24V/2.7A DC Power Adapter | |
| 1 × Rackmount Ears (Set of 2) | |
| 1 × Shockproof Feet (Set of 4) | |
| 1 × Operation Manual | |
CYP EL-42M-PIP Usage Diagram
CYP EL-42M-PIP Optional Cables
| Description | Length | Price | Inc. VAT | |
| CYP HDMP-100M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 1.0m | £19 | £22.80 | |
| CYP HDMP-200M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 2.0m | £21 | £25.20 | |
| CYP HDMP-300M Premium HDMI Cable Certified UHD/HDR (Max. 18Gbps 4K@60Hz 4:4:4) | 3.0m | £28 | £33.60 | |
| CYP HDMI2-050-US Ultra Slim High Speed with Ethernet HDMI Cable | 0.5m | £13 | £15.60 | |
| CYP HDMI2-101-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.0m | £14 | £16.80 | |
| CYP HDMI2-181-US Ultra Slim High Speed with Ethernet HDMI Cable | 1.8m | £15 | £18.00 |
