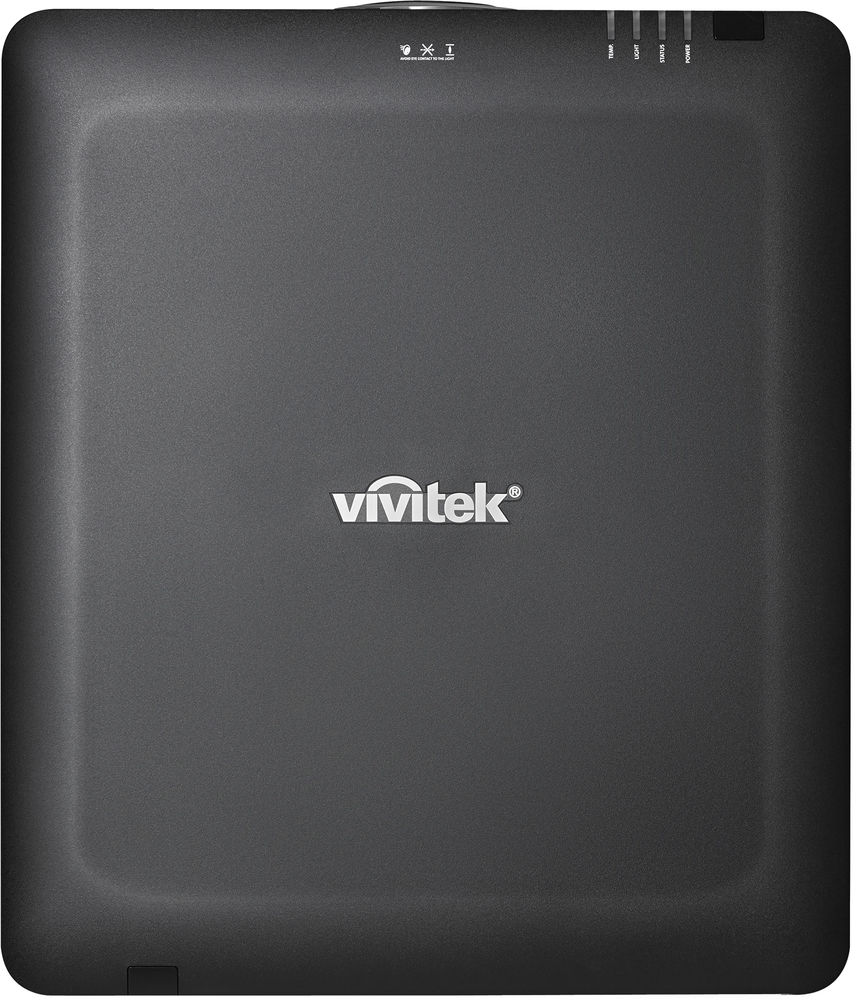

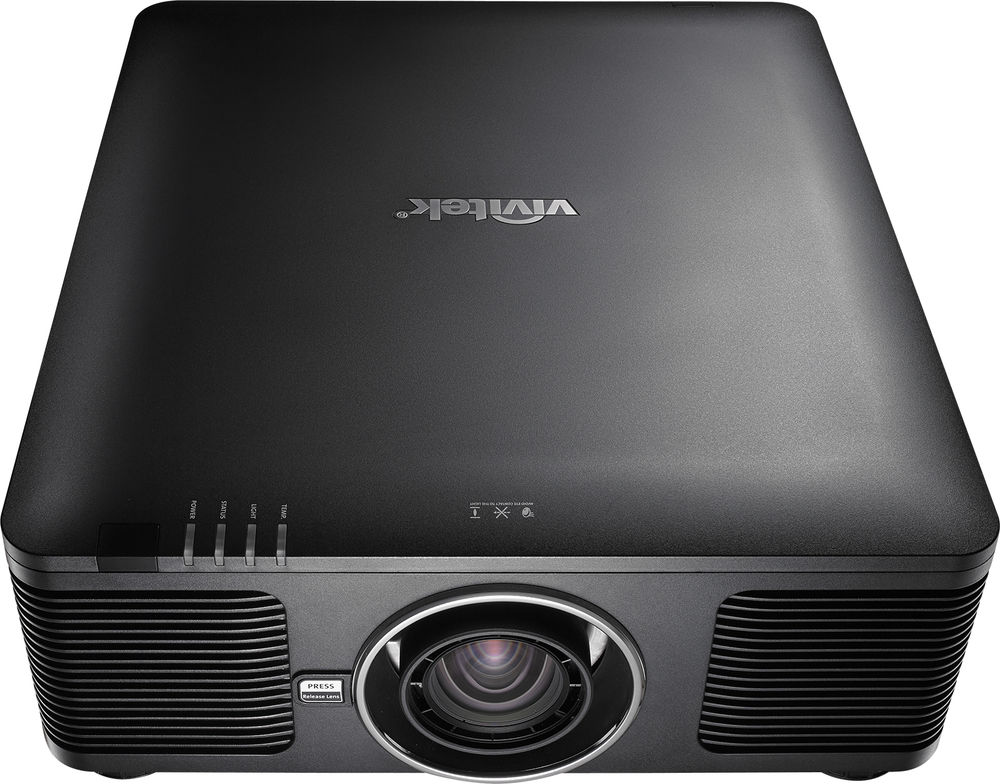

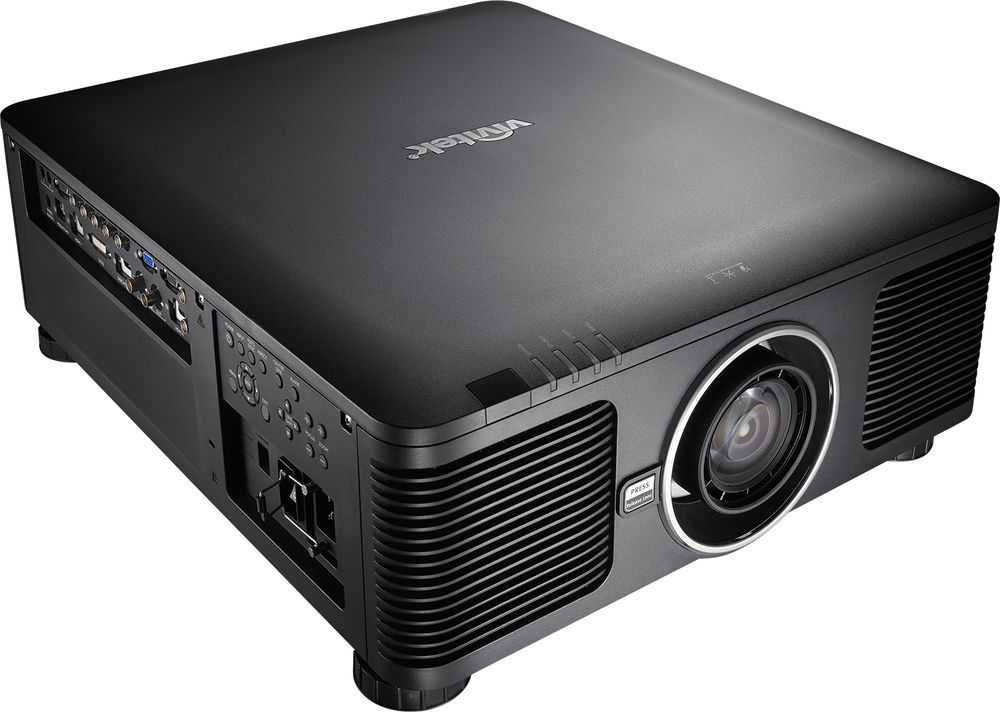

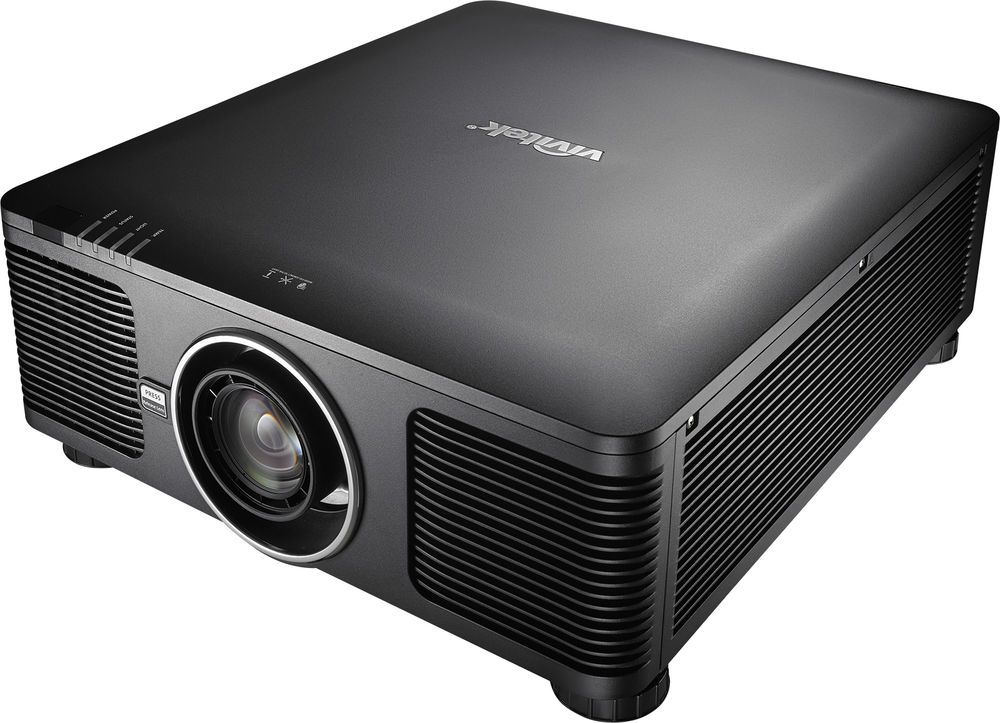

Vivitek DU8193Z Projector
Vivitek DU8193Z Key Features
- DLP Display Technology
- 12,000 Lumens
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 10,000:1 Contrast Ratio
- 28kg (61.7lb.)
- Native Widescreen
- Lens Shift
- 12v Trigger
- Horizontal & Vertical Keystone Correction
- Portrait Mode
- HDBaseT
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Warrantied for 24/7 use
- 3D Projection Ready
- Monitor Out
- Network Control
Vivitek DU8193Z Downloads
- Exhibitions and large venues
- Horizontal Surface Projection
- LED/Laser
- Museums
- Portrait Mode Applications
- Super bright applications
- Theatres
Vivitek DU8193Z Specifications
| Categories | Conference / Large Venue HDBaseT Interchangeable Lens Lens Shift LED/Laser HD |
| Manufacturer | Vivitek (Click for rest of range) |
Vivitek DU8193Z Optical Features |
|
| System | 1 * 0.67" DMD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| Lumens | 12,000 |
| Contrast | 10,000:1 |
| Lamp | Laser light source |
| Lamp Life | 20,000hrs. (20,000hrs. ECO mode) |
| Interchangeable | Yes |
| Image Size | 30"-300" diagonal |
| Lens Shift | Vertical: +64% Horizontal: +24%-14% |
| Keystone |
±40° (Vertical) |
| ±60° (Horizontal) | |
Vivitek DU8193Z Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |

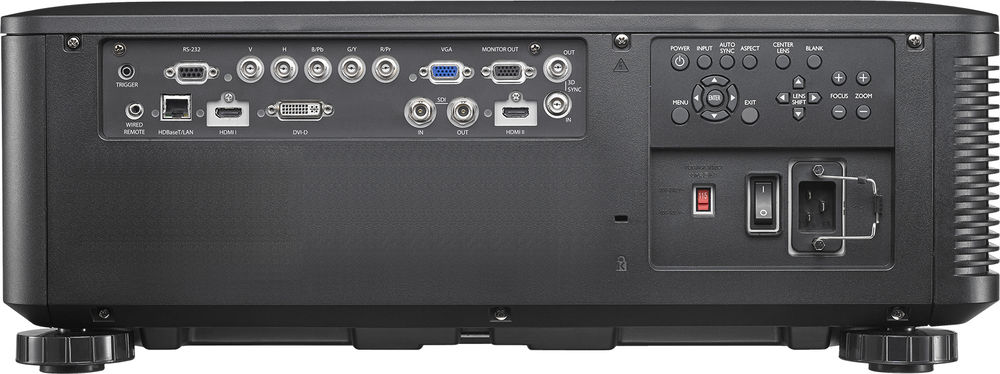

Vivitek DU8193Z Terminals |
|
| DVI | 1 |
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| HD-SDI | 1 |
| Monitor Out | Yes |
| RS-232 | 1 |
| HDBaseT | 1 |
| 12v Trigger | Yes |
| Network Ready | Yes |
Vivitek DU8193Z General |
|
| Speakers | No |
| Remote Control | Vivitek DU8193Z only |
| Noise | 40db |
| Dimensions | 500*205*580mm (W*H*D) |
| Weight | 28.00kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Manufacturers Warranty | 5 year Return to base |
| Light Source Warranty | 3 years/10,000 hours (whichever first) |
Vivitek DU8193Z Package Contents |
|
| Accessories | VGA Cable User Manual (CD) Quick Start Guide Warranty Card (by region) Remote Controller (with battery) AC Power Cord |
Ivojo Multimedia are approved Vivitek dealers and supply only UK products with full UK warranties.
Vivitek DU8193Z Optional Lenses
| Description | Price | Inc. VAT |
| Vivitek D88-UST01B Ultra Short Throw Mirror Lens | £4253 | £5103.60 |
| Vivitek D88-UWZ01 Ultra Short Throw Zoom Lens | £2208 | £2649.60 |
| Vivitek D88-WF18501 Short Throw Fixed Lens | £1833 | £2199.60 |
| Vivitek D88-WZ01 Short Throw Zoom Lens | £1833 | £2199.60 |
| Vivitek D88-ST001 Standard Zoom Lens | £691 | £829.20 |
| Vivitek D88-SMLZ01 Semi Long Zoom Lens | £1833 | £2199.60 |
| Vivitek D88-LOZ101 Long Throw Zoom Lens | £1833 | £2199.60 |
| Vivitek D88-LOZ201 Long Throw Zoom Lens | £1833 | £2199.60 |
Vivitek DU8193Z Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case XL Hard case with castors for projectors weighing over 25kg | £247.00 | £296.40 |
Vivitek DU8193Z Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-PU2113W | LCD | 13000 | 23.7 | POA | |
| Epson EB-PU2213B | LCD | 13000 | 23.7 | POA | |
| Christie DWU1100-GS | DLP | 12000 | 22.8 | £7640 | £9168.00 |
| Christie DWU1400-GS | DLP | 12000 | 22.8 | £8793 | £10551.60 |
| Panasonic PT-MZ11KLBEJ | LCD | 11000 | 22.5 | £7691 | £9229.20 |
| Panasonic PT-MZ11KLWEJ | LCD | 11000 | 22.5 | £7777 | £9332.40 |
| Panasonic PT-REQ12BEJ | DLP | 12000 | 27 | £17154 | £20584.80 |
| Panasonic PT-REQ12WEJ | DLP | 12000 | 27 | £17154 | £20584.80 |
| Panasonic PT-REZ12BEJ | DLP | 12000 | 28.7 | £14195 | £17034.00 |
| Panasonic PT-REZ12WEJ | DLP | 12000 | 28.7 | £14195 | £17034.00 |
