| Categories |
3D Ready Conference / Large Venue HDBaseT Interchangeable Lens Lens Shift Wireless |
| Manufacturer | Vivitek (Click for rest of range) |
Vivitek DU8190Z Optical Features |
|
| System | 1 * 0.67" DMD |
| Resolution | WUXGA (1920*1200) |
| Aspect Ratio | 16:10 |
| ANSI Lumens | 10000 |
| Contrast | 10000:1 |
| Lamp | Laser light source |
| Lamp Life | 20000hrs. (20000hrs. ECO mode) |
| Lens | Click for optional lenses |
| Interchageable | Yes |
| Image Size | 30"-300" diagonal |
| Lens Shift | Ver.+64%; Hor.+24%-14% |
| Keystone Correction | ±40° (Vertical) |
| ±60° (Horizontal) | |
Vivitek DU8190Z Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
| Horizontal Freq. | kHz |
| Vertical Freq. | Hz |

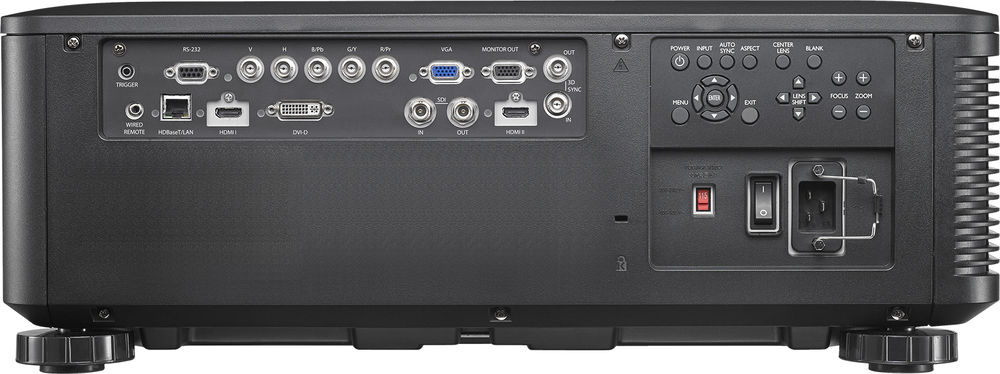

Vivitek DU8190Z Terminals |
|
| DVI | 1 |
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| HD-SDI | 1 |
| Monitor Out | Yes |
| RS-232 | 1 |
| HDBaseT | 1 |
| 12v Trigger | Yes |
| Network Ready | Yes |
Vivitek DU8190Z General |
|
| Speakers | No |
| Remote Control | Vivitek DU8190Z only |
| Noise | 40db |
| Dimensions | 500*205*580mm (W*H*D) |
| Weight | 28.00kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Manufacturers Warranty | 5 year Return to base |
| Light Source Warranty | 3 years/10,000 hours (whichever first) |
Vivitek DU8190Z Package Contents |
|
| Accessories |
VGA Cable User Manual (CD) Quick Start Guide Warranty Card (by region) Remote Controller (with battery) AC Power Cord |
Ivojo Multimedia are approved Vivitek dealers and supply only UK products with full UK warranties.
| Description | Price | Inc. VAT |
| Vivitek D88-UST01B Ultra Short Throw Mirror Lens | £4096 | £4915.20 |
| Vivitek D88-UWZ01 Ultra Short Throw Zoom Lens | £2048 | £2457.60 |
| Vivitek D88-WF18501 Short Throw Fixed Lens | £1341 | £1609.20 |
| Vivitek D88-WZ01 Short Throw Zoom Lens | £1341 | £1609.20 |
| Vivitek D88-ST001 Standard Zoom Lens | £469 | £562.80 |
| Vivitek D88-SMLZ01 Semi Long Zoom Lens | £1341 | £1609.20 |
| Vivitek D88-LOZ101 Long Throw Zoom Lens | £1341 | £1609.20 |
| Vivitek D88-LOZ201 Long Throw Zoom Lens | £1341 | £1609.20 |
| Description | Price | Inc. VAT |
| Seddon Flight Case XL Hard case for projectors weighing over 25kg | £247 | £296.40 |
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| NEC PX1004UL | DLP | 10000 | 28 | £13428 | £16113.60 |
| Epson EB-L1490U | LCD | 9000 | 23.7 | £8427 | £10112.40 |
| Epson EB-L1495U | LCD | 9000 | 23.7 | £8427 | £10112.40 |
| Digital Projection E-Vision Laser 10K | DLP | 10500 | 28 | £9992 | £11990.40 |
| Panasonic PT-DZ10KE | 3 CHIP DLP | 10600 | 24 | £24273 | £29127.60 |
| Panasonic PT-RZ970BEJ | DLP | 10000 | 23.2 | £12227 | £14672.40 |
| Panasonic PT-RZ970LBEJ | DLP | 10000 | 23.2 | £11576 | £13891.20 |
| Panasonic PT-RZ970LWEJ | DLP | 10000 | 23.2 | £11576 | £13891.20 |
| Panasonic PT-RZ970WEJ | DLP | 10000 | 23.2 | £13562 | £16274.40 |
