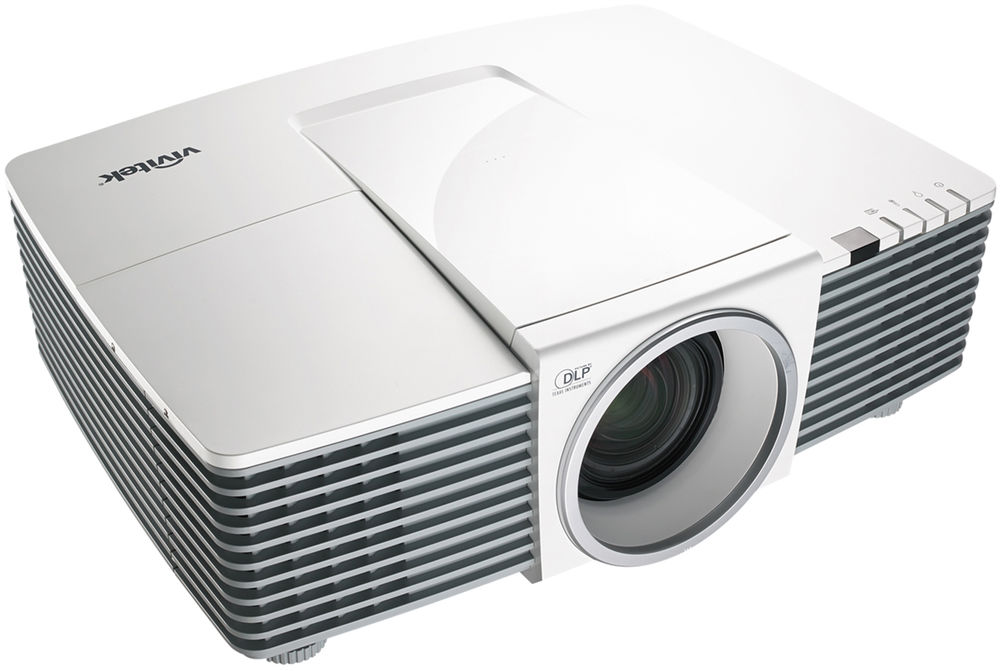

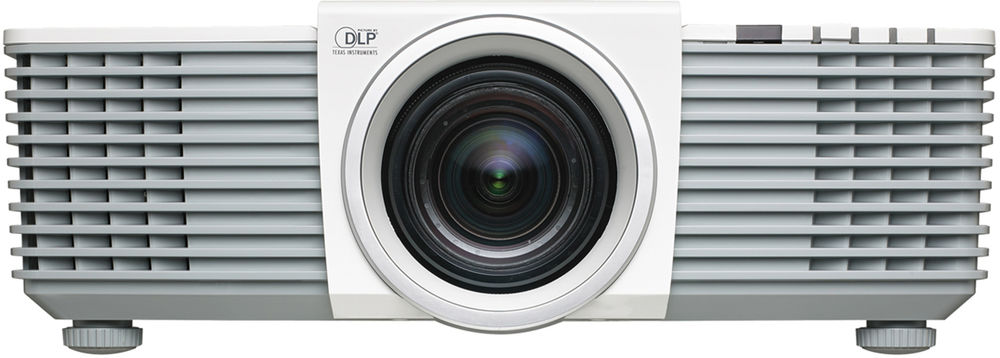

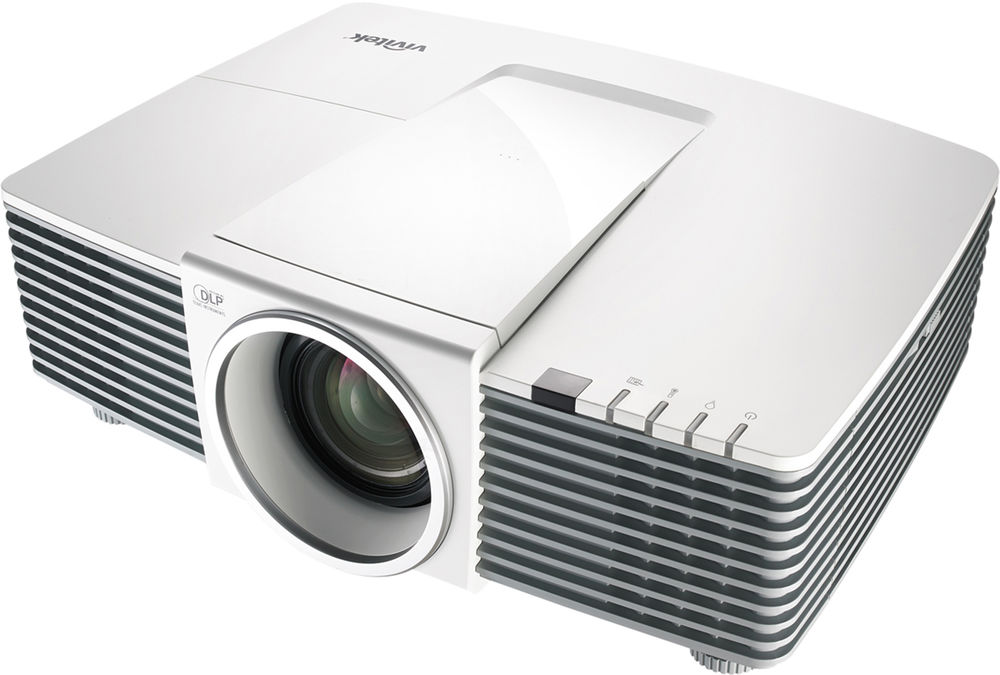

Vivitek DU3341 Projector

No Longer Available

Click for Current Vivitek range

Vivitek DU3341 Key Features

• DLP Display Technology
• 5,200 Lumens
• WUXGA 1920*1200 Native Resolution
• 1,500 hour lamp life (typical)
• 10,000:1 Contrast Ratio
• 8.4kg (18.5lb.)
• Wide zoom range for flexible placement
• Native Widescreen
• Lens Shift
• 12v Trigger
• Horizontal & Vertical Keystone Correction
• HDBaseT
• MHL
• Lens-centred Design
• PIN Code Security
• DICOM Simulation Mode
• 3D Projection Ready
• Monitor Out
• Network Control

Vivitek DU3341 Downloads

Brochure

Instruction Manual

• Boardroom Projectors
• Conference rooms (20 - 50 people)
• Medical Imaging

Vivitek DU3341 Specifications

Categories	HDBaseT Installation HD Lens Shift Short Throw Zoom
Manufacturer	Vivitek (Click for rest of range)
Vivitek DU3341 Optical Features
System	1 * 0.67" DMD
Resolution	WUXGA (1920*1200)
Aspect Ratio	16:10
Lumens	5,200
Contrast	10,000:1
Lamp	370W/280W
Lamp Life	1,500hrs. (3,500hrs. ECO mode)
Interchangeable	No
Zoom Range	1.7x
Throw Ratio	1.25 – 2.13:1
Suggested Max Size (60ft.lamberts)	122.38 * 76.49 in. (144 in. diagonal) (311 * 194cm)
Image Size	22" – 371" diagonal
Throw Distance	1.00 – 10.00m
Throw distance for 100" image	2.69 – 4.59m
Lens Shift	Vertical: +20.8% -12.1% Horizontal: 10.3
KeystoneCorrection	±30° (Vertical)
	±25° (Horizontal)
Vivitek DU3341 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq.	15,31-91kHz
Vertical Freq.	24-30, 4Hz

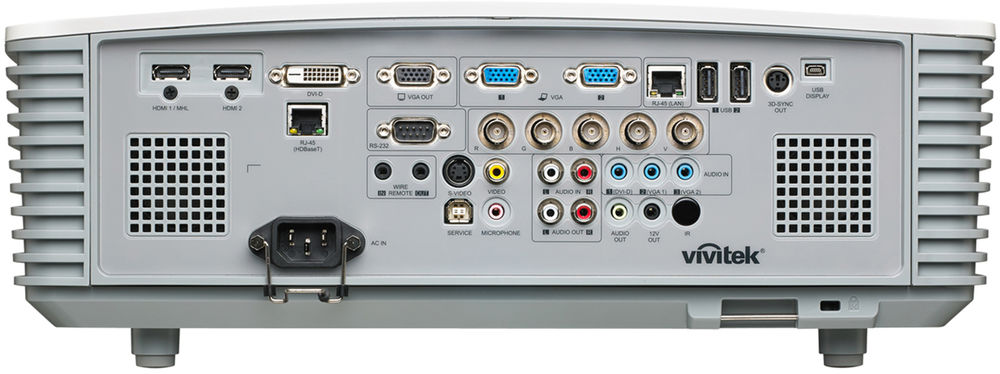

Vivitek DU3341 Connectivity
DVI	1
HDMI	2
RGBHV (15-pin HD)	2
RGBHV (BNC/RCA)	1
S-Video	1
Composite	1
Monitor Out	Yes
Audio In	5
Audio Out	2
USB	2
RS-232	1
HDBaseT	1
Network Ready	Yes
12v Trigger	Yes
Vivitek DU3341 General
Speakers	7W Stereo
Remote Control	Vivitek DU3341 only
Noise	36db (30db ECO mode)
Dimensions	445×160×330mm (W×H×D)
Weight	8.40kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	480Watts
Manufacturers Warranty	3 year RTB
Light Source Warranty	1 year/1000 hours (whichever first)
Vivitek DU3341 Package Contents
Accessories	AC Power Cord VGA Cable Remote Control Filter Documentation Kit

Ivojo Multimedia are approved Vivitek dealers and supply only UK products with full UK warranties.

Vivitek DU3341 Accessories

Projector ceiling mounts and brackets

Projection Screens

Twisted pair extenders, distribution and switching

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

Scalers, EDID emulators, multi-windows processors and capture hardware
